High-performance automatic flat surface label applicator head, designed for integration with assembly lines. PLC-controlled high-precision labeling for boxes, pouches, bags, and flat products. Adjustable multi-axis design for easy installation and stable operation, ideal for food, cosmetics, and daily chemical packaging.

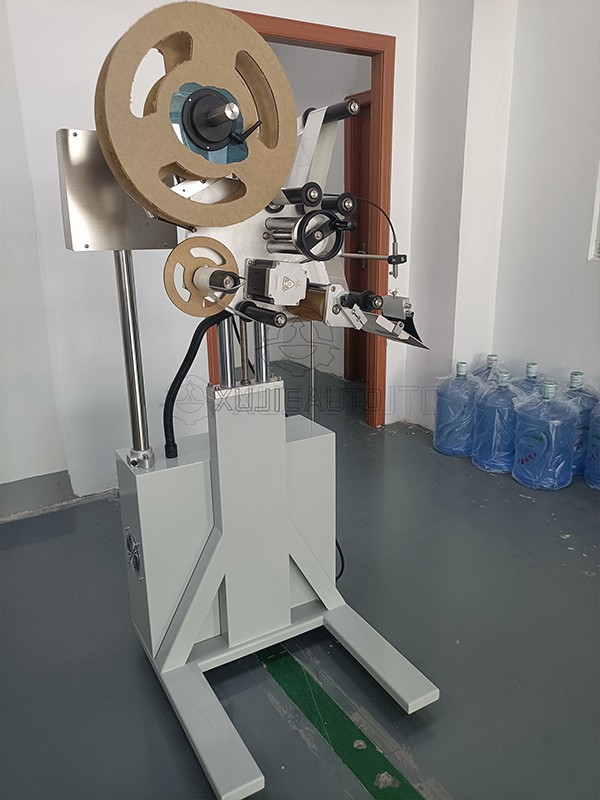

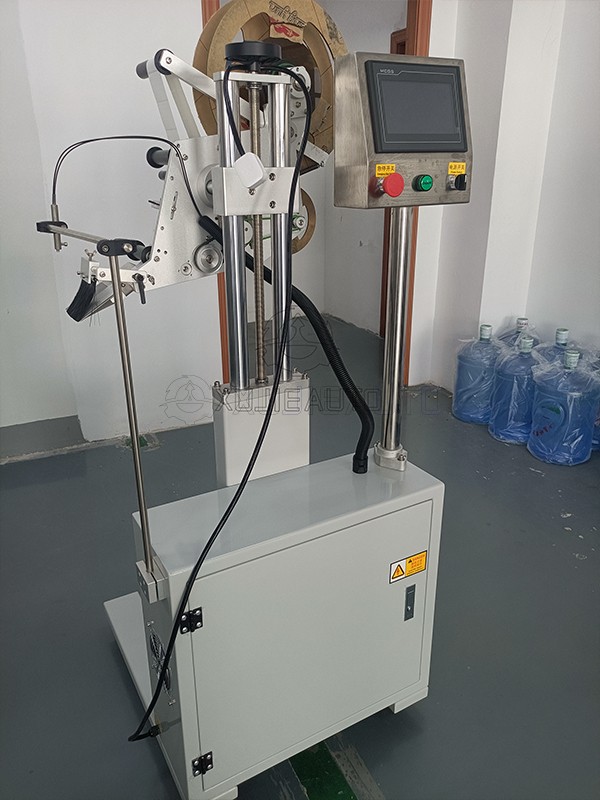

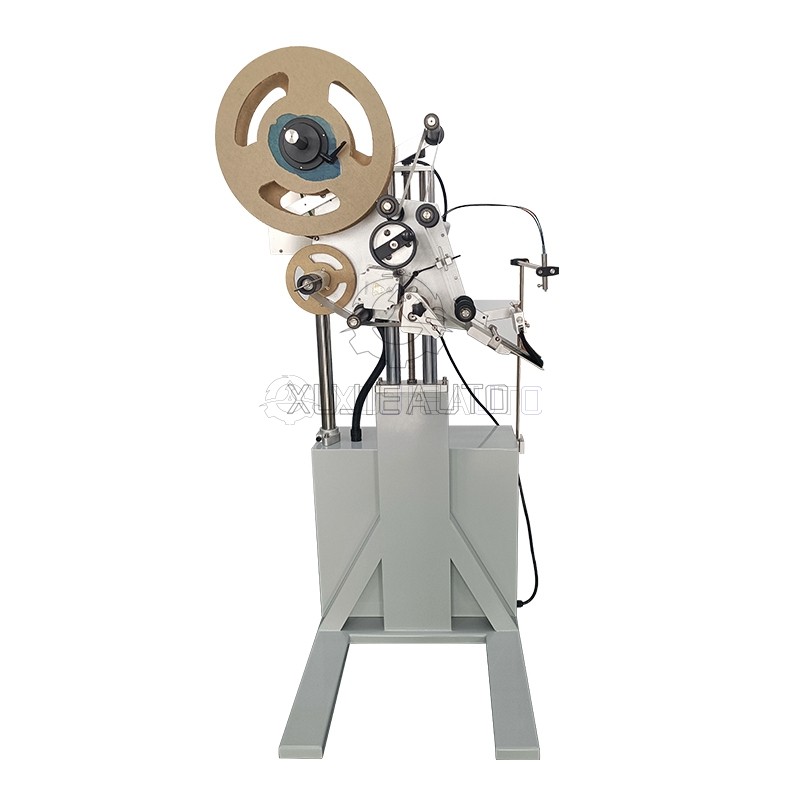

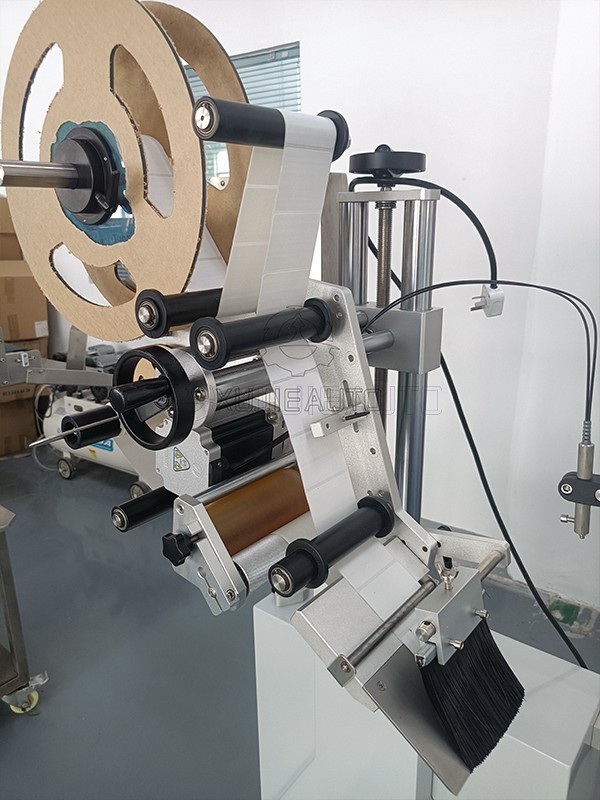

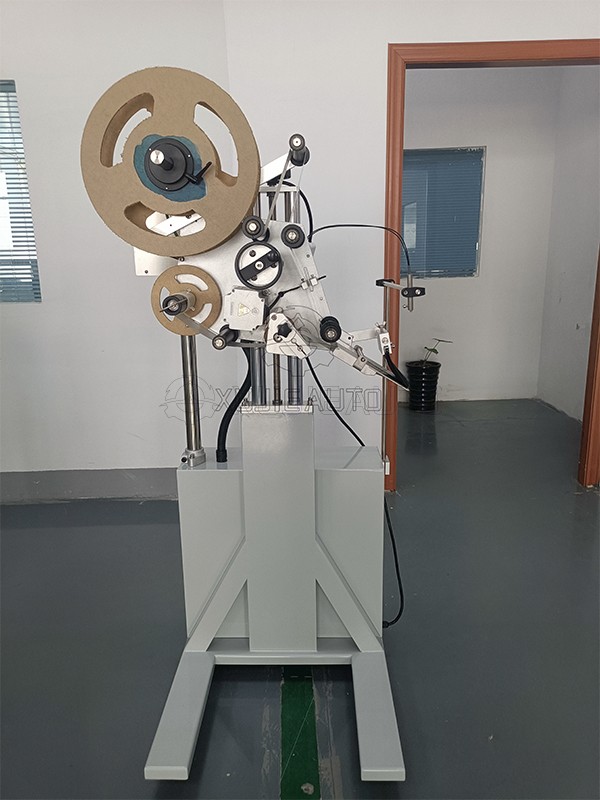

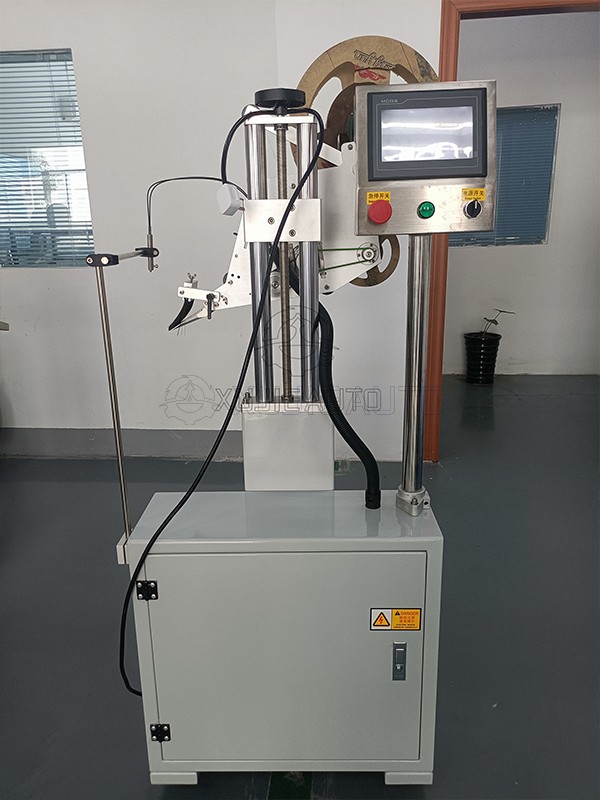

This automatic flat surface label applicator head is a modular, high-performance labeling solution designed for seamless integration with existing assembly lines, conveyor systems, and packaging machines. Built for industrial-grade use, it applies self-adhesive pressure-sensitive labels with exceptional precision on flat, top, and slightly curved surfaces of boxes, pouches, bags, cartons, and other rigid or semi-rigid products.
Featuring a PLC-controlled drive system and high-torque stepper motor, this labeling head ensures consistent label placement accuracy of ±1mm, even at high line speeds up to 60-120 labels per minute. The adjustable multi-axis mechanical arm and compact footprint allow flexible installation, making it ideal for both new production lines and retrofitting into legacy packaging equipment. Constructed with stainless steel and aluminum alloy, it delivers reliable performance in food, cosmetics, pharmaceutical, and daily chemical packaging environments.
Label Width: 10–150 mm (customizable for special sizes)
Label Length: 10–300 mm (customizable for special sizes)
Label Roll Inner Diameter: 76 mm (standard core)
Label Roll Outer Diameter: ≤350 mm
Labeling Accuracy: ±1 mm (excluding product and label errors)
Production Speed: 60–120 pcs/min (depends on product size and line speed)
Control System: PLC + High-precision stepper motor drive
Power Supply: 220V/50Hz (customizable for 110V/60Hz or other regional standards)
Power Consumption: 400–600 W
Machine Material: SUS304 stainless steel + high-grade aluminum alloy
Mounting Type: Vertical adjustable stand (custom brackets available for line integration)
Machine Dimension: 1100 × 700 × 1450 mm (L×W×H)
Net/Gross Weight: 80 kg / 100 kg
|
Packaging |
By container or standard export packing per machine |
| Delivery time |
15-30 days after payment received |
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
