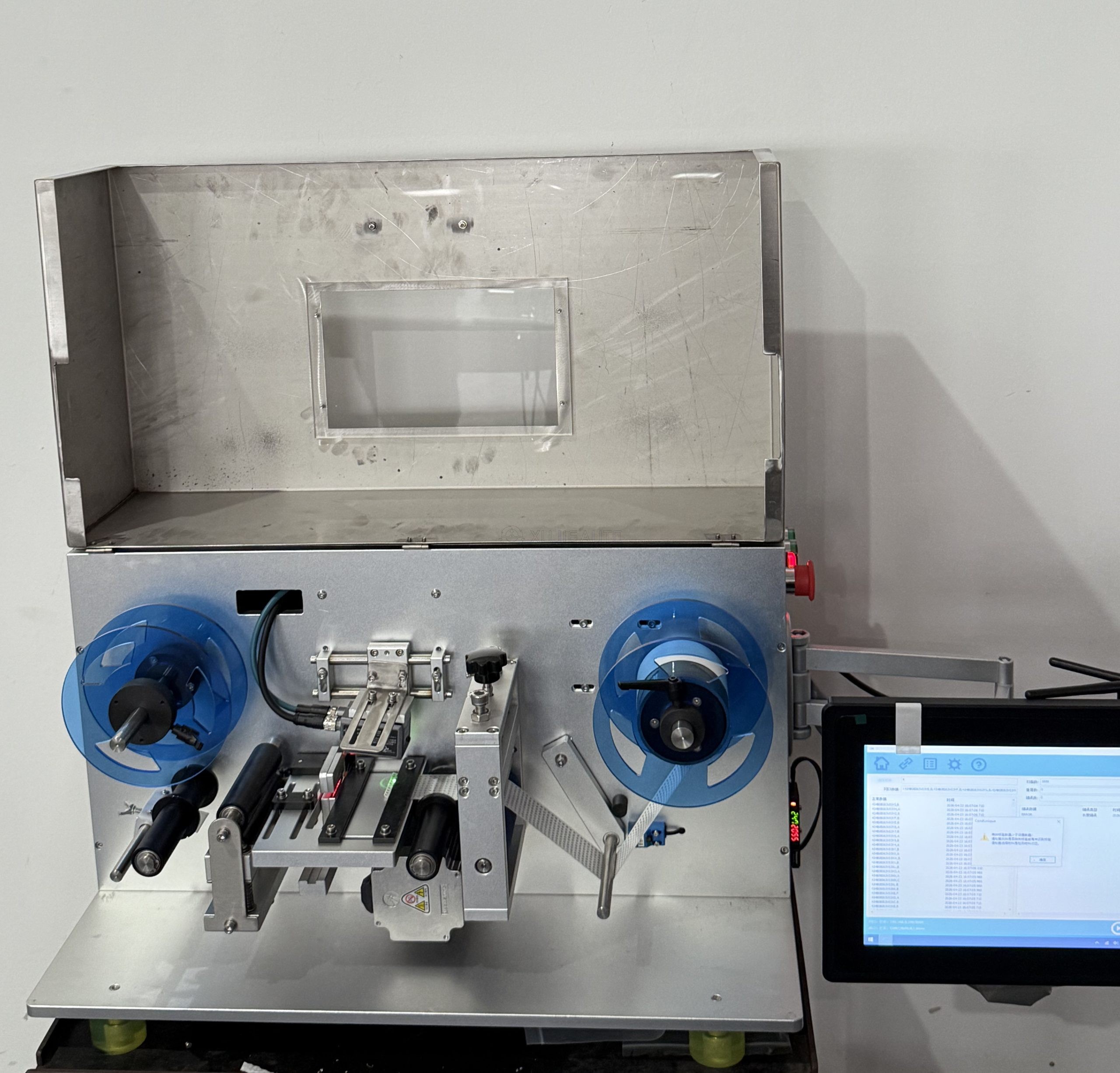

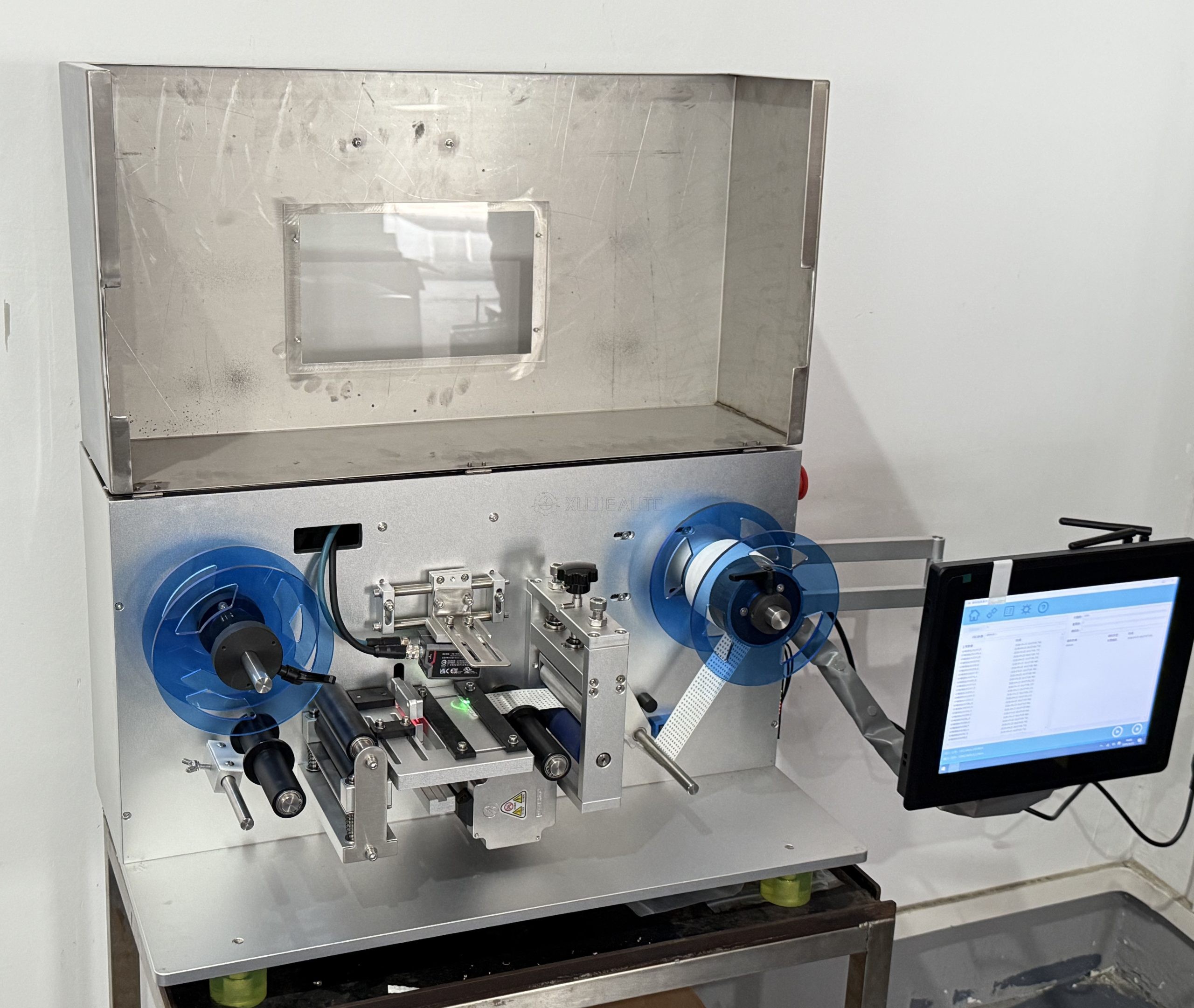

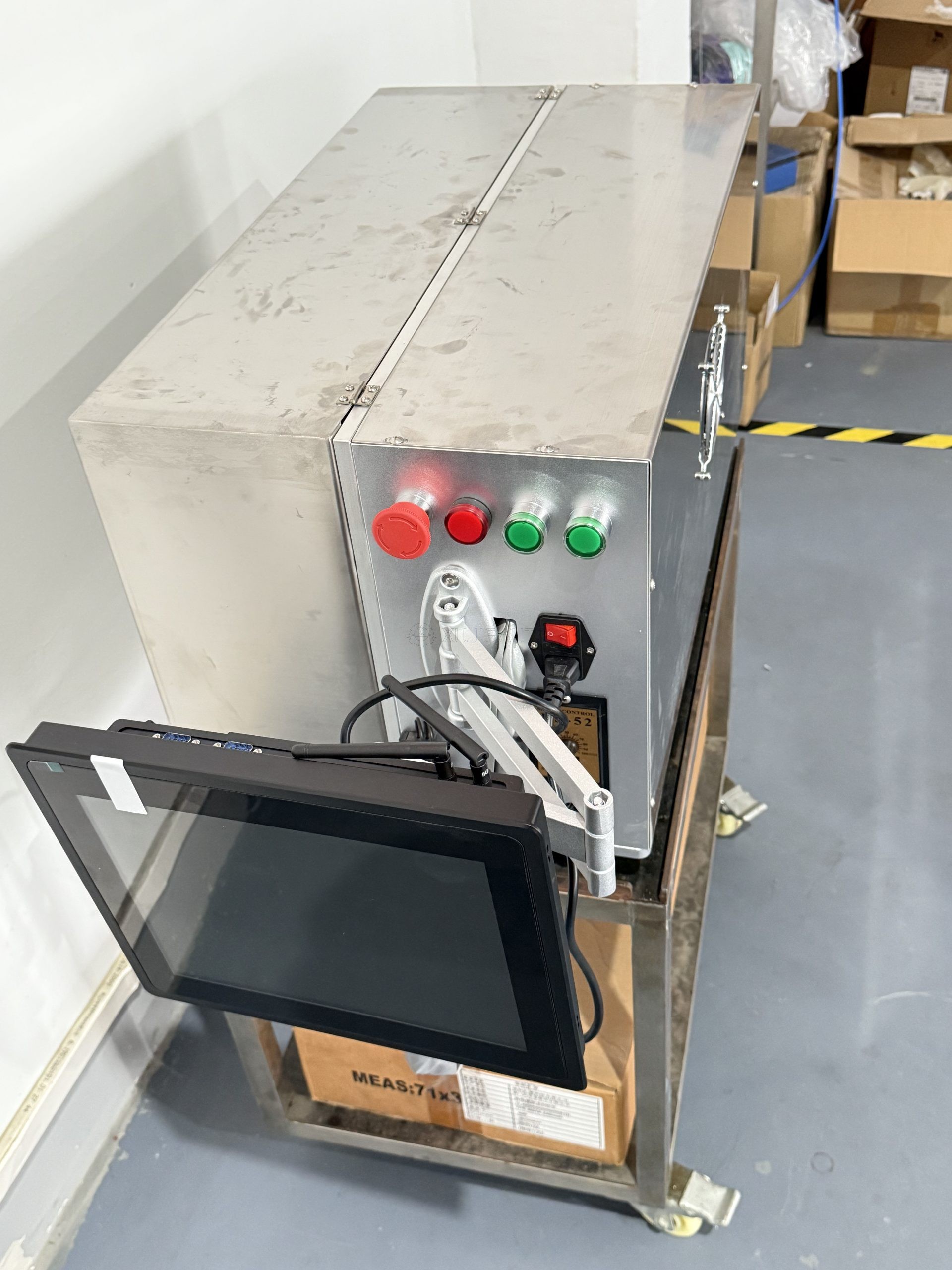

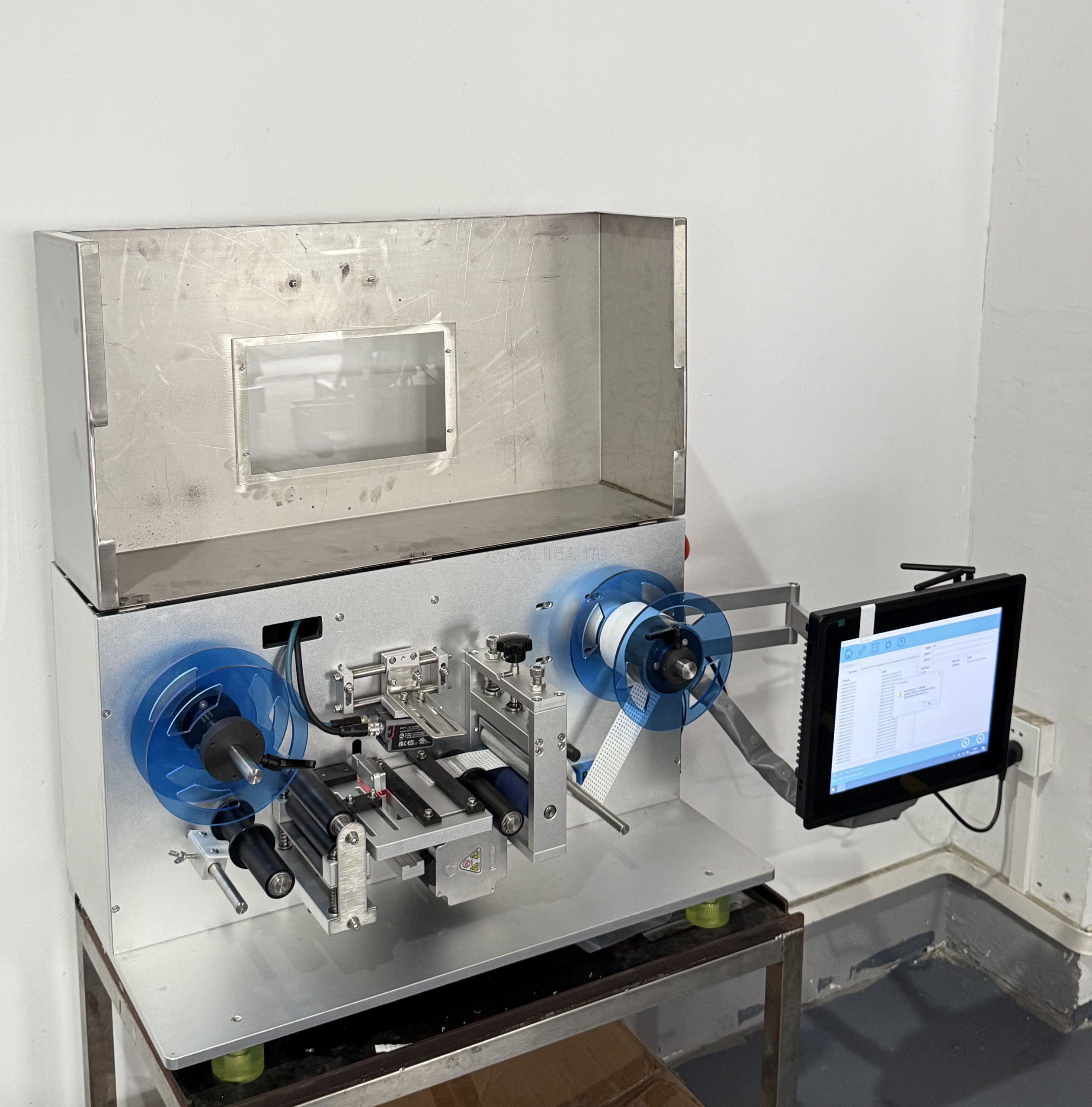

Automatic Label Rewinding Machine with Print Inspection

The Automatic Label Rewinding Machine with Print Inspection System is a high-efficiency solution for label winding, counting, and quality control. Designed for the packaging industry, it rewinds labels while detecting printing errors, missing codes, and misprints in real time. It works seamlessly with label printers and applicators to ensure only qualified labels are used in production.

High-Speed Rewinding: Supports rewinding speeds up to 300m/min (varies by label size). Suitable for small and large label rolls.

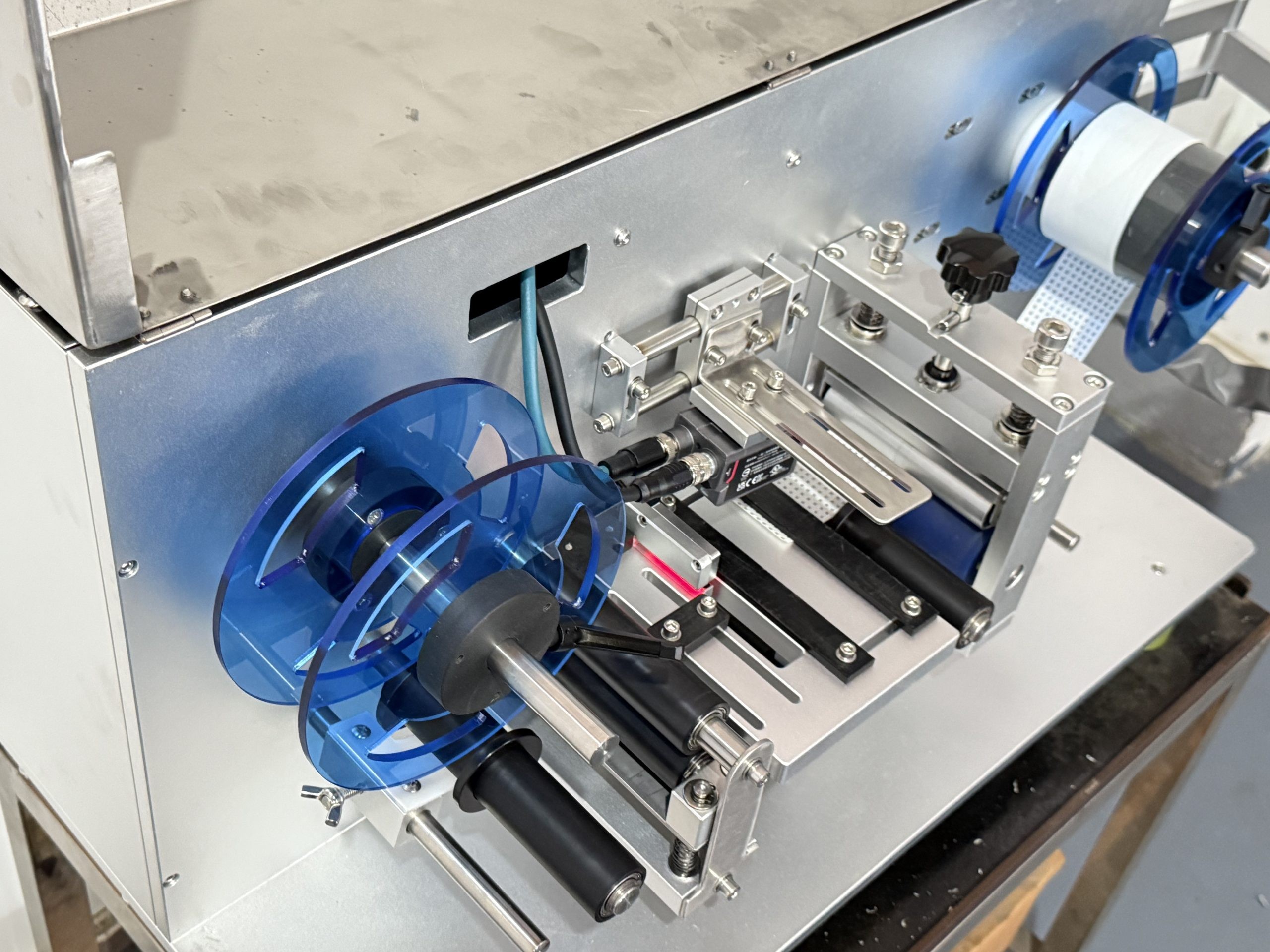

Print Inspection System: Built-in camera detects missing prints, text errors, color deviations, and barcode readability. Automatically marks defective labels.
Accurate Counting & Batch Control: Precise label counter tracks the number of labels. You can set target quantities for automatic stop.
Adjustable Tension Control: Electronic tension control ensures smooth winding without label stretching or wrinkling.

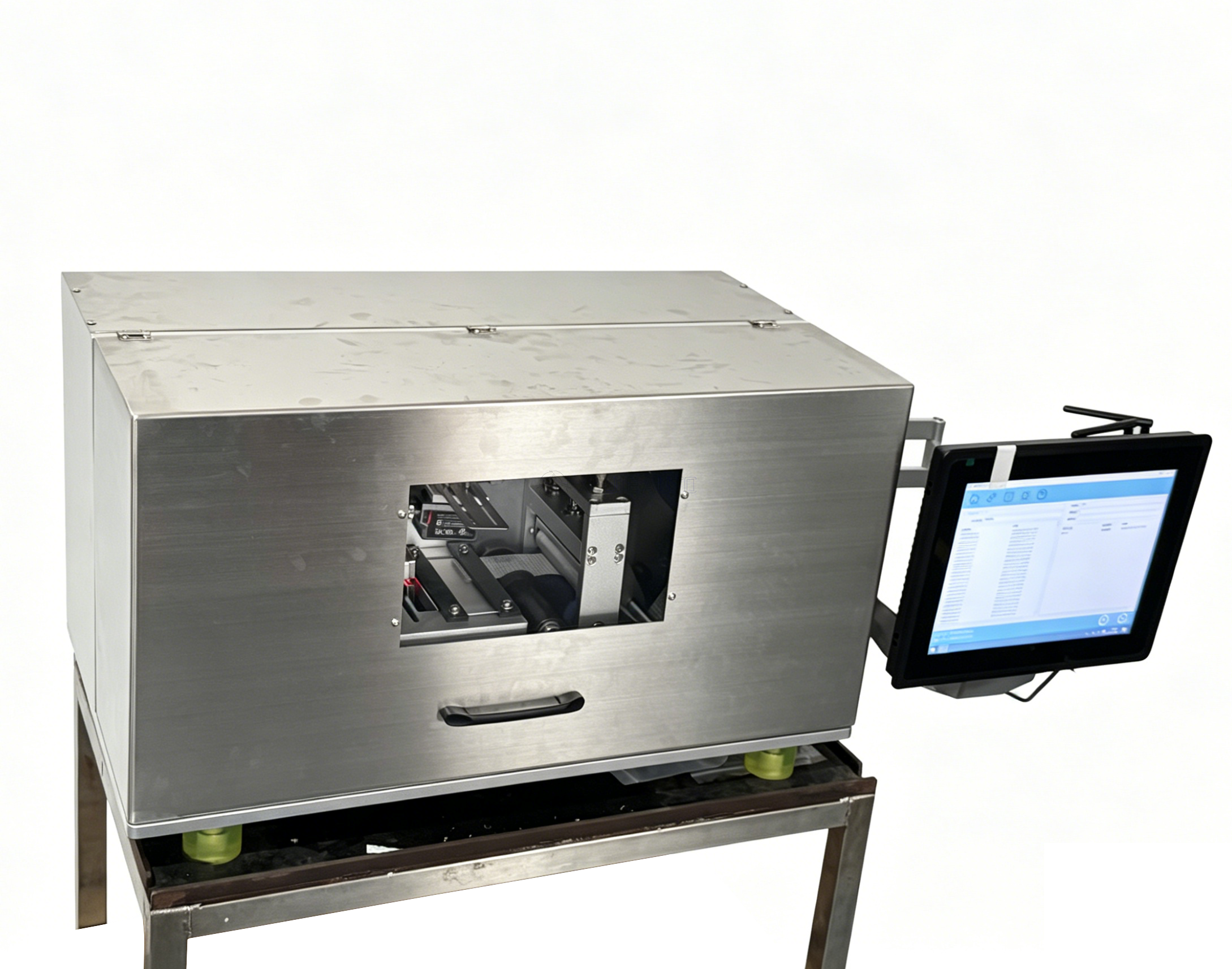

Stainless Steel Construction: Main body made of SUS304 stainless steel, durable and easy to clean.
User-Friendly Touch Screen: Simple interface for setting speed, count, and inspection parameters. Multiple language options available.
Reversible Rewinding Direction: Supports clockwise and counter-clockwise winding to fit different production needs.
Optional Integration: Compatible with label printers, slitting machines, and production line systems.

Rewinding Speed :              10-300 m/min

Max Label Width:                350 mm (customizable)

Max Roll Diameter :           300 mm

Core Inner Diameter :        76 mm (3 inches)

Counting Accuracy :           ±1 label

Inspection Resolution :     0.1 mm

Power Supply:                     110V/220V 50/60Hz

Power :                                  300W

Control System:                   PLC + Touch Screen

Machine Dimension:          800×600×700 mm (approx.)

Weight :                                 120 kg

Packaging:

By container or standard export packing per machine

Delivery time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to  ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
