High-speed inline vision inspection conveyor with multi-camera scanning for barcode verification, quality control & traceability. PLC controlled, SUS304 construction, customizable available.

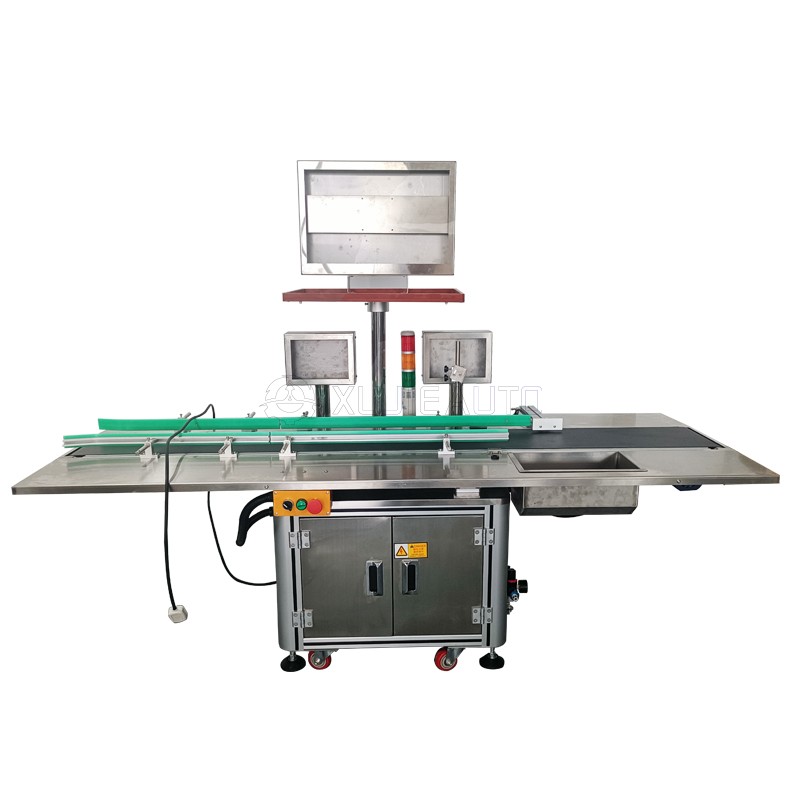

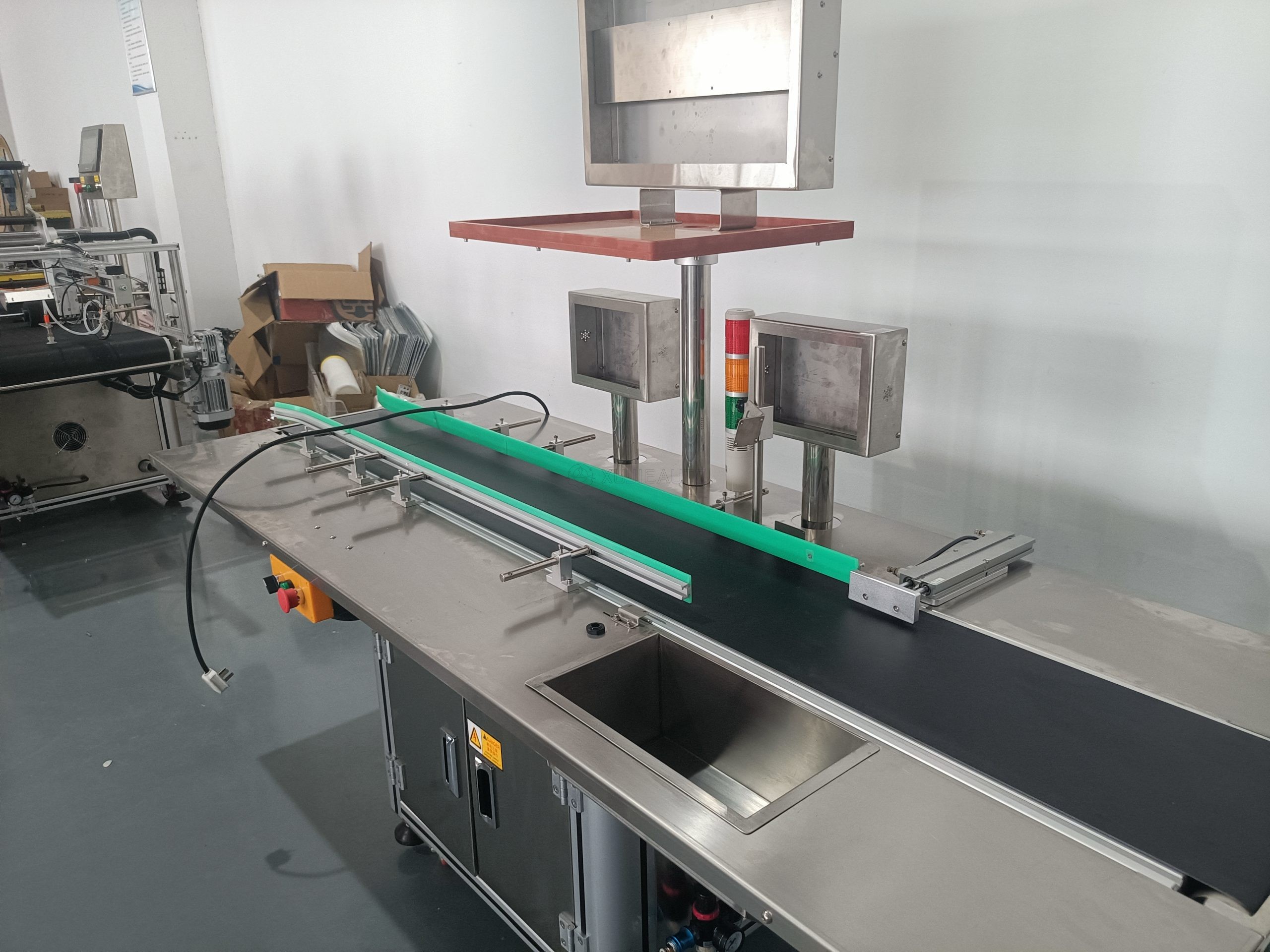

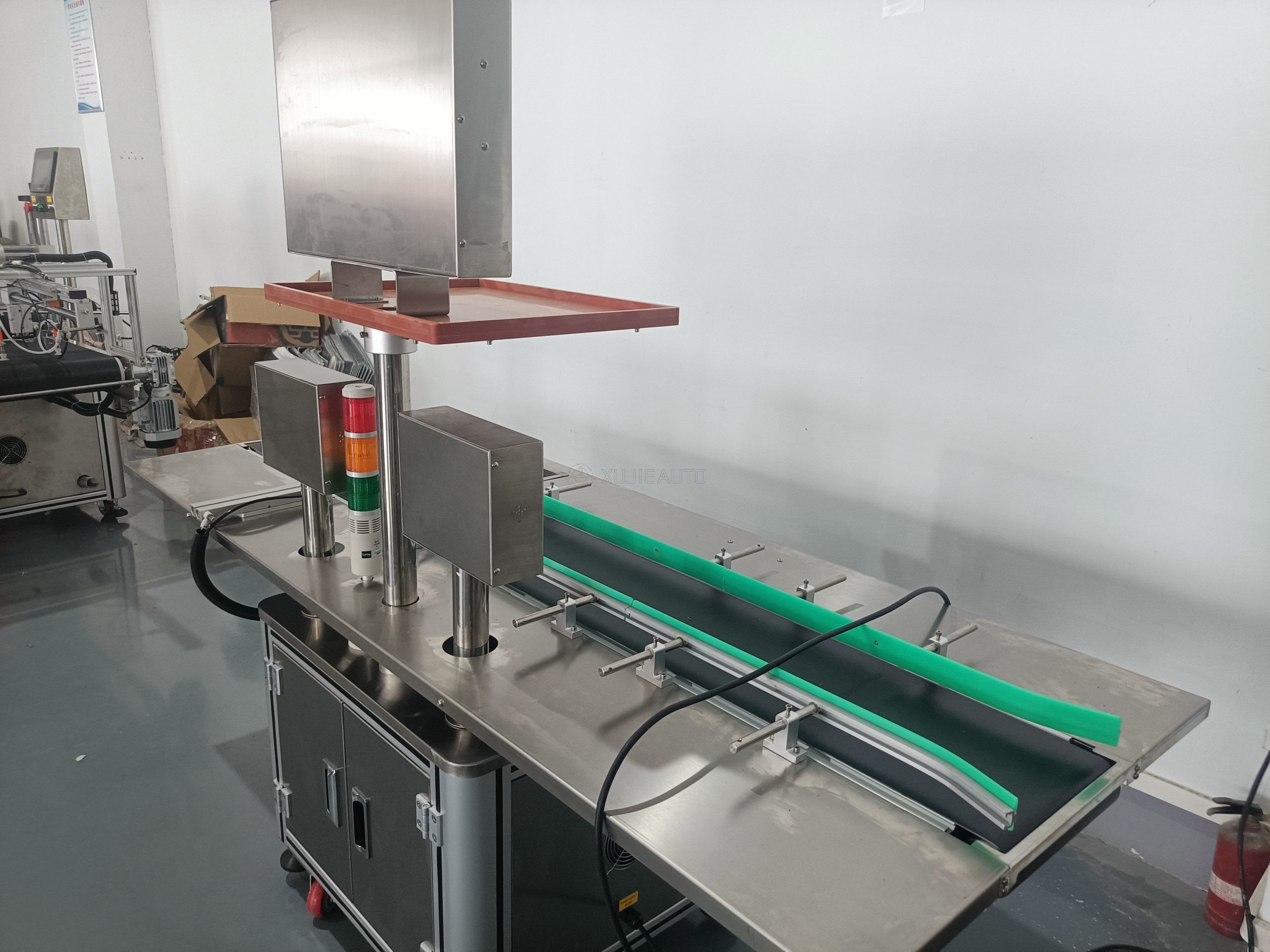

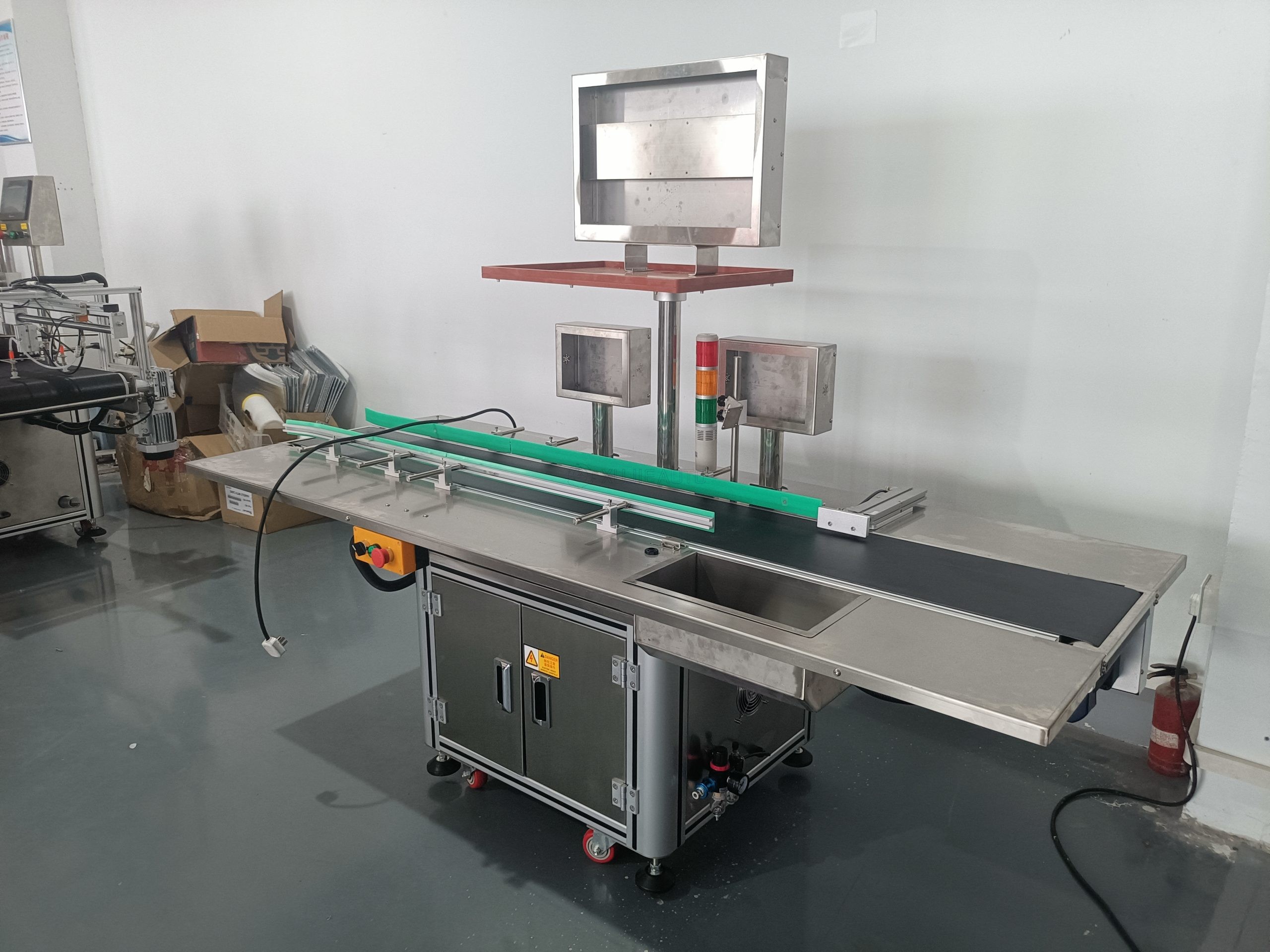

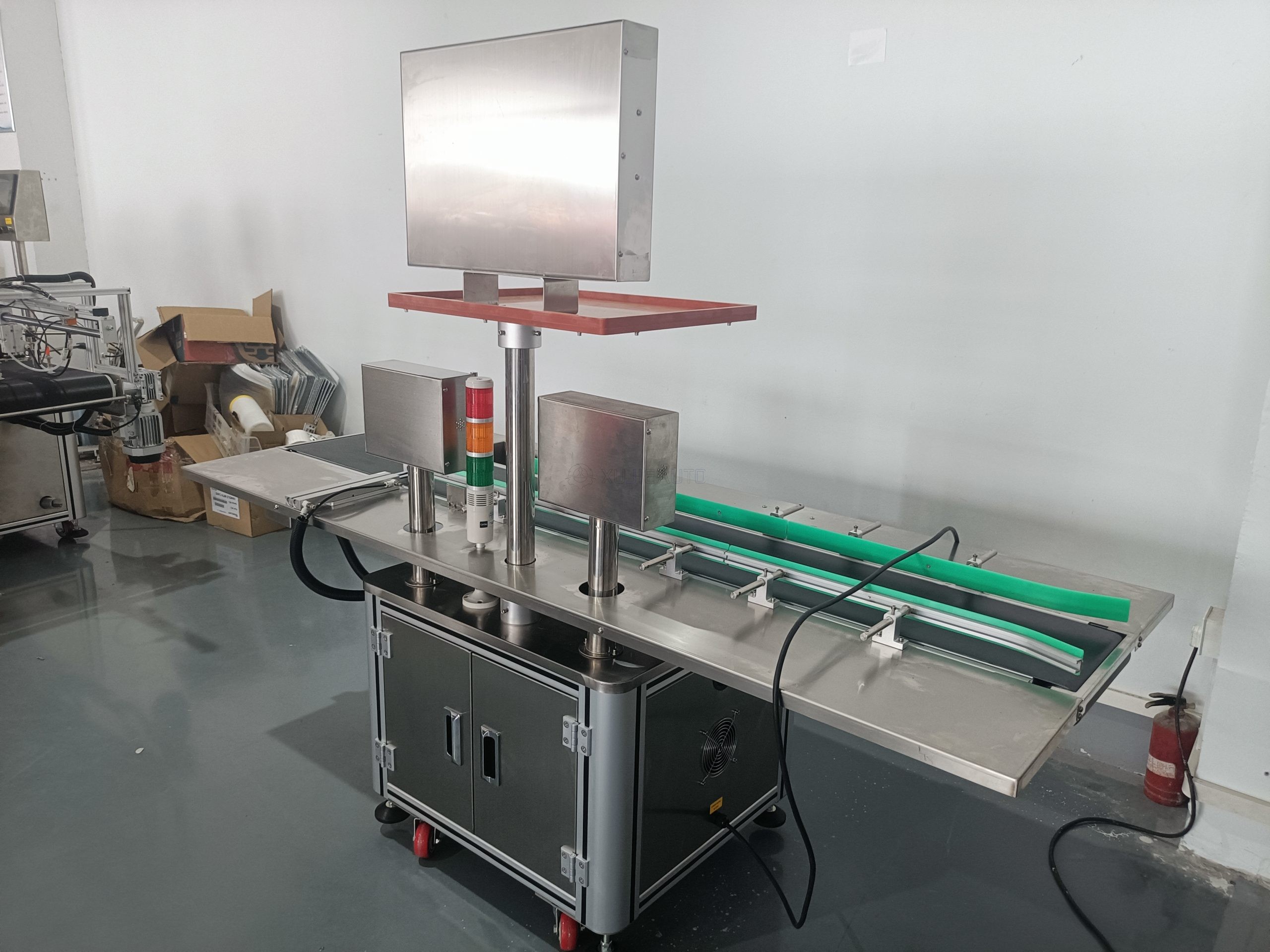

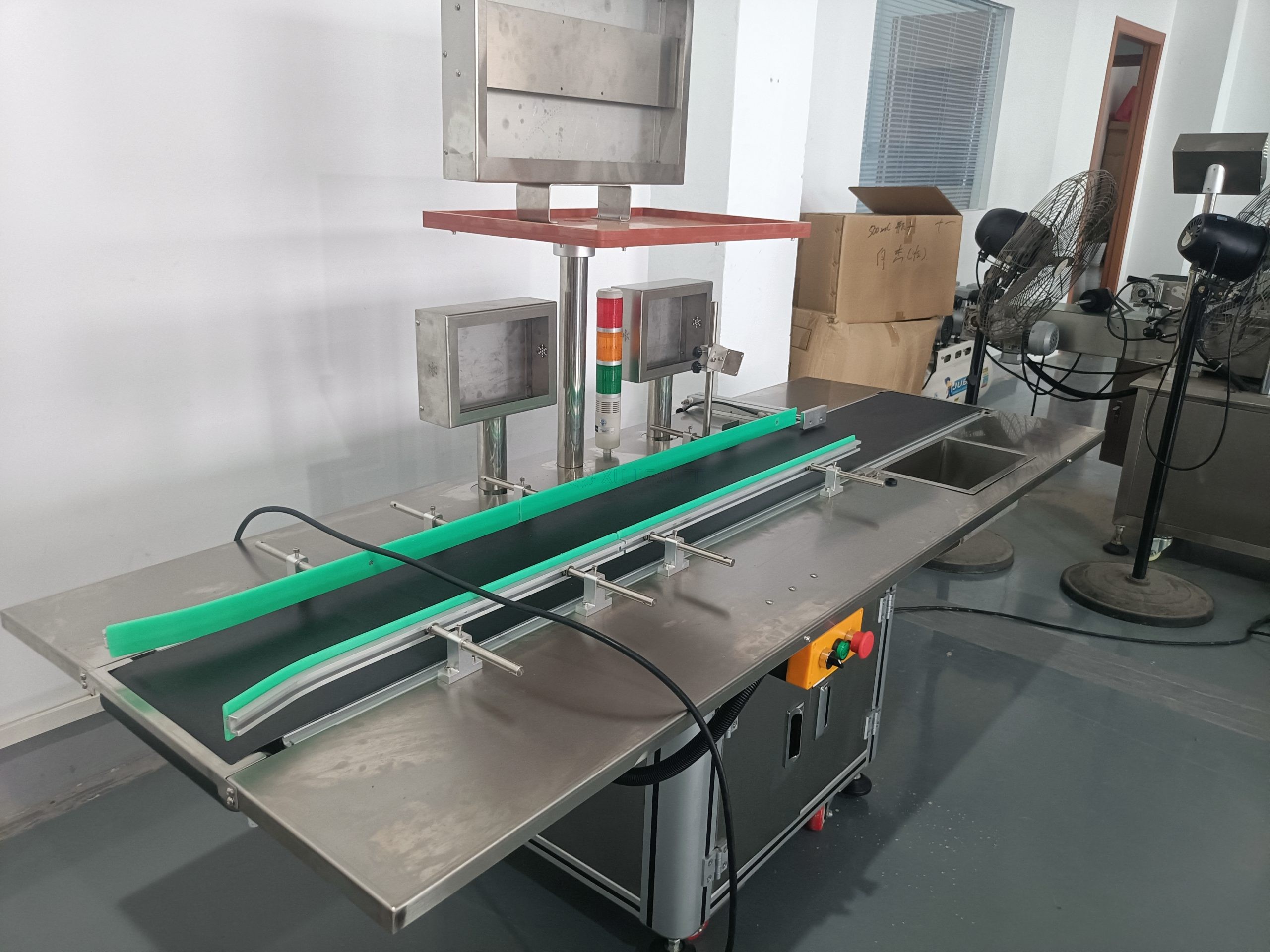

This Inline Vision Inspection Conveyor System integrates multi-camera vision modules with high-speed scanning. It is designed for real-time quality control and product traceability in packaging lines.
Multi-Camera Vision Scanning System
High-Speed Traceability & Verification
Flexible Conveyor Design for Flat Products
Intelligent Alarm & Sorting Function
Stable & Reliable Control System
Easy Integration & Customization
Conveyor Type: SUS304 Stainless Steel Belt Conveyor (Horizontal)
Speed: 5–30 m/min (Adjustable via VFD)
Width: 100–400 mm (Customizable)
Suitable Products: Pouches, Cartons, Boxes, Flat Packages
Cameras: Multi High-Resolution Industrial Cameras (2MP/5MP Optional)
Scanning: 1D Barcode (EAN/UPC/Code128), 2D Code (QR/Data Matrix)
Accuracy: ±0.1 mm (Label Position), Real-Time Code Reading
Control: PLC + 7″ HMI Touch Screen (MCGS)
Alarm: Three-Color Tower Light + Audible Alarm
Rejection: Air Cylinder / Pusher Type (Optional)
Power Supply: 220V / 50Hz / 1P
Power: ~1200 W
Weight: ~250–350 kg
Dimension: L2000 × W600 × H1500 mm (Customizable）
|
Packaging |
By container or standard export packing per machine |
| Delivery time |
15-30 days after payment received |
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
