Automatic Side Labeling Head for Production Line

The Automatic Side Labeling Head is a modular labeling solution designed for integration into existing production lines. It applies self-adhesive labels to the side of various products, including boxes, bottles, cans, and flat containers. Widely used in food, cosmetics, pharmaceuticals, and logistics industries, this labeling head provides high-speed, accurate labeling without disrupting the production flow.

✅Line Integration Ready
Compact, standalone design for easy installation on conveyor systems. Works with new or existing production lines.

✅ High Labeling Accuracy (±1mm)
Advanced sensor and servo control ensure precise label placement on product sides, with no skewing or bubbles.

✅ Adjustable Height & Angle
Fully adjustable stand and labeling head to fit different product sizes, heights, and conveyor speeds.

✅ Wide Compatibility
Supports self-adhesive labels, opaque or transparent. Works with flat, curved, and irregular side surfaces.

✅ Stainless Steel & Durable Build
Labeling mechanism is made of SUS304 stainless steel, suitable for wet or hygiene-sensitive production environments.

✅ PLC & Touch Screen Control
User-friendly interface allows quick setup of label speed, position, and counting parameters. Multiple language options available.

✅ High-Speed Operation
Works with conveyor speeds up to 60m/min (varies by label and product size).

✅ Optional Dual-Head Setup

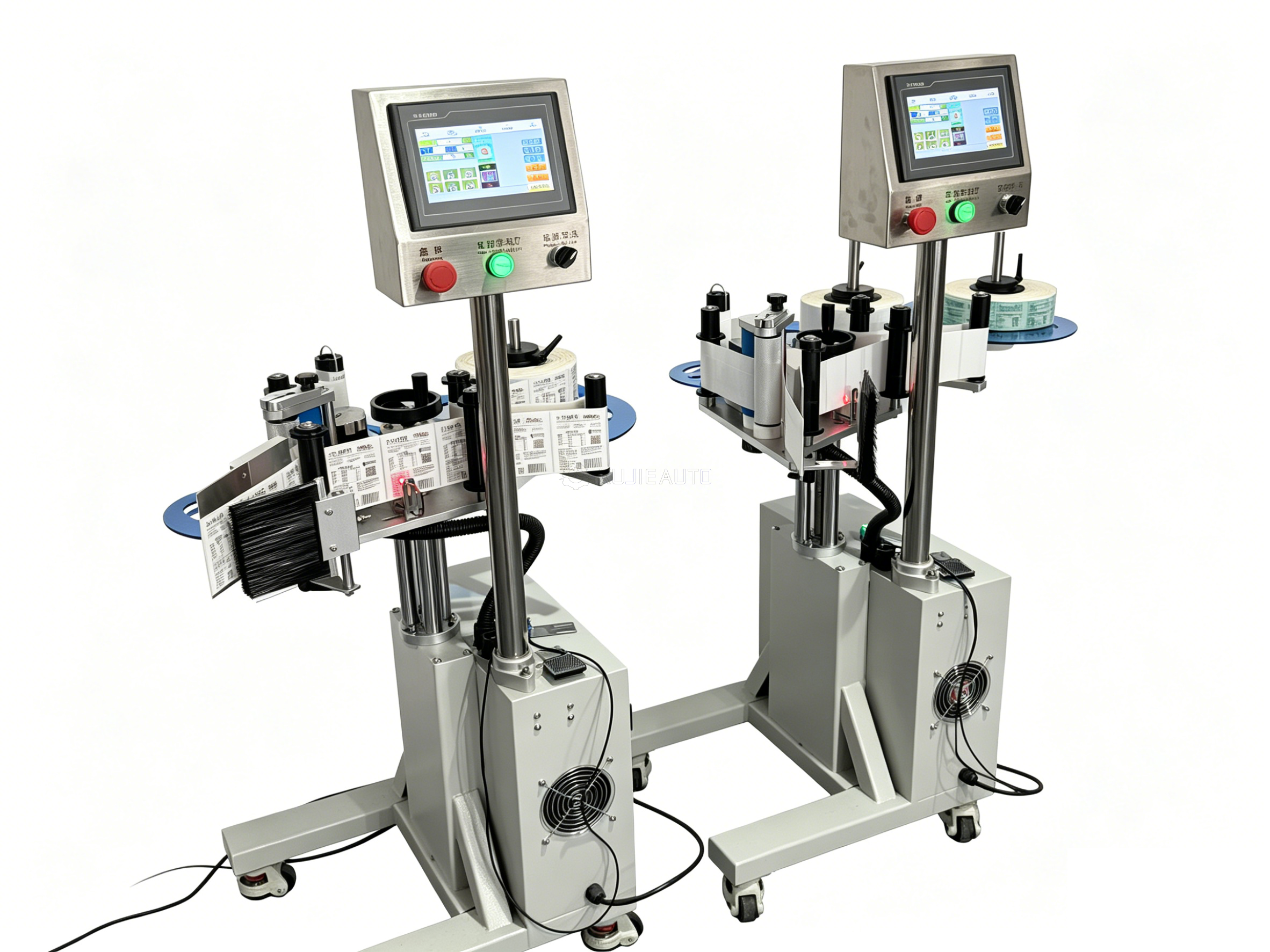

Can be paired with a second labeling head for simultaneous double-side labeling.

Labeling Accuracy :                  ±1.0 mm

Applicable Label Width :         10-150 mm

Applicable Label Length :        10-300 mm

Conveyor Speed :                       Up to 60 m/min

Power Supply :                           110V/220V 50/60Hz

Power :                                         150W

Control System :                        PLC + Touch Screen

Machine Material :                   SUS304 + Aluminum Alloy

Stand Adjustment Range :      0-300 mm (height)

Machine Dimension :               500×400×1200 mm (approx.)

Weight :                                       80 kg

Packaging:

By container or standard export packing per machine

Delivery time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to  ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
