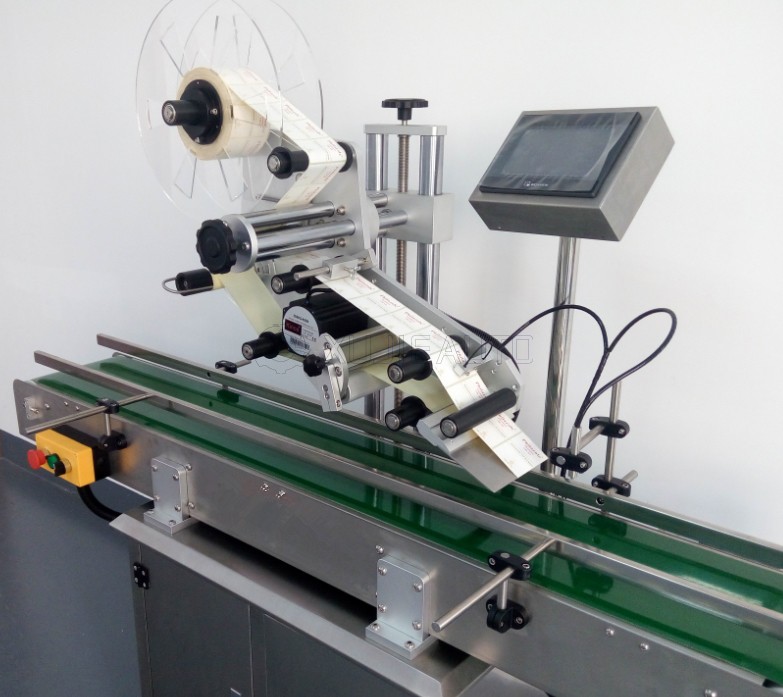

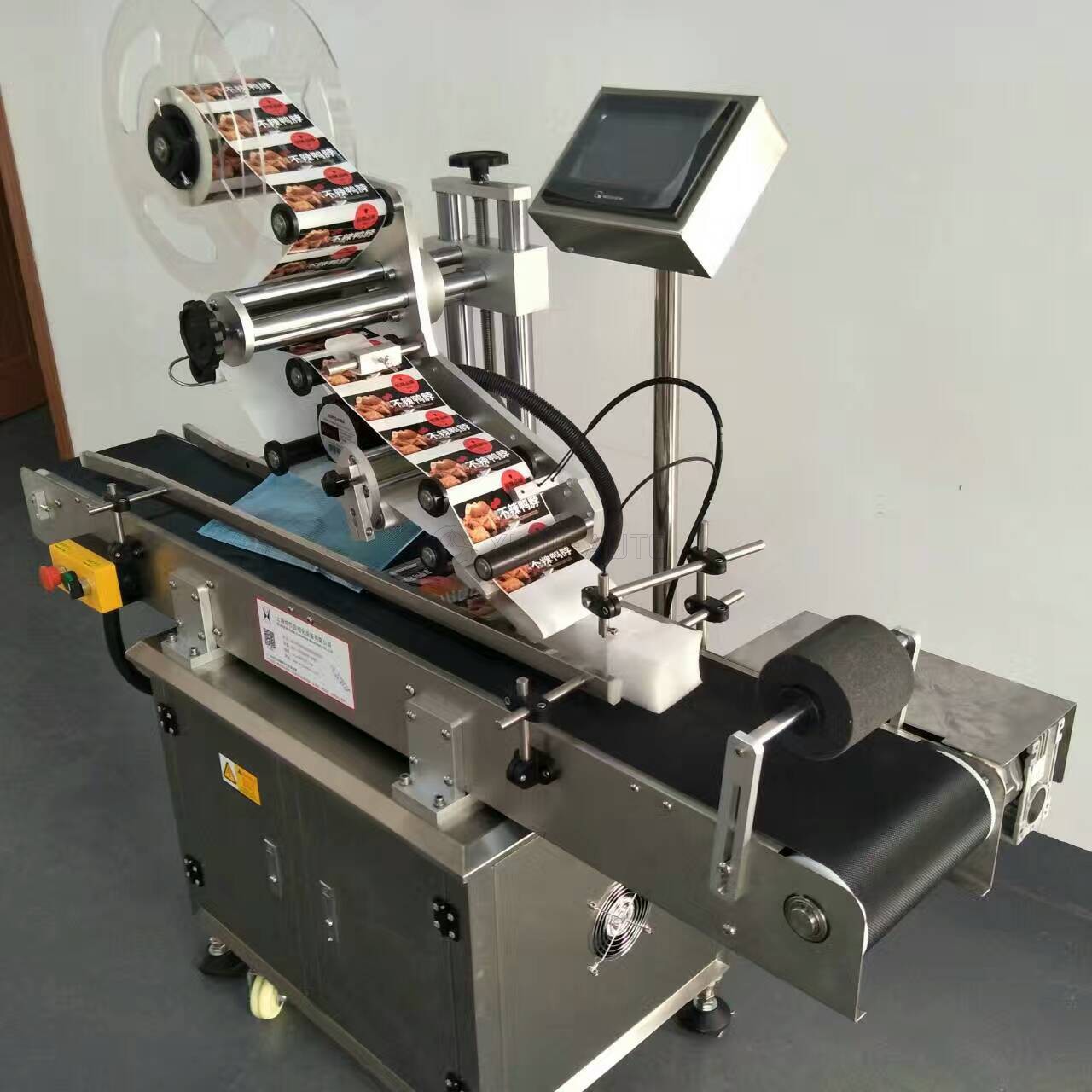

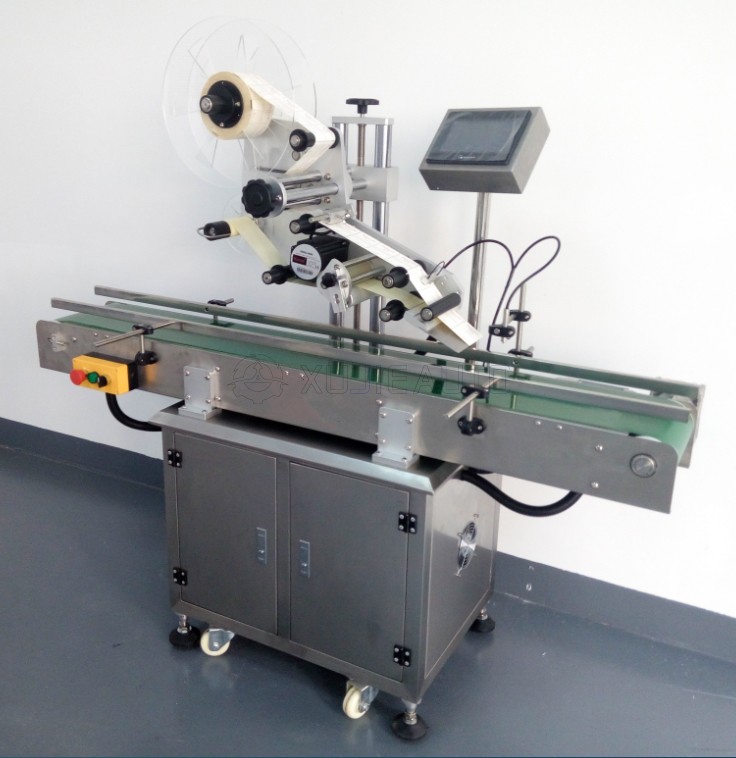

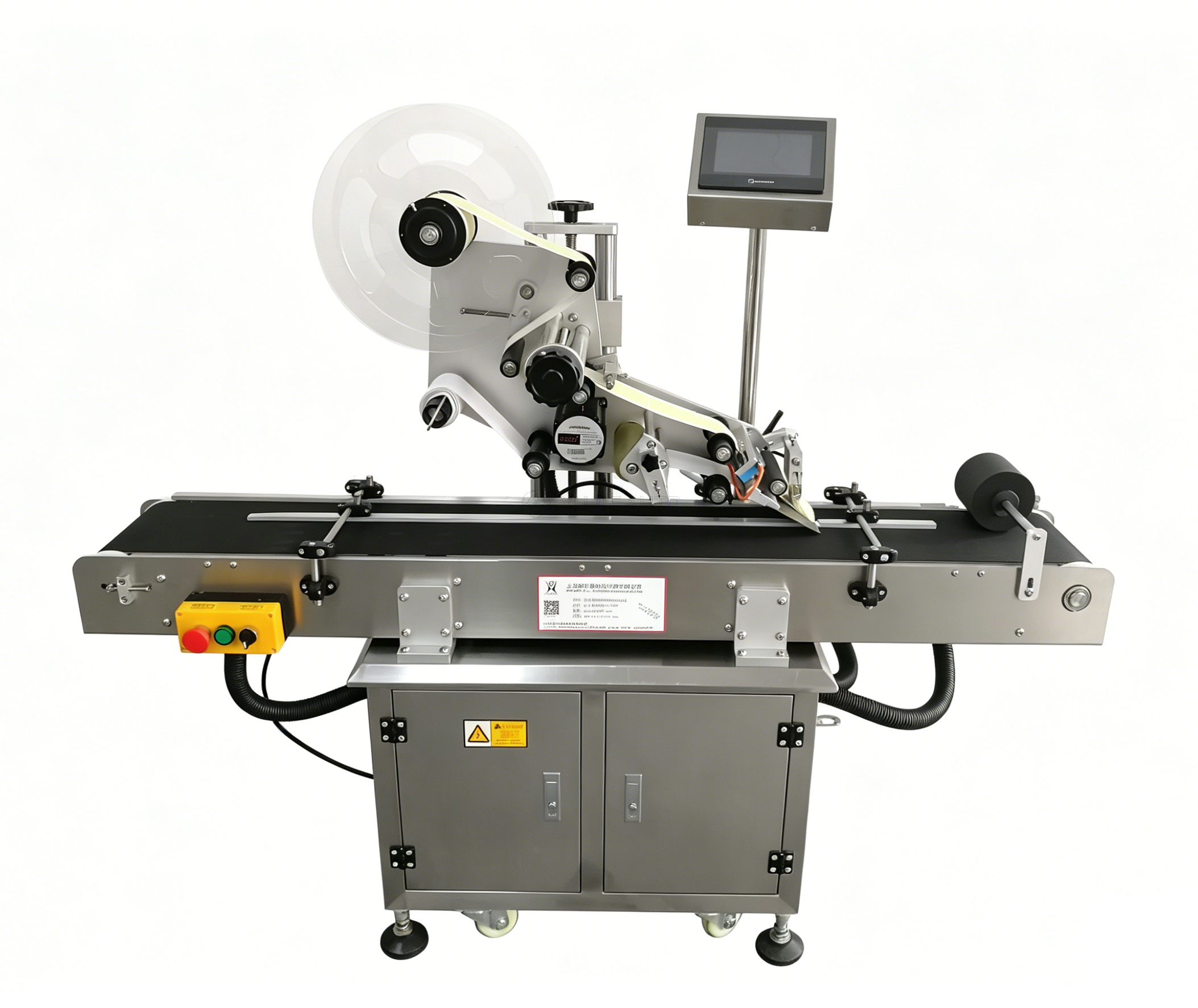

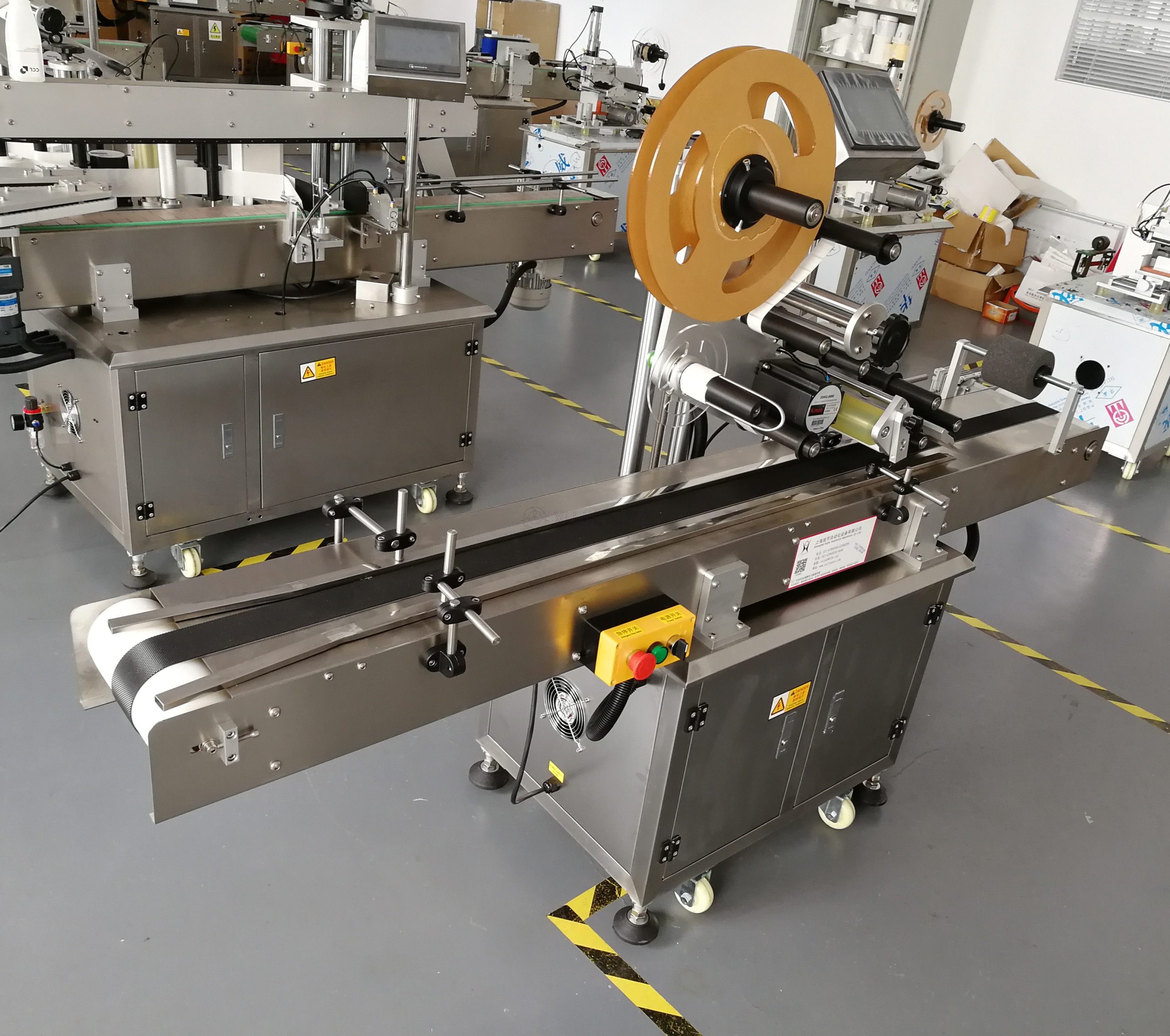

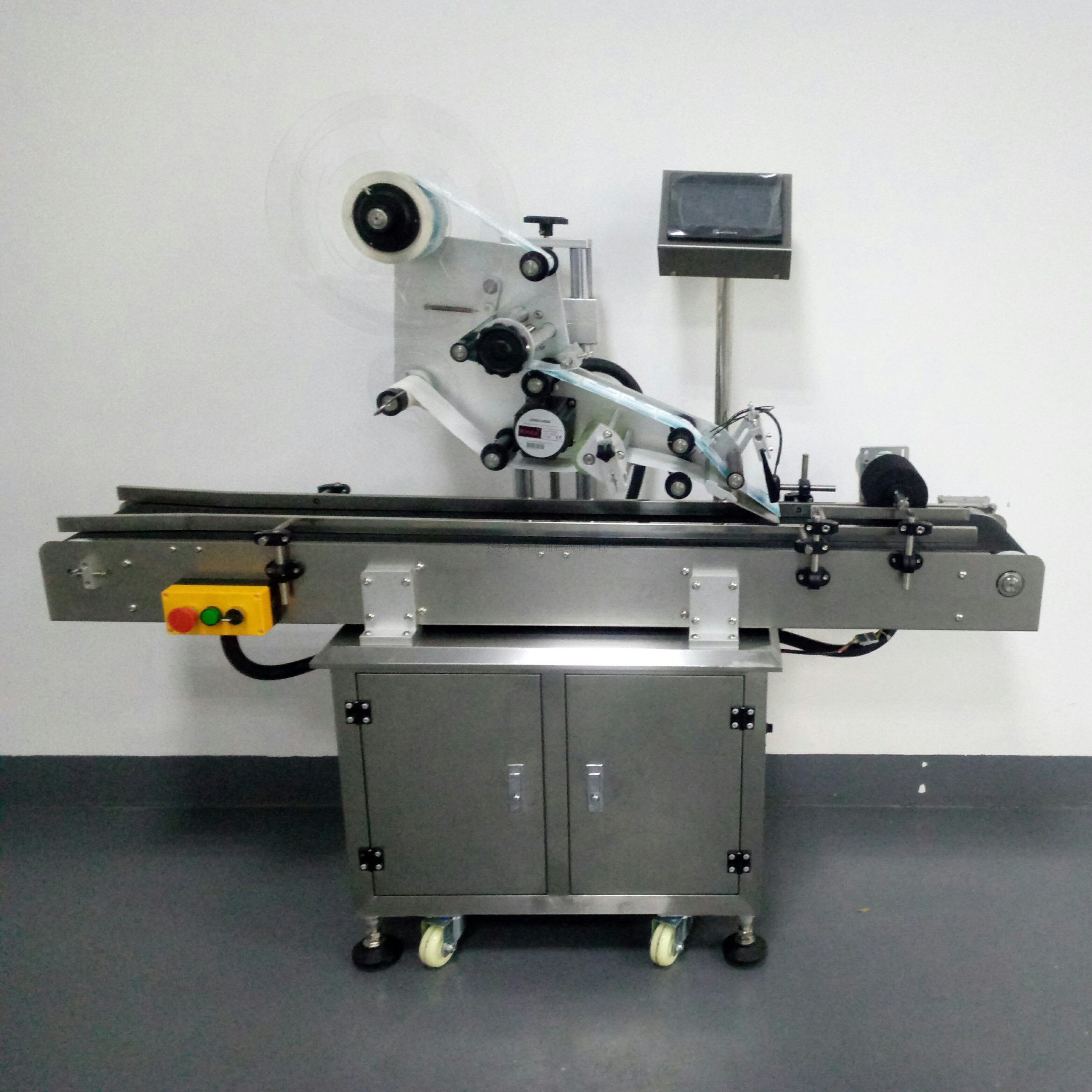

Benchtop Automatic Flat Top Labeling Equipment | Precision Sticker Applicator for Flat Packaging Goods

Developed for small and medium-scale packaging factories, this bench-type flat labeling unit is specialized in upper-surface adhesive label pasting for all kinds of flat finished goods. Different from large floor-standing labelers, it adopts miniaturized integrated layout to save workshop space, flexible to run independently or link with miniature conveying lines. It covers cosmetic, healthcare, electronic accessory and food packaging sectors, customizable to match unique workpiece sizes.

✅ Structural Advantages
Compact bench-top build, lightweight for flexible movement across work stations.
SUS304 modular stainless steel body, quick disassembly & easy sanitary cleaning.
Centralized wiring control box for low daily maintenance.
✅ Labeling Performance
Closed-loop servo drive ensures ±1mm precision, no label skew or crease.
Photoelectric sensor skips labeling without goods to save label cost.
Multi-adjustable labeling head fits varied product thickness effortlessly.
✅ Extended Practicality
Pre-reserved port for inkjet printer to finish labeling & date coding together.
Wide adjustable conveyor suits 20–320mm wide products.
Custom structural modification available for special packaging requirements.

Labeling Accuracy：                               ±1mm (without product/label error)
Labeling Speed：                                     30-120 pcs/min (depends on product size)
Applicable Product Size：                      Length: 20-300mm; Width: 20-200mm; Height: ≥5mm
Applicable Label Size：                          Width: 10-150mm; Length: 10-200mm
Conveyor Speed：                                    5-20m/min (adjustable)
Control System：                                     PLC + 7-inch color touchscreen
Drive System：                                         Stepper motor / Servo motor (optional)
Power Supply：                                        110V/220V 50/60Hz
Power Consumption：                            500W (standard)
Machine Material：                                 SUS304 stainless steel
Machine Dimension：                            L800×W400×H600mm (customizable)
Net Weight：                                            65kg
Working Environment Temperature:  5-40℃; Humidity: 15-85%RH (non-condensing)

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
