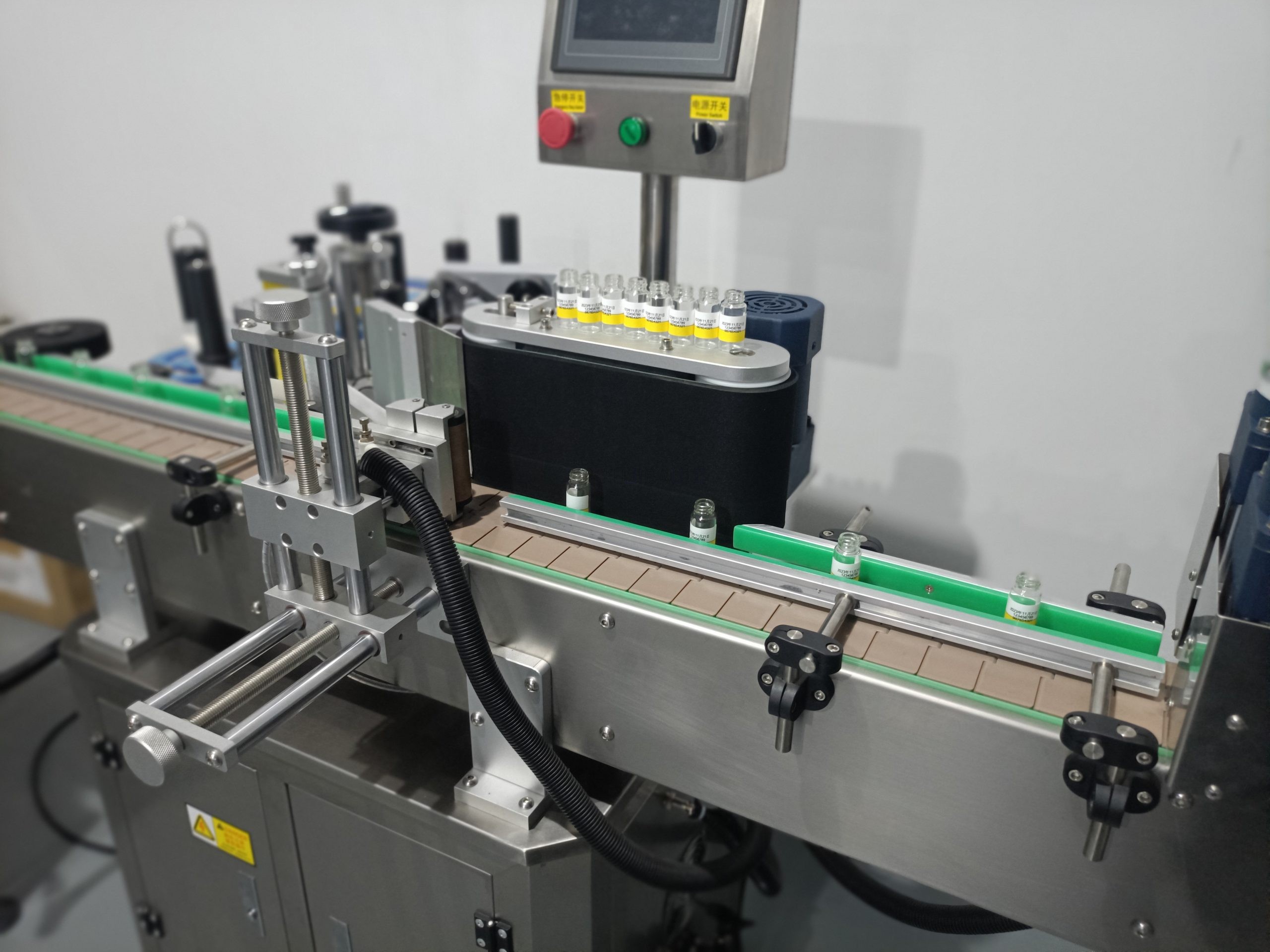

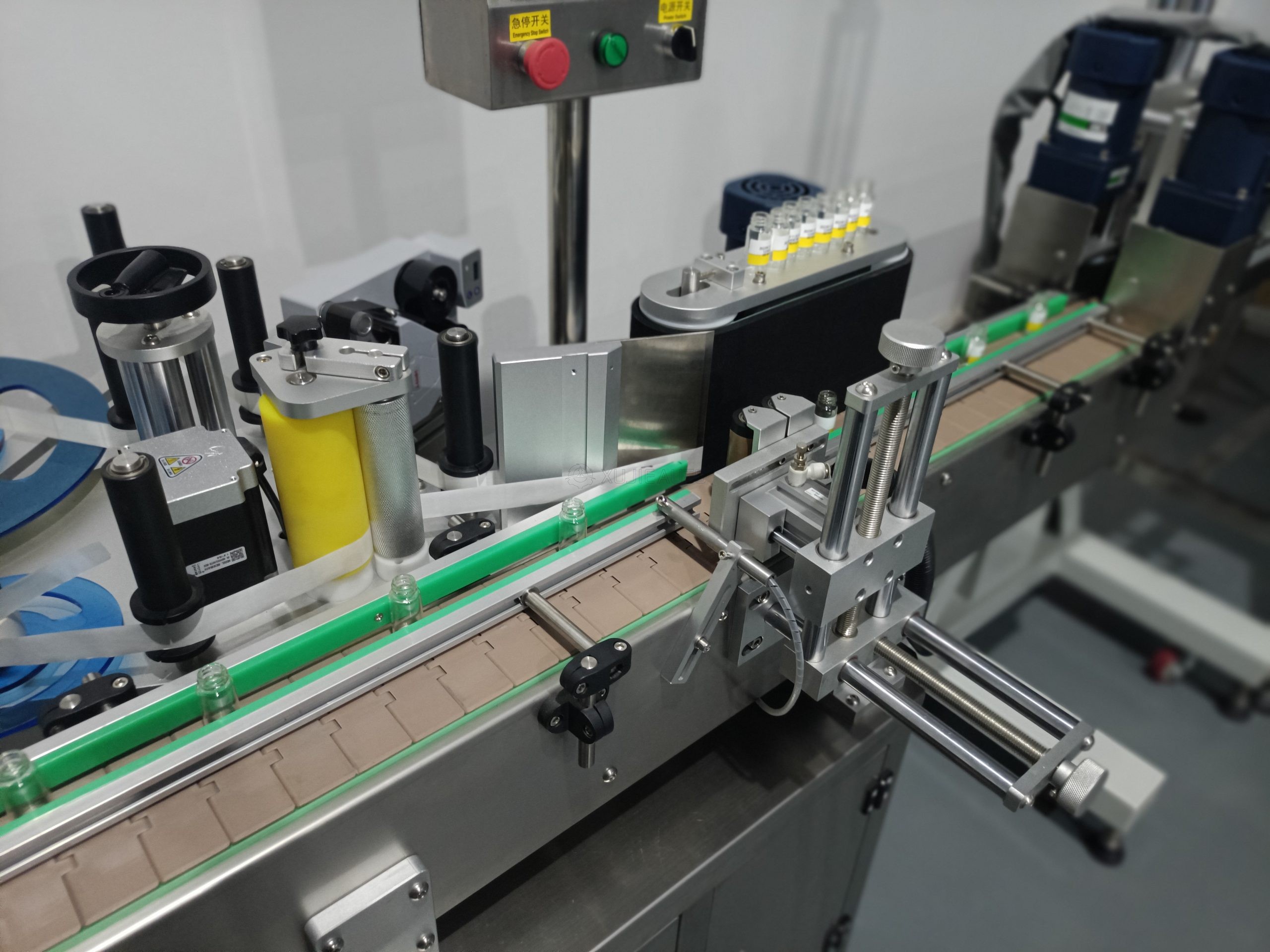

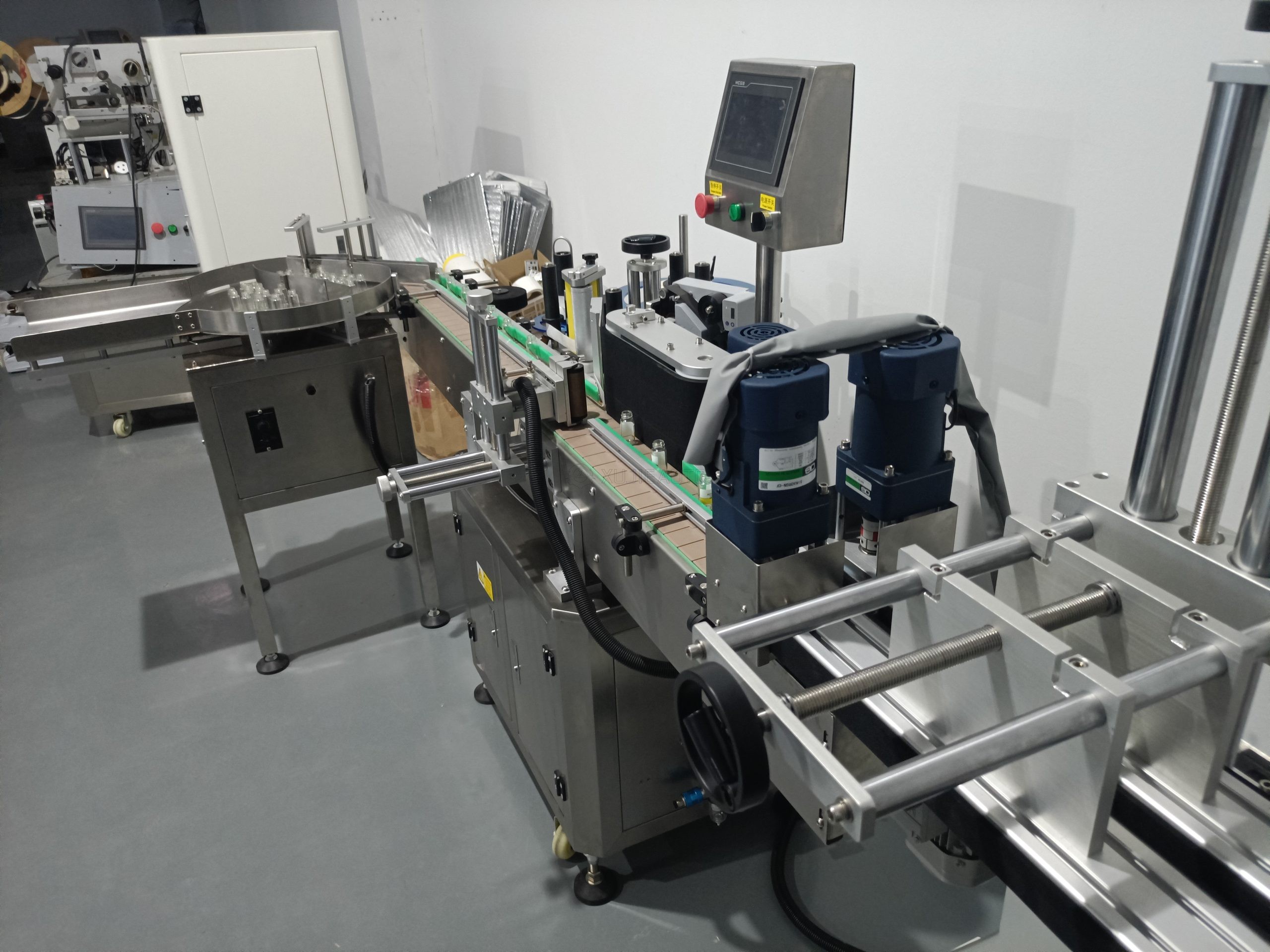

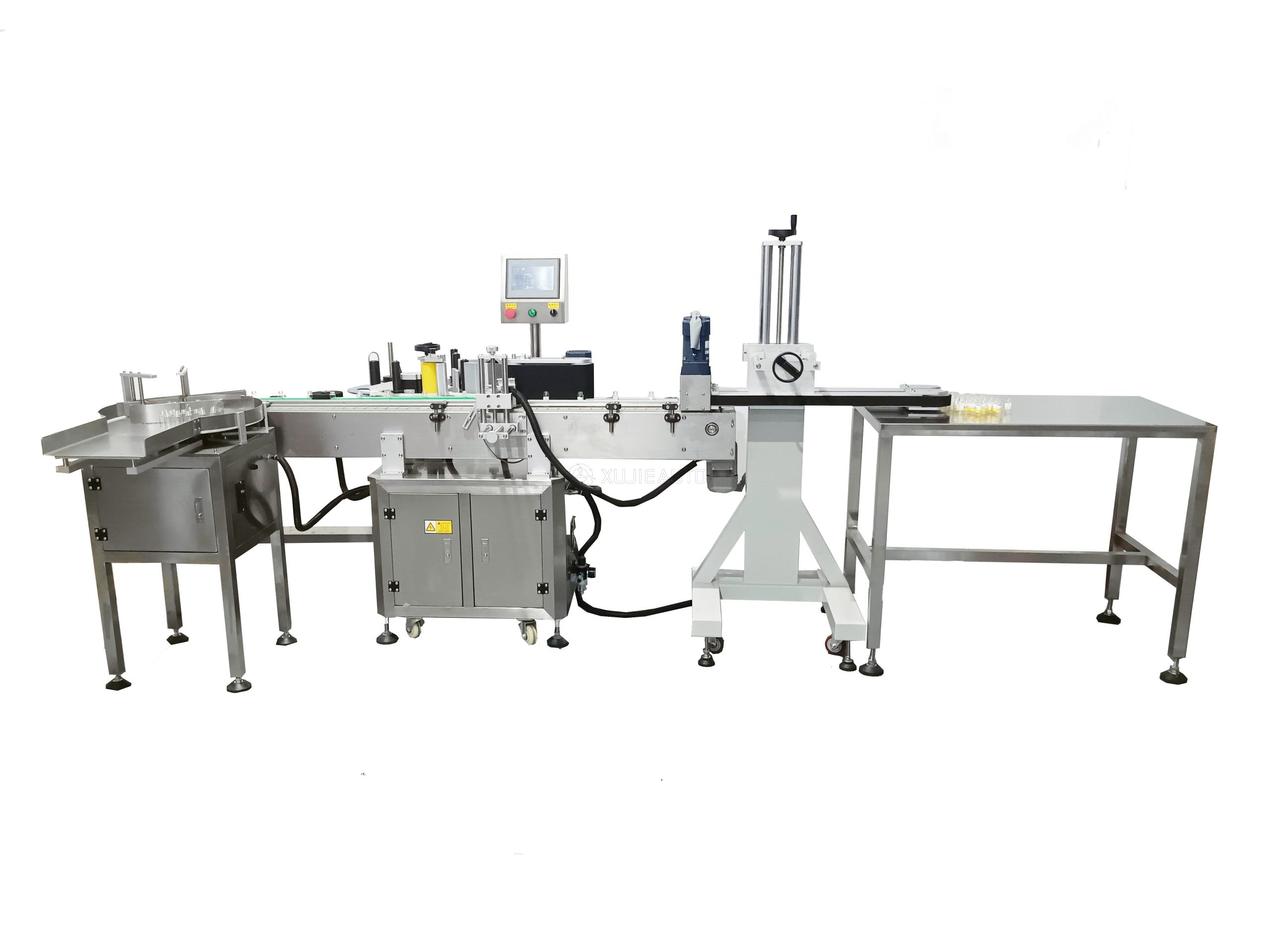

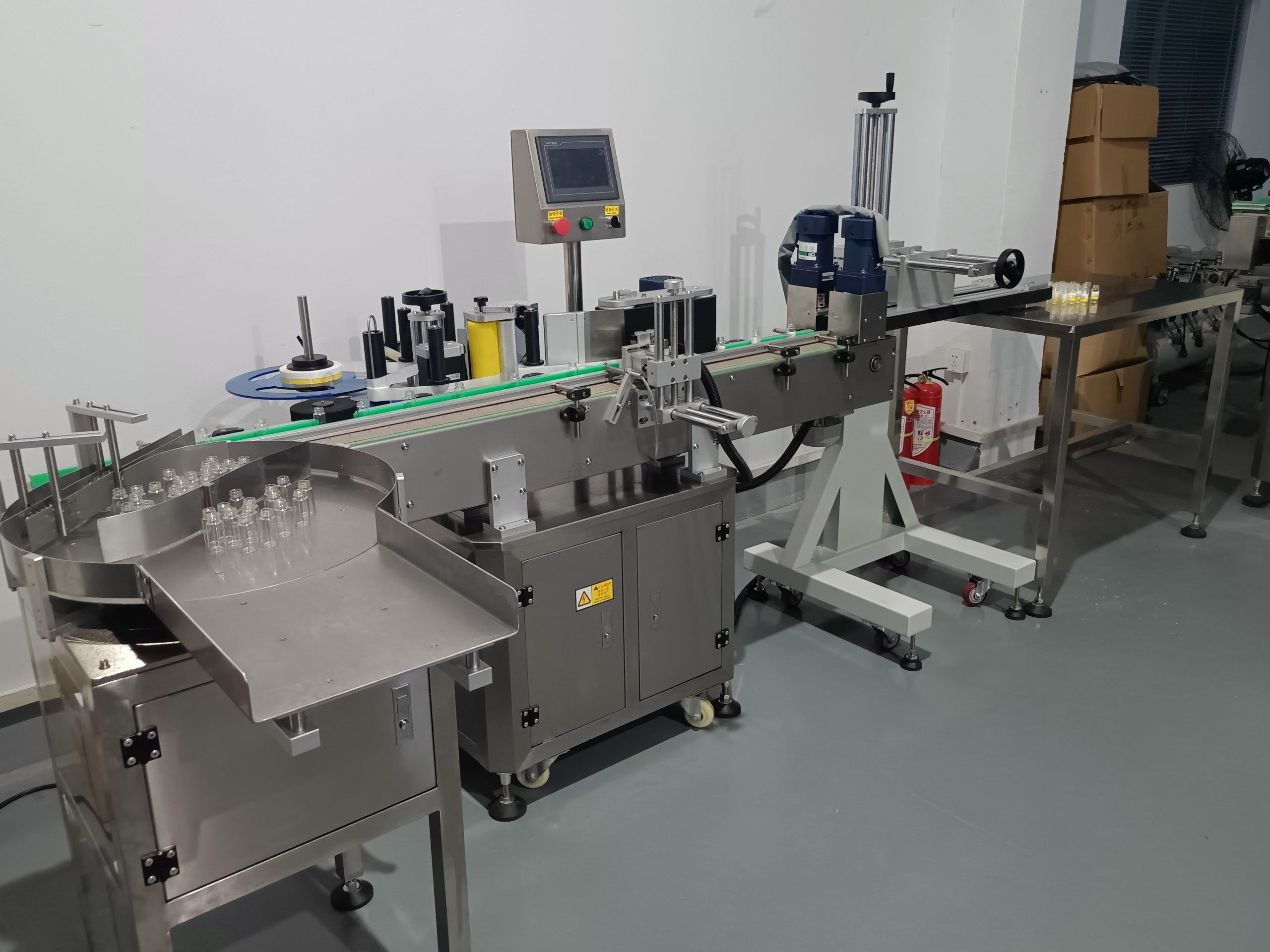

Inline Round Bottle Labeling Machine / Automatic Round Bottle Sticker Labeler

This fully automatic round bottle labeling line integrates bottle feeding, high-precision labeling, and visual inspection functions into one seamless system, designed for high-efficiency labeling of cylindrical containers in pharmaceutical, food, beverage, cosmetic, and daily chemical industries.
Constructed with food-grade SUS304 stainless steel, the machine features a durable, corrosion-resistant body that meets GMP standards. Equipped with a PLC control system and touchscreen HMI, it supports quick parameter adjustment for different bottle sizes and label formats, ensuring stable operation with minimal downtime.
The labeling unit delivers precise, wrinkle-free application, while the integrated visual inspection system checks label presence, position accuracy, and print quality, automatically rejecting non-conforming products. The entire line is compatible with full-wrap, half-wrap, and partial labeling applications, adapting to glass, plastic, and metal round bottles of various specifications.

✅ ±1mm high-precision labeling, no bubbles or wrinkles
✅ 0.1mm-accuracy visual inspection for label quality
✅ Versatile fit for various round bottle sizes (φ10–100mm)
✅ SUS304 stainless steel, easy-clean and hygiene-compliant
✅ Intuitive touchscreen with multi-language and recipe storage
✅ Fast speed: up to 80–120 bottles per minute
✅ Reliable Panasonic PLC and imported components
✅ Flexible for standalone or line integration

Product Diameter Range:       φ10mm ~ φ100mm (customizable)
Product Height Range:           25mm ~ 300mm (customizable)
Labeling Accuracy:                  ±1mm (excluding product & label tolerance)
Inspection Accuracy:              0.1mm
Labeling Speed:                       40~120 bottles/min (depends on product & label size)
Applicable Label Size:            Length: 10~300mm; Width: 15~150mm
Label Roll Specifications:      Max outer diameter: φ300mm; Inner core: φ76mm
Control System:                       PLC + Touchscreen HMI
Power Supply:                          AC220V/380V 50/60Hz, single/three phase
Power Consumption:              1.2kW
Machine Material:                   SUS304 Stainless Steel
Working Environment:          5~40℃, 30~90% RH (non-condensing)

Packaging:

By container or standard export packing per machine

Delivery time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to  ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
