High-speed dual-head automatic paging labeling machine with dual-side corner sealing function. Ideal for pouches, cards & boxes. ±0.5mm accuracy, PLC controlled, SUS304 construction, customizable available.

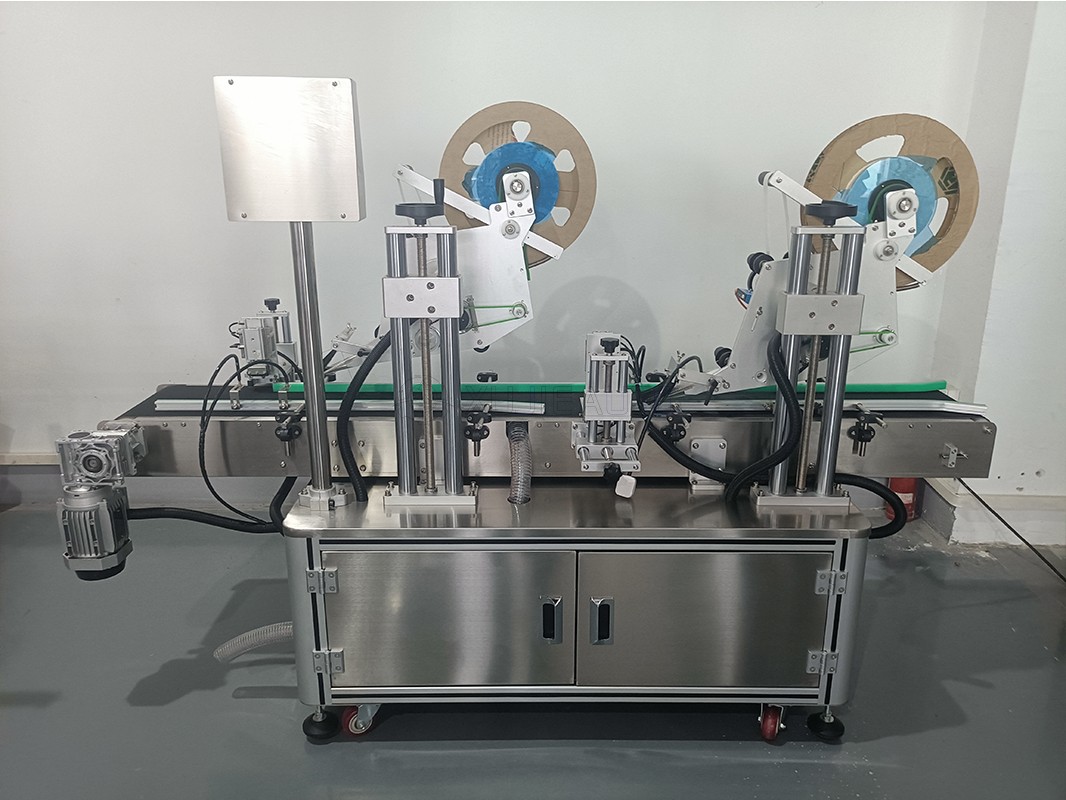

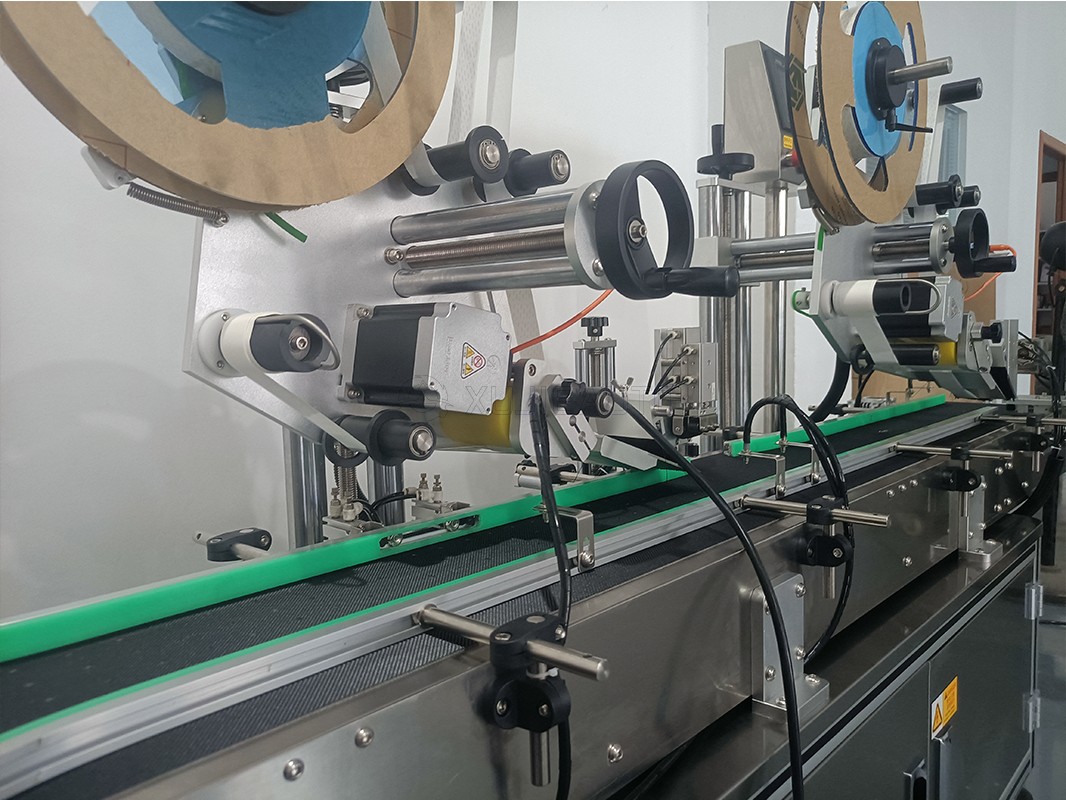

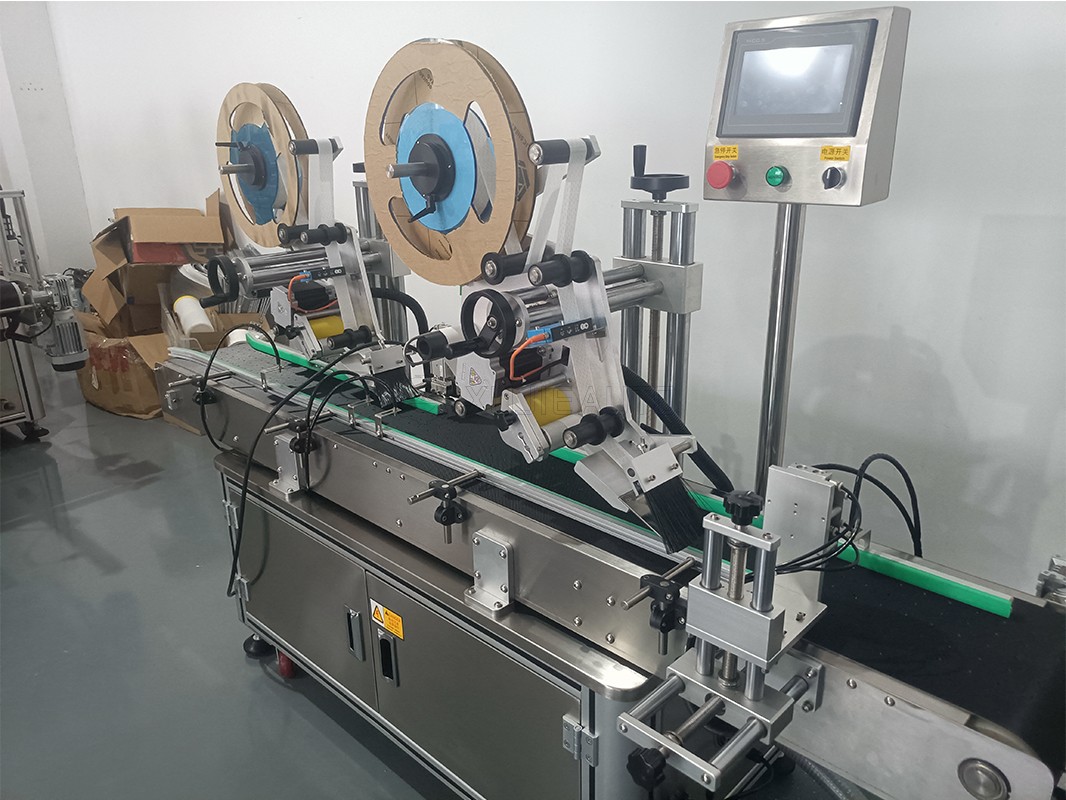

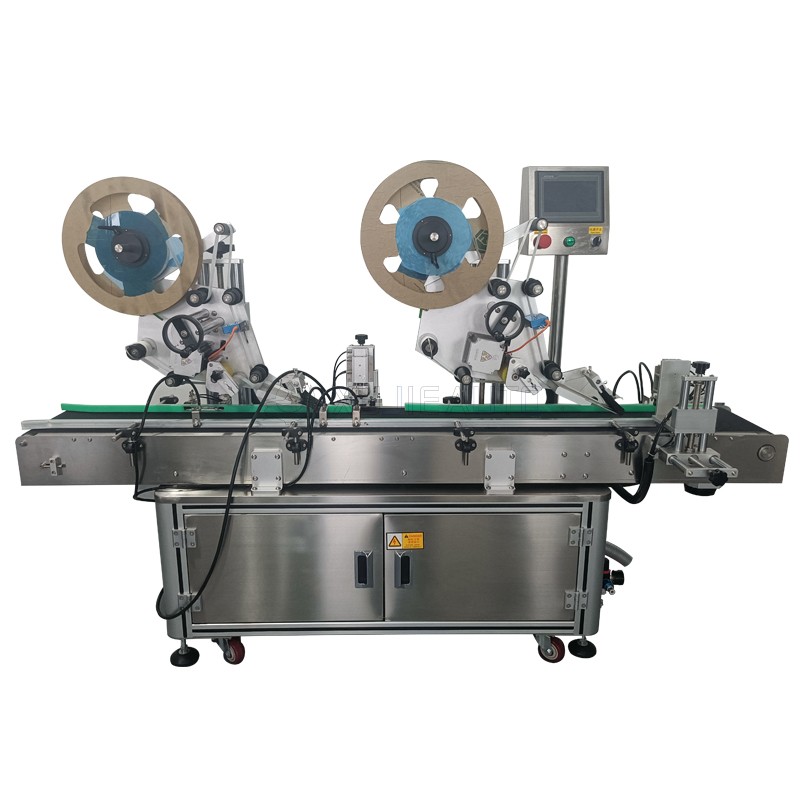

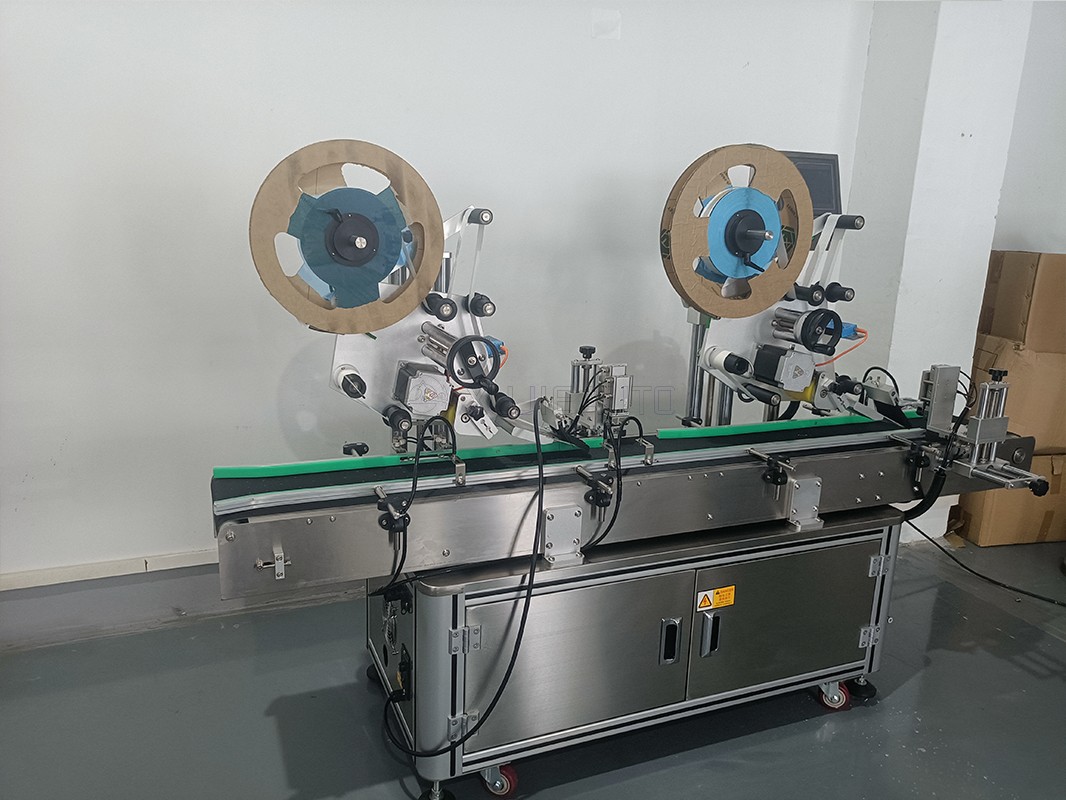

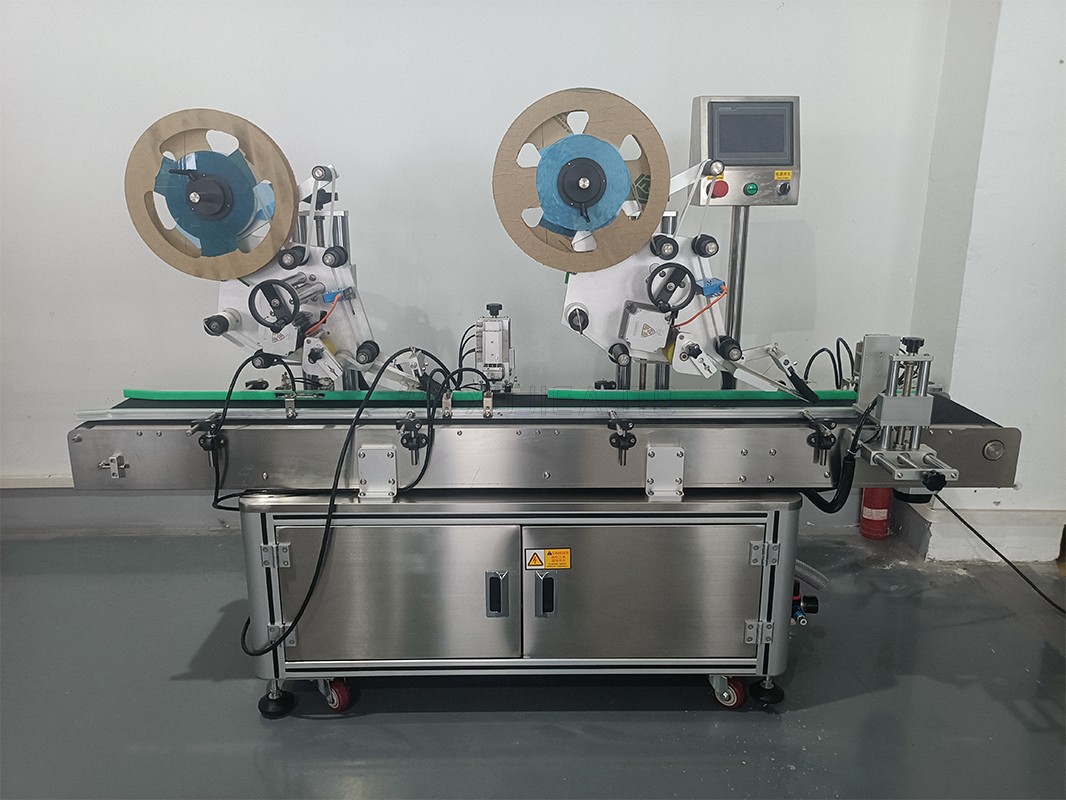

This Dual-Head Automatic Paging Labeling Machine with Dual-Side Corner Sealing is a high-efficiency integrated labeling solution designed for flat products. Combining automatic friction paging, dual independent labeling heads, and dual-side corner sealing function, it can complete two labeling operations in one pass, doubling production efficiency while ensuring tamper-evident packaging. Widely used in pharmaceuticals, cosmetics, food, and logistics industries for labeling plastic pouches, envelopes, scratch cards, hang tags, cartons, and other flat items.
Dual-Head Design & Corner Sealing Function
Automatic Friction Paging System
High Speed & Precision Performance
Wide Compatibility & Flexible Adjustment
Durable & Reliable Construction
User-Friendly Operation & Maintenance
Applicable Products Flat items: plastic pouches, envelopes, scratch cards, hang tags, cartons
Product Size Length: 30–300mm; Width: 20–200mm; Thickness: 0.1–5mm (customizable)
Label Size Length: 10–150mm; Width (liner width): 10–150mm
Label Core: Inner Ø76mm, Outer Ø300mm
Labeling Speed: 100–300 pcs/min (depends on product)
Labeling Accuracy: ±0.5mm (excluding product/label errors)
Power Supply: 220V / 50Hz
Power Consumption: 1800W
Overall Dimension: Approx. 2000×850×1500mm (L×W×H)
Machine Weight: Approx. 320kg
|
Packaging |
By container or standard export packing per machine |
| Delivery time |
15-30 days after payment received |
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
