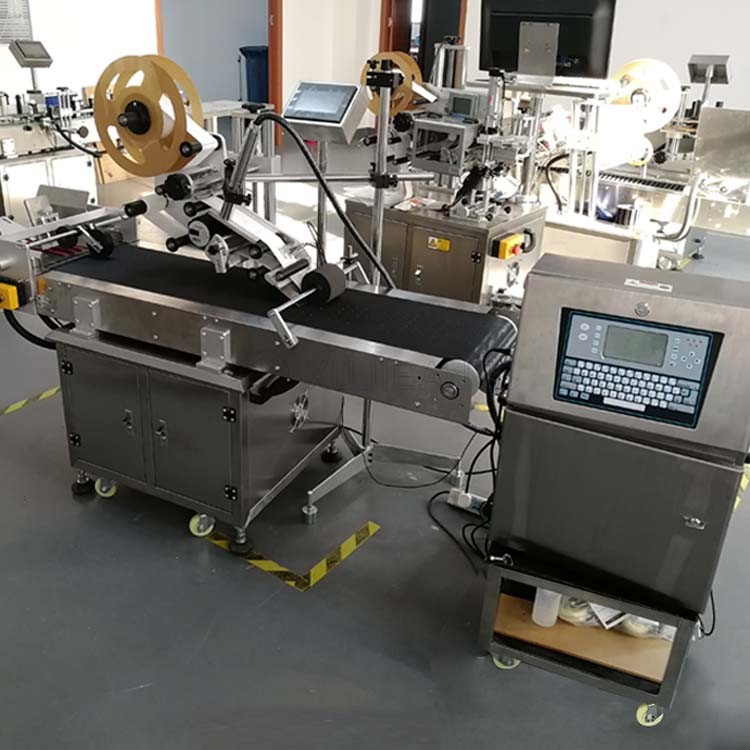

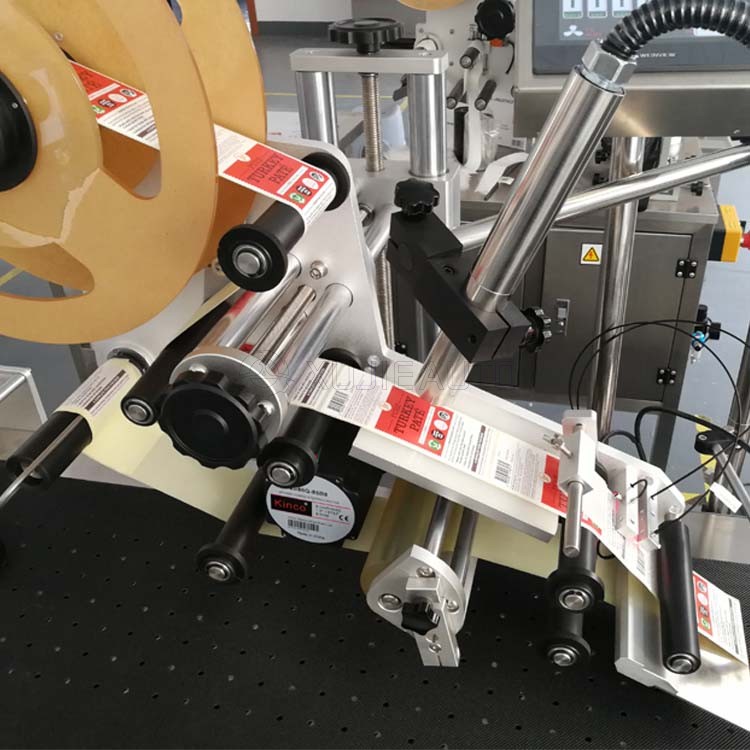

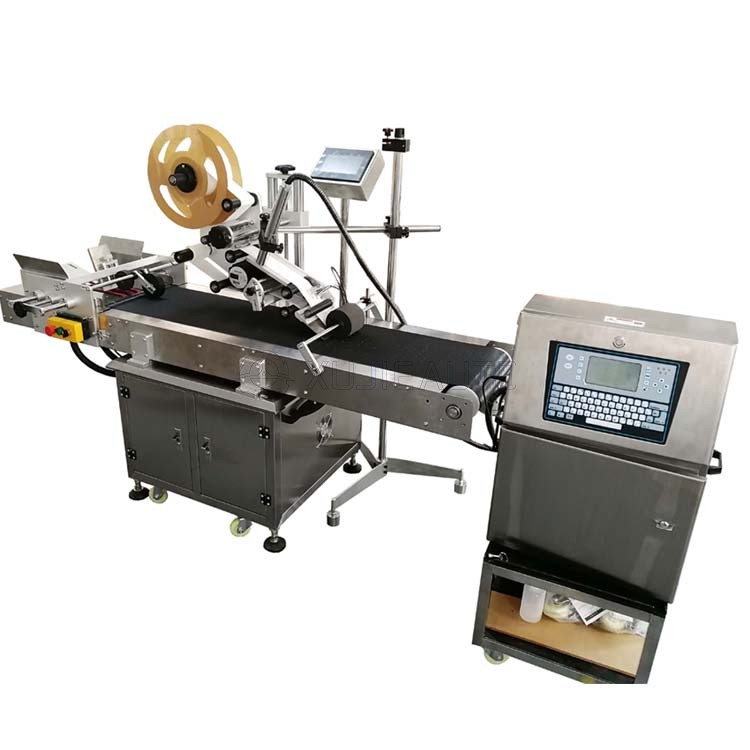

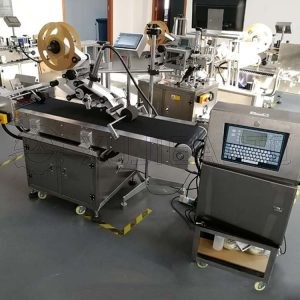

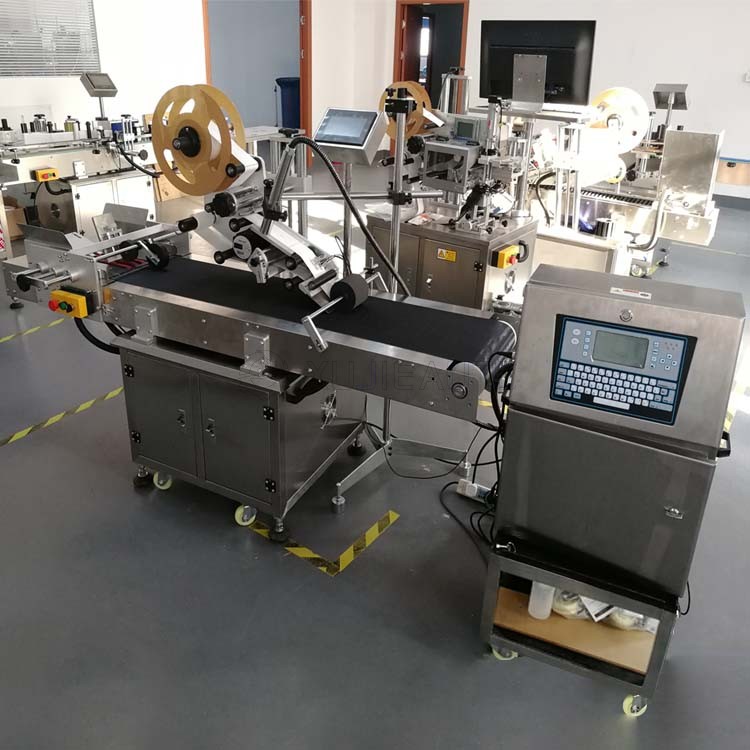

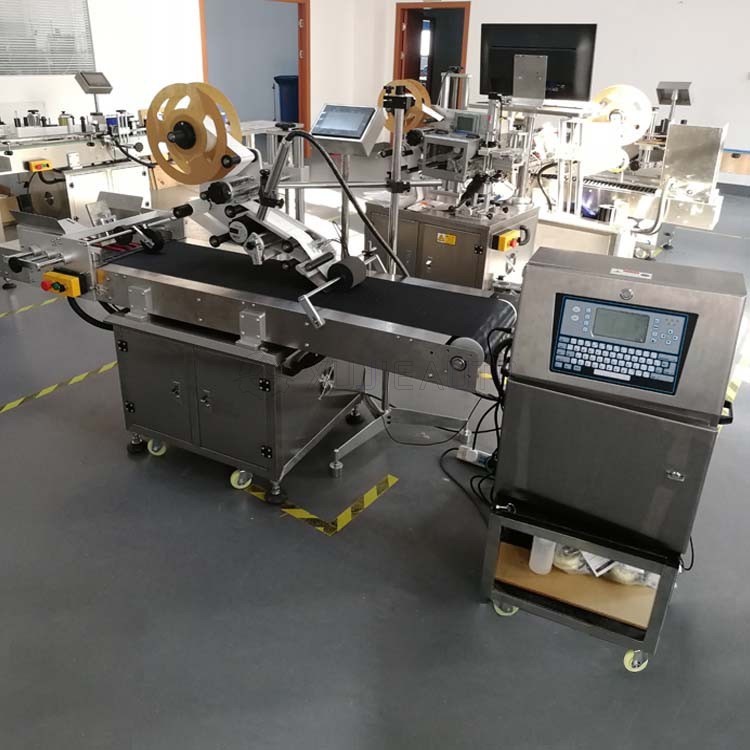

A fully automatic pagination labeling machine is an automated equipment used for label application. It can automatically paginate and attach the label to the product. It is widely used in various industries, such as food, medicine, beverages, cosmetics, electronics, etc. It can improve production efficiency and labeling quality, reduce labor costs, and is a very practical label application equipment.
Fully automatic pagination labeling machines usually have the following characteristics:
1. Fully automatic operation: the equipment can completely automatically carry out label pagination and attachment without manual intervention.
2. High efficiency: The operation speed of the equipment is fast, and it can quickly complete the paging and attachment of a large number of labels, and improve production efficiency.
3. High precision: The equipment adopts advanced sensors and control systems, which can accurately tab and attach the label to the product accurately.
4. Multi-functional: The equipment can adapt to different types and sizes of labels, and is able to handle products of different shapes and materials.
5. Stability: The equipment has stable running performance, able to work continuously and maintain consistent quality and effect.
Working principle:
Put the product on the conveyor belt and enter the bottle separating mechanism. After the bottle separating mechanism separates the product, the sensor detects the passing of the product and sends a signal back to the labeling control system. At the appropriate position, the control system controls the corresponding motor to send out the label and attach it to the product. At the position to be labeled, the label is covered at the same time, and the action of attaching a label is completed.
Operation process:
Put the product conveyor belt (can be connected to the assembly line)—>product conveying—>product separation—>product inspection—>product positioning—>labeling and relabeling—>collect labeled products
|
Voltage
|
AC220V 50/60HZ
|
|
Power
|
1000W
|
|
Capacity
|
0-100pcs./min
|
|
Accuracy
|
±1mm（depends on object&label sizes and labeling pattern）
|
|
Conveyor Width
|
0-50mm（Can be adjusted）
|
|
Bottle Height
|
L120~400mm W70~320mm（Can be customized）
|
|
Label Size
|
H10mm~150mm L120~400mm W70~320mm（Can be customized）
|
|
Size of Paper Roll
|
Inner diameter of label roll:Ф76mm；outer diameter of label roll:Ф300mm
|
|
Weight
|
200kg
|
|
Dimension
|
2000*750*1500mm
|
|
Conveyor Width
|
Can be customized according to the diameter of the sample bottle
|
It is suitable for labeling the circumferential surface of round bottles. It can be used for single label and double label. The distance between the front and back double labels can be adjusted flexibly, such as labeling of gel water round bottles and food round cans. It is widely used in cosmetics, food. Disinfection water and other industries. The optional circumferential positioning detection device can realize labeling at the designated position on the circumferential surface.
Packaging:
By container or standard export packing per machine
Delivery time:
15-30 days after payment received
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
