Product

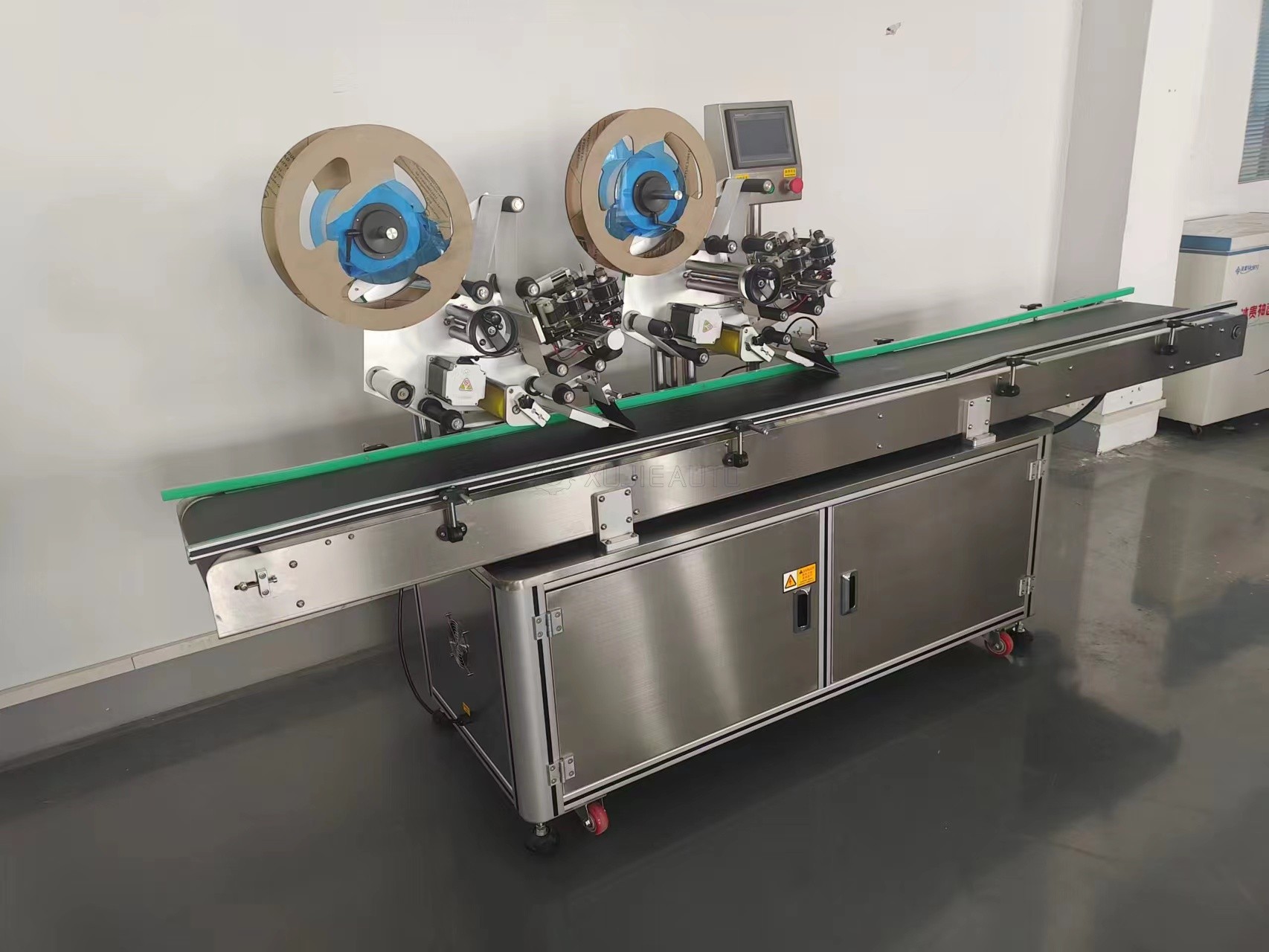

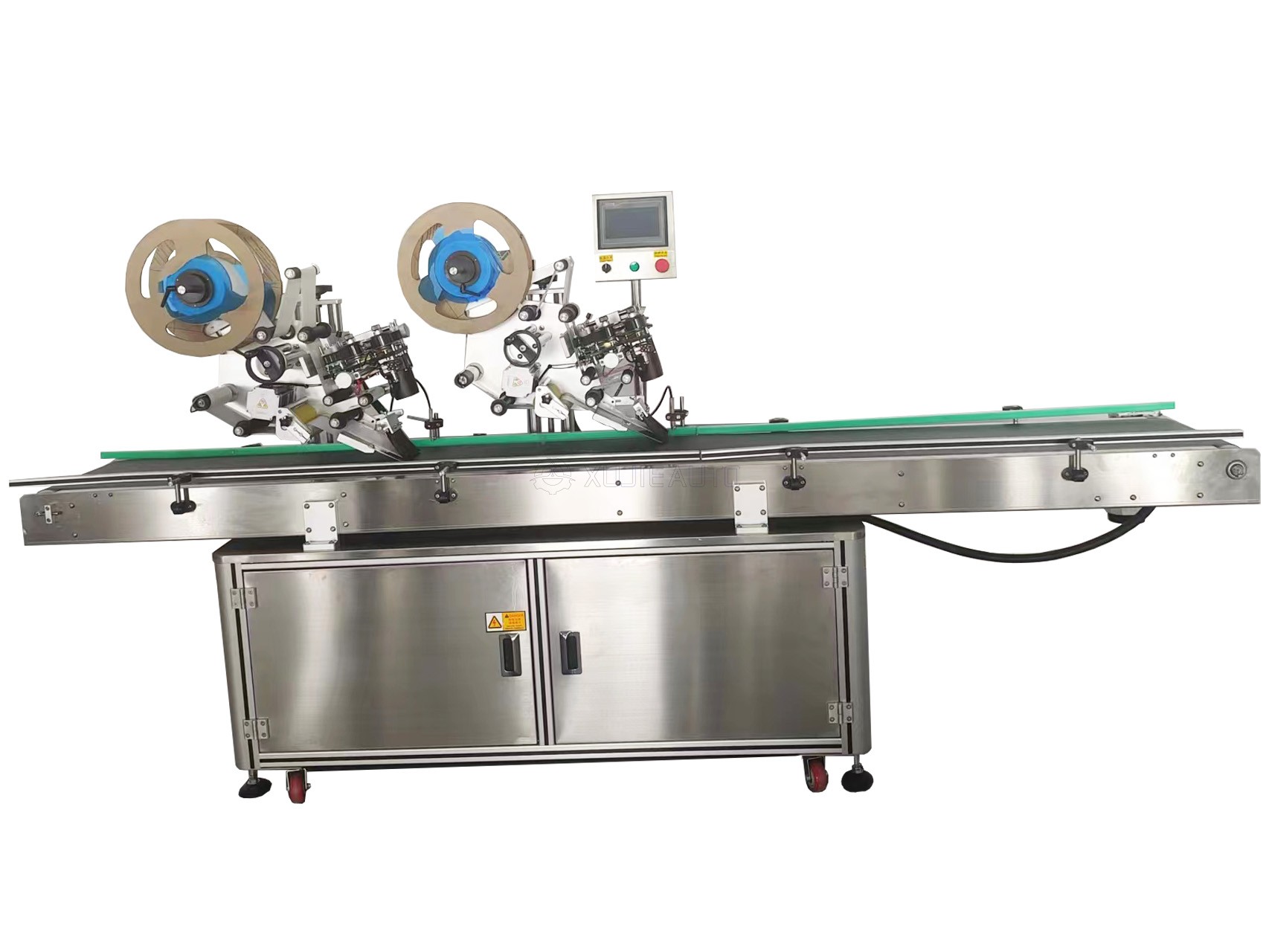

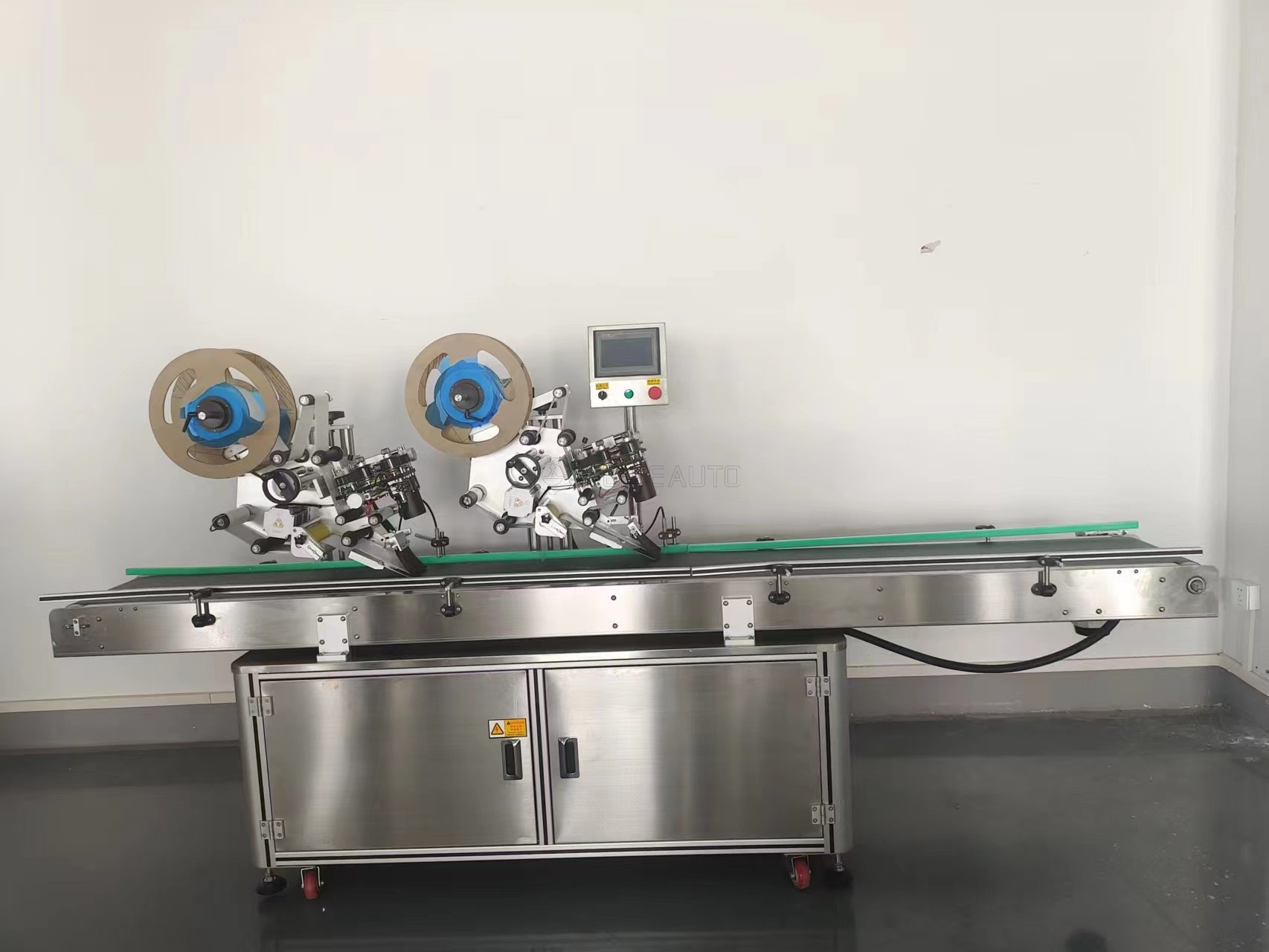

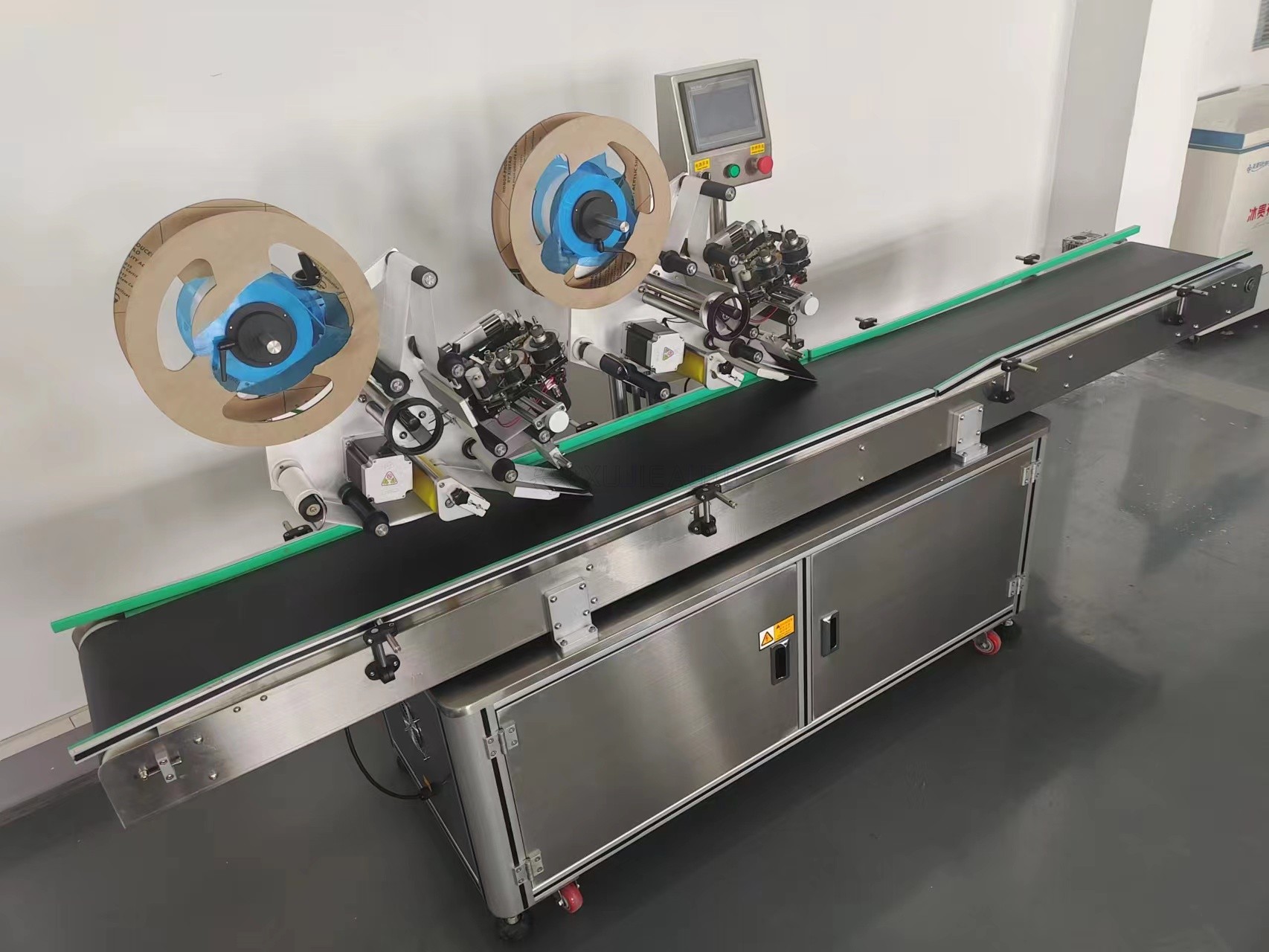

This model belongs to the automatic flat surface labeling machine series, designed for labeling on the flat surfaces of various products. It can apply multiple labels in a single operation, and each labeling head operates independently. By replacing the labeling mechanism, the machine can also be adapted for labeling on uneven product surfaces.
An optional ribbon printer can be integrated to print production dates, batch numbers and other codes, realizing the integration of labeling and printing. Alternatively, an online inkjet coder can be installed to print relevant product information before or after the labeling process.
Multi-Format Flexibility: Supports diverse empty bag/unfolding box types, including stand-up pouches, gusseted bags, flat-bottom bags, and irregularly shaped flexible packaging, without mechanical changeovers.
Low Total Cost of Ownership (TCO): Reduces labor dependency by 70% compared to manual labeling. Predictive maintenance alerts (via onboard IoT sensors) cut unplanned downtime by 40%.
Additional features: Supports add more than 2-3 labeling engines and integration with different kinds printing devices.
‘
Multifunctional design enables applying multiple labels in one operation with simple operation, greatly improving production efficiency.

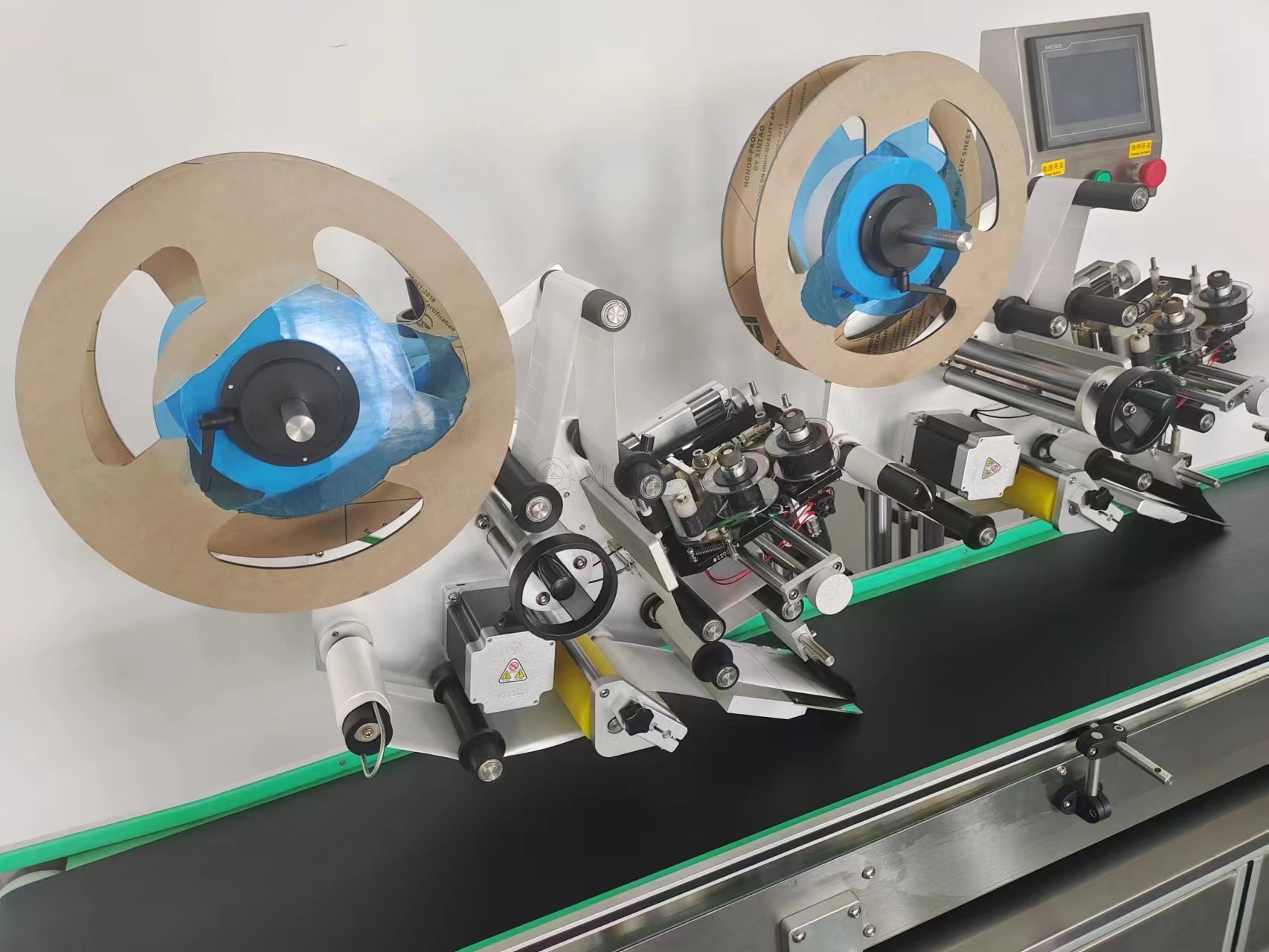

Flexible application: each labeling head can be controlled independently, allowing single or multiple labeling to meet different production requirements.

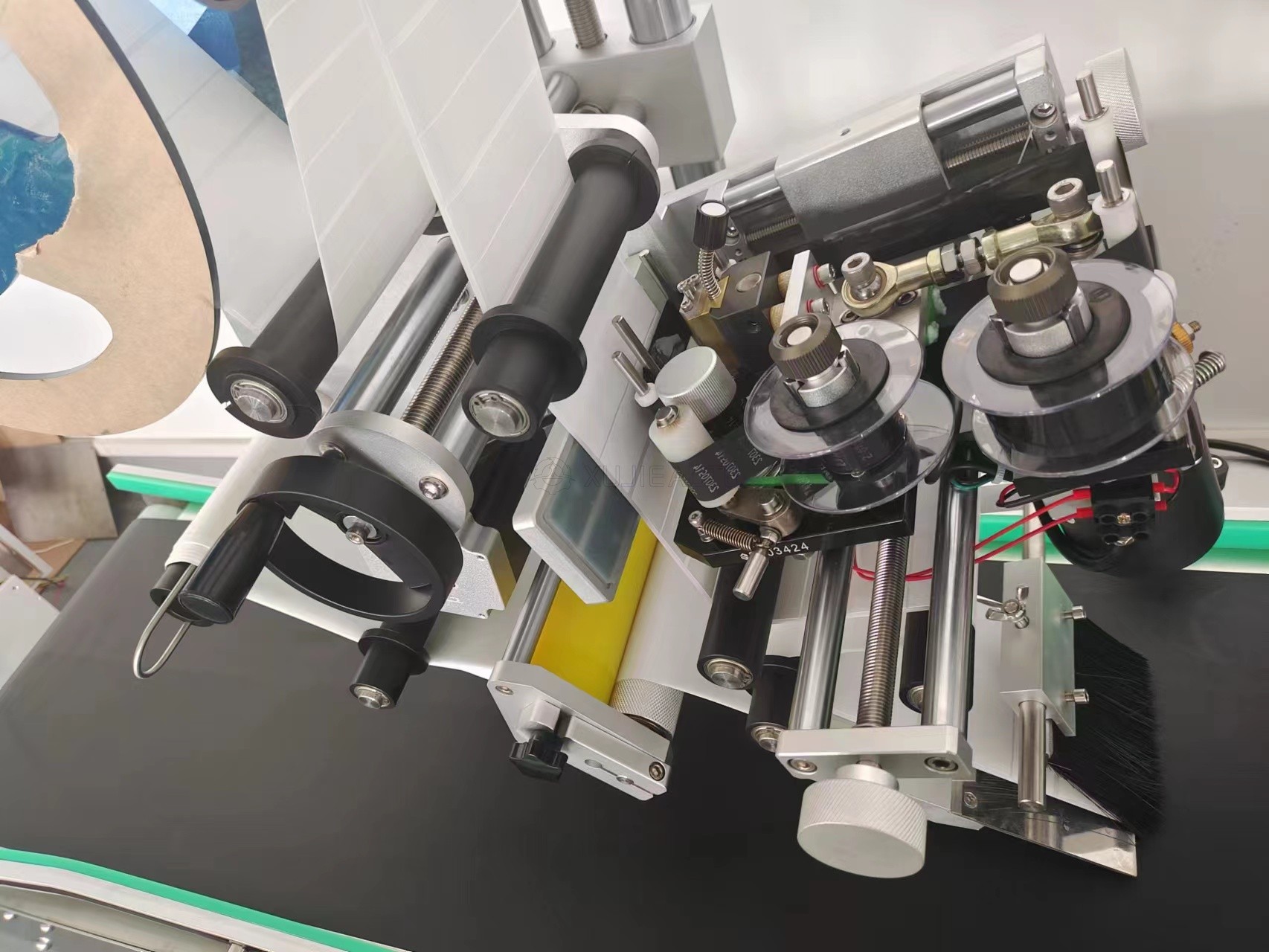

Easy adjustment: equipped with X/Y/Z adjustable mounting bases, the labeling heads can be adjusted in all directions, enabling quick and convenient format changeover.
Intelligent control system: automatic photoelectric tracking, labeling triggered only when products are detected, automatic correction and detection functions to prevent label missing and waste.
Hygienic structure: machine cover and frame made of stainless steel and aluminum alloy, sturdy and durable, fully compliant with GMP standards.
High stability: equipped with high-end electrical components including Panasonic PLC, Kunlun Tongtai touch screen, Panasonic photoelectric sensor and Leuze label detection sensor, supporting stable 7×24h continuous operation.
Automatic Grade: Automatic
Machine Weight: 180kg
Size: 1200*800*1350(mm)
Labeling Speed: 120 pcs/min
Labeling Height: 0-150mm
Label Width: 10-130mm
|
Packaging |
By container or standard export packing per machine |
| Delivery time |
15-30 days after payment received |
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
