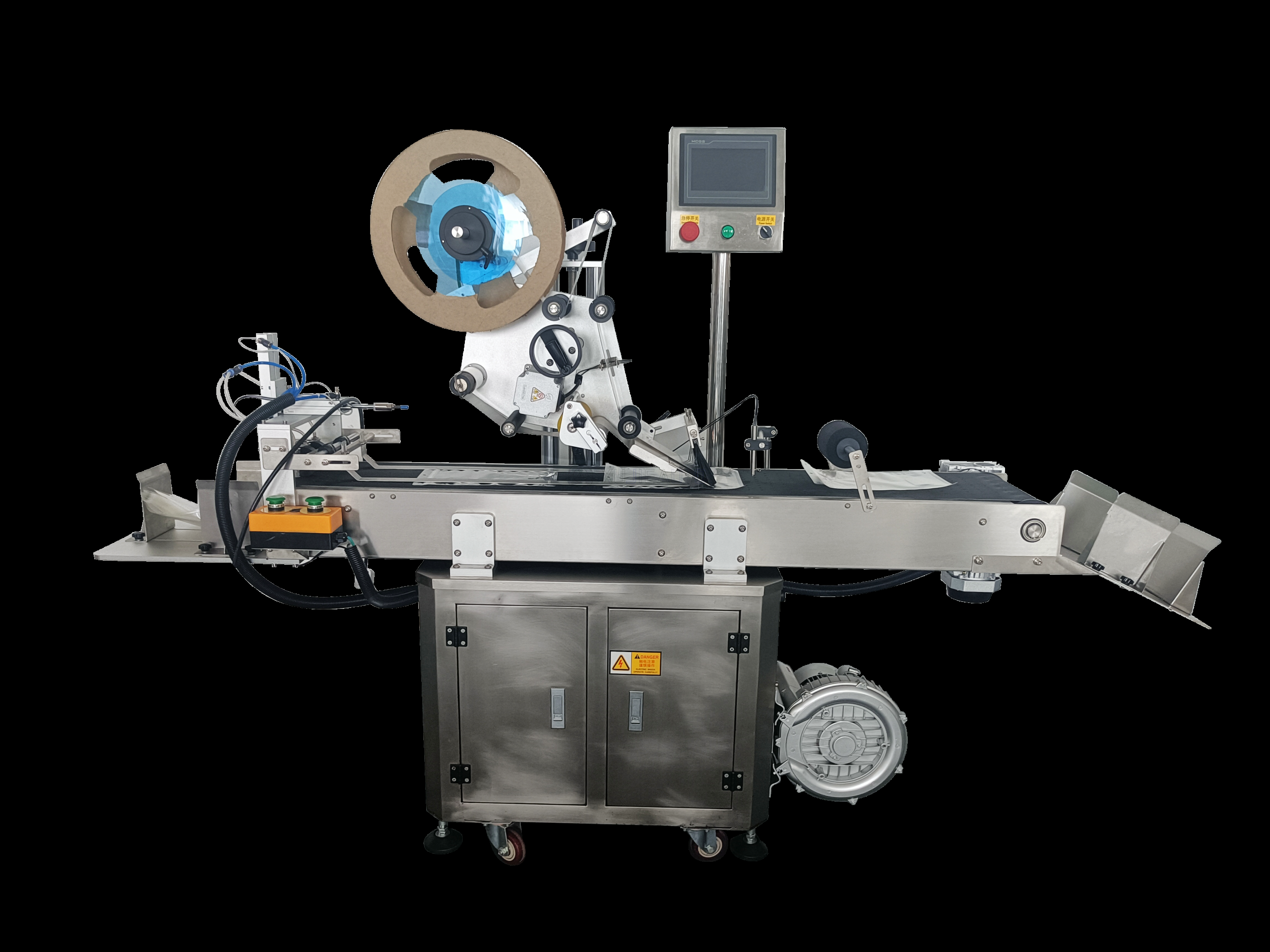

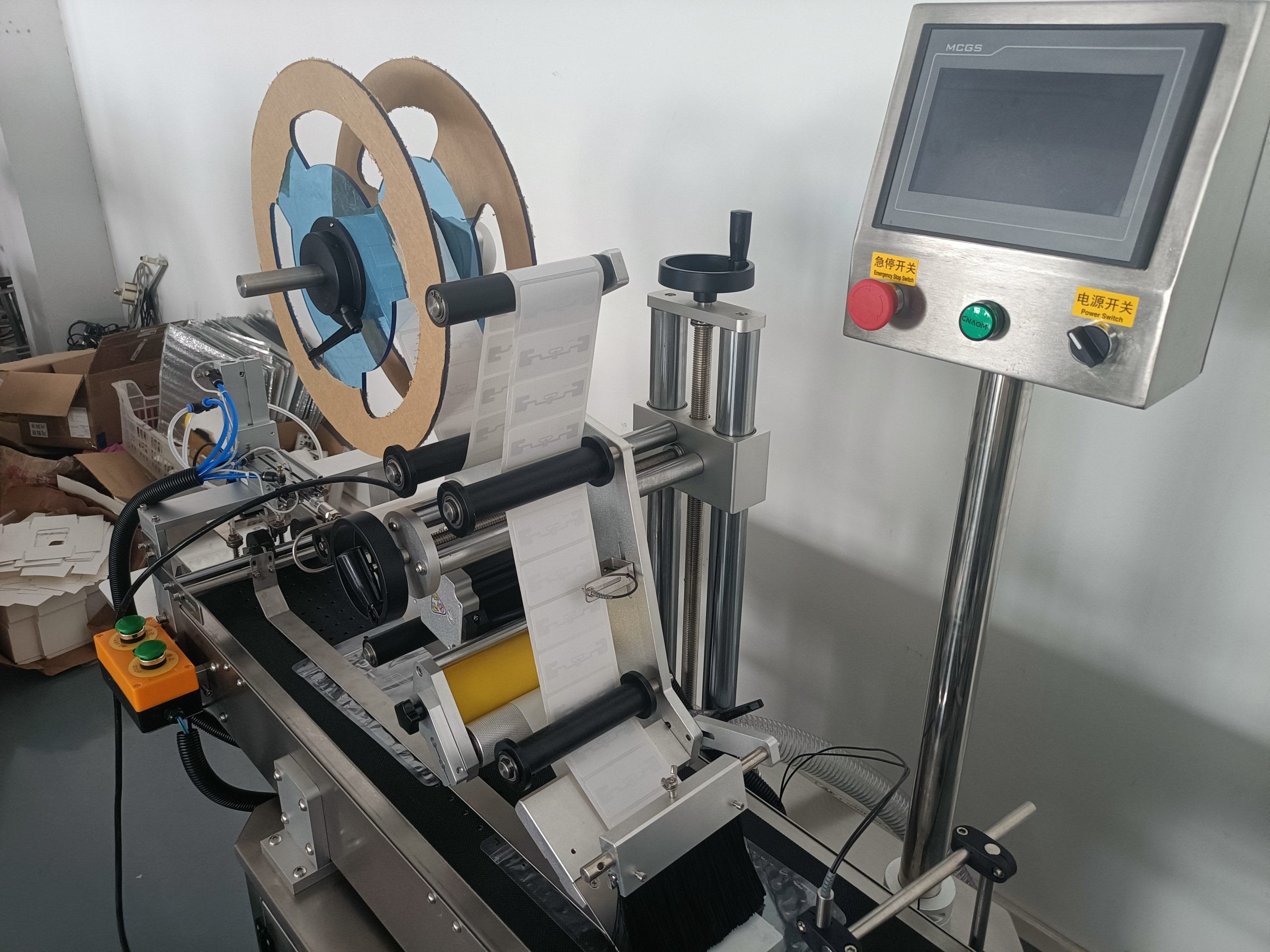

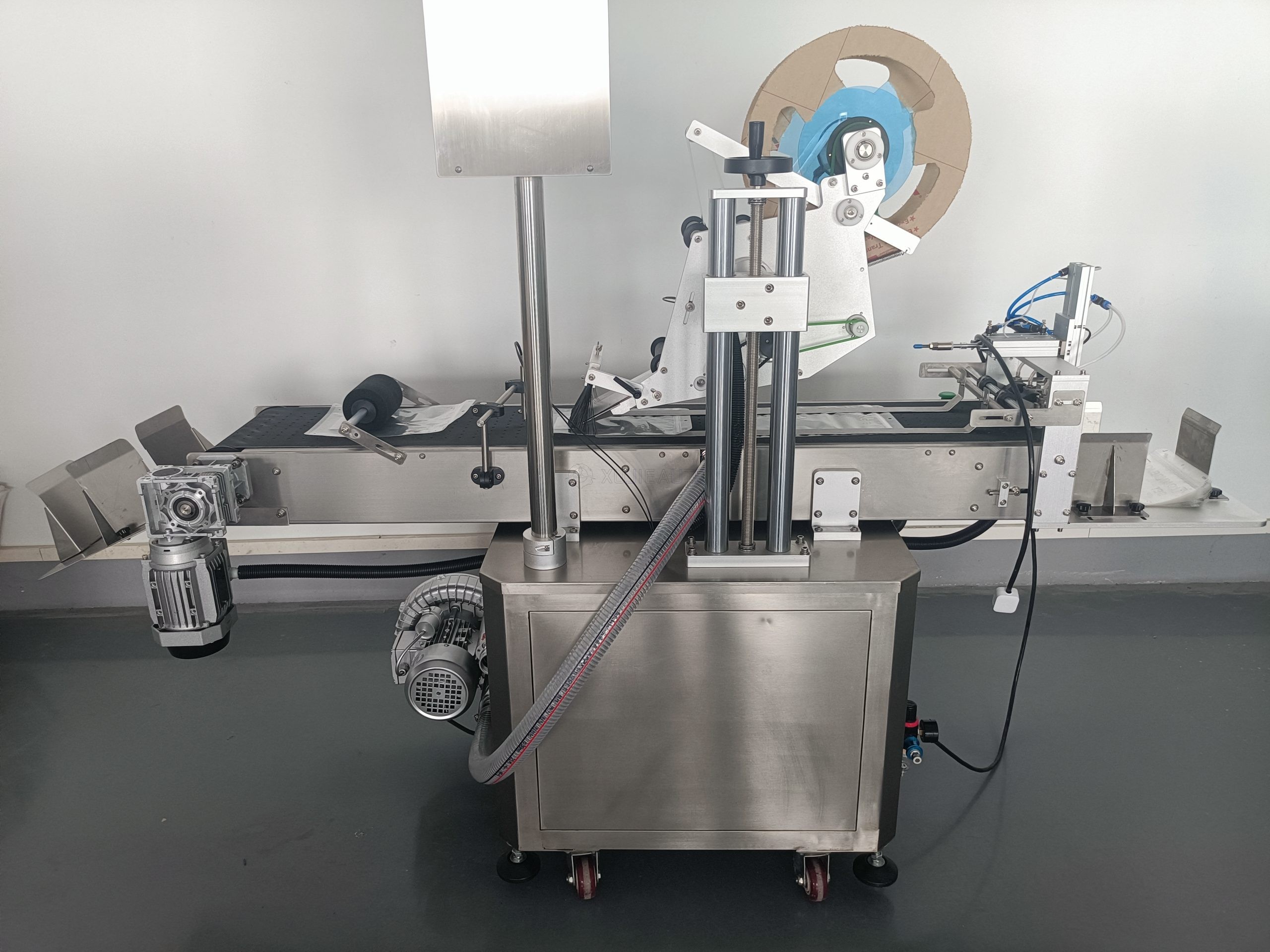

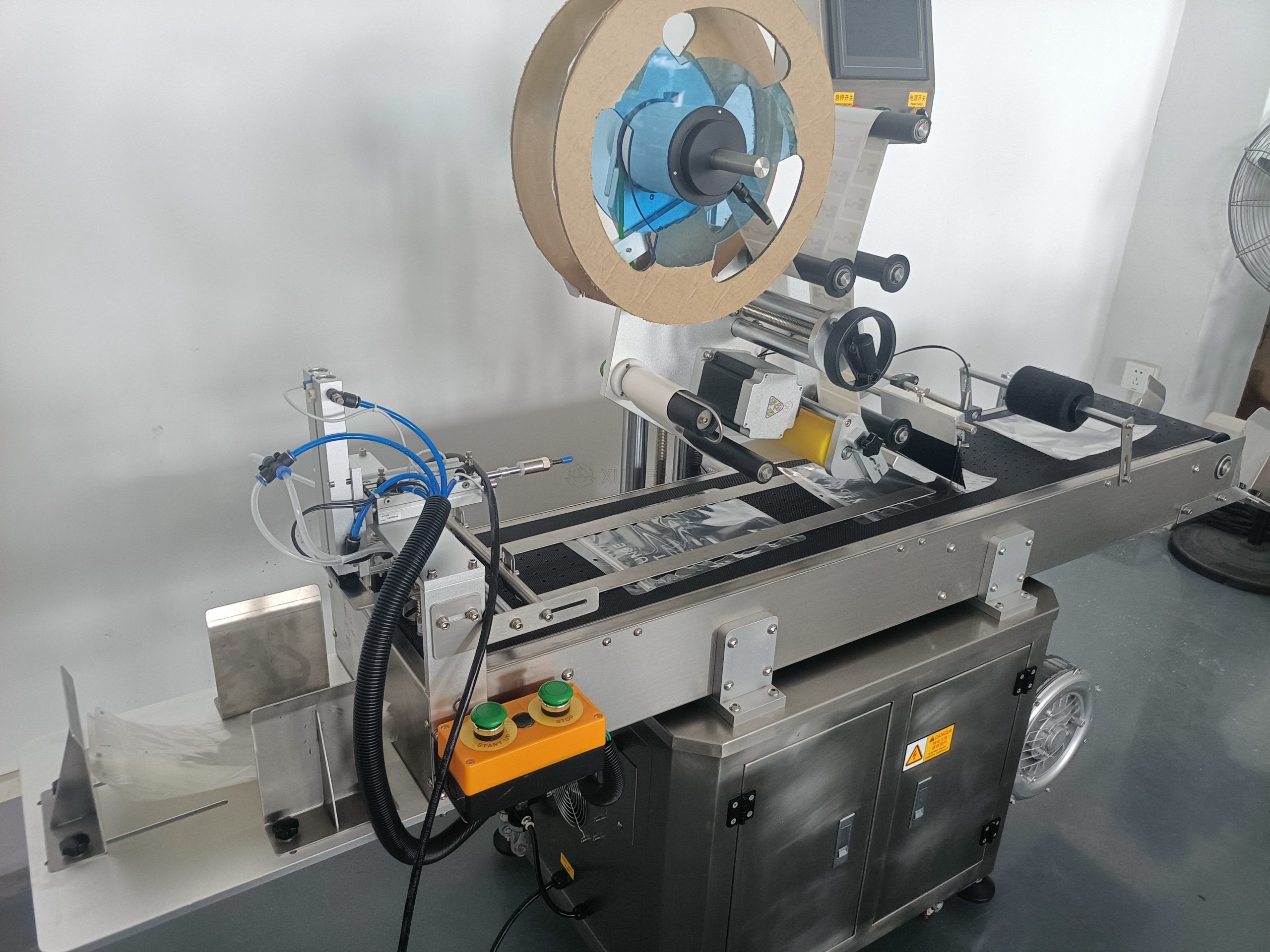

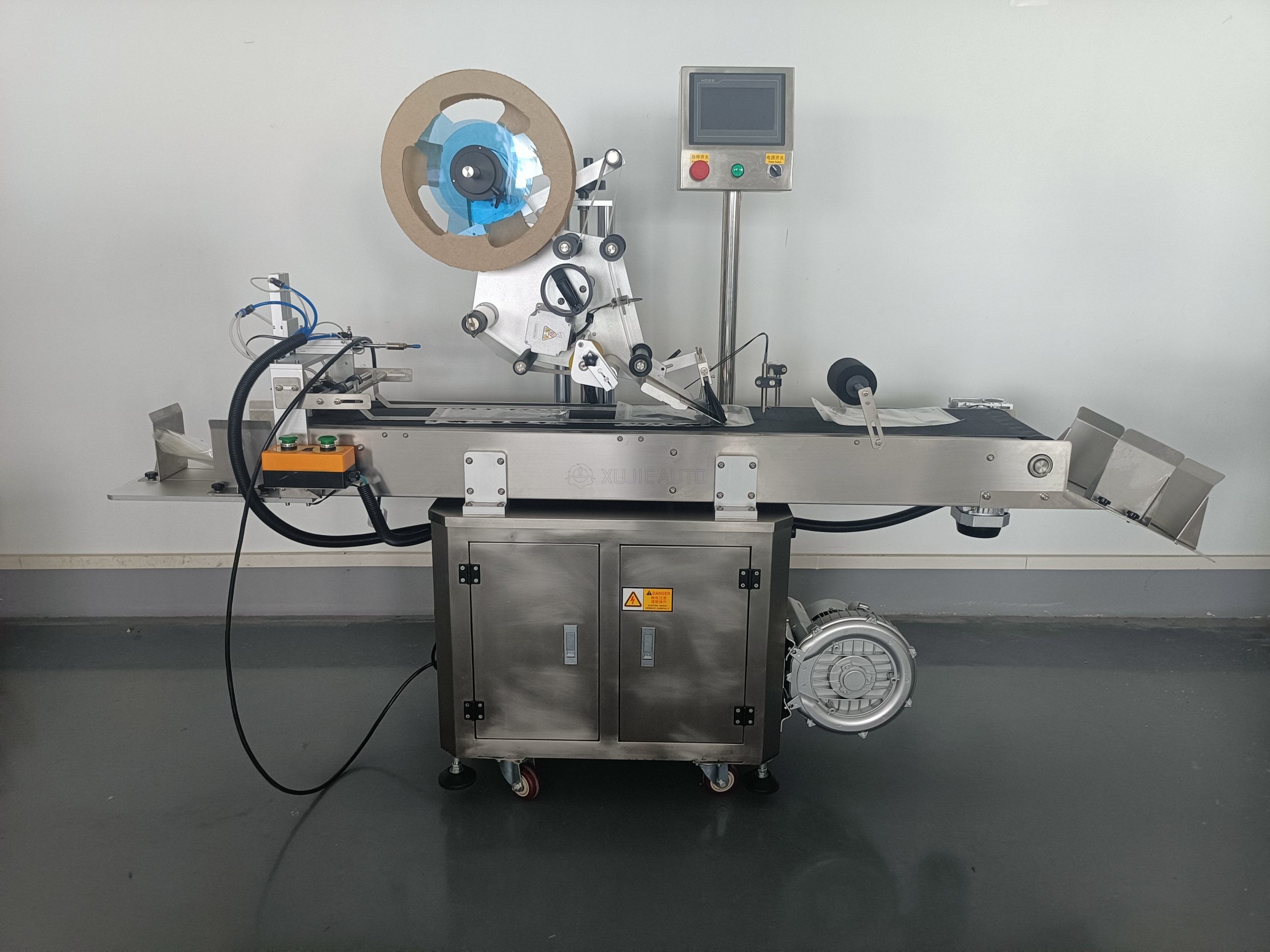

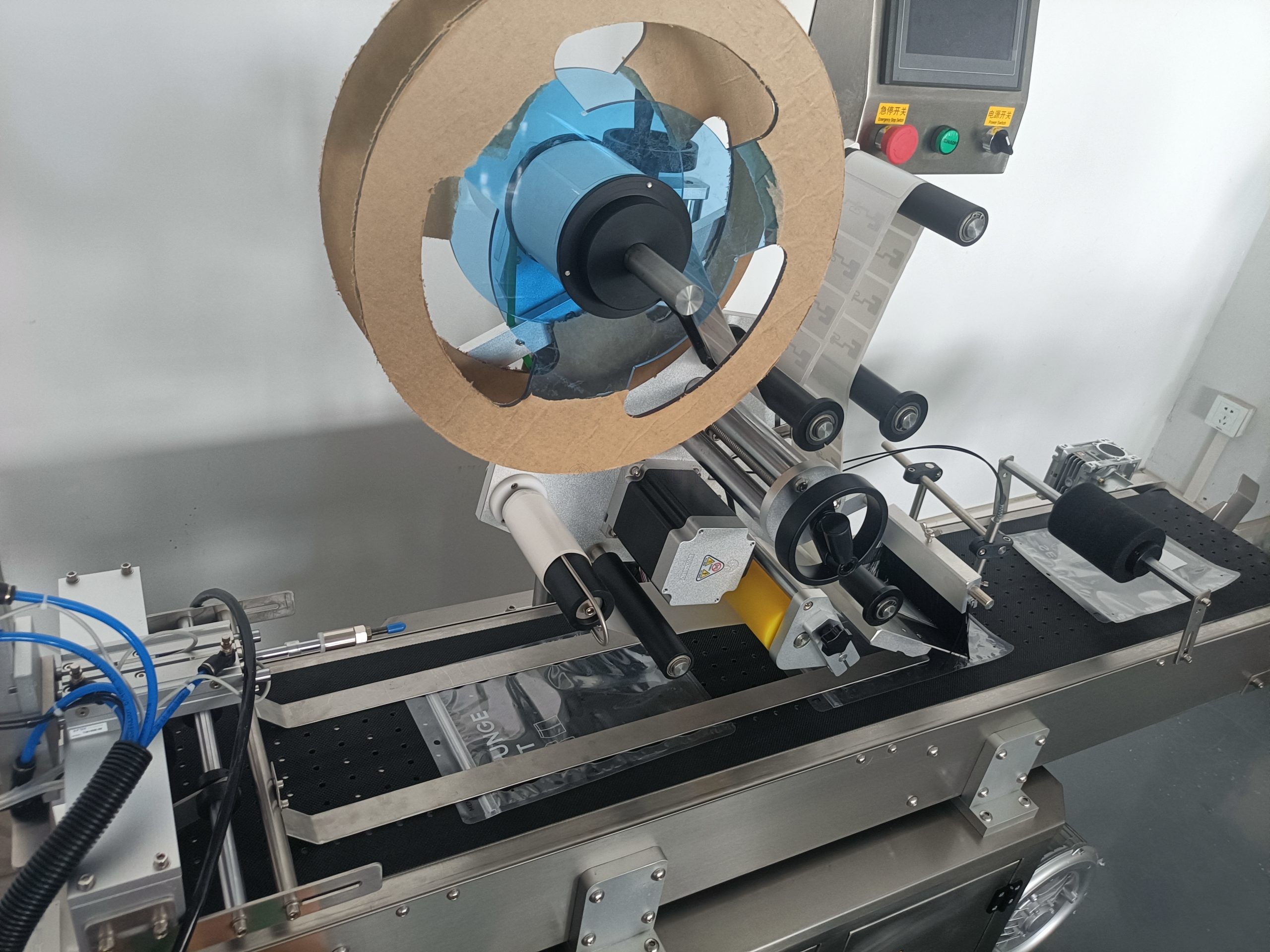

Full Automatic Pneumatic Paging Flat Labeling Machine | High-Speed Sticker Label Applicator for Cards Pouches & Plastic Bags

This full automatic pneumatic paging flat labeling machine is an industrial-grade labeling solution designed for flat, thin products such as cards, envelopes, pouches, plastic bags and cartons.
Equipped with a pneumatic-driven vacuum paging feeder, it automatically separates stacked products and feeds them into the labeling station for continuous, hands-free operation. The high-precision labeling head ensures ±0.5mm label placement accuracy, even at speeds up to 200 products per minute. Built with a SUS304 stainless steel frame and PLC touchscreen control, it is durable, easy to operate and meets hygiene standards for food, cosmetics, pharmaceutical and logistics applications. The modular design allows seamless integration with existing packaging lines, making it a cost-effective upgrade for high-volume production.

• Pneumatic Vacuum Paging System: Automatic product separation for continuous feeding, eliminating manual handling and improving efficiency.
• ±0.5mm Ultra-High Precision: Photoelectric sensor + stepper motor drive ensure consistent, wrinkle-free label placement.
• 150-200 PCS/Min High-Speed Operation: Handles high-volume orders with stable performance, suitable for large-scale packaging lines.
• Wide Compatibility: Works with self-adhesive labels on cards, envelopes, pouches, plastic bags and flat cartons.
• SUS304 Industrial Build: Corrosion-resistant stainless steel construction, easy to clean and meets food-grade hygiene requirements.
• PLC Touchscreen Control: User-friendly interface with recipe storage, simplifying parameter adjustment and reducing setup time.
• Low Maintenance Design: Quick-replaceable wear parts and simplified structure minimize downtime for maintenance.

Labeling Accuracy:         ±0.5 mm

Production Speed:           150–200 pcs/min (depends on product size)

Feeding System:               Pneumatic-driven vacuum paging feeder

Control System:               PLC + Touchscreen HMI + Stepper motor

Power Supply:                  220V/50Hz (customizable to 110V/60Hz)

Power Consumption:      800–1200 W

Machine Material:           SUS304 stainless steel + aluminum alloy

Dimension:                       Approx. 1800 × 650 × 1350 mm (L×W×H)

Net/Gross Weight:         150 kg / 180 kg

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to  ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
