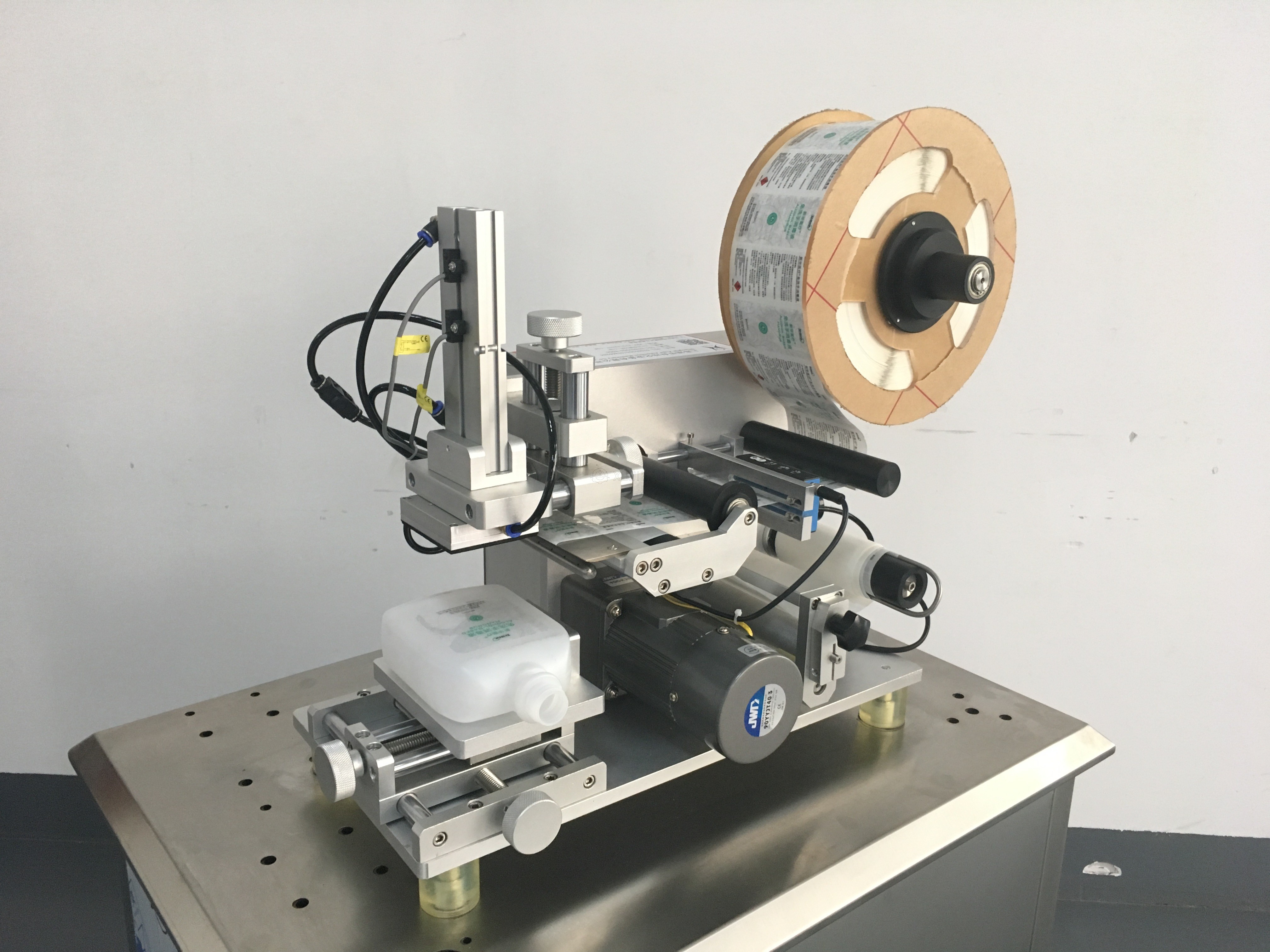

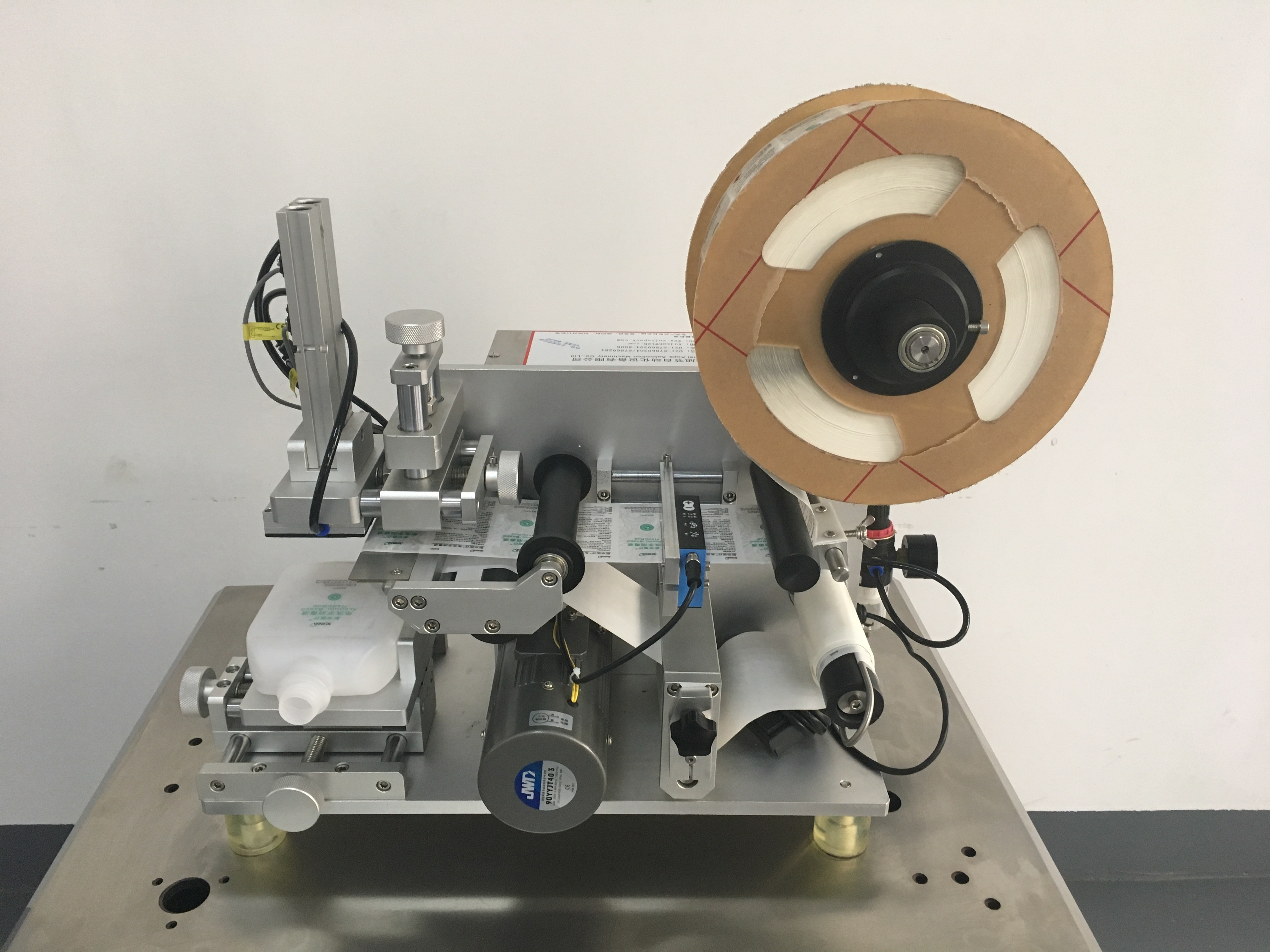

LB-40A Semi-Automatic Flat Labeling Machine

This machine apply to food, medical, cosmetics, electronics, plastics, toys, hardware, auto parts, stationery, etc., automatically attach stickers, self-adhesive film, electronic supervision code, barcode, etc., to achieve cup, bag, dish, tube, can, box, bottle, barrel, etc product plane, side , top surface, bottom surface, slope surface, concave surface, corner surface labeling.

Machine Description

◆The main material of the equipment is stainless steel and high-grade aluminum alloy. The overall structure is firm and beautiful. It is easy to operate and maintain. It can be operated independently and maintained by simple training for workers. It has small structure, small floor space, convenient equipment movement and installation. Fault alarm function, production counting function;
◆Core working principle: The sensor detects that the product is in place or the foot sends out the product in-position signal. The suction head of the label is labeled and overlaid, and then returns to the original position to adsorb the next label, waiting for the next labeling signal, one label. The attachment action is completed;
◆Operation process: put the product -> determine the position (equipment detection control or manual control) -> labeling (automatic realization of the equipment) -> remove the labeled product.

Machine Feature

◆Packing type: container, bag, dish, tube, can, box, bottle, barrel, etc.
◆Function: Improve product labeling, film attachment efficiency, accurate attachment position, good quality and high stability; avoid manual labeling, low film efficiency, skewing, blistering and wrinkling, irregular placement, etc. A series of problems; effectively reduce product costs, improve product logo aesthetics, and enhance product competitiveness

Technical Parameter

Machine Model:LB-40A

Product Size:20≤Length≤300mm,20≤Width≤200mm

Label Size:20≤Length≤150mm,20≤Width≤150mm

Labeling Precision:±0.5mm (Related to product and label size)

Labeling Speed:20~40pcs/min(Related to product and label size)

Label Roller Size:Diameter: 76mm-280mm, distance between two labels 2-3mm

Machine Size:700×3400×700mm(L*W*H)

Power Supply:220V 50/60HZ

Machine Weight:50kg
