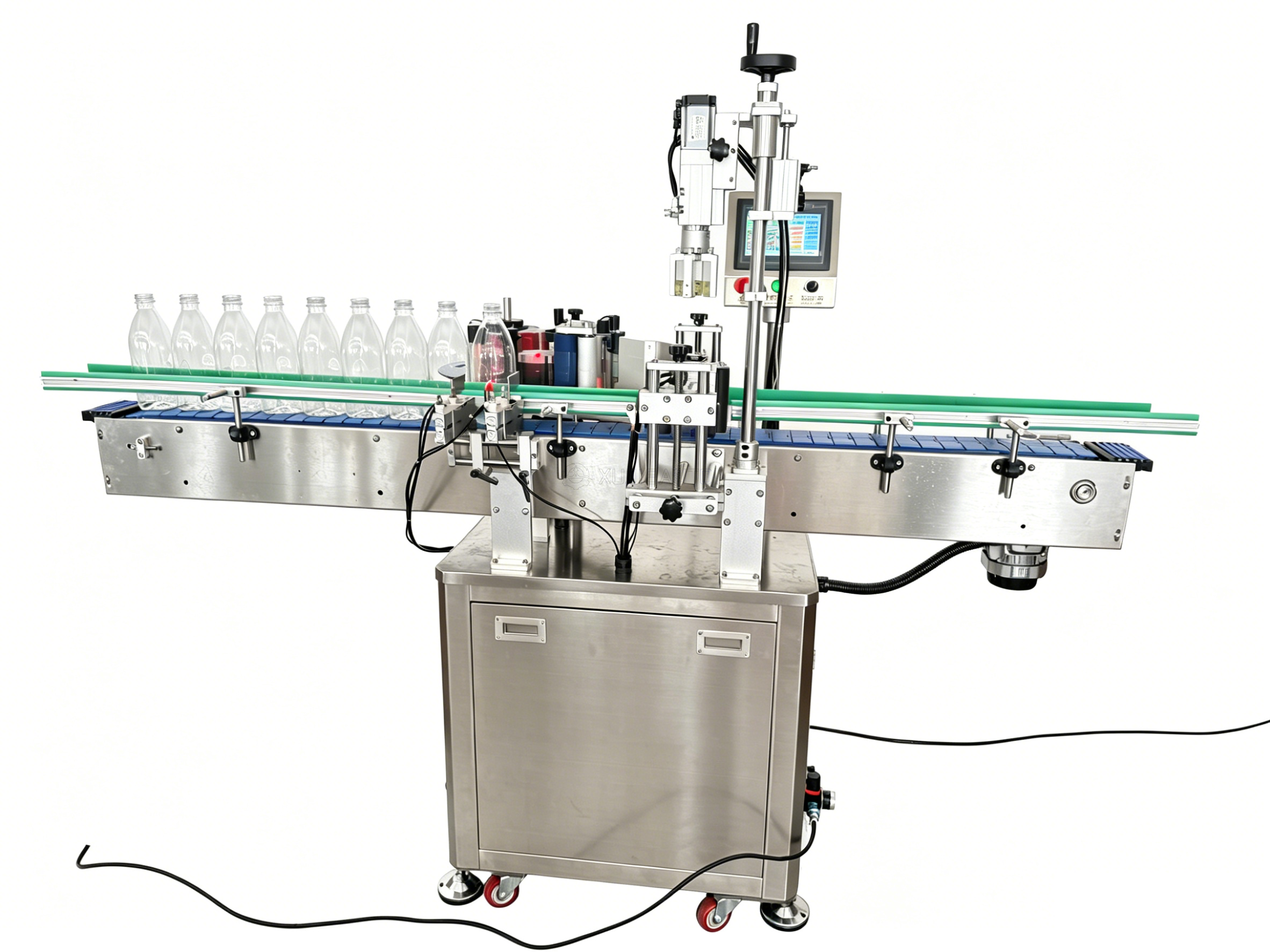

Automatic Vertical Round Bottle Labeling Machine | Full-auto Cylindrical Container Sticker Applicator

1. Full-auto inline continuous labeling, connectable with front filling & capping machines for complete production line
2. SUS304 stainless steel machine body, corrosion-resistant, easy to clean for food & pharma hygiene standard
3. PLC + color touch screen control, parameter saved for different bottle specifications, one-click recall setting
4. Adjustable side clamping conveyor + rolling labeling head, adapt round bottles from small vial to big jug
5. High labeling accuracy ±1mm, no wrinkle, no bubble for wrap-around & partial round surface labeling
6. Bottle blocking & no-label automatic alarm system to reduce material waste
7. Universal adjustable structure, quick size changeover within 5–10 minutes for multi-spec production
8. Mobile casters + fixed foot cup, convenient to shift location and lock position steadily

Applicable Bottle Diameter： Φ20~Φ120mm (custom up to Φ200mm)
Applicable Bottle Height：      30~350mm
Applicable Label Width：       15~180mm
Label Roll Inner Core：           Φ76mm standard
Max Label Outer Diameter： ≤Φ300mm
Labeling Precision：                 ±1mm
Working Speed：                        30~120 bottles/min (depends on bottle & label size)
Power Supply：                          AC220V 50/60Hz, 1.2KW
Overall Dimension：                 L1650×W680×H1350mm
Net Weight：                               265KG
Working Ambient：                   0~40℃, non-condensing humidity

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
