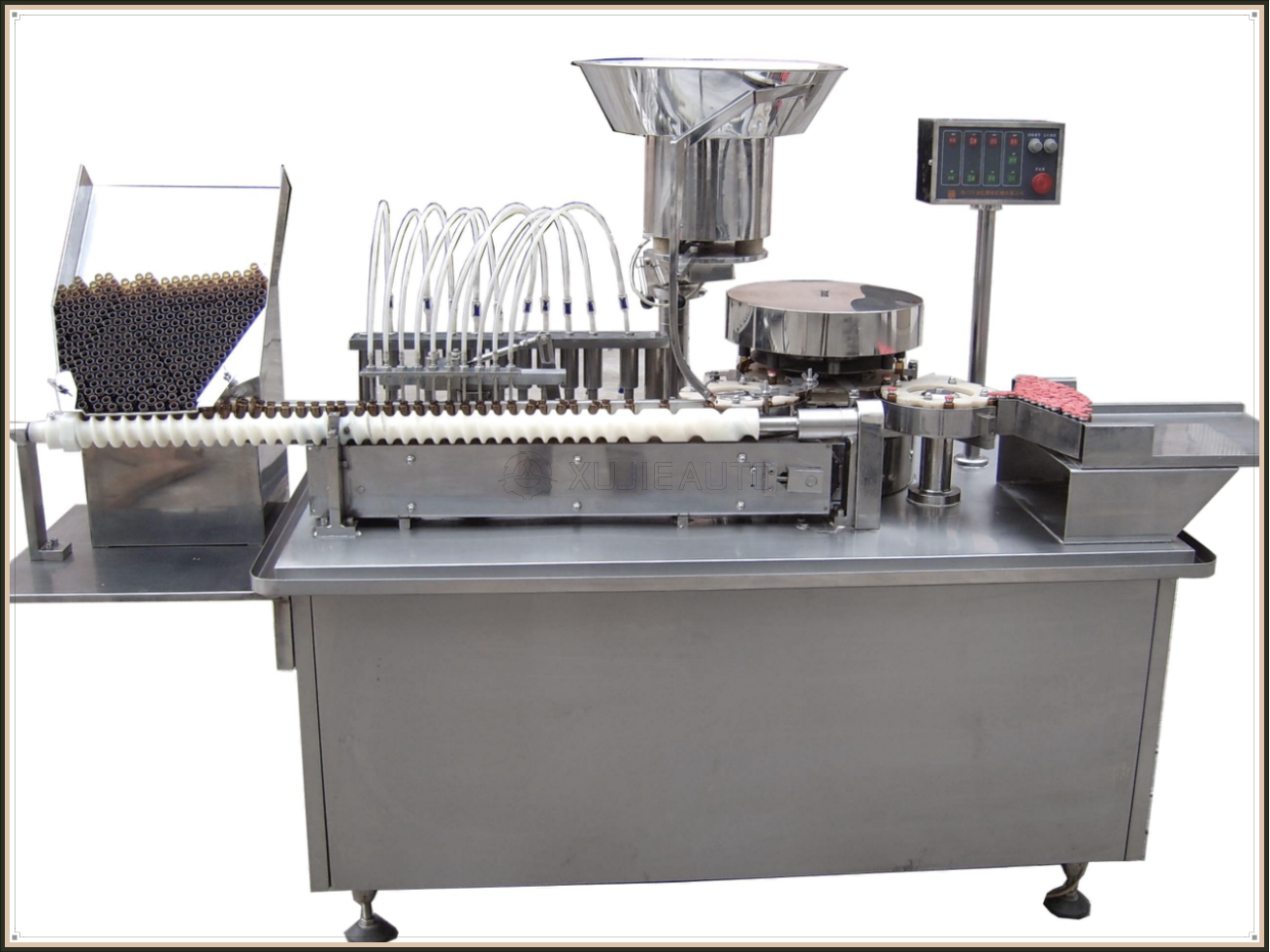

XFM-10H Vial liquid filling sealing & capping machine

This machine is applicable to the pharmaceutical industry in the 2-30 ml bottle of liquid filling and sealing packing process, high precision piston pump (or peristaltic pump) filling, measuring accurate, adjustable, convenient maintenance, easy operation, no bottle no filling, no bottle no plug, not plug cover function.

Machine Description

  1. Compact linear structure for easy installation and maintenance.
  2. Equipped with world-renowned branded components for pneumatic, electrical and operating systems.
  3. High degree of automation and intelligent operation, pollution-free.
  4. Machine body constructed from SUS304 stainless steel (SUS316 available as option), fully compliant with GMP standards.

Machine Feature

  • This machine adopts a PLC control system with a color touch screen interface for intuitive operation.
  • It is mainly designed for filling, capping and sealing of 5–30ml straight tubular bottles (equipped with easy-pull caps or aluminum caps).
  • Equipped with screw-driven bottle conveying and precise filling tracking, which effectively reduces foam generation. The cap feeding adopts electromagnetic vibration, ensuring a high cap placement success rate.
  • This 2-in-1 unit integrates filling and sealing functions, featuring an advanced design and compact structure.



Technical Parameter

Production capacity
30-40 bottles/minute
Filling nozzle
2 nozzles
Filling accuracy
±1%
Press capping nozzles
1 nozzles
Capping rate
99% or more (depending on the characteristics of plug appropriate adjustment)
Speed control
frequency control
Bottle size
More than 10 mm
The power supply
380 V 50 Hz
Power
2 kw
Air supply
0.3~04kfg/cm2
Gas consumption
10~15m3/h
Overall dimensions
3000×1300×1700 mm

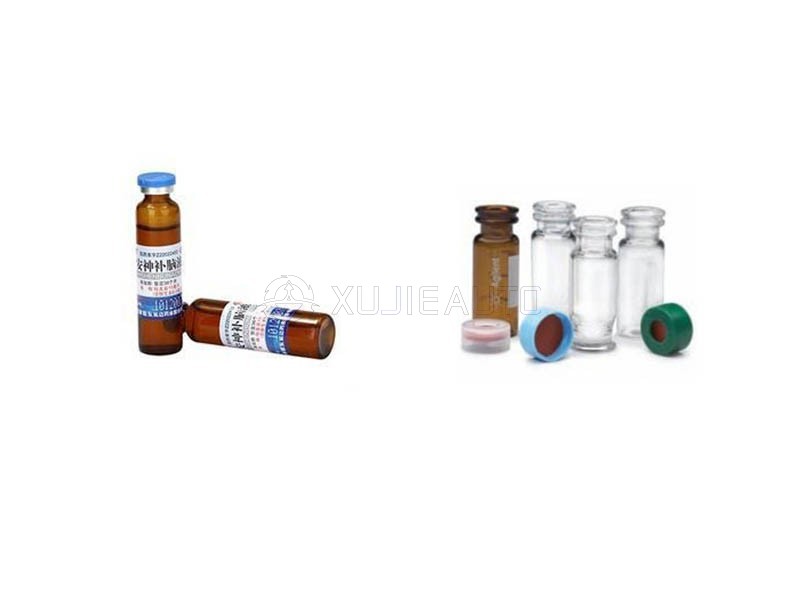

Sample

Packaging & Shipping

Packaging:

By container or standard export packing per machine

Delivery time:

15-30 days after payment received

FAQ

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
