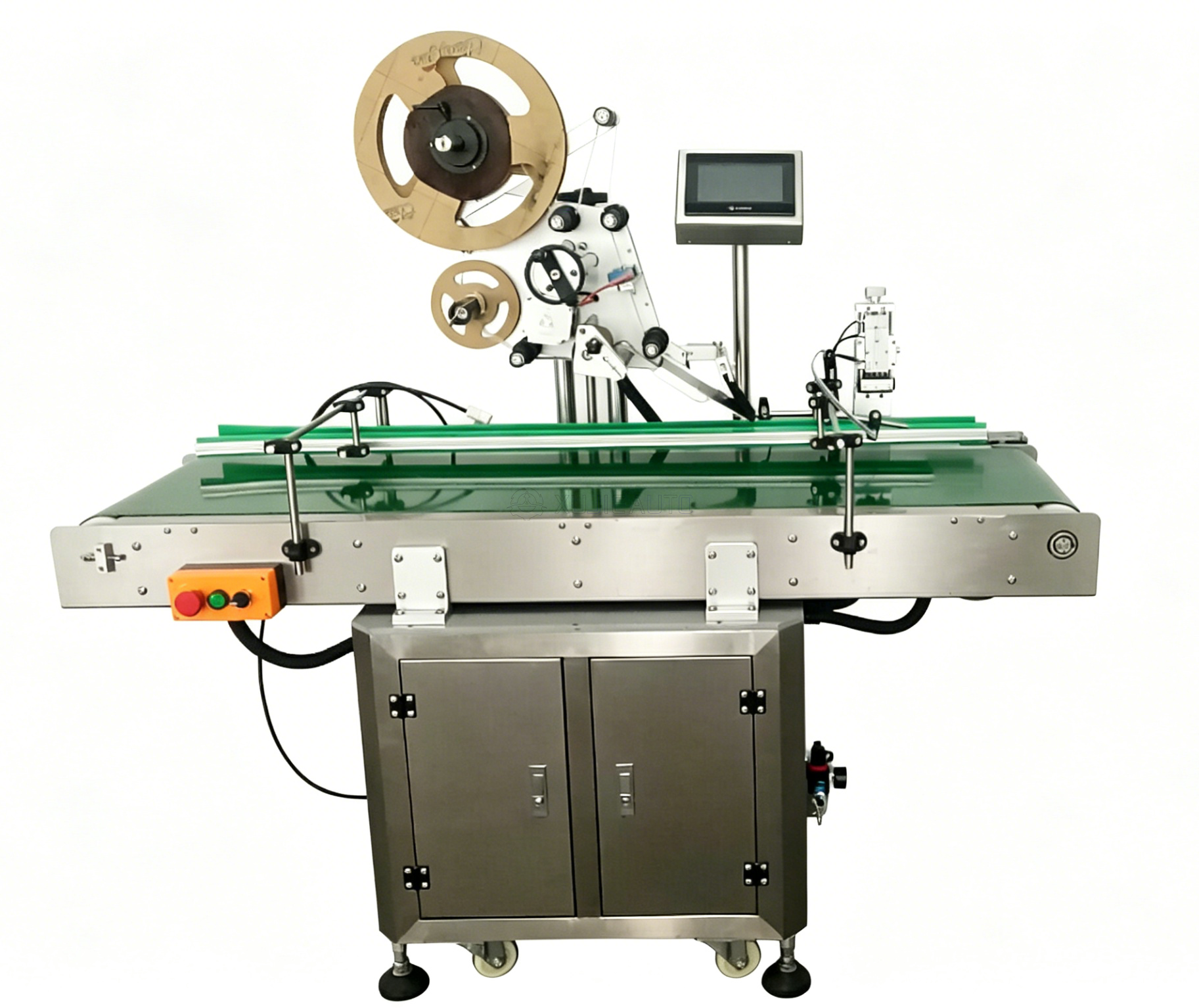

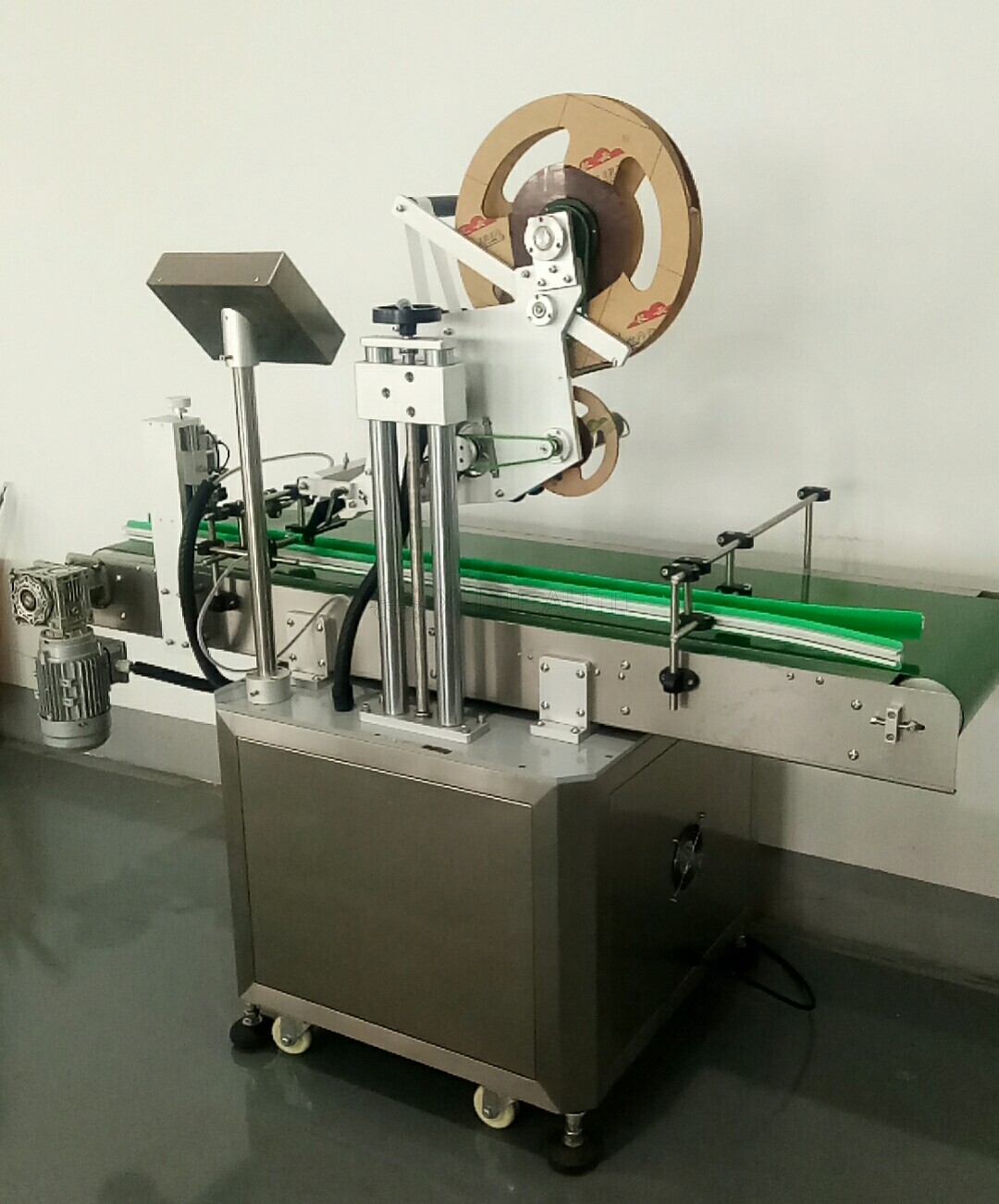

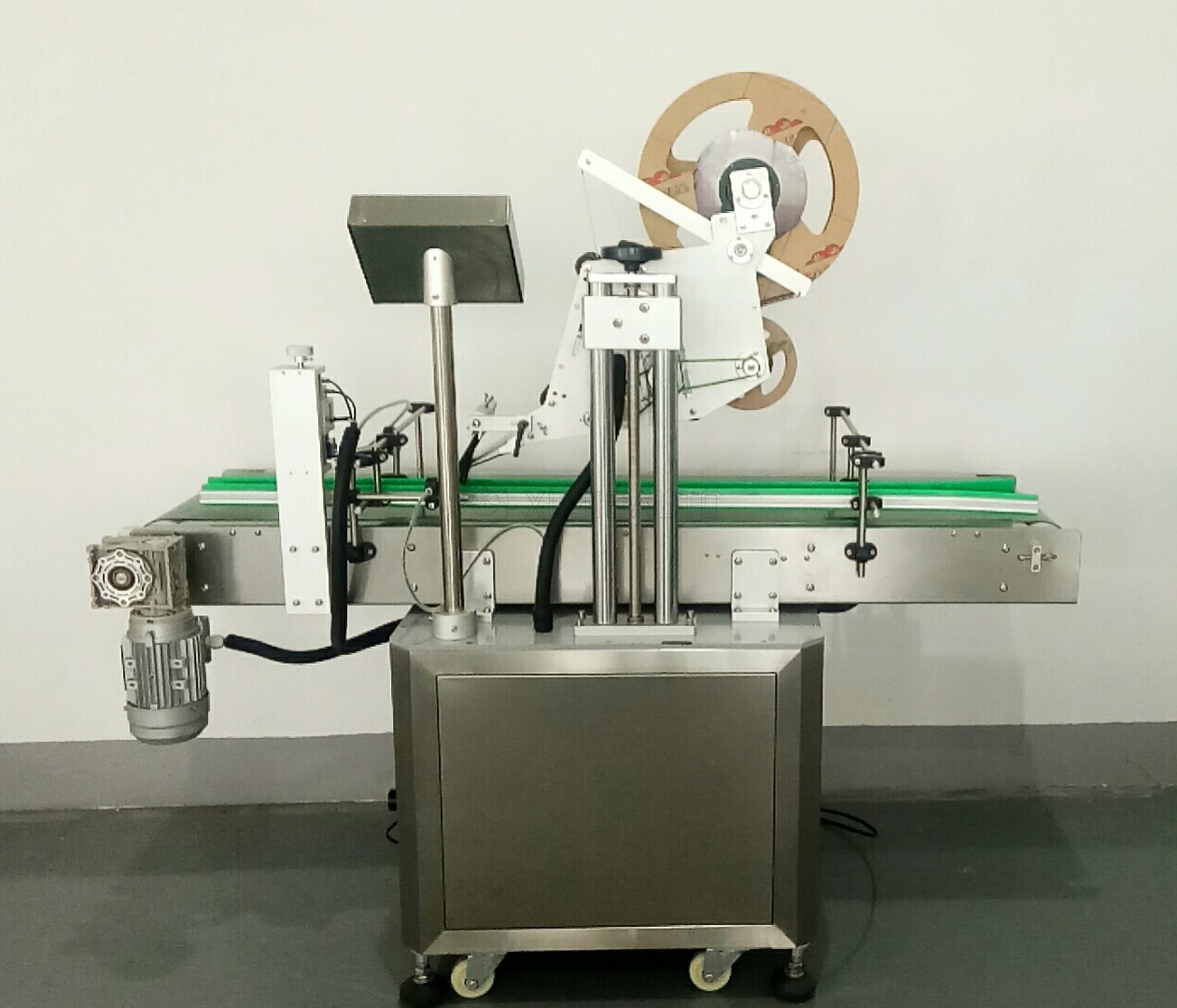

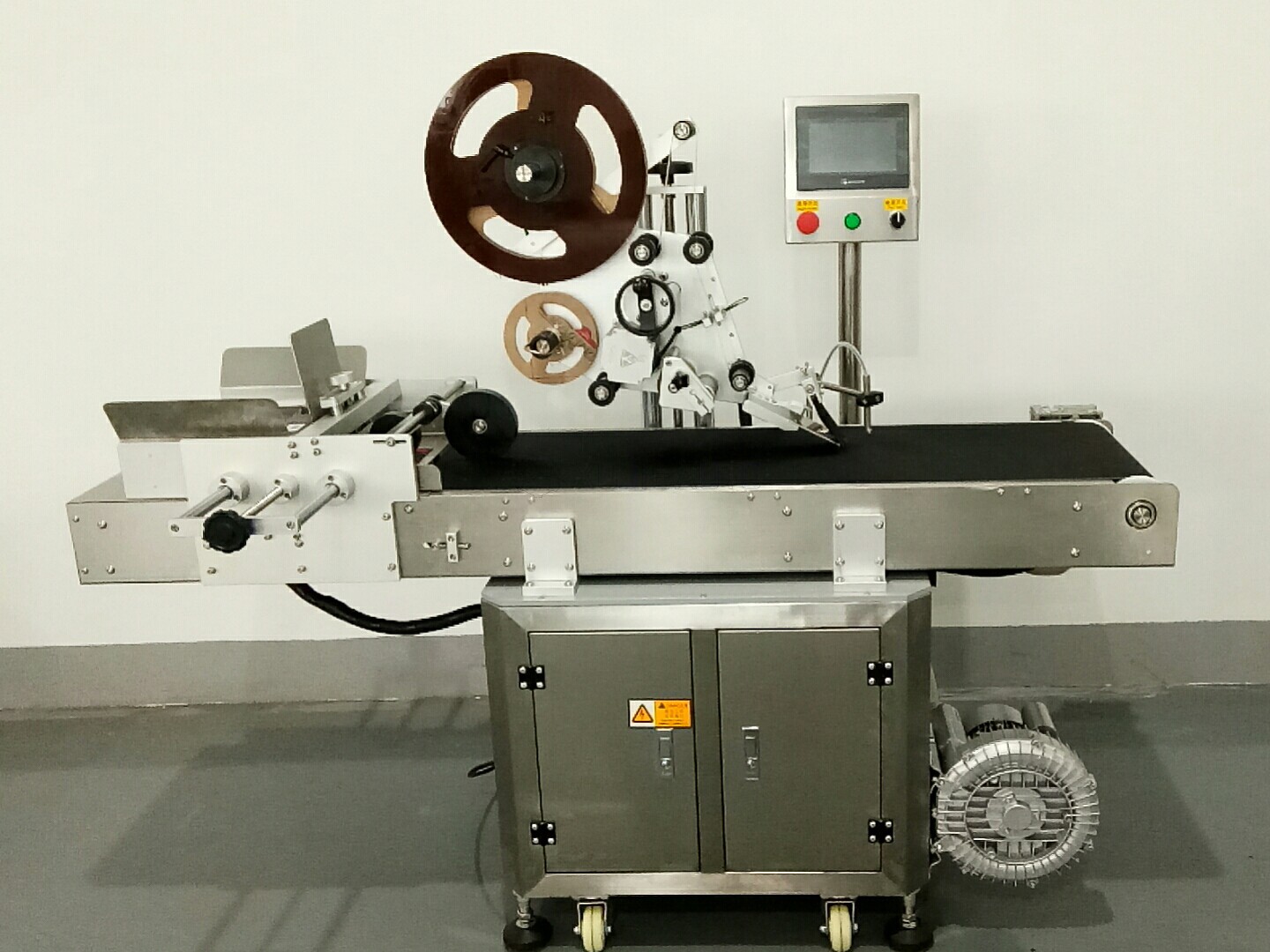

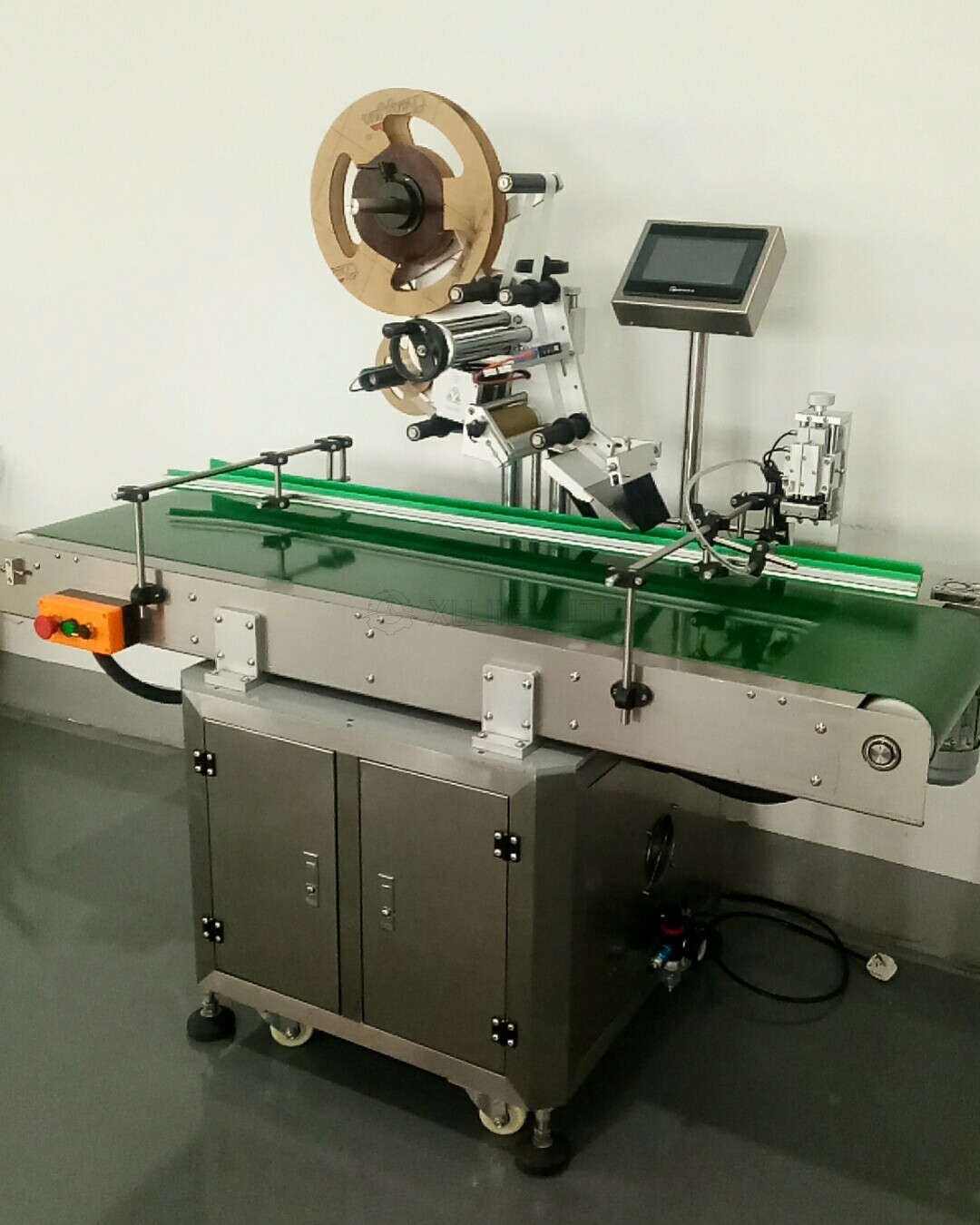

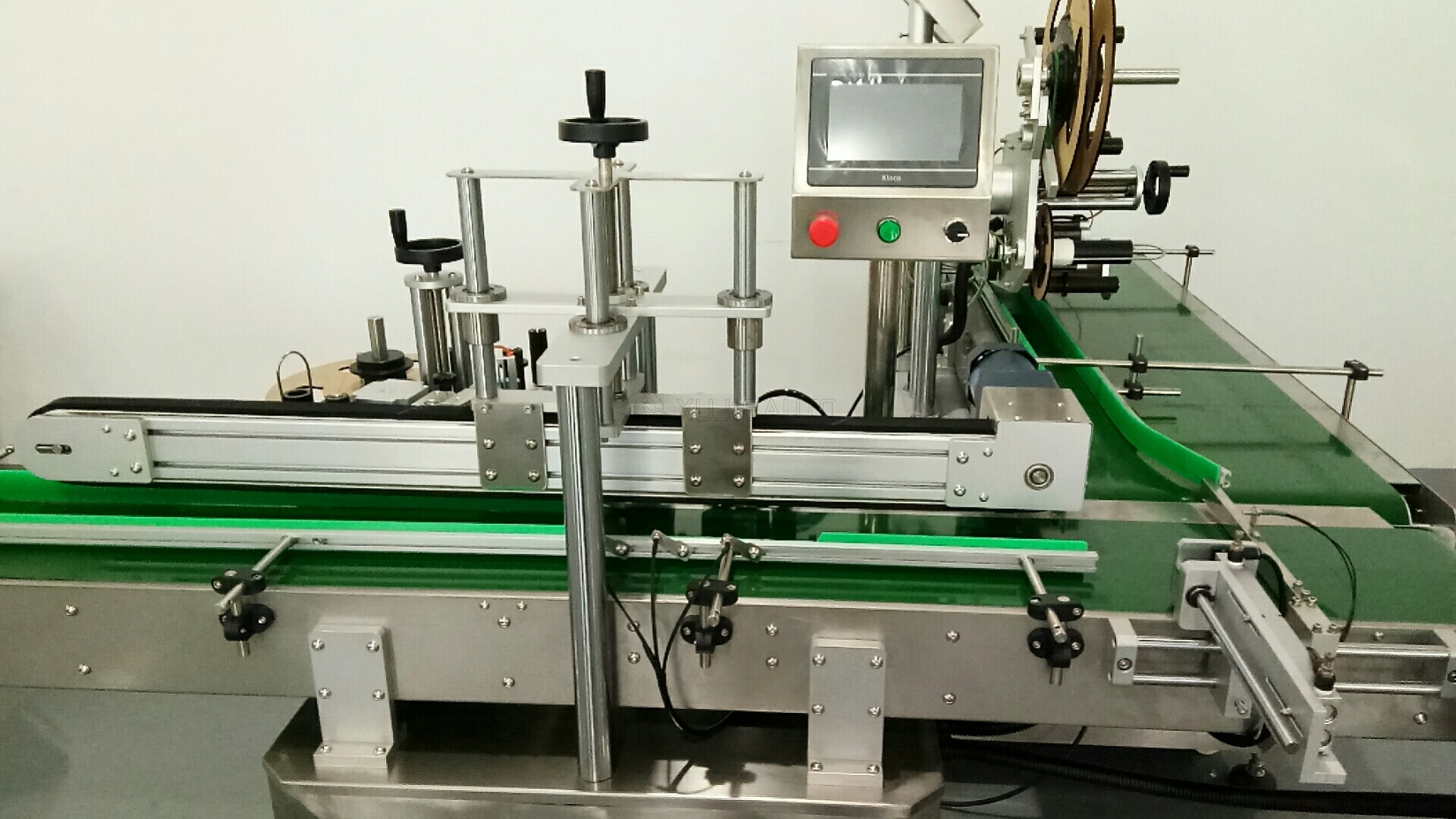

Automatic Flat Surface & Corner Labeling Machine | Tamper-Evident Label Applicator

This flat & corner labeling machine applies tamper-evident labels to the top and corners of boxes, cartons and flat containers. It eliminates manual errors and improves packaging security.
Equipped with a precision labeling head and PLC touch screen, it delivers ±1mm accuracy. Photoelectric sensors prevent mislabeling, while the SUS304 stainless steel build meets hygiene standards for food, pharma and cosmetics. Adjustable speed and positioning allow standalone use or line integration. Custom solutions are available.

1. Dual-function labeling: Combines flat surface labeling with corner wrap application for tamper-evident seals
2. High-precision corner application: Labels wrap neatly around corners without wrinkles or misalignment
3. Intelligent control system: PLC + touch screen with memory function for multiple product recipes
4. Reliable material handling: Adjustable conveyor guide rails ensure stable product positioning
5. Hygienic design: SUS304 stainless steel construction, easy to clean and sanitize
6. Wide adaptability: Works with various box/carton sizes and label materials (paper, film, etc.)
7. Safety & error prevention: Photoelectric sensors prevent mislabeling and trigger alarms for issues
8. Low maintenance: Modular design for quick component replacement and minimal downtime
9. Customizable options: Support for special product sizes, label types, and production line integration

Labeling Speed:                   20-120 pcs/min (adjustable, depends on product size & label length)
Labeling Accuracy:             ±1mm (excluding product/label manufacturing tolerance)
Applicable Products:          Cardboard boxes, cartons, flat plastic containers, rigid pouches
Product Size Range:           Width: 40-250mm, Length: 60-350mm, Height: 10-100mm
Label Size Range:                Length: 15-300mm, Height: 10-120mm
Power Supply:                     220V / 50Hz (customizable for other voltages)
Total Power:                        800W
Machine Material:              SUS304 Stainless Steel + Aluminum Alloy
Control System:                  PLC + 7-inch Touch Screen
Conveyor Type:                  Green PVC belt conveyor with adjustable guide rails
Overall Dimension:           1800×700×1500 mm
Net Weight:                        About 250kg

=

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
