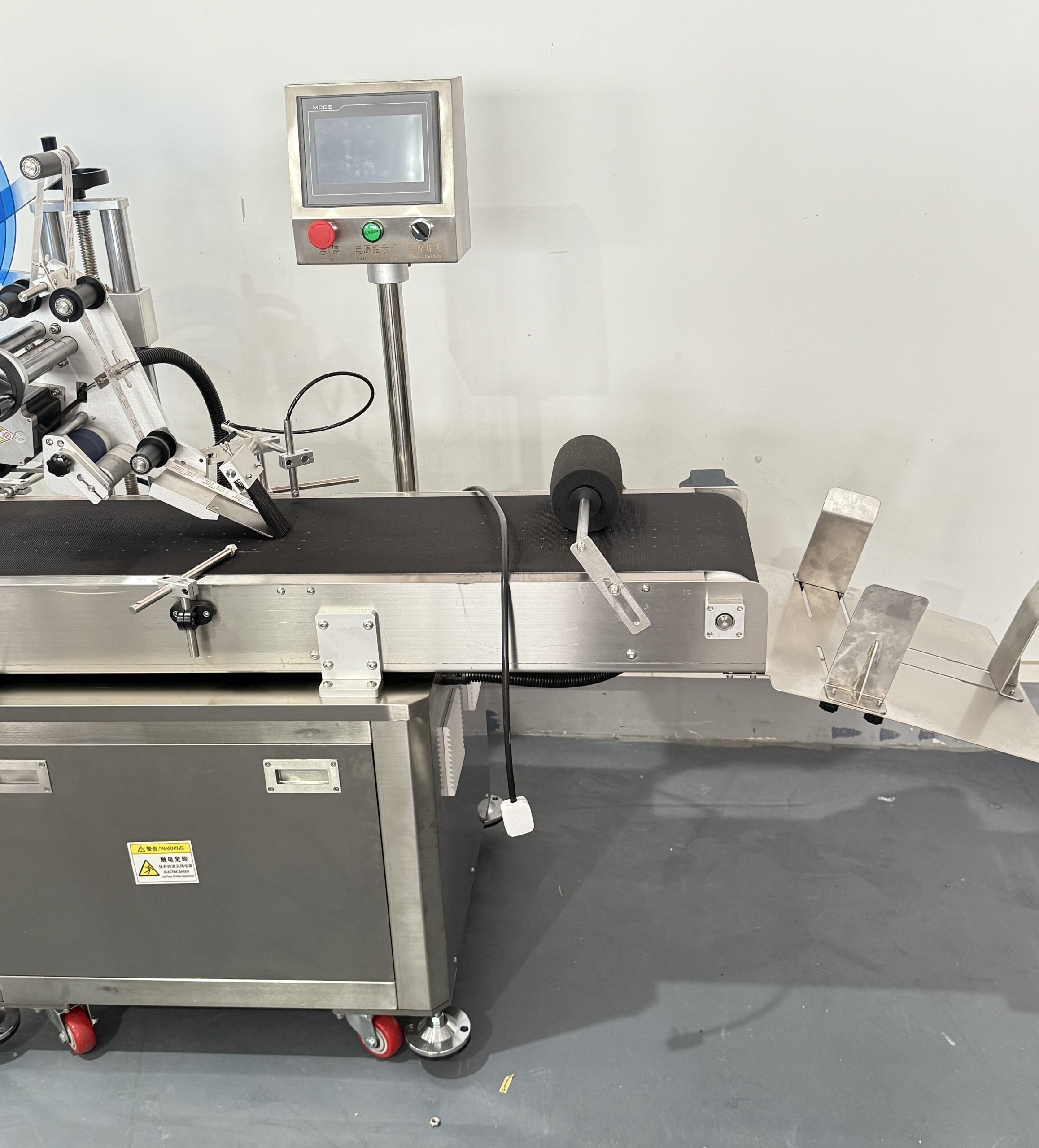

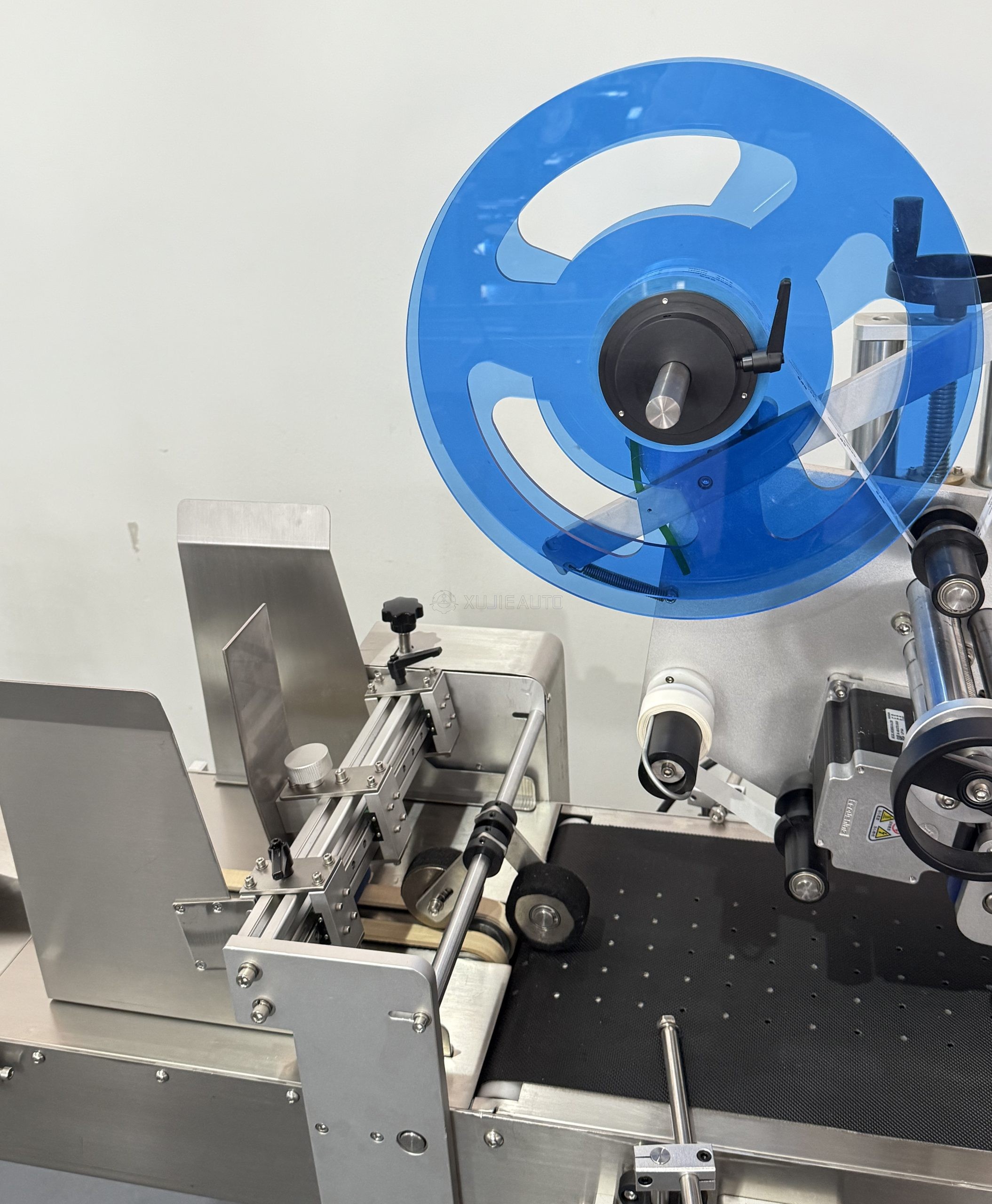

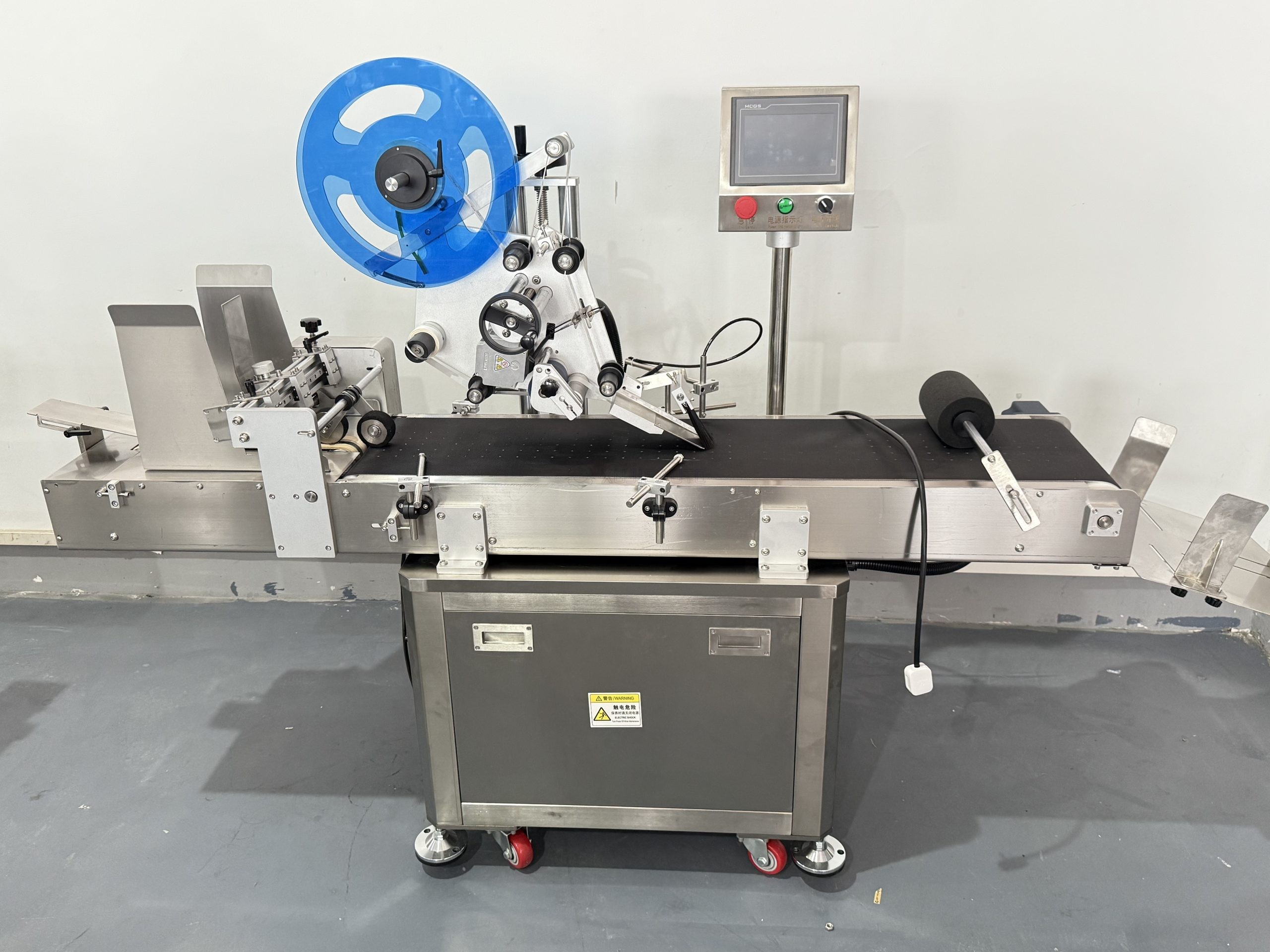

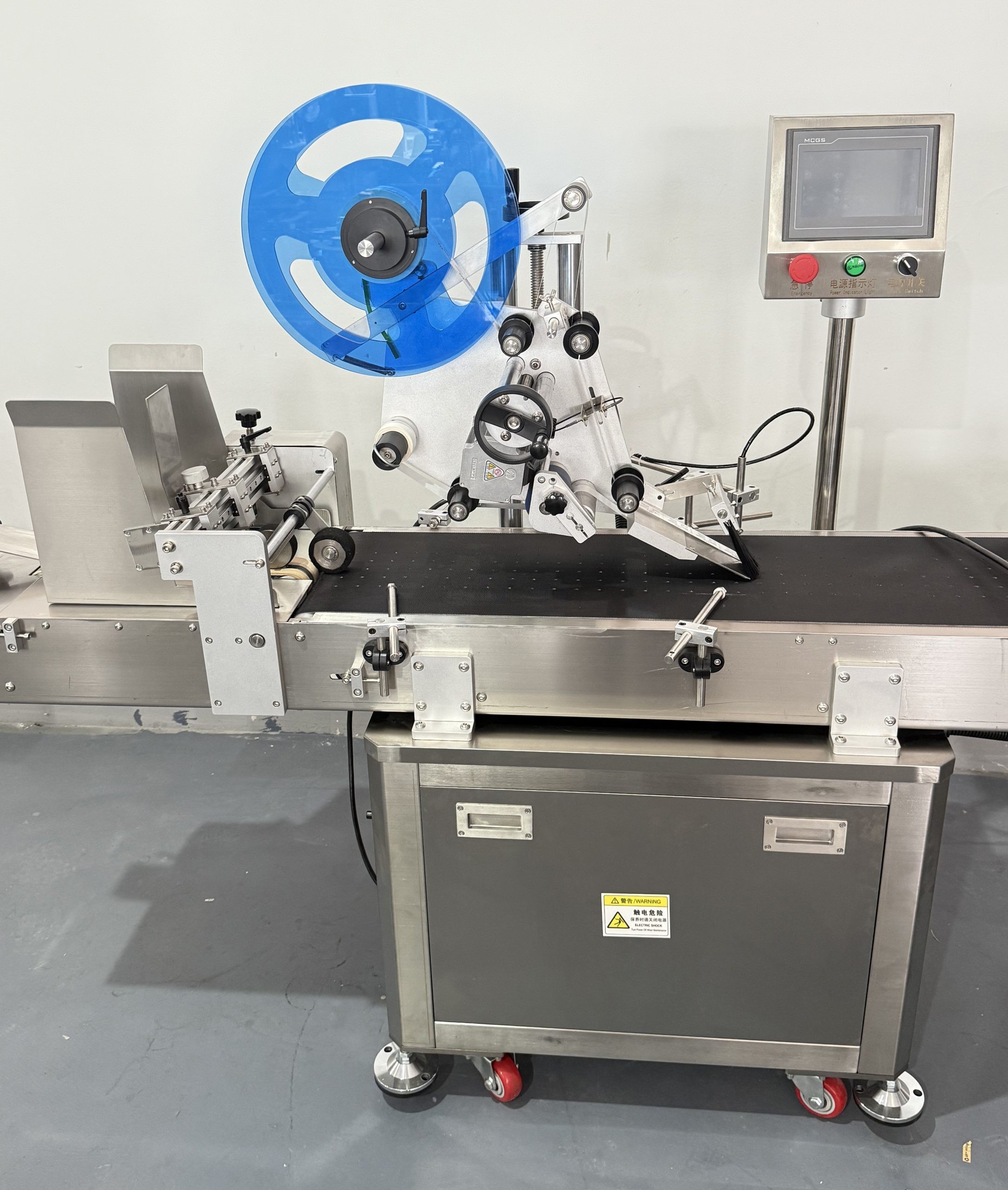

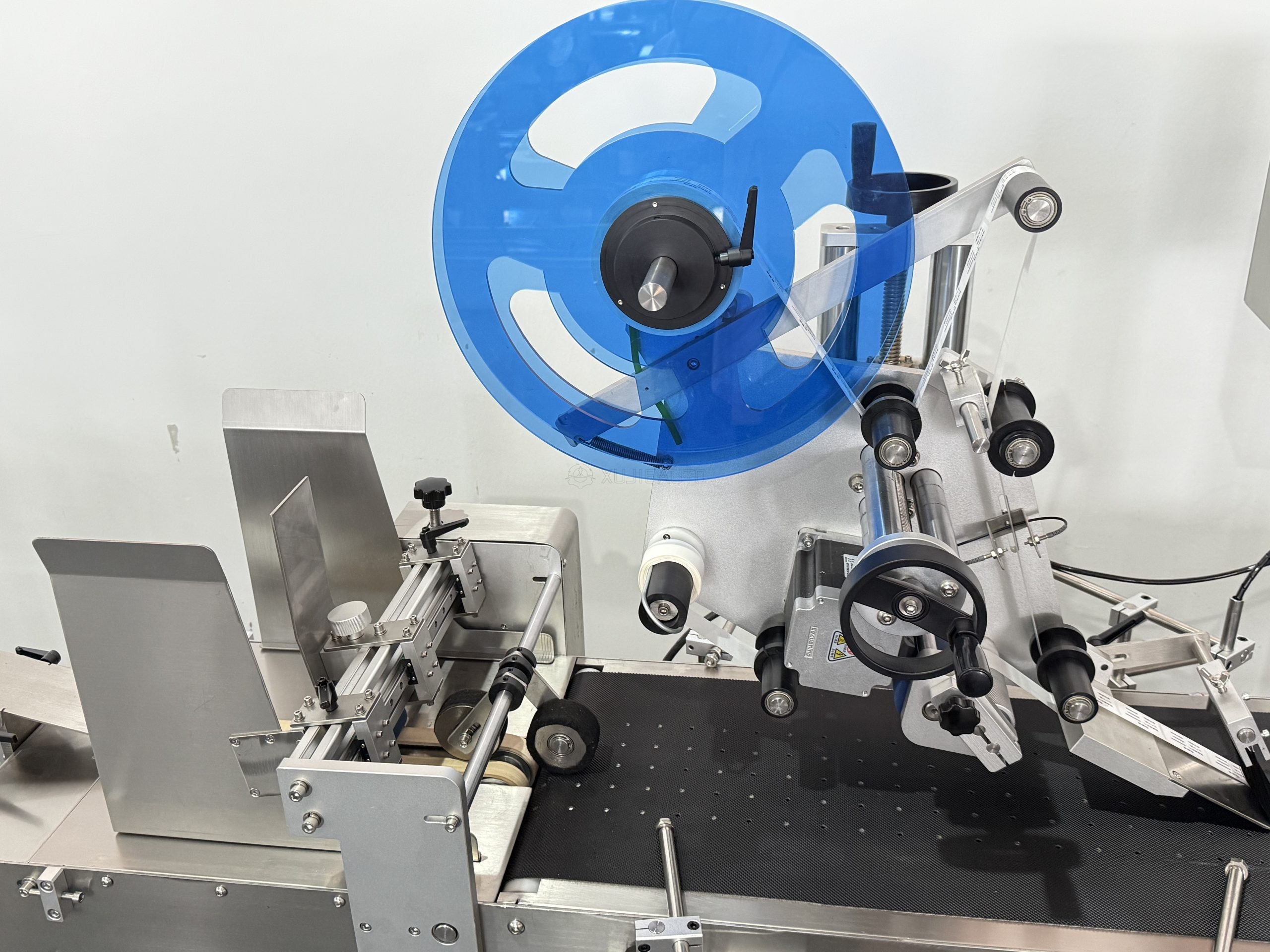

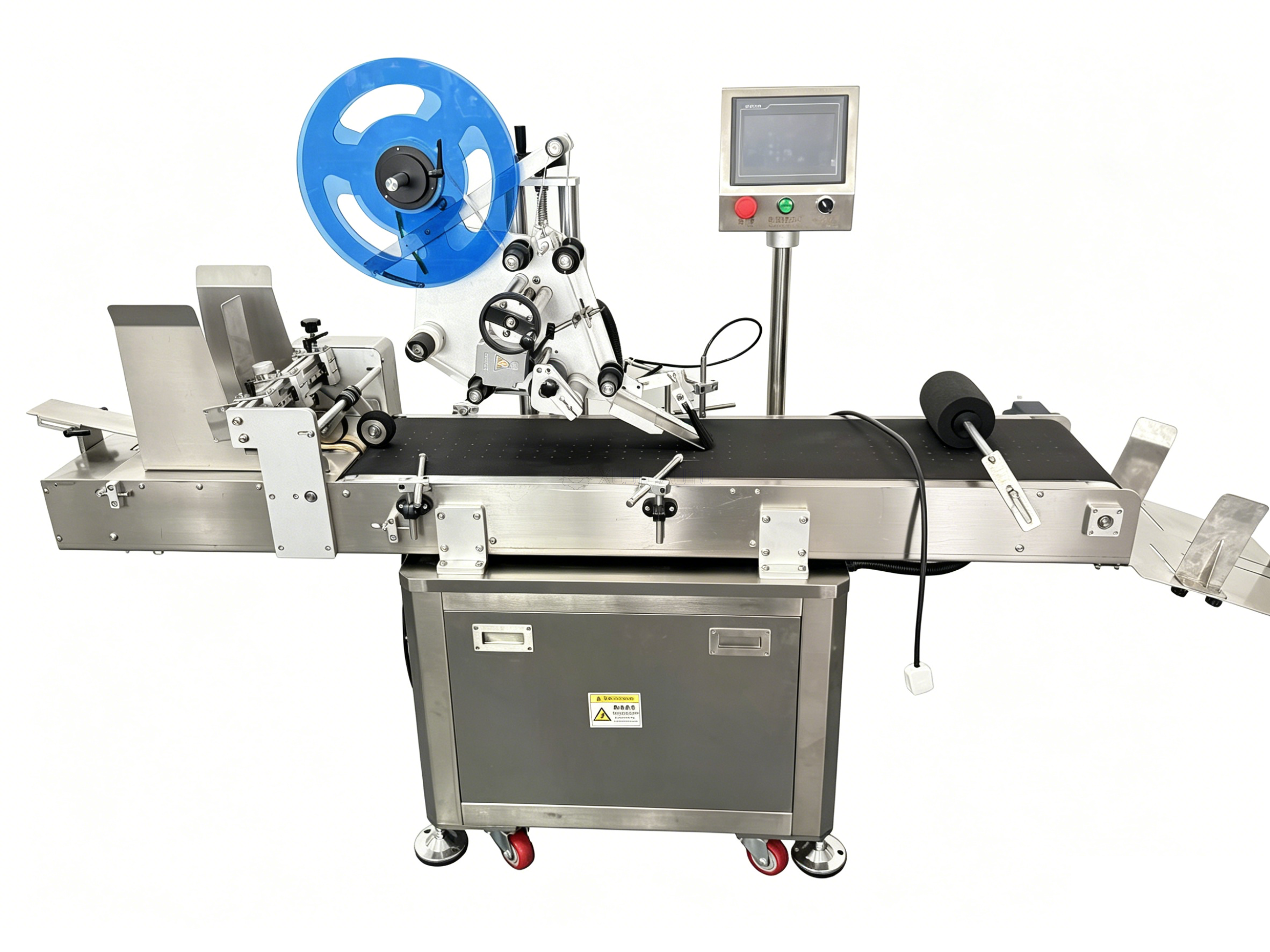

Automatic Paging and Labeling Machine for Cards, Pouches & Flat Products

This Automatic Paging & Labeling Machine is an all-in-one labeling system designed for flat, flexible products like cards, pouches, bags, envelopes, and boxes. It integrates automatic paging, feeding, and top labeling functions into one compact unit, ensuring high-speed, accurate labeling for a wide range of industries.

Built with SUS304 stainless steel, the machine meets food and pharmaceutical hygiene standards. The adjustable paging system handles different product thicknesses, while the servo-driven labeling head ensures ±1mm accuracy. It is widely used in food, cosmetics, pharmaceuticals, logistics, and e-commerce industries for batch and variable labeling tasks.

1. All-in-One Paging & Labeling: Combines automatic paging, feeding, and top labeling in one system, eliminating the need for manual sorting.
2. High-Speed Operation: Labeling speed up to 200 pcs/min, significantly improving production efficiency and reducing labor costs.
3. Wide Compatibility: Works with cards, pouches, plastic bags, envelopes, boxes, and other flat or flexible products.
4. High Precision Labeling: Servo motor-driven labeling head ensures labeling accuracy of ±1mm, no wrinkles or misalignment.
5. Adjustable Paging System: Paging speed and gap can be easily adjusted to suit different product thicknesses and sizes.
6. PLC & Touch Screen Control: User-friendly interface with recipe memory for quick setup and operation.
7. Stainless Steel Construction: Made of SUS304 stainless steel, easy to clean, corrosion-resistant, and GMP compliant.
8. Optional Functions: Can be equipped with online printers, date coders, and barcode scanners for variable data labeling.
9. Compact & Easy Integration: Small footprint design, can be used standalone or integrated into existing production lines.

Applicable Products： Cards, pouches, plastic bags, envelopes, flat boxes
Product Size Range：  Width: 30-200mm; Length: 50-300mm; Thickness: 0.1-5mm
Labeling Accuracy：    ±1mm
Working Speed：          30-200 pcs/min (adjustable)
Label Width Range：   10-150mm
Label Length Range：  10-200mm
Power Supply：             220V/50Hz (customizable)
Total Power：                1.2kW
Machine Material：      SUS304 Stainless Steel
Control System：           PLC + Touch Screen
Optional：                       Add-ons Online printer, date coder, barcode scanner, reject system
Machine Dimension：  1800×650×1350mm (L×W×H)
Net Weight：                  180kg

=

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
