Automatic Conveyor Side Labeling Machine | Full Auto Flat & Square Container Side Sticker Labeller

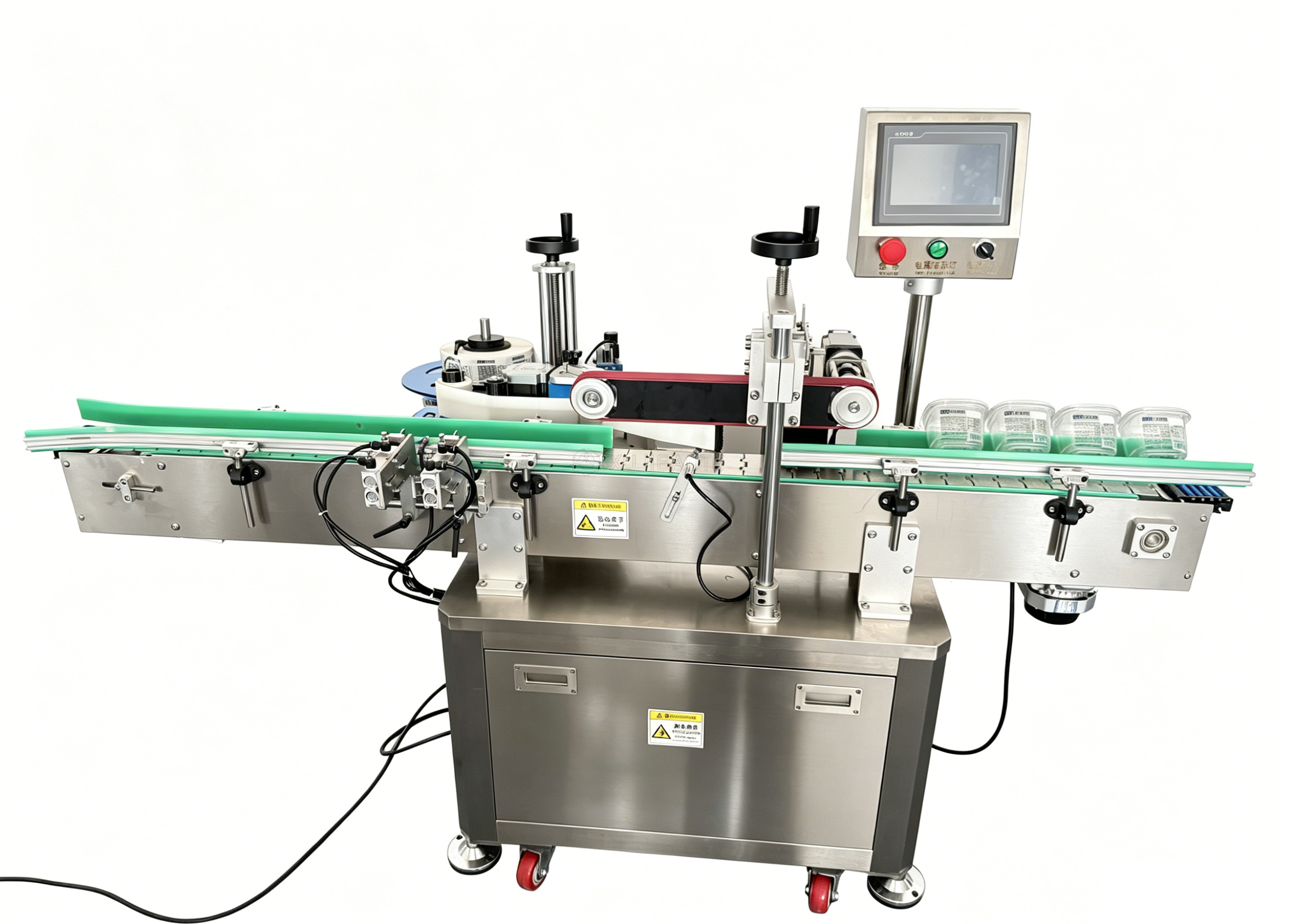

This inline automatic side labeling machine applies single-sided adhesive labels onto flat, square and irregular containers.
Equipped with clamping conveyor and adjustable labeling head, it finishes feeding, positioning and labeling fully automatically without manual work.
The whole body uses food-grade SUS304 stainless steel. It resists corrosion and cleans easily to meet GMP standards for food and pharmaceutical production.
Controlled by PLC plus color touch HMI screen, operators adjust speed, label size and position directly on panel, switching product formulas quickly.
You can run this machine alone, or connect it with filling, capping and packing equipment to build fully automatic production lines. It works great for medium and large packaging factories.

1. SUS304 Stainless Steel Build
   Frame and conveyor components use food-grade SUS304 stainless steel, rust resistant, easy to clean and suitable for damp production workshops.
2. PLC & Touchscreen Control
   Equipped with HMI touch panel; stores up to 99 product recipes for fast product changeover within 5 minutes.
3. High Labeling Accuracy ±1mm
   Imported label sensor and servo label feed prevent wrinkles, bubbles and misalignment for tidy labeling results.
4. Wide Compatibility
   Adjustable clamping width and labeling height allows quick switching between small cosmetic pots and large food cartons with no extra spare parts.
5. Durable Continuous Operation
   Fitted with heavy-duty casters and fixed foot pads for easy relocation and stable round-the-clock mass production.
6. Complete Safety Configurations
   Emergency stop and overload auto-stop functions protect equipment from misuse damage.

Labeling Speed：                      30~150 pieces per minute
Labeling Precision：                ±1 mm
Suitable Label Size：               Width:15~150mm, Length:20~300mm
Max Label Roll OD：               300mm, Inner Core ID:76mm standard
Applicable Product Height： 20~350mm
Power Supply：                         AC220V 50/60Hz, 0.75KW
Machine Dimension：             L1850×W750×H1480mm
Net Weight：                             285KG
Machine Material：                 SUS304 Stainless Steel

=

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
