Automatic Suction Labeling Machine | High Precision Suction-Type Label Applicator

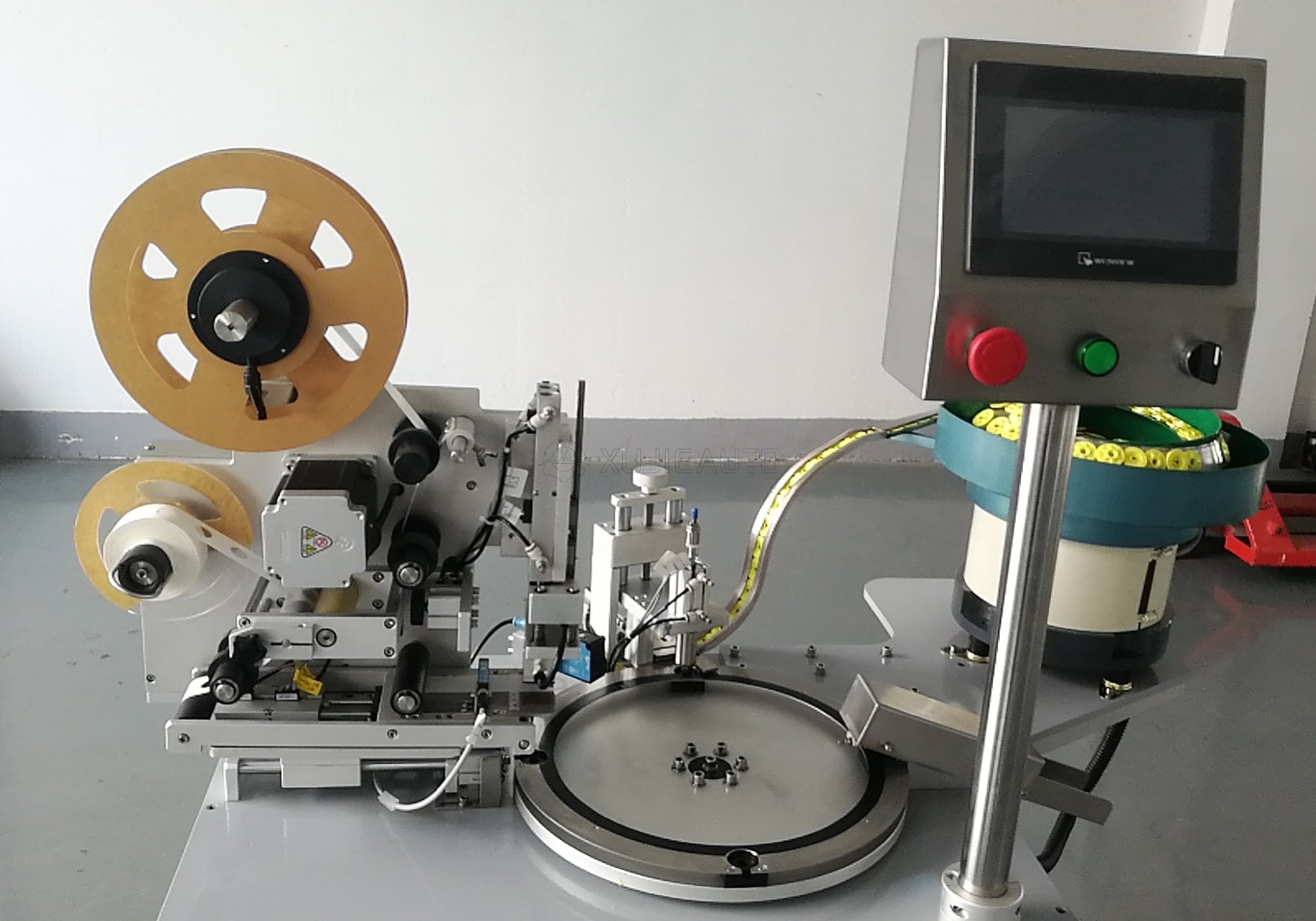

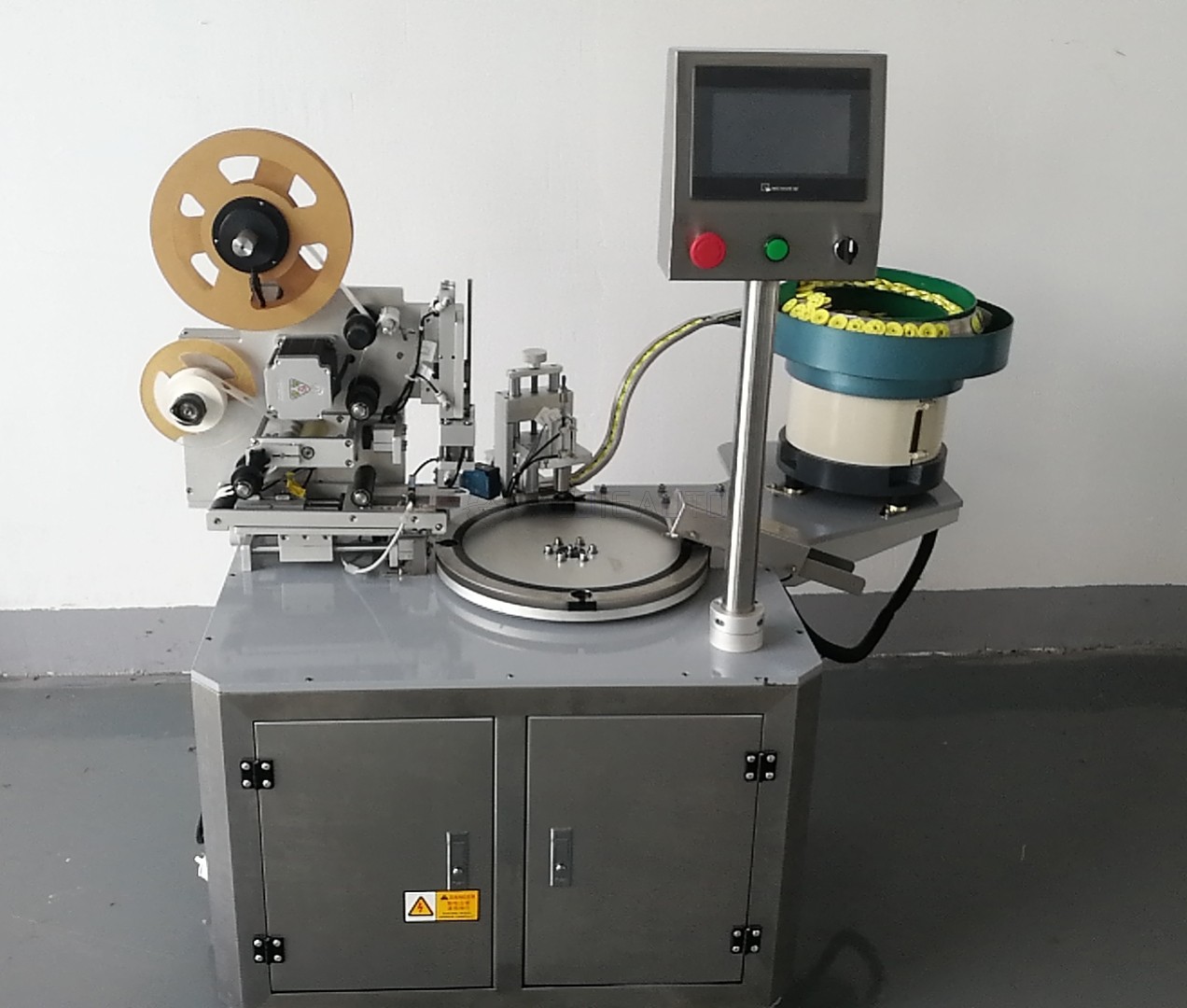

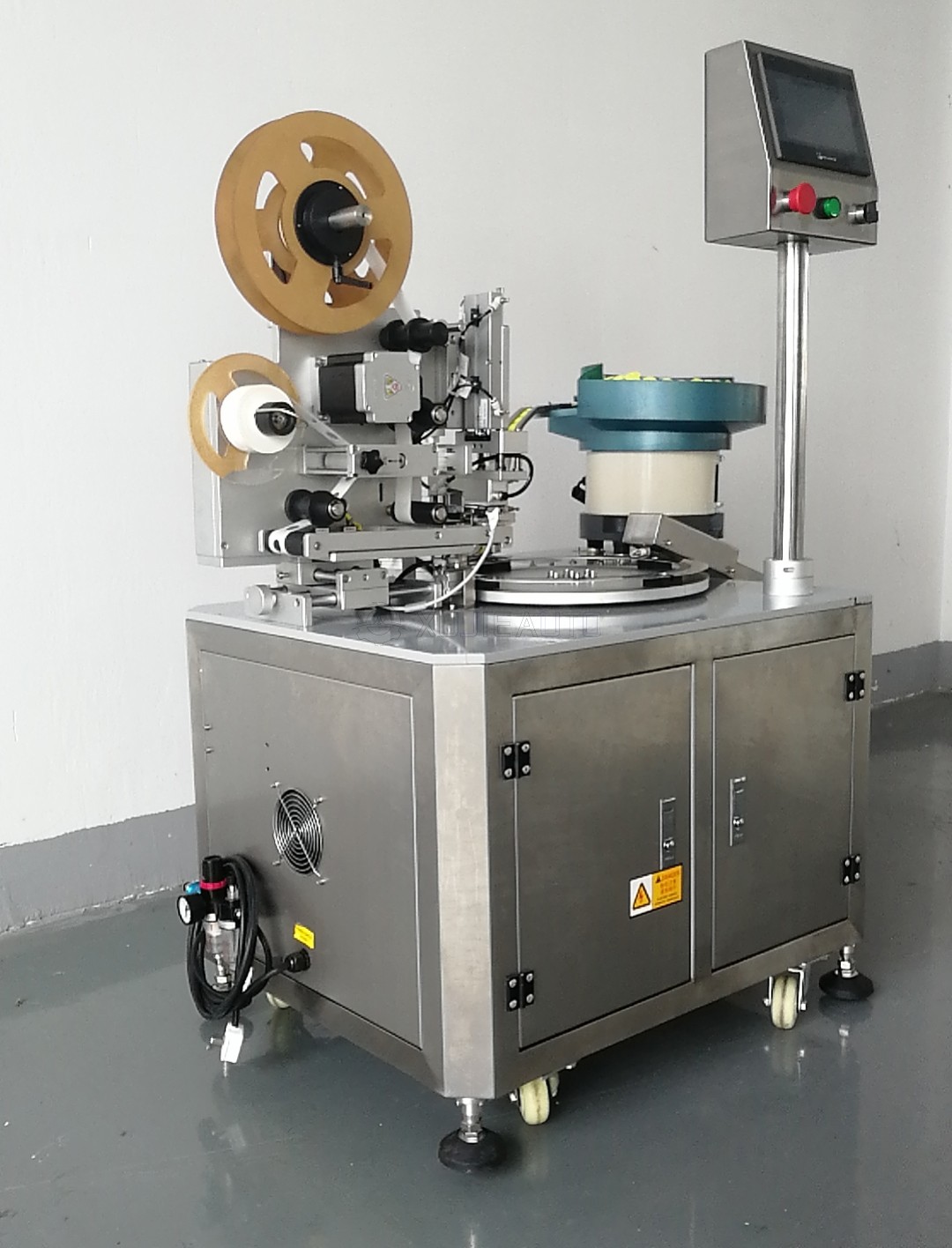

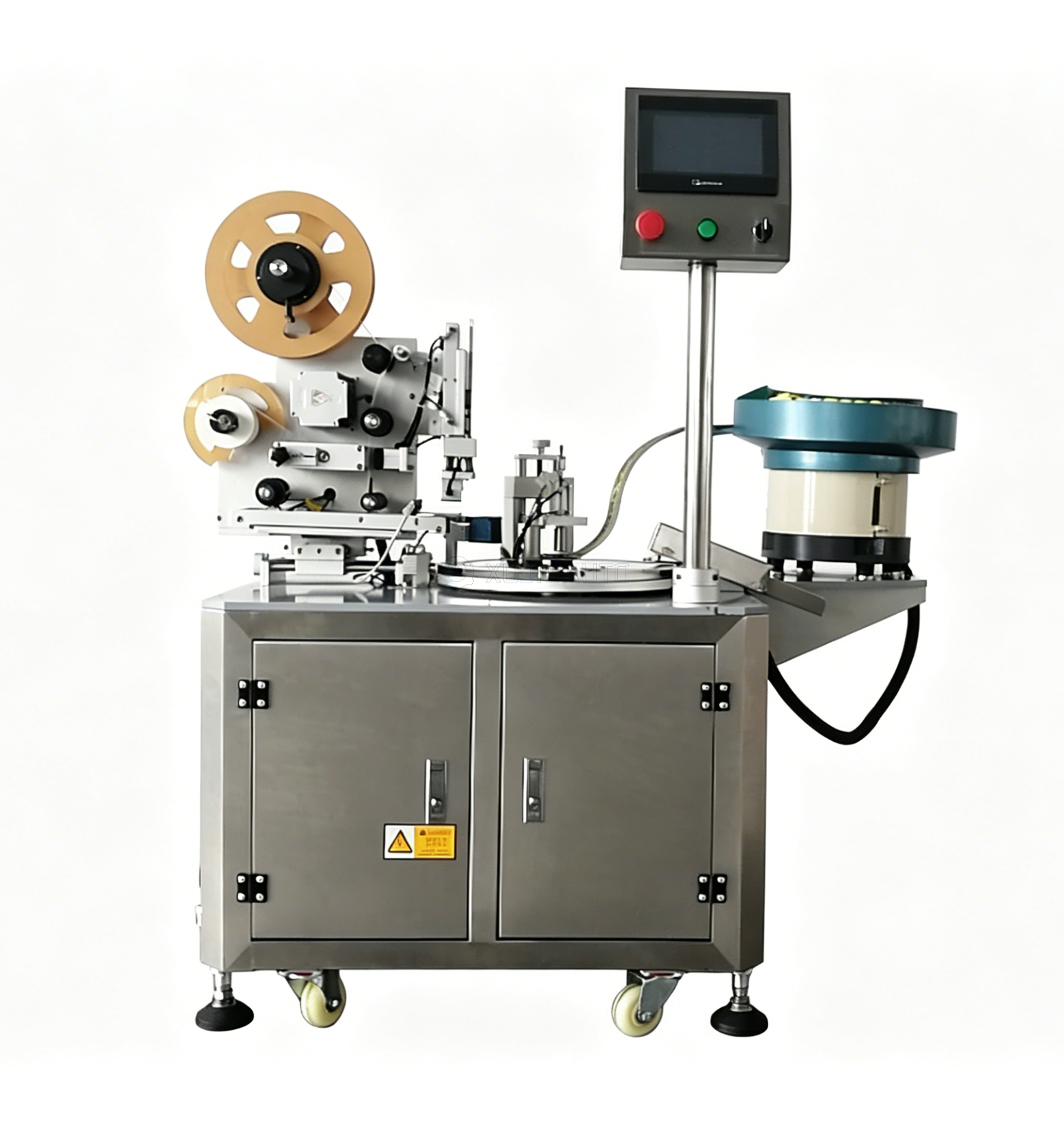

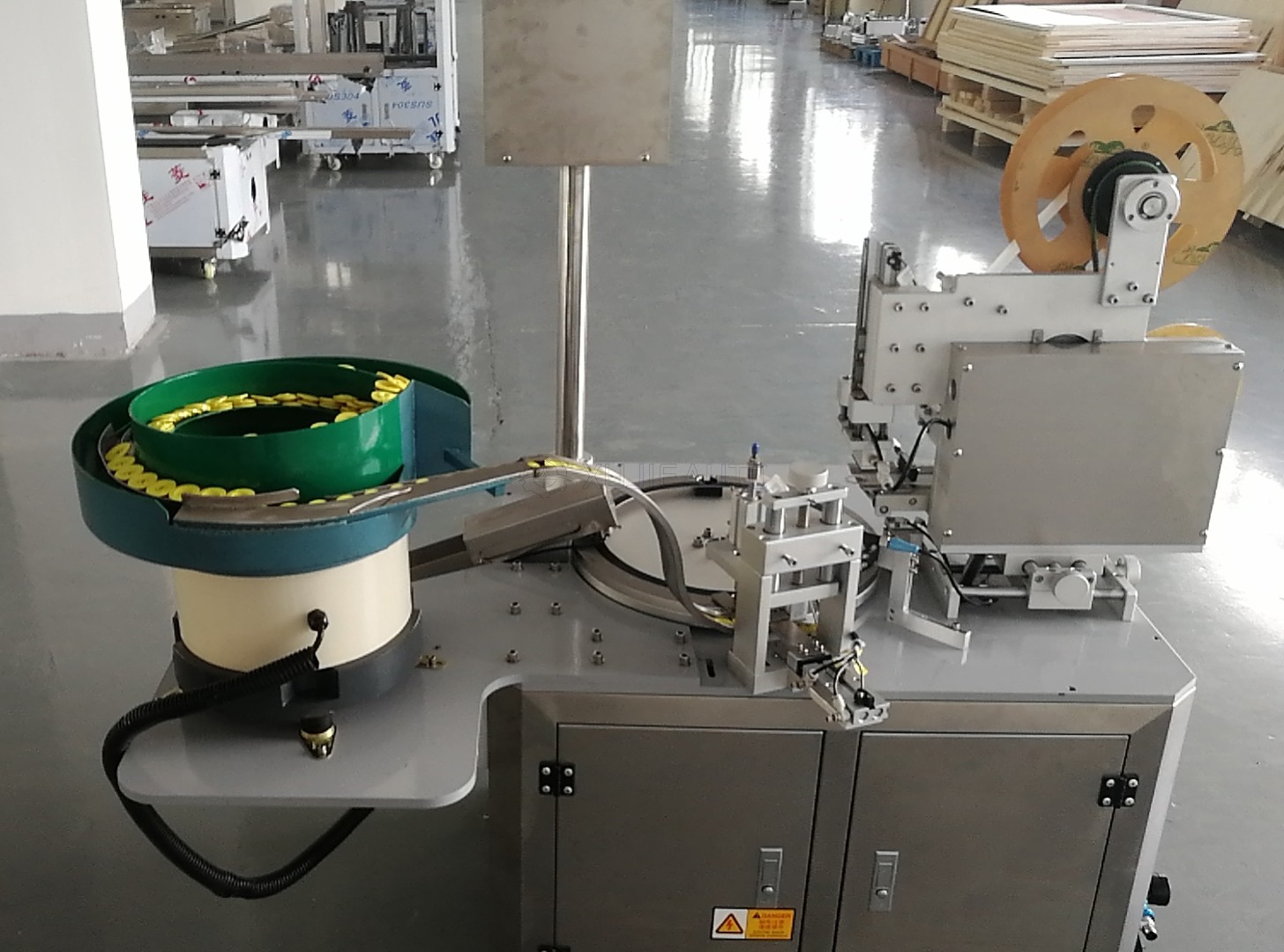

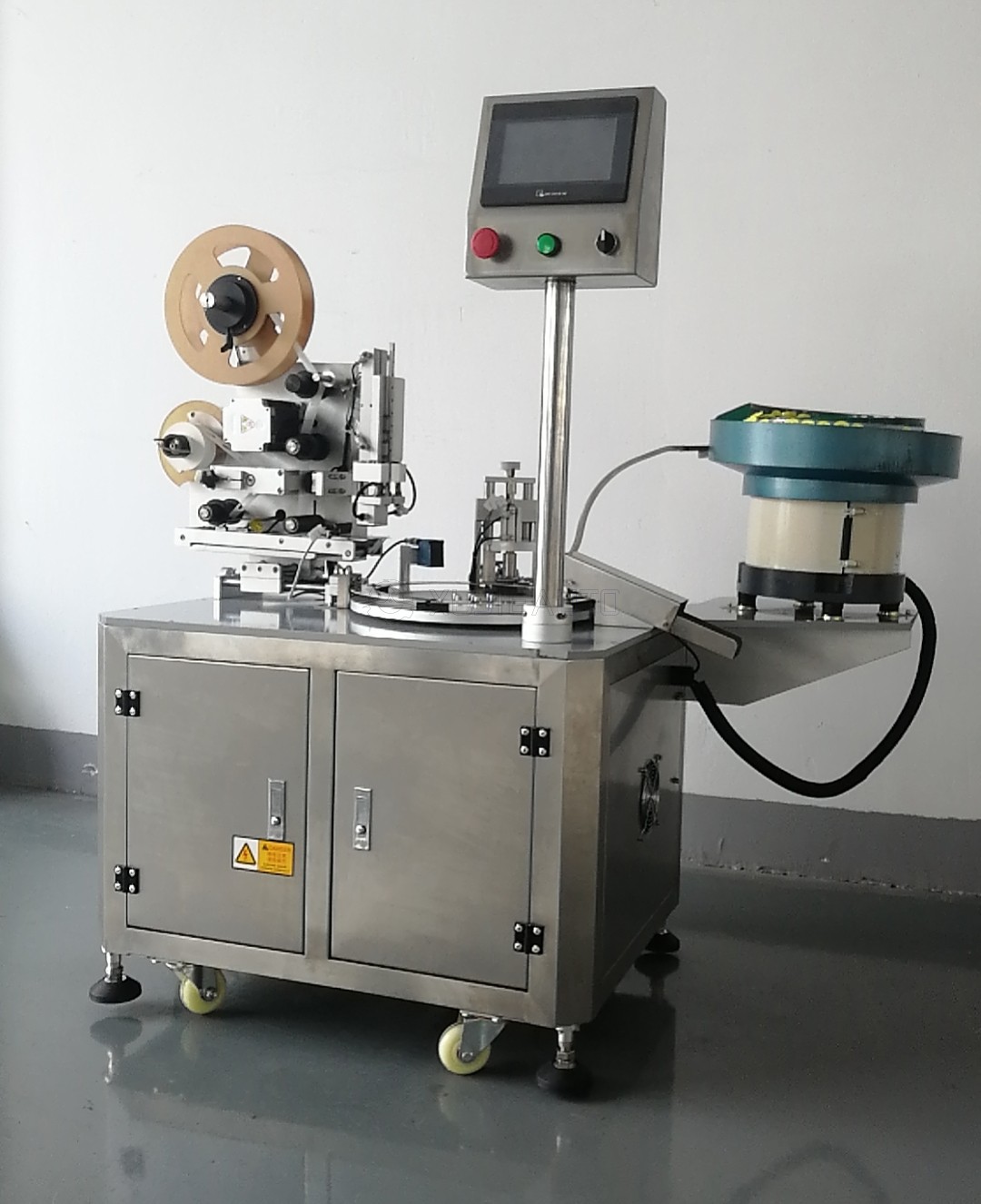

Our automatic suction labeling machine is a specialized labeling equipment designed for small, irregular or hard-to-handle components such as electronic parts, connectors, plastic parts and hardware items. Equipped with a vibratory bowl feeder and rotary indexing table, it automatically feeds, positions, and applies labels with vacuum suction technology, ensuring precise and wrinkle-free labeling on flat or slightly curved surfaces.
Adopting advanced PLC control system and touch screen operation, this suction labeling machine offers stable performance and easy parameter adjustment. The vacuum suction labeling head ensures the label is picked up, positioned and applied accurately without deviation, even for small-sized labels and parts. The machine supports continuous 24-hour operation, greatly improving production efficiency and reducing manual labor costs.
This versatile suction label applicator is widely used in electronics, automotive, hardware, cosmetics and general manufacturing industries. Its compact design saves floor space and can be easily integrated into existing production lines. We offer customized solutions according to your product size, label specifications and production speed requirements.

1. Fully automatic operation: Vibratory bowl feeding → indexing positioning → vacuum suction labeling → finished parts output
2. High labeling accuracy: ±0.2mm, no wrinkles, bubbles or label offset
3. Vacuum suction labeling head: Ensures stable label picking and flat application on small parts
4. Rotary indexing table: Stable positioning, suitable for small and irregular components
5. Adjustable labeling speed: 20-80 pcs/min, customizable according to production needs
6. PLC + touch screen control: Intuitive interface, easy parameter setting and operation
7. Wide compatibility: Works with self-adhesive labels (paper, PVC, PET) and various small parts
8. Stainless steel construction: Durable structure, easy to clean and maintain
9. Safety protection: Emergency stop button, safety guard, low noise operation
10. Customizable options: Special fixtures, multiple labeling positions, line integration support

Labeling Accuracy:                            ±0.2mm (No wrinkles, no bubbles)
Labeling Speed:                                  20-80 pcs/min (Adjustable, depends on product/label size)
Label Length:                                      5mm-100mm
Label Width:                                        5mm-80mm
Label Roll Inner Diameter:              76mm (Standard)
Max Label Roll Outer Diameter:     300mm
Applicable Products:                          Small parts, connectors, electronic components, plastic parts, hardware
Product Size Range:                           Φ5-50mm (Customizable)
Power Supply:                                     110V/220V, 50/60Hz
Power:                                                   600W
Machine Dimension:                          120010001500mm (LWH)
Machine Weight:                                 About 120KG
Control System:                                   PLC intelligent control + touch screen
Working Mode:                                    Vibratory feeding + rotary indexing + vacuum suction labeling
Custom Service:                                   Support product fixture, labeling position, speed customization

=

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
