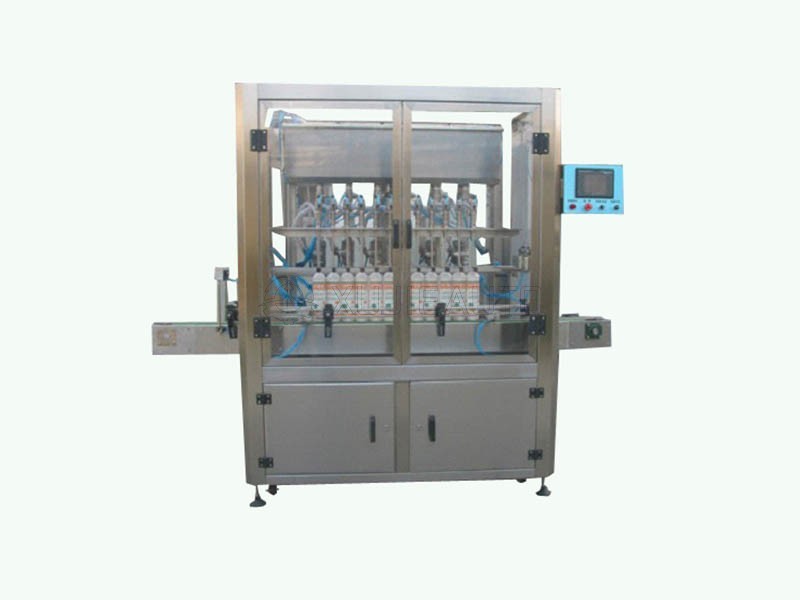

GFM-8H Automatic Paste and Liquid Filling Machine

Machine Description

1.Suit for filling different paste sauce oil with mixer for filling high sticky materials.
2. All #304S/S,316S/S can be customized.
3. High precision and low consumption.
4.The machine is automatic filling machine which can be controlled by PLC.
5.The machine heads can be special designed according to customers’ requirement.
6.pneumatic and electrical parts: Taiwan AirTac branded.
7.Special requirement(Mixer, heater and others) can be customized for your needs.

Machine Feature

automatic tomato sauce machine price,Small size, reasonable design, easy operation, stable performance, low failure rate;

The whole machine is made of high-quality stainless steel. The 304/316L stainless steel material is used in contact with the material to meet the GMP hygienic requirements.

Filling mouth adopts pneumatic drip-proof device, filling no wire drawing, no dripping;

There are filling volume adjustment handles, filling speed adjustment knobs, which can adjust the filling volume and filling speed arbitrarily; the filling precision is high;

According to the requirements of the environment, it can be changed to a full-air-explosion-proof type. It is completely de-energized and safer.

Technical Parameter

Filling volume:100-5000ml

Productivity capacity:600-4800 B/h

Filling precision:±1%

Power supply: 220/380V 50/60Hz 1.5kw

Air Pressure: 0.4-0.8MPa

Filling Container: can conveyed by vertical

Machine Size: 2100* 1580*2200mm

Machine Weight: 350kg
