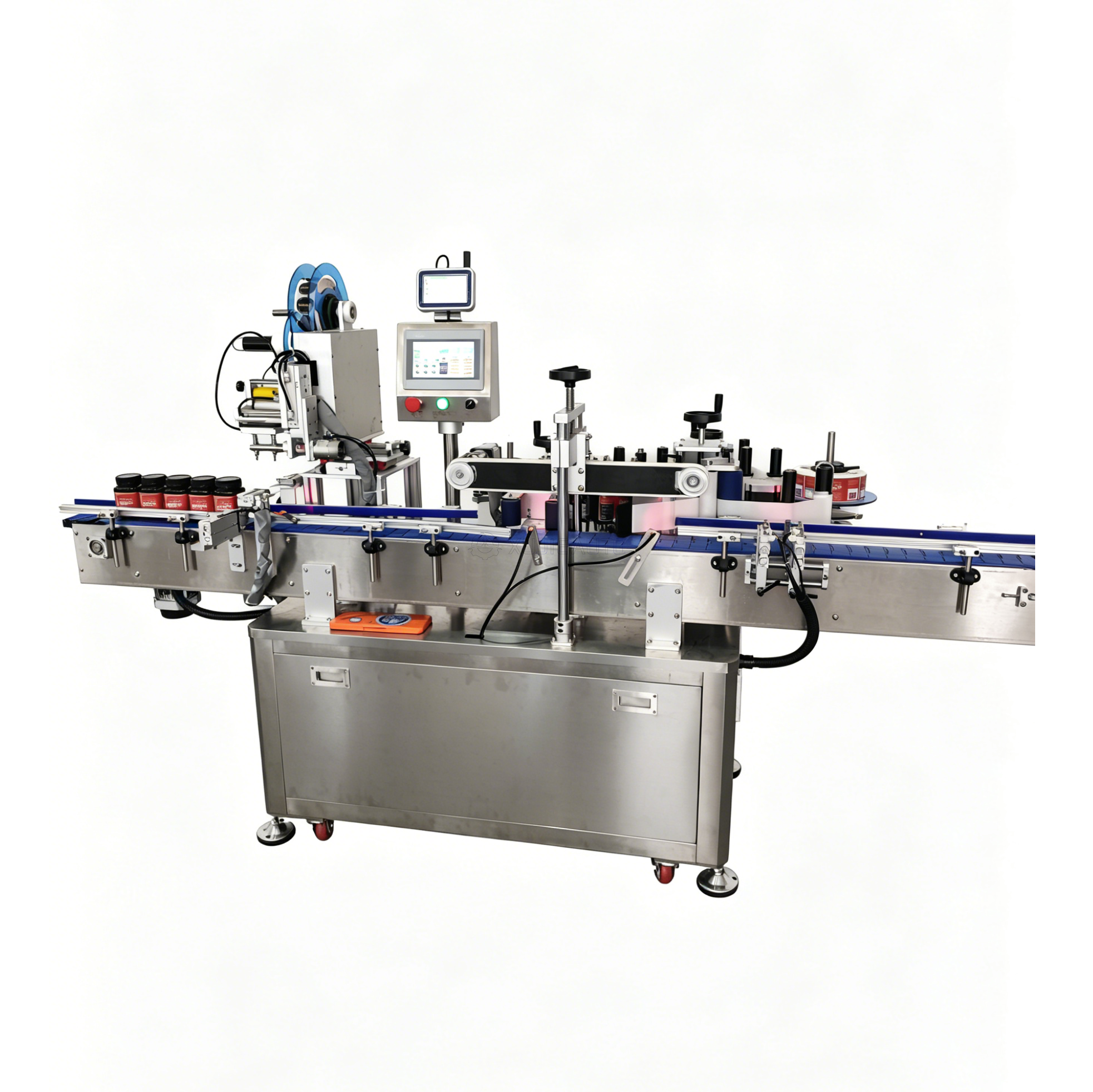

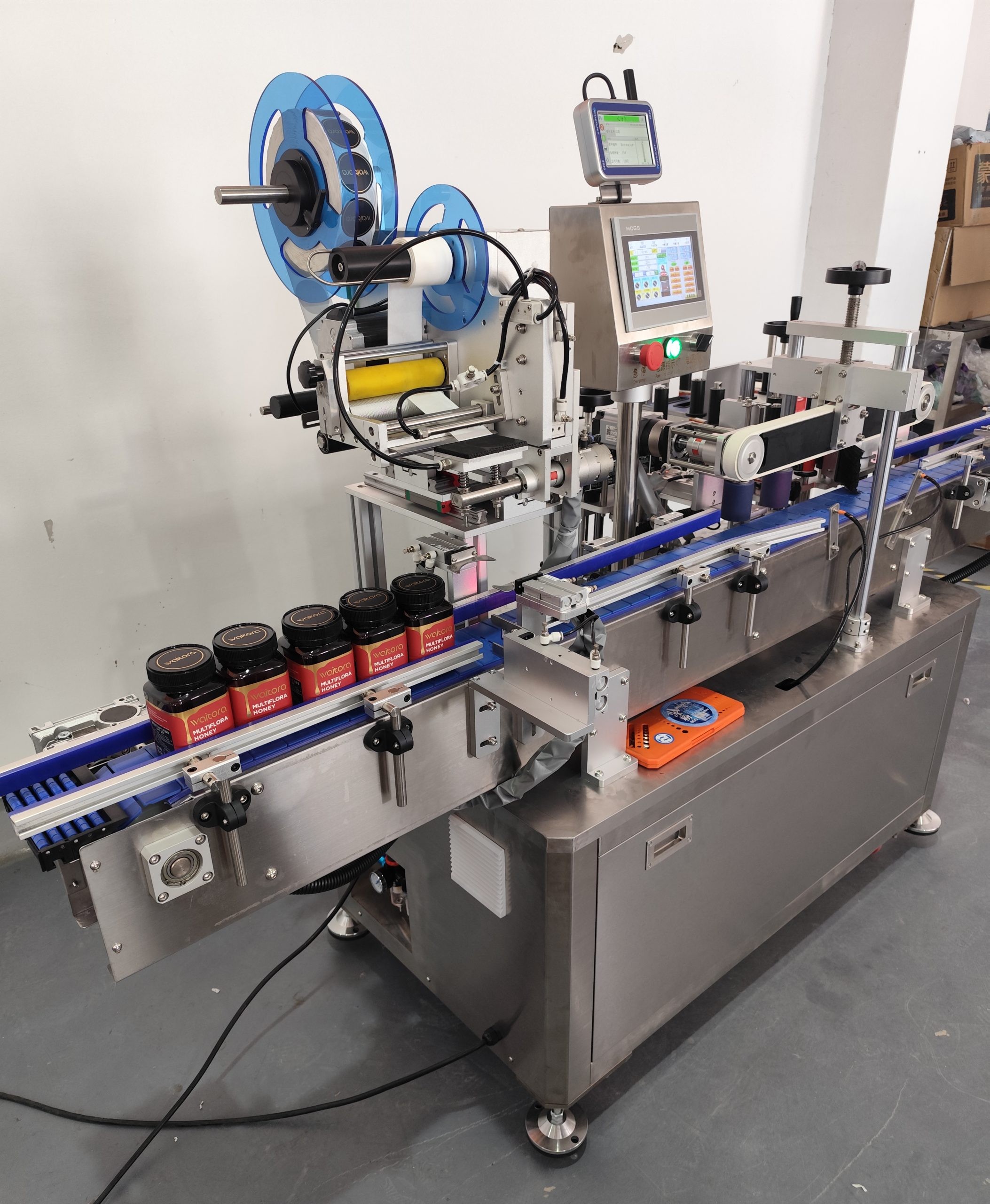

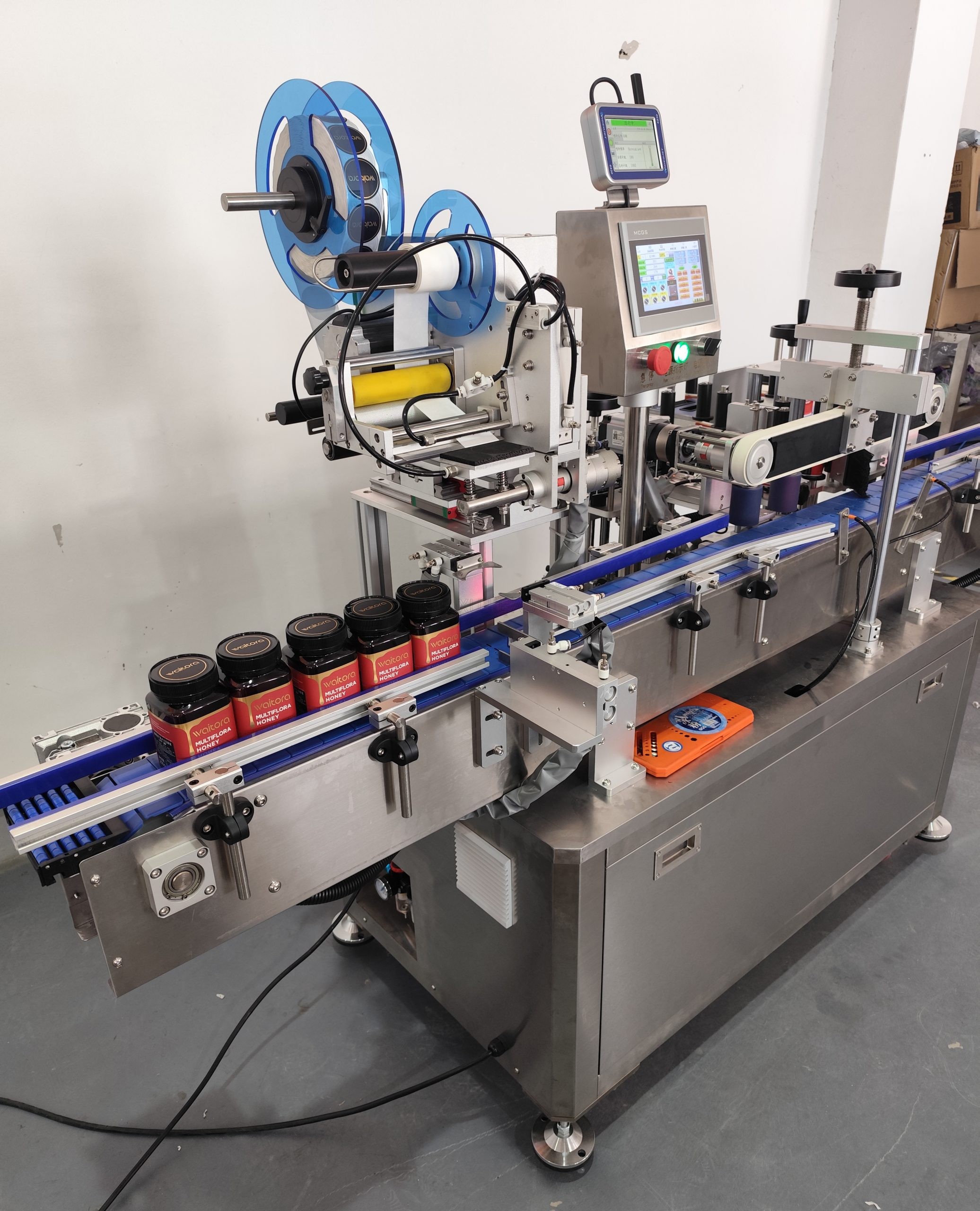

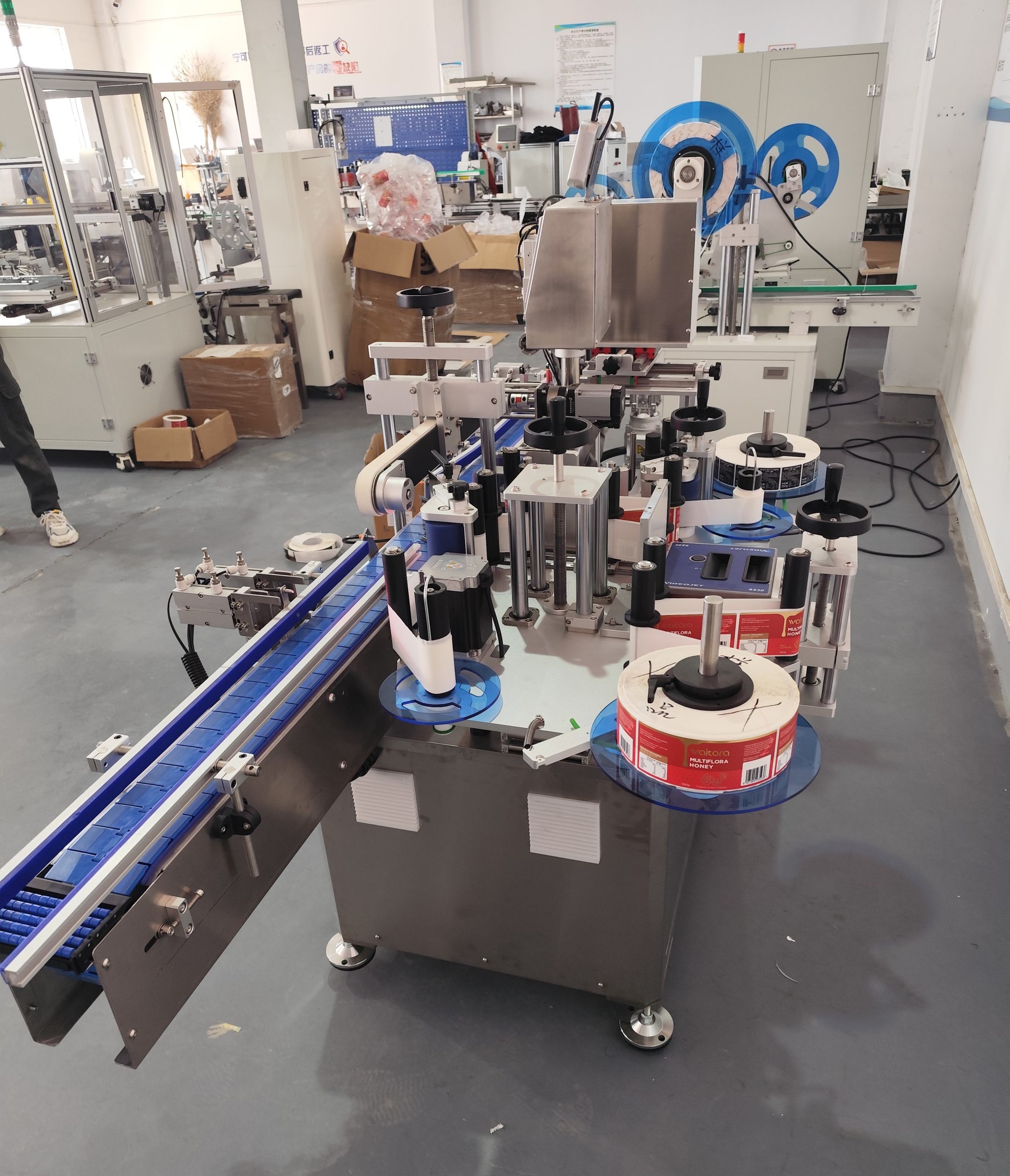

Multi-Station Top & Side Print-and-Apply Labeling Machine

This Multi-Station Top & Side Print-and-Apply Labeling Machine is a fully automatic integrated labeling solution designed for simultaneous top and side labeling with online printing function. Built with SUS304 stainless steel, it is widely used in industries such as food, pharmaceuticals, cosmetics, daily chemicals, and beverages for labeling round bottles, jars, cans, and other cylindrical containers.
Equipped with advanced PLC control system and HMI touch screen, the machine ensures easy operation, high stability, and quick parameter adjustment. It supports real-time printing of variable data (batch numbers, expiry dates, barcodes, QR codes) and precise application of labels on both the top surface and side of products in one pass, greatly improving production efficiency and reducing labor costs.
The labeling head adopts high-precision servo motor drive, ensuring labeling accuracy of ±1mm. The conveyor system is adjustable to accommodate different product sizes, and the labeling position can be fine-tuned to meet various production requirements. The machine can work as a standalone unit or be seamlessly integrated into existing packaging lines for fully automated production.

1. Dual-Function Integration: Combines online printing and top-side labeling in one system, supporting simultaneous top and side labeling for round containers.
2. High Precision Labeling: Servo-driven label delivery ensures labeling accuracy of ±1mm, with consistent label placement and no wrinkles.
3. Variable Data Printing: Supports real-time printing of batch numbers, expiry dates, barcodes, QR codes, and serial numbers.
4. Stainless Steel Construction: Made of SUS304 stainless steel, corrosion-resistant, easy to clean, and meets GMP standards for food and pharmaceutical industries.
5. PLC & HMI Control: User-friendly touch screen interface, easy parameter setting, and memory function for quick recipe recall.
6. Wide Compatibility: Adjustable conveyor and labeling heads, suitable for round bottles/jars/cans of different diameters (20-120mm) and heights (30-300mm).
7. High Efficiency: Labeling speed up to 100-200 pcs/min, depending on product size and label complexity.
8. Safety Protection: Equipped with label roll end alarm, product missing detection, and emergency stop function for safe operation.
9. Easy Integration: Can be connected to filling, capping, and packaging machines for fully automated production lines.

Labeling Accuracy：            ±1mm
Labeling Speed：                  100-200 pcs/min (adjustable)
Applicable Products：         Round bottles, jars, cans, cylindrical containers
Product Diameter Range：20-120mm
Product Height Range：     30-300mm
Label Width Range：          10-150mm
Label Length Range：         10-300mm
Power Supply：                    220V/50Hz (customizable)
Total Power：                       1.5kW
Machine Material：             SUS304 Stainless Steel
Control System：                 PLC + Touch Screen
Printing Function：             Real-time printing of variable data (batch, expiry, barcode, QR code)
Machine Dimension：        2200×800×1500mm (L×W×H)
Net Weight：                        250kg

=

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
