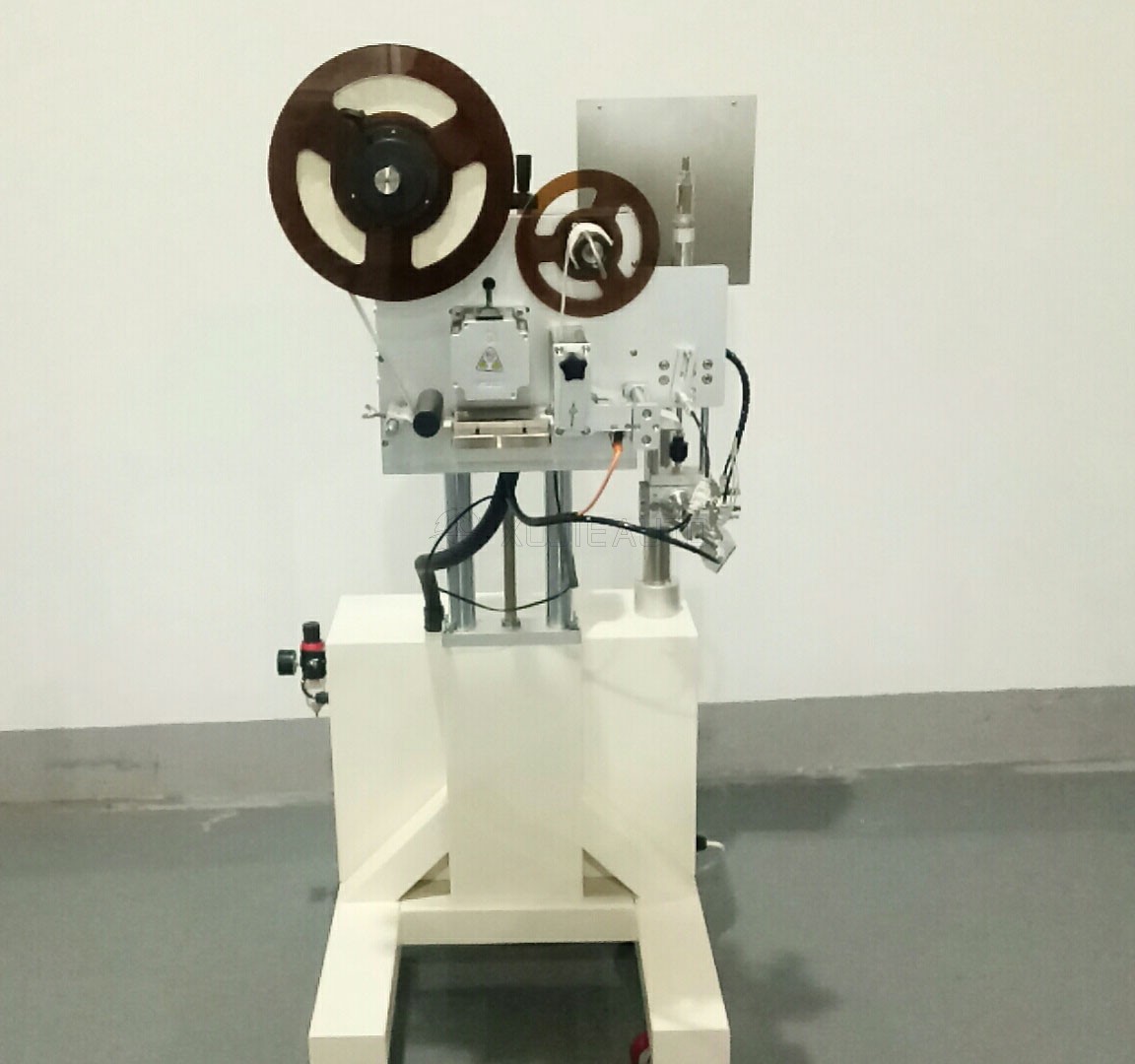

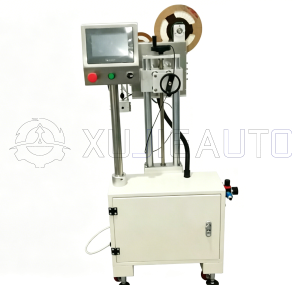

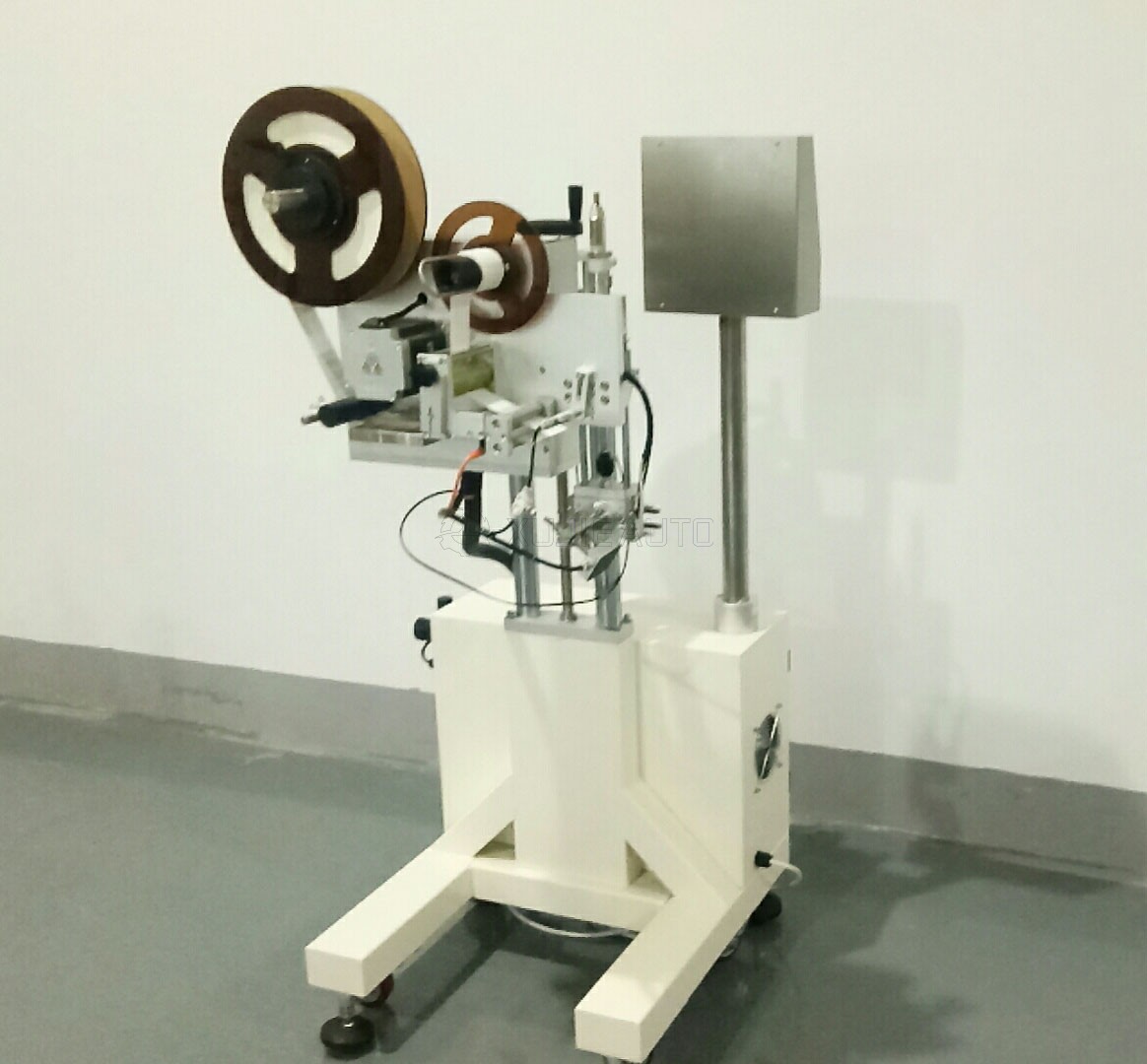

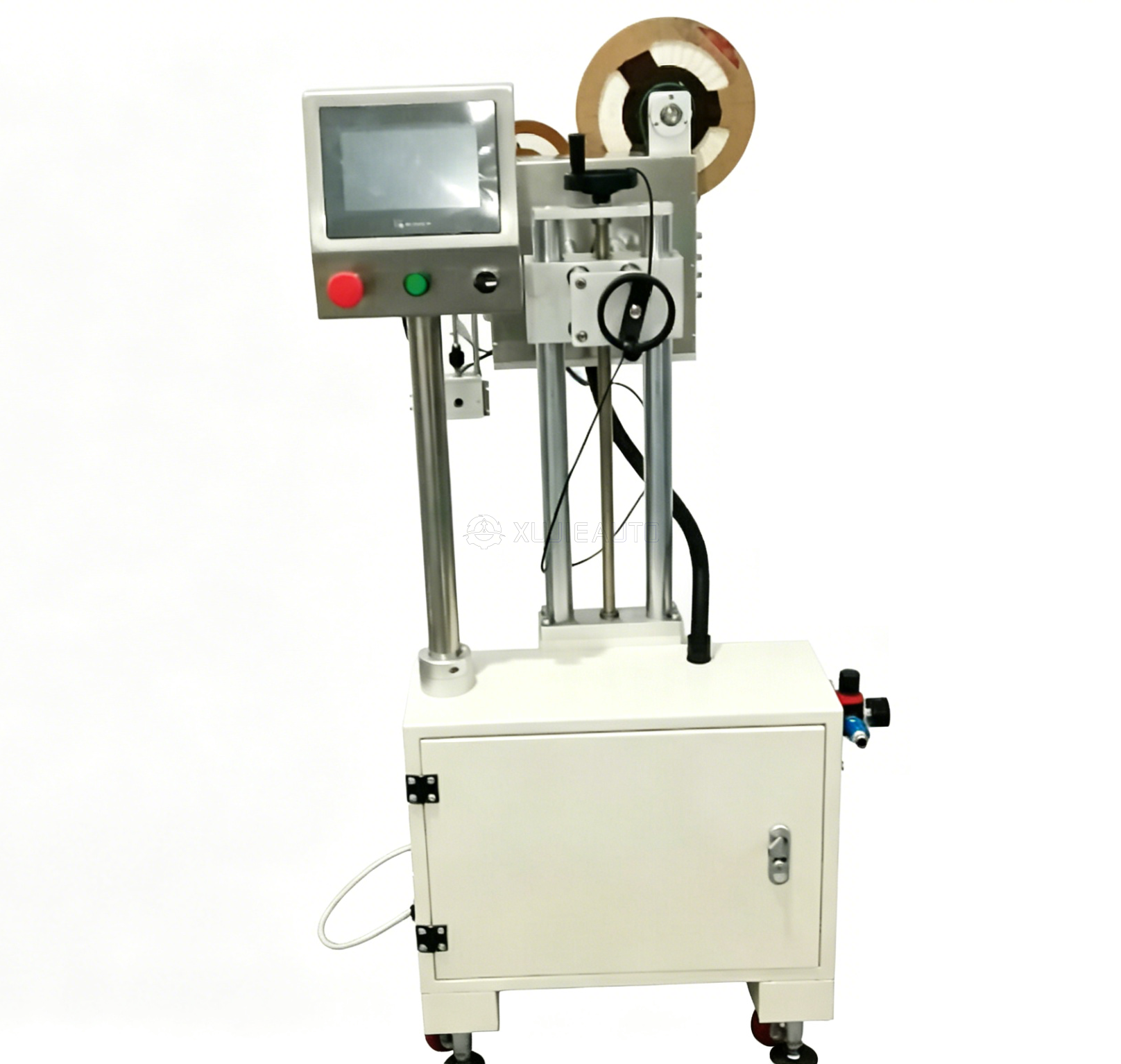

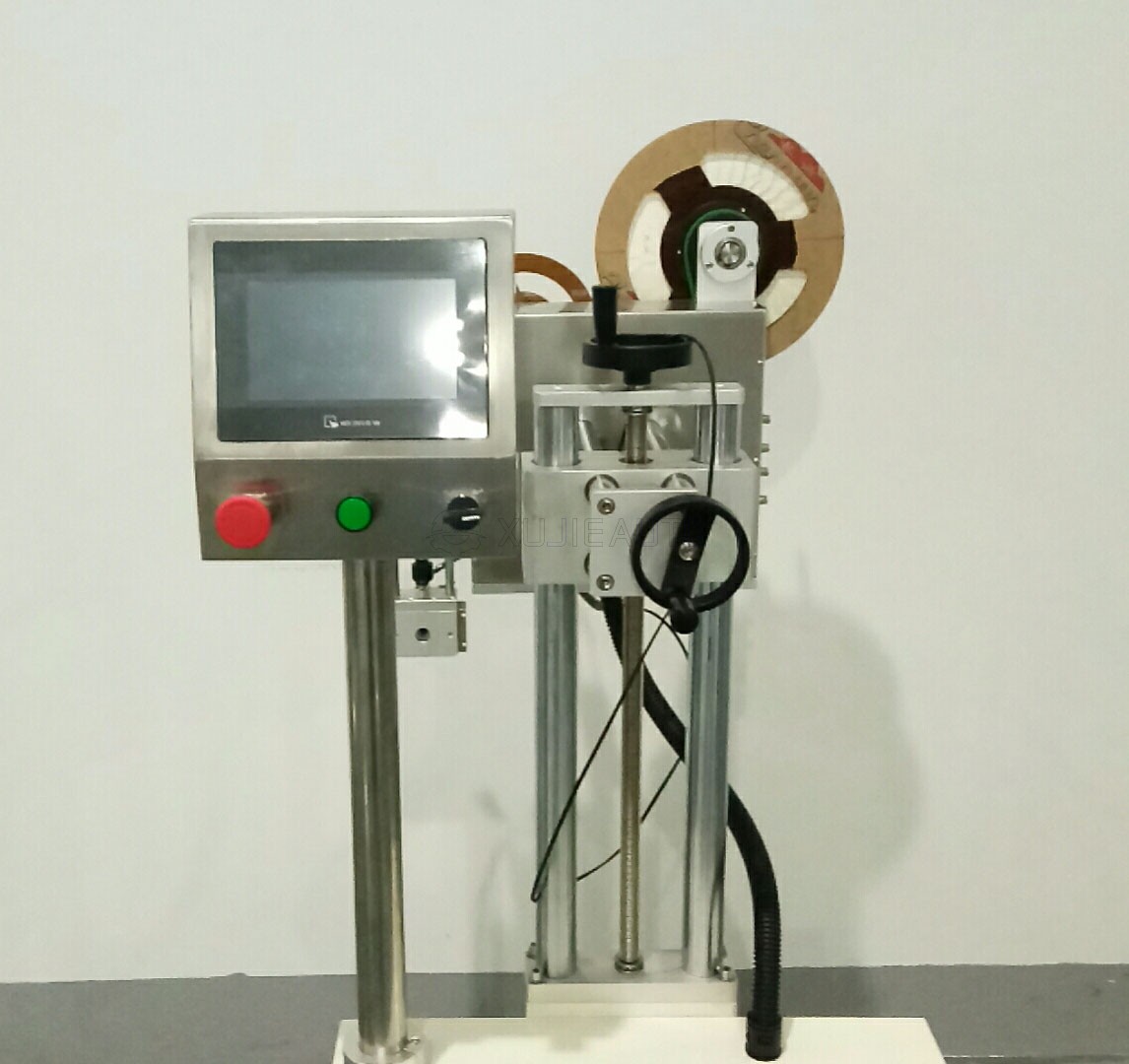

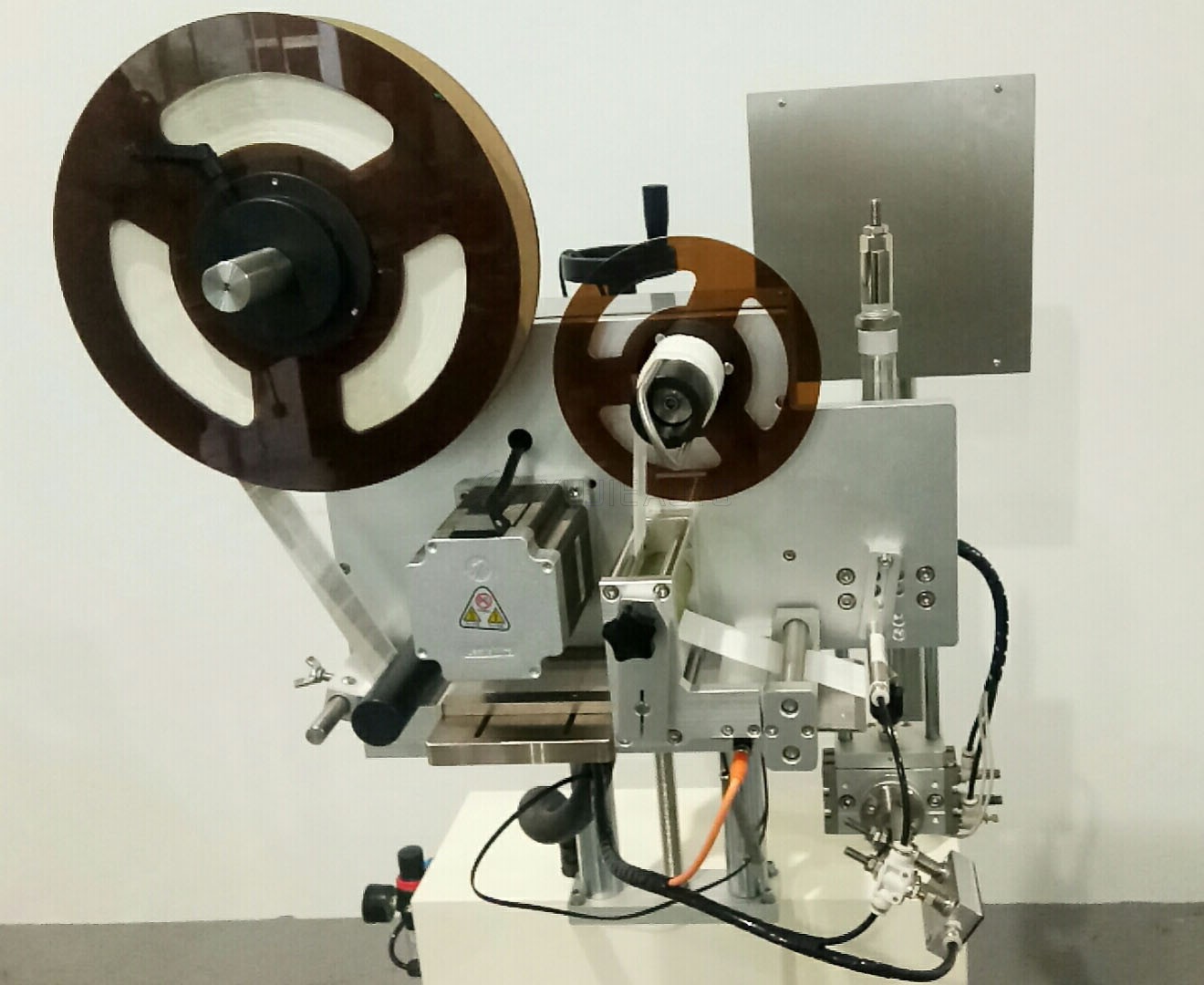

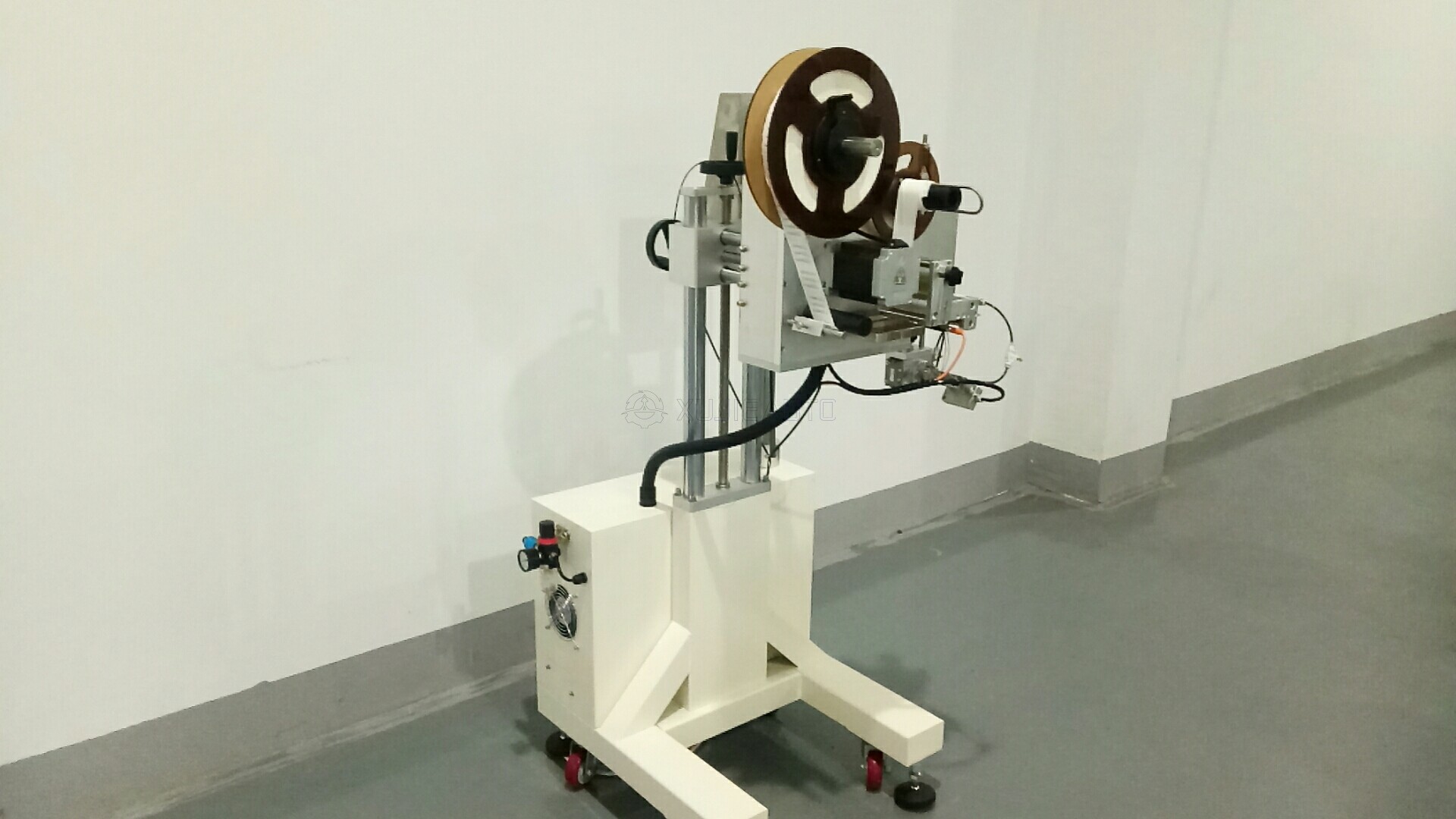

Pneumatic Labeling Head Modular Air‑Driven Label Applicator For Retrofit Production Line

This pneumatic labeling head is a standalone modular air‑driven labeling unit, designed for new assembly lines or retrofitting existing conveyor systems. Unlike purely electric labeling modules, it adopts pneumatic buffer actuation to deliver steady, buffered labeling force, lowering risk of label wrinkling, bubble and product surface scratching during continuous high‑speed operation.
It supports top labeling, side labeling and angled labeling by adjusting mounting bracket, stroke and angle. Compatible with cartons, plastic boxes, round bottles and rigid packages across food, pharmaceutical, logistics and electronics sectors.
Compact‑size aluminum alloy body allows flexible installation on customer‑owned conveyors or print‑and‑apply stations. Multiple mechanical adjustment positions enable fast change‑over among different product sizes. Simple structure reduces routine maintenance workload. We provide custom bracket and technical integration guidance for onsite deployment.

1. Pneumatic air‑buffer driving structure, stable output force for long‑run industrial operation
2. Multi‑direction labeling: top, side and inclined labeling via mechanical adjustment
3. Soft contact labeling, avoids scratching package surface and label creases
4. Fully adjustable labeling stroke, height and mounting angle for multi‑product switching
5. Modular compact design, easy to retrofit onto existing conveyor / print‑and‑apply system
6. High‑strength aluminum‑alloy main body, wear‑resistant for heavy‑duty workshop
7. Simple disassembly for label roll replacement and daily maintenance
8. Works independently or cooperates with photoelectric sensor for trigger‑based labeling

Product Name：                  Pneumatic Labeling Head / Pneumatic Label Applicator Module
Working Air Pressure：     0.4‑0.6 MPa
Labeling Precision：           ±2 mm
Applicable Label Width：  15‑120 mm
Labeling Stroke：                Mechanically adjustable
Labeling Mode：                  Pneumatic blow‑on / contact press labeling
Applicable Scenarios：       Carton, box, bottle, rigid flat‑side workpiece
Main Material：                    Aluminum Alloy + Engineering Plastic
Trigger Mode：                     Photoelectric sensor signal trigger

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
