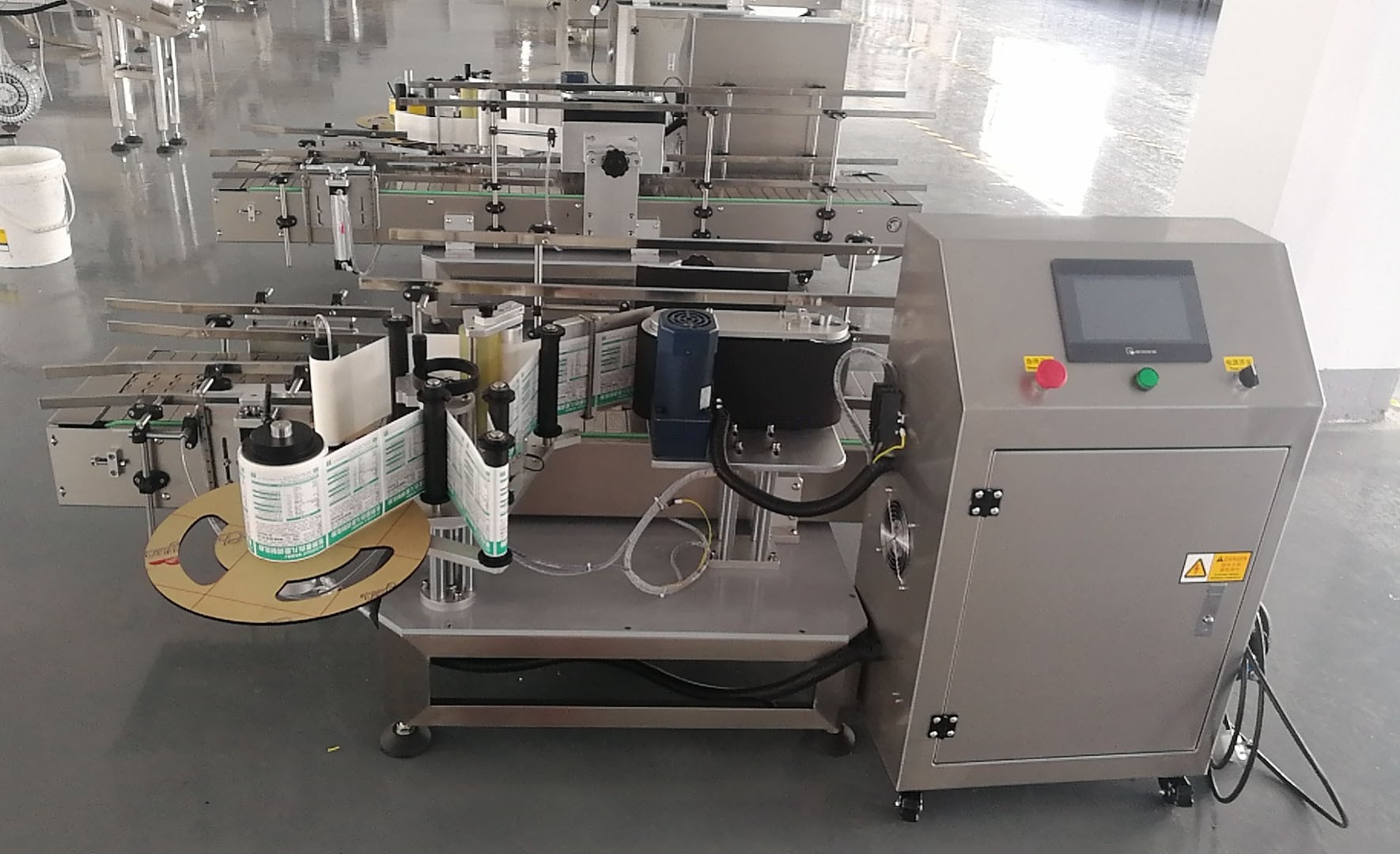

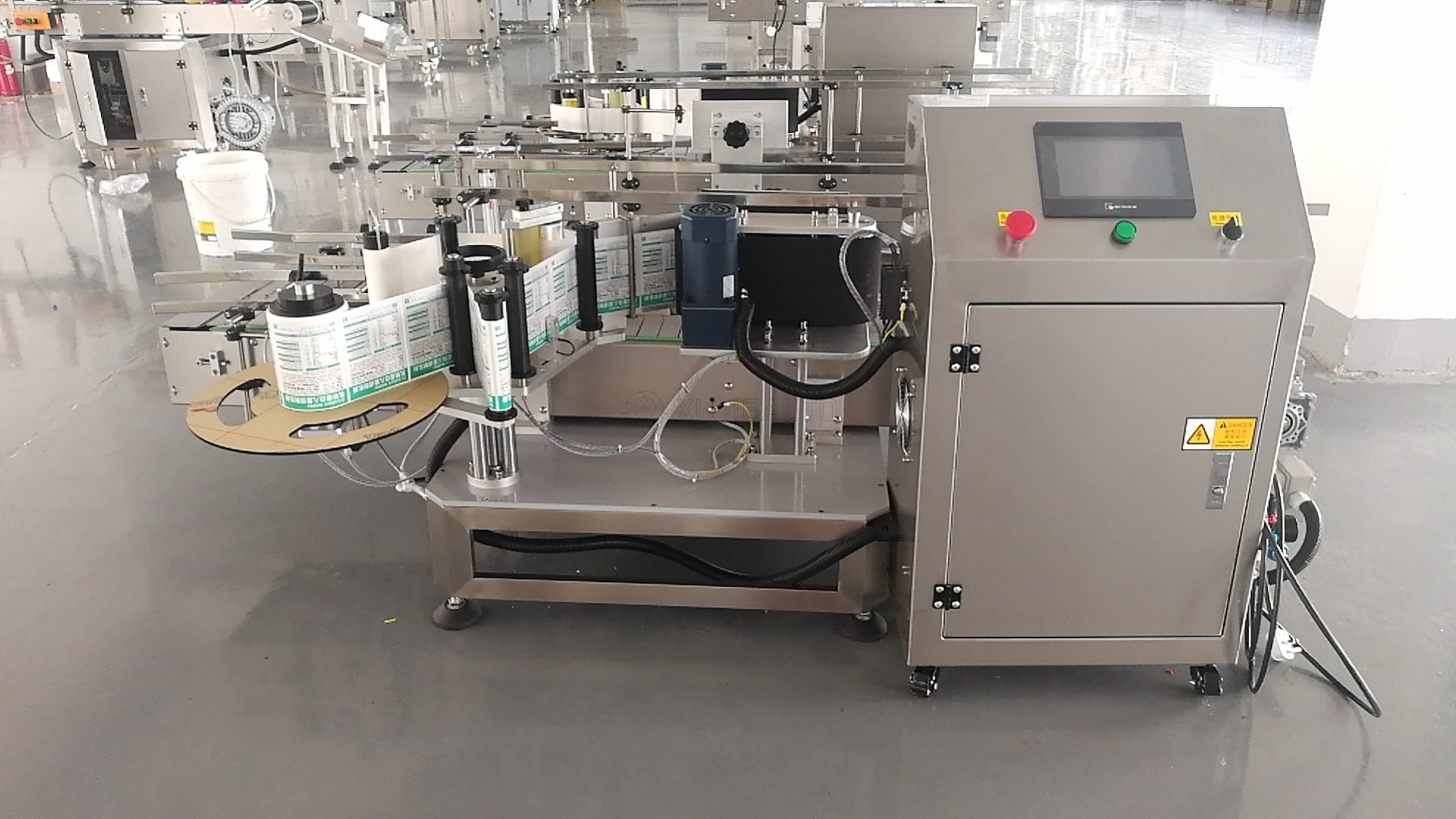

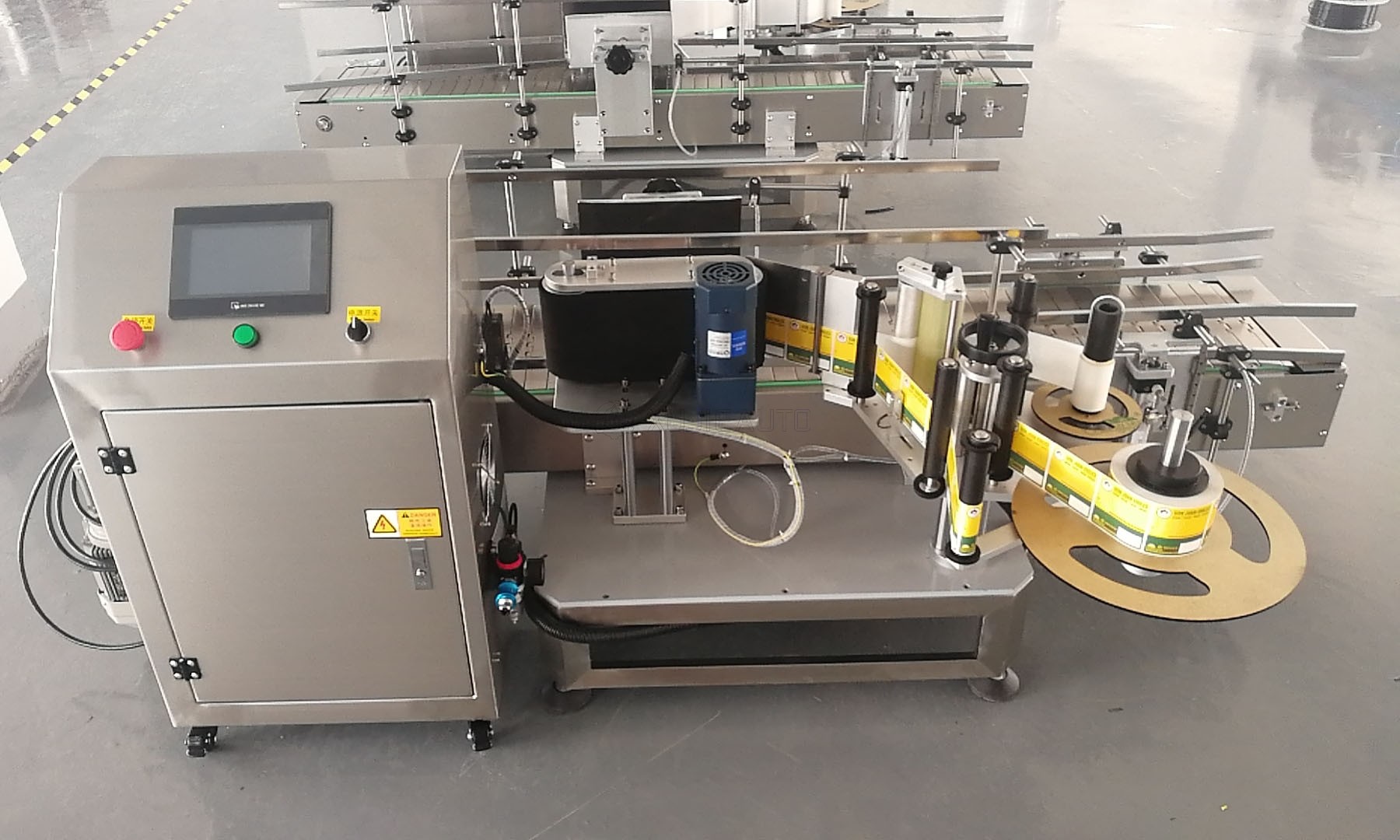

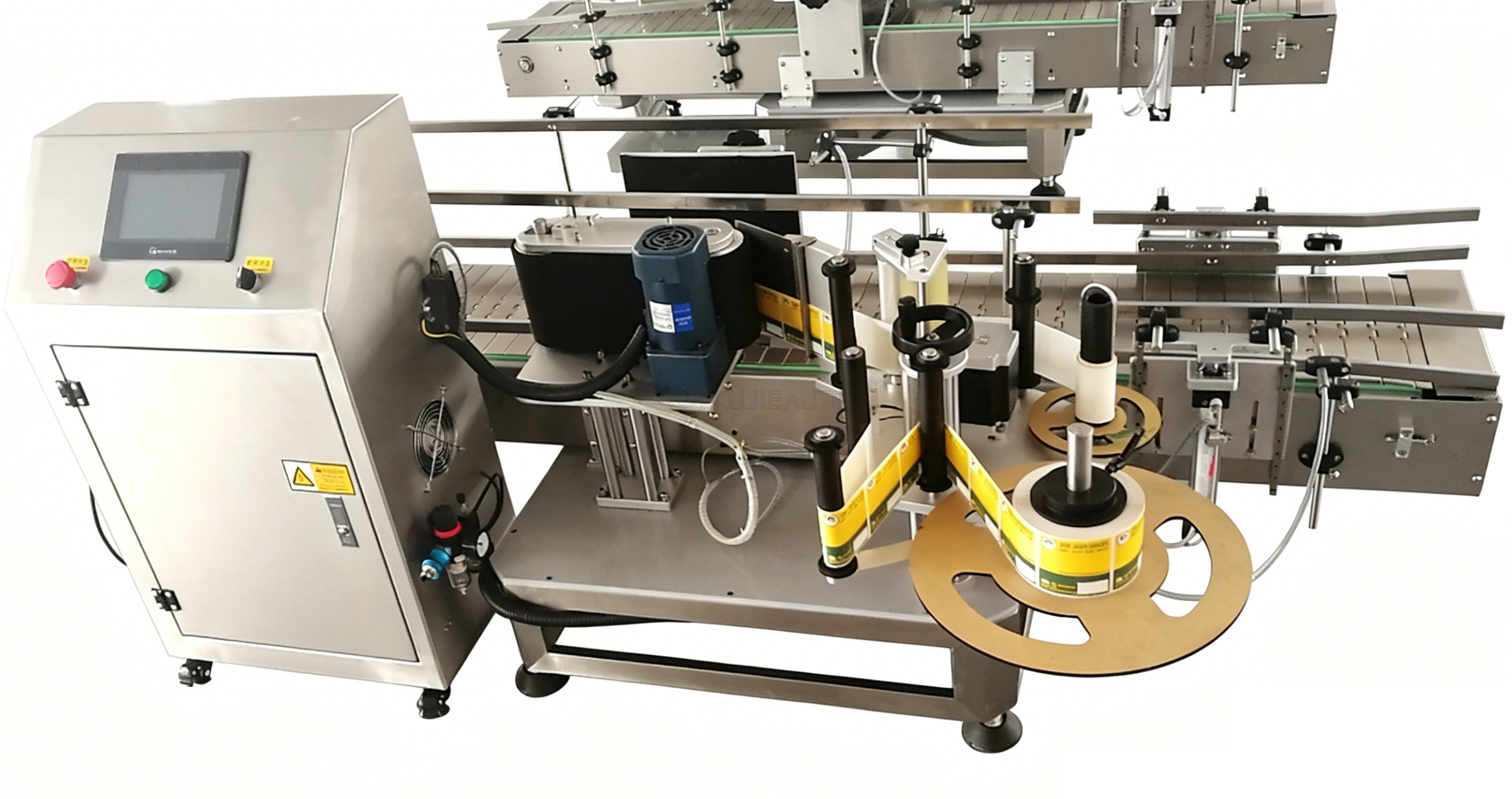

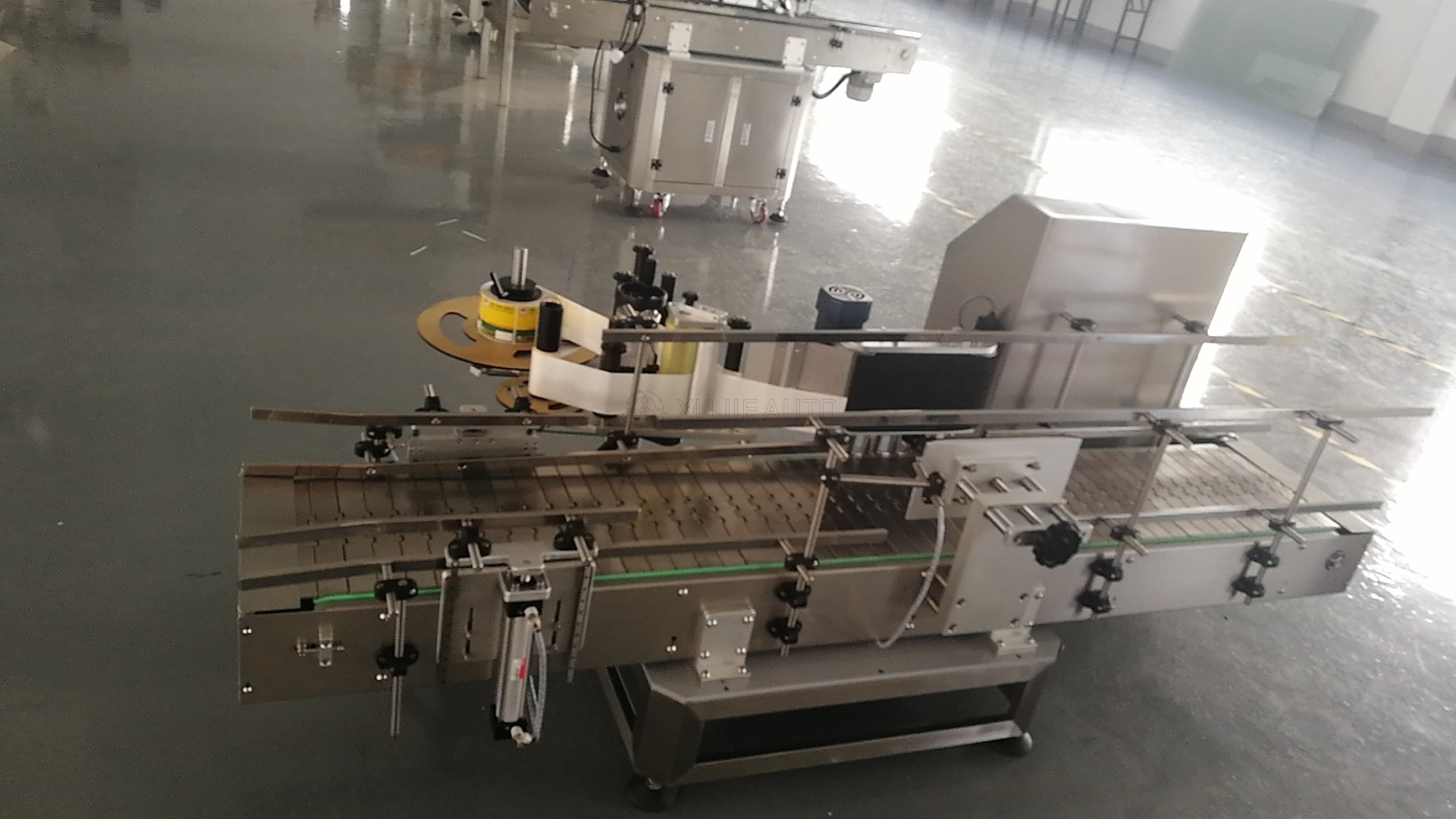

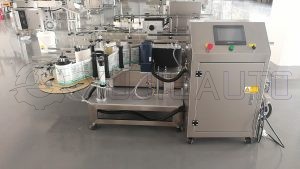

Automatic Vertical Round Bucket Labeling Machine | Wrap Around Self-Adhesive Label Applicator

This automatic vertical round bucket labeling machine is specially developed for cylindrical containers such as chemical pails, paint barrels, plastic round buckets, metal cans and round bottles. It can realize half-wrap labeling and full circumferential wrap-around labeling.

Equipped with integrated conveyor system, it can work independently or connect with upstream & downstream production lines for continuous automatic operation. Widely adopted in chemical, coating, lubricant, food, daily chemical and pesticide industries.

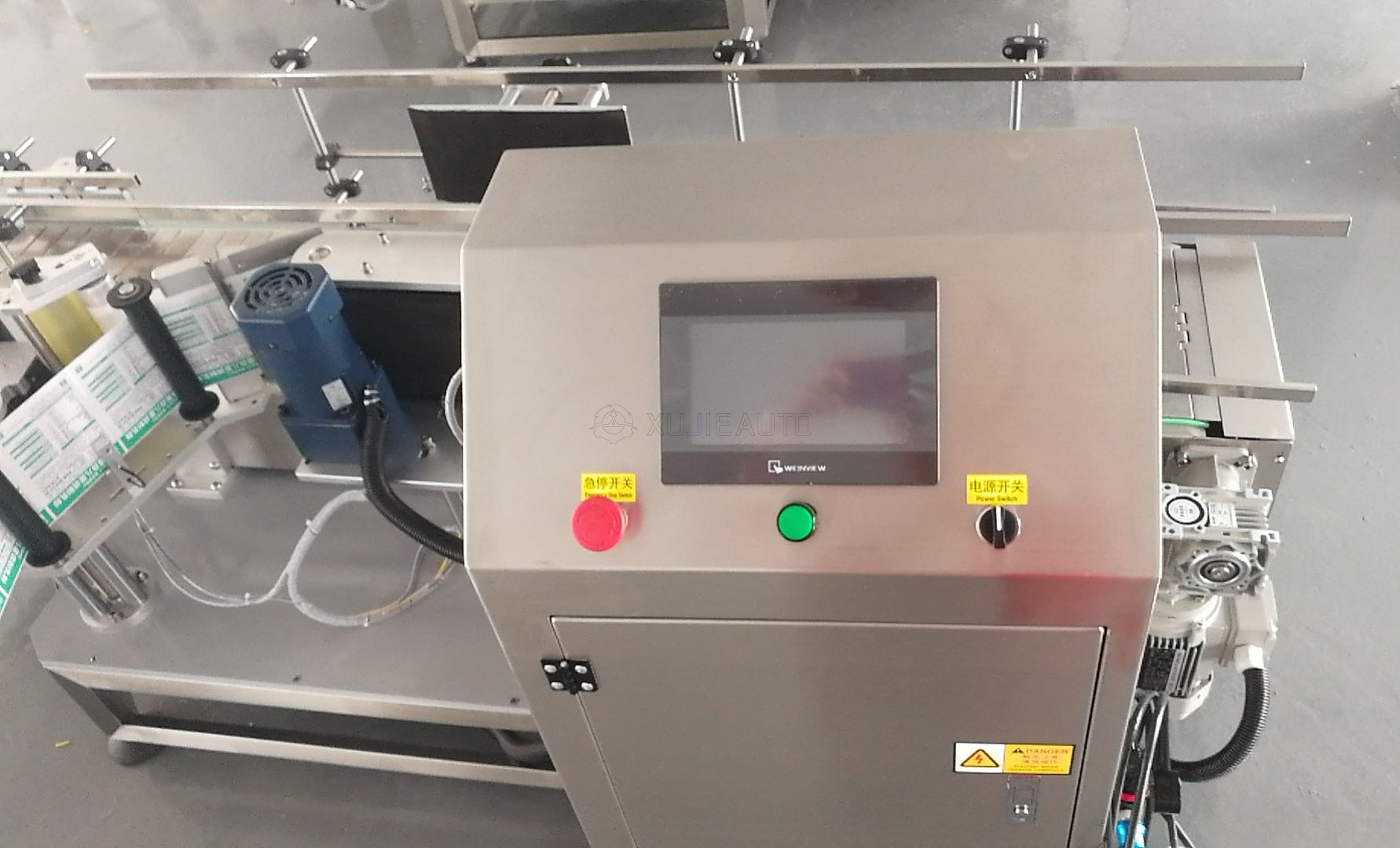

1. PLC + color touch screen control, simple parameter setting, easy operation

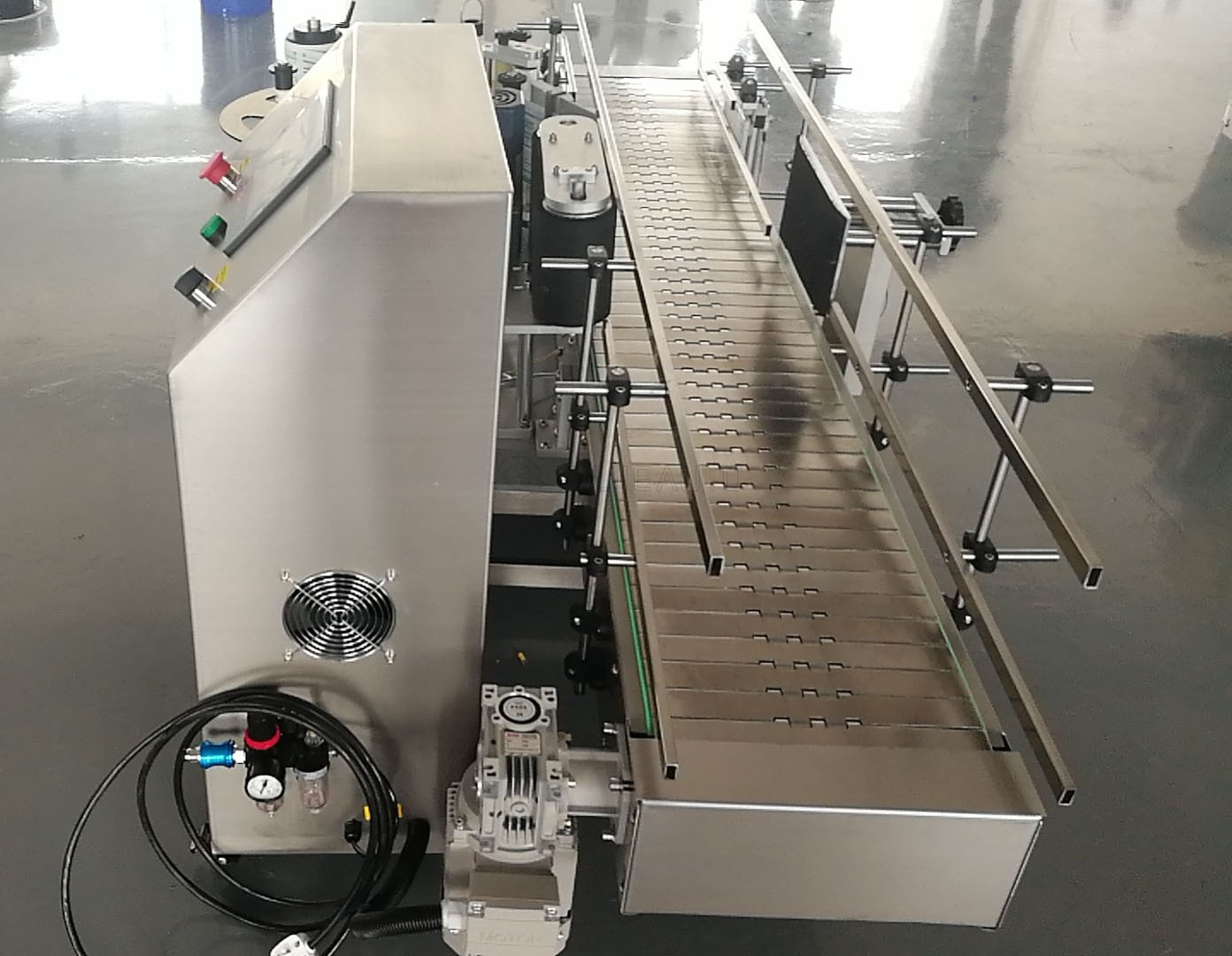

2. Integrated stable conveyor feeding structure, prevent containers from tilting during labeling
3. High labeling accuracy, neat label without bubble, wrinkle or deviation
4. SUS304 stainless steel frame, anti-corrosion, industrial hygiene compliant
5. Wide adjustable range, adapt to different diameter round buckets & bottles
6. Optional thermal date coder for printing batch number and expiry date
7. Support single label, half wrap and full circle wrap labeling
8. Stable running speed, low failure rate, convenient daily maintenance

Machine Name:                   Automatic Vertical Round Bucket Labeling Machine
Applicable Container:        Round bucket, pail, barrel, round can, cylindrical bottle
Label Type:                           Self-adhesive sticker label
Label Width:                        20–180 mm
Product Diameter:              50–320 mm (custom available)
Labeling Precision:             ±1 mm
Labeling Speed:                   10–40 pcs/min (depends on container dimension)
Power Supply:                      220V 50/60Hz
Machine Body Material:    SUS304 Stainless Steel
Control System:                   PLC + Touch Screen
Optional Accessory:            Thermal date printer, positioning sensor

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
