Pneumatic Labeling Head | Online Conveyor Line Label Applicator

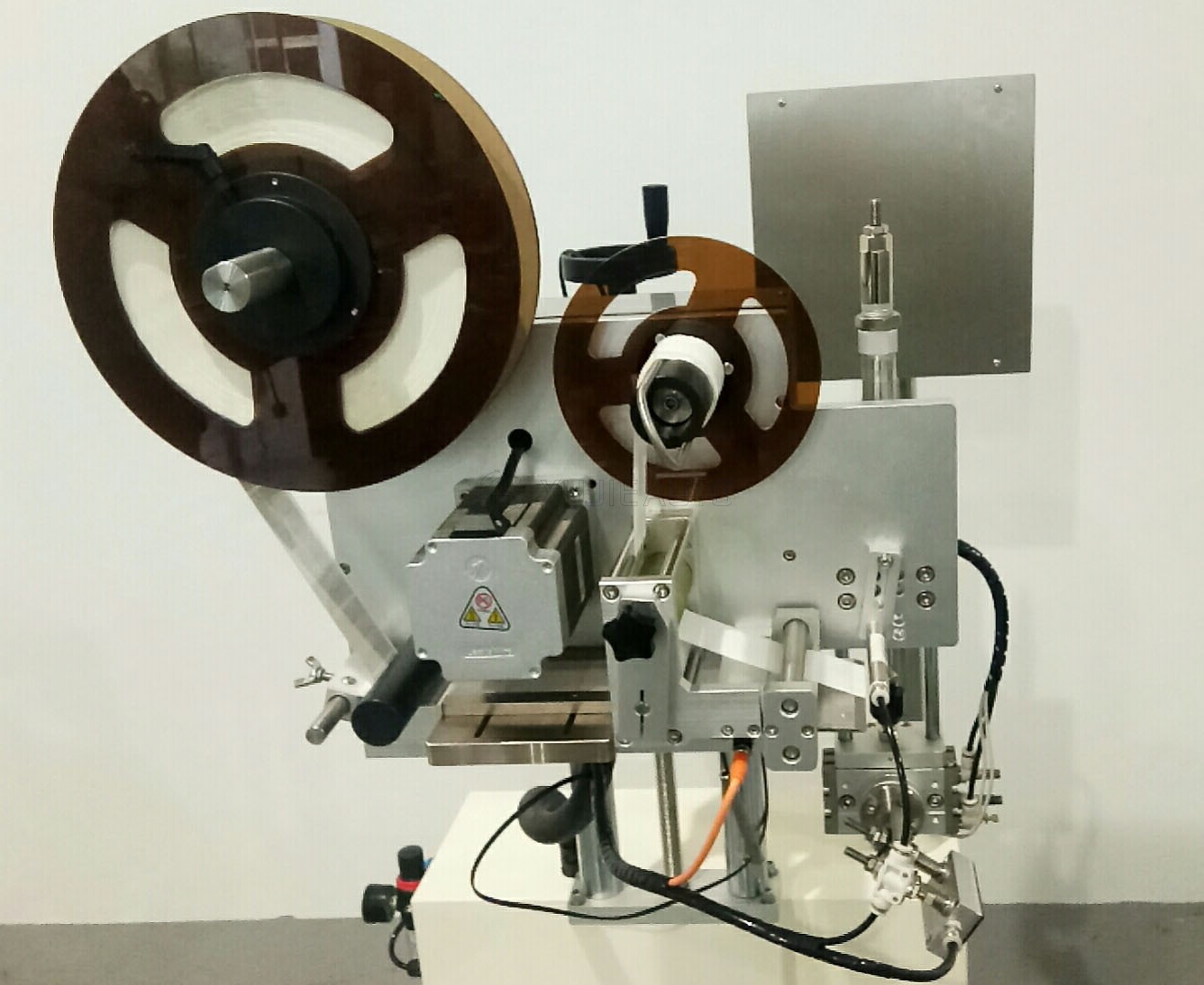

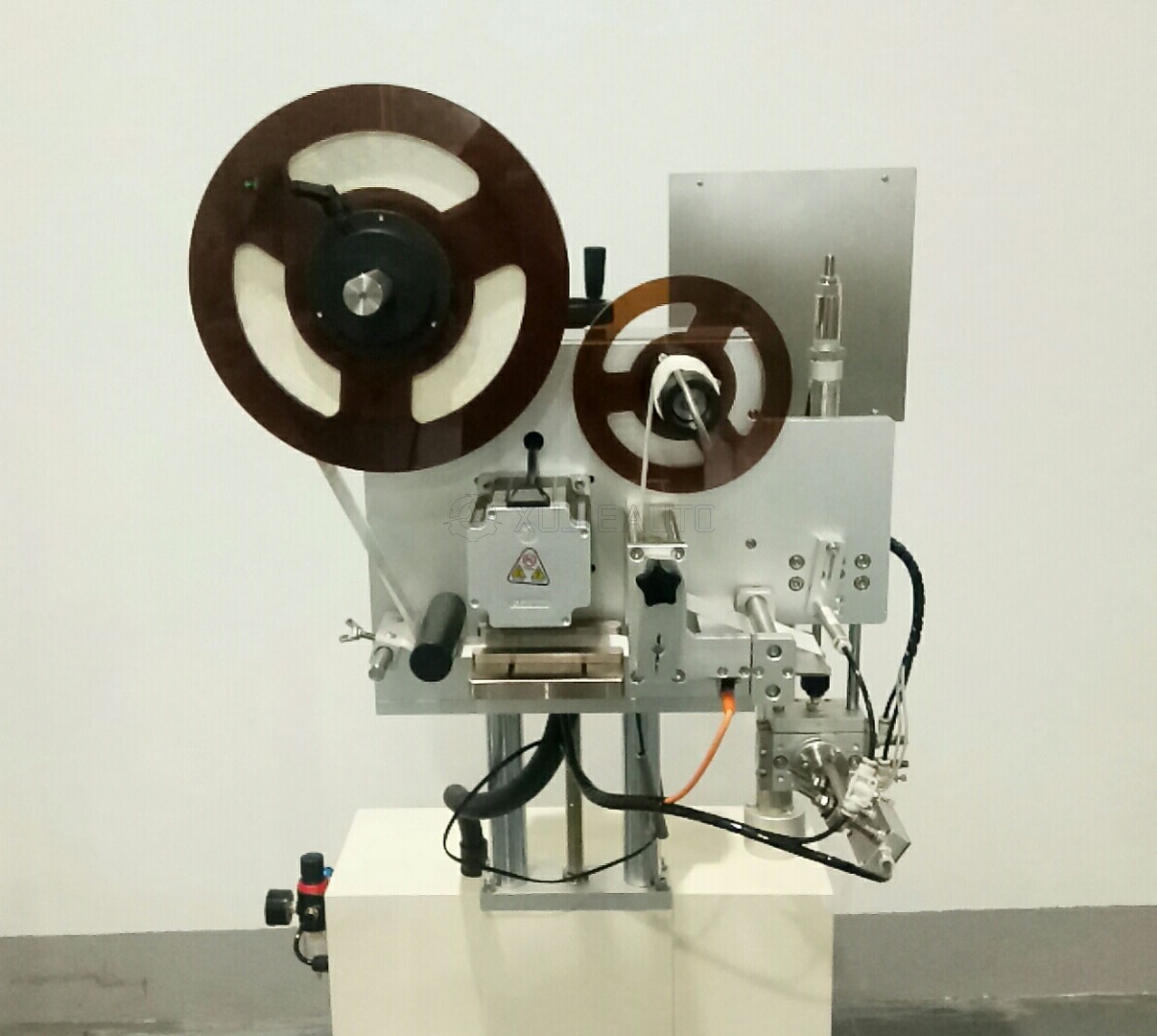

This pneumatic labeling head is an independent modular labeling unit, specially developed for online labeling integration. It can be installed on existing conveyor belts, flow wrapping machines, filling machines and other automated production lines to realize automatic continuous labeling.

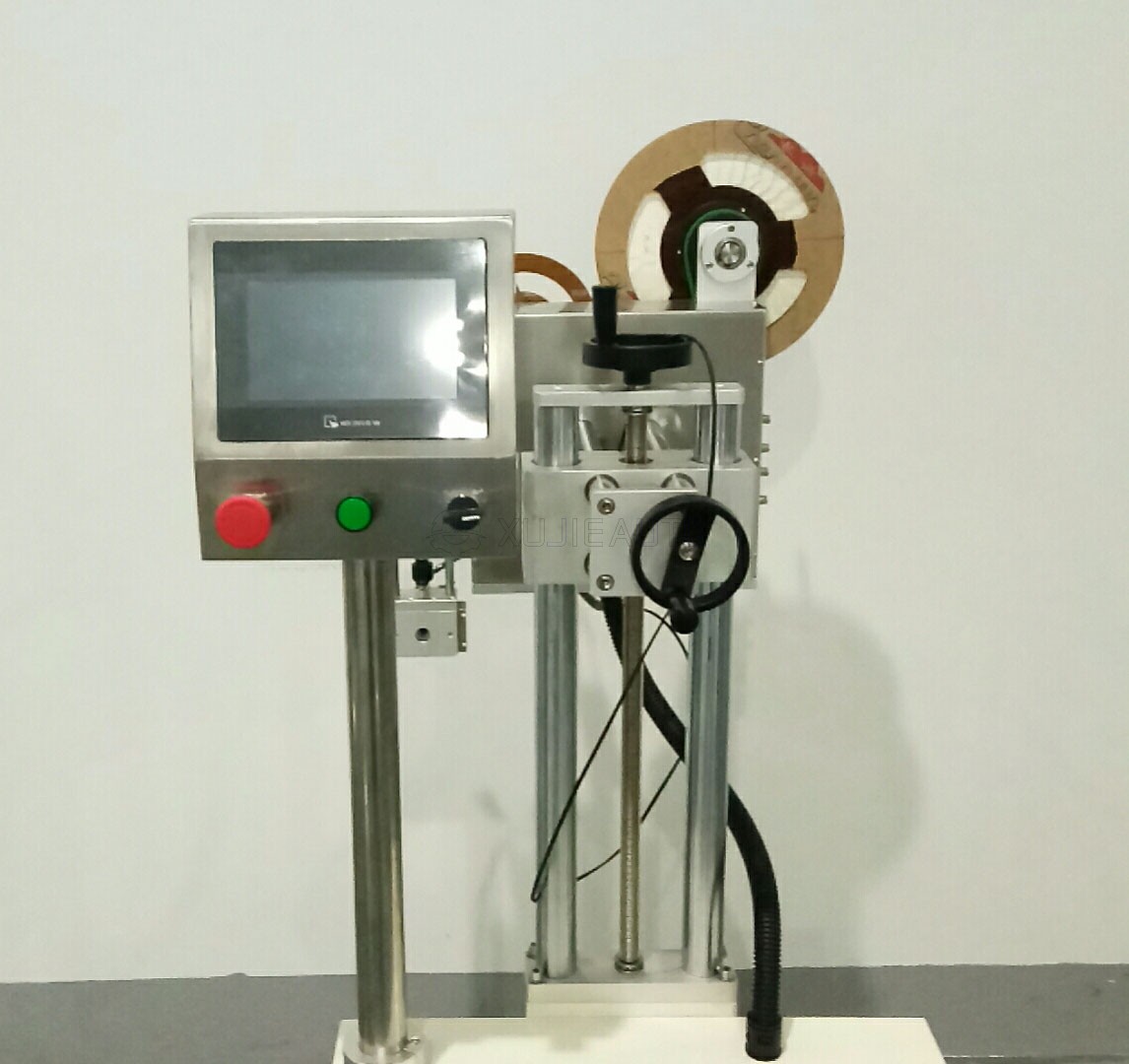

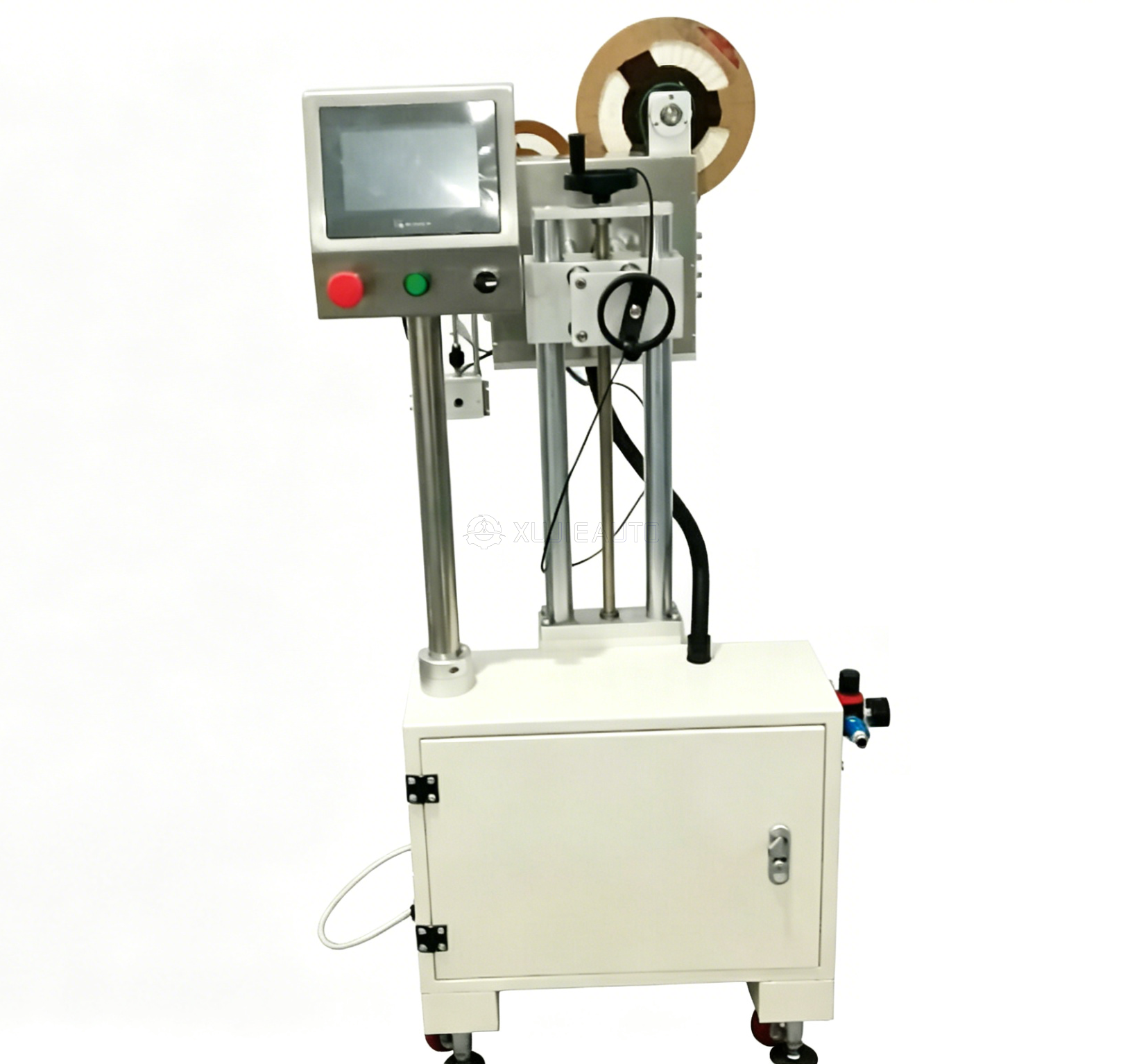

Equipped with touch screen control and pneumatic driving mechanism, the labeling height and horizontal position can be freely adjusted through vertical support posts. Photoelectric sensor achieves “no product, no labeling” to reduce label waste.

Suitable for top labeling of cartons, plastic boxes, pouches, flat packaging products. Compact structure, flexible installation, no need to change your original production layout.
We can customize labeling stroke, label width, stand height according to your on-site production condition. All labeling heads are fully tested before delivery.

1. Modular independent labeling unit：Easy to integrate with conveyor, flow packer, filling machine.
2. Pneumatic driving structure：Stable label pressing, reliable continuous labeling.

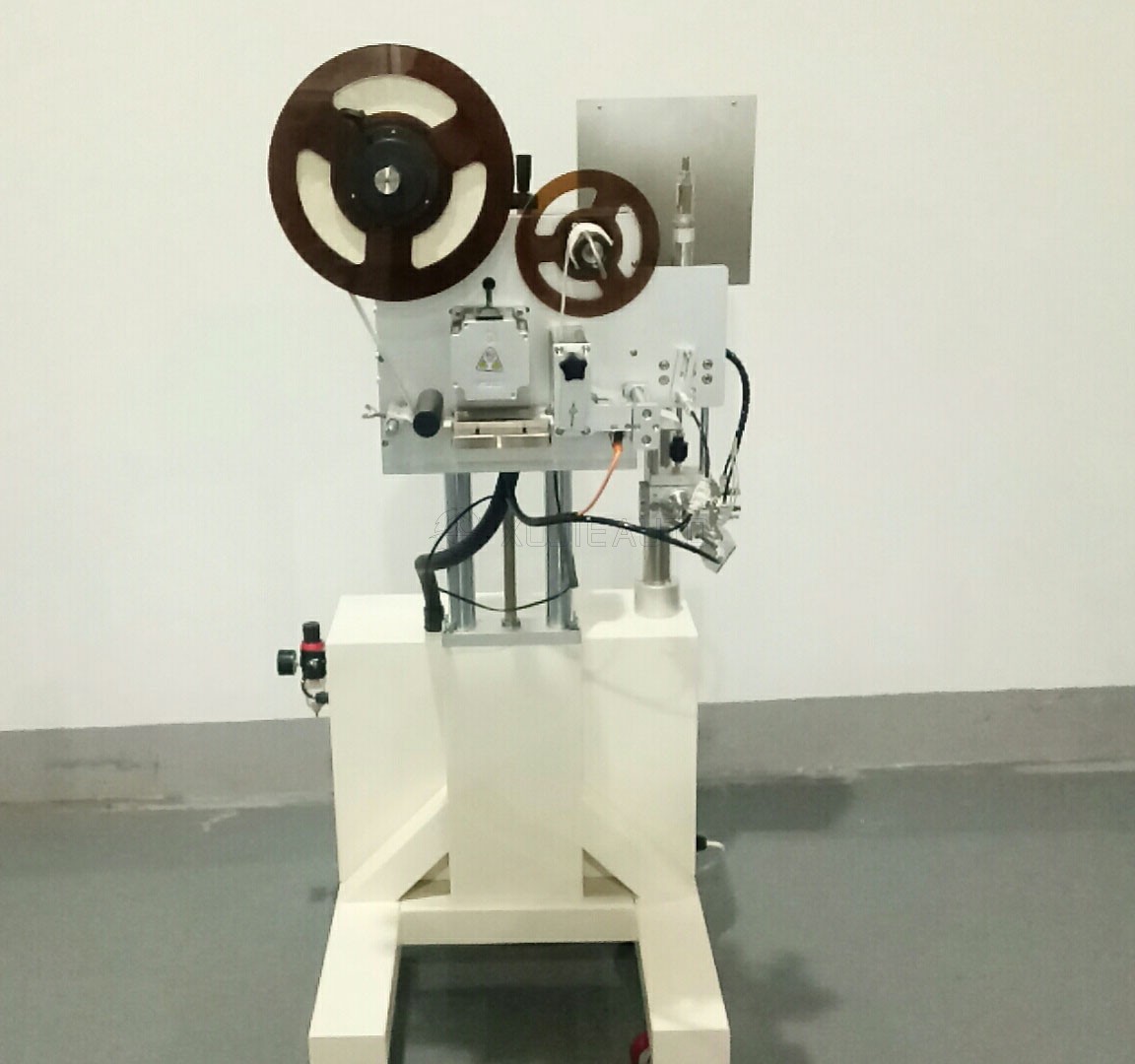

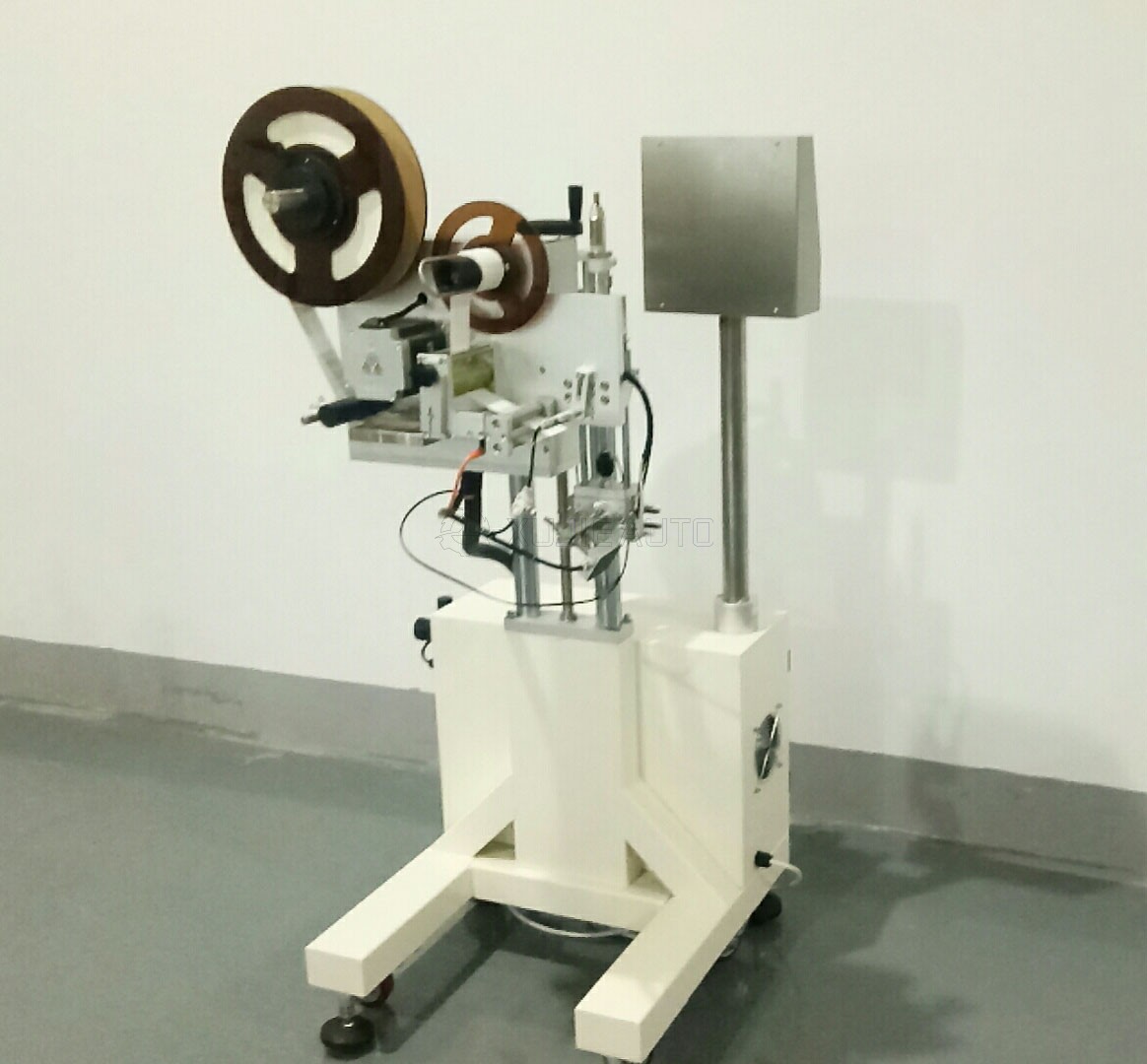

3. Multi-direction adjustable stand：Labeling height and horizontal position adjustable freely.
4. Touch screen PLC control：Simple parameter setting, convenient product switching.
5. Photoelectric detection function：No product no labeling, save label cost.
6. Compact space-saving design：Occupy small space, flexible on-site installation.
7. Wide application range：Suitable for cartons, pouches, boxes and flat packages.
8. Customization available：Custom label width, labeling stroke, stand height.

Machine Name Pneumatic： Online Labeling Head
Control System：                 PLC + Touch Screen
Driving Mode：                    Pneumatic
Applicable Label Width:     10–120 mm
Applicable Label Length:    10–280 mm
Labeling Accuracy:               ±1 mm
Air Pressure Required:        0.4–0.6 MPa
Power Supply:                        AC 220V/50Hz, 110V Optional
Adjustable Height Range :  0–600 mm
Working Speed :                    20–100 pcs/min (Depends on line speed)
Cabinet Material:                  Cold Rolled Steel (Paint Finished)

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
