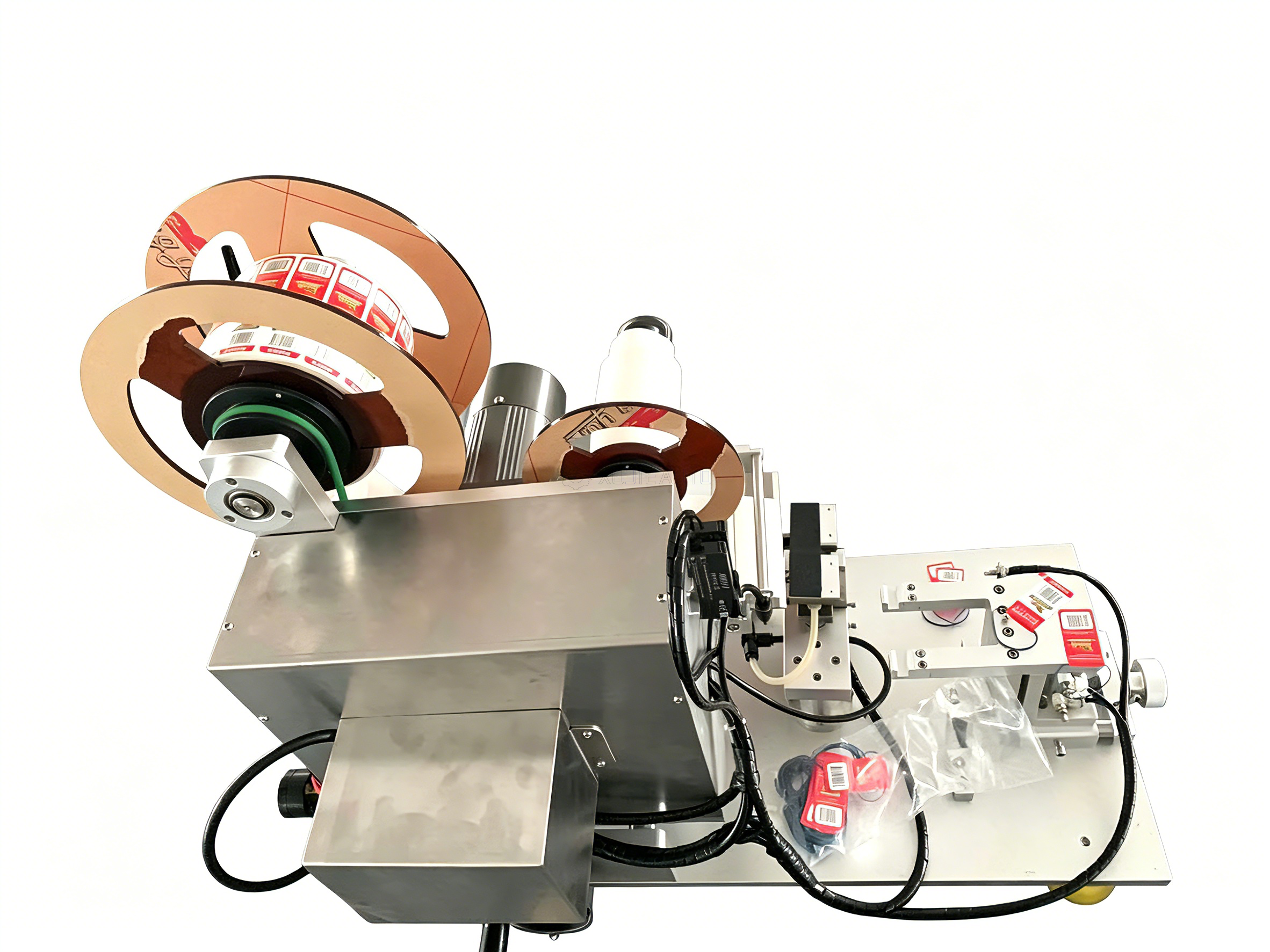

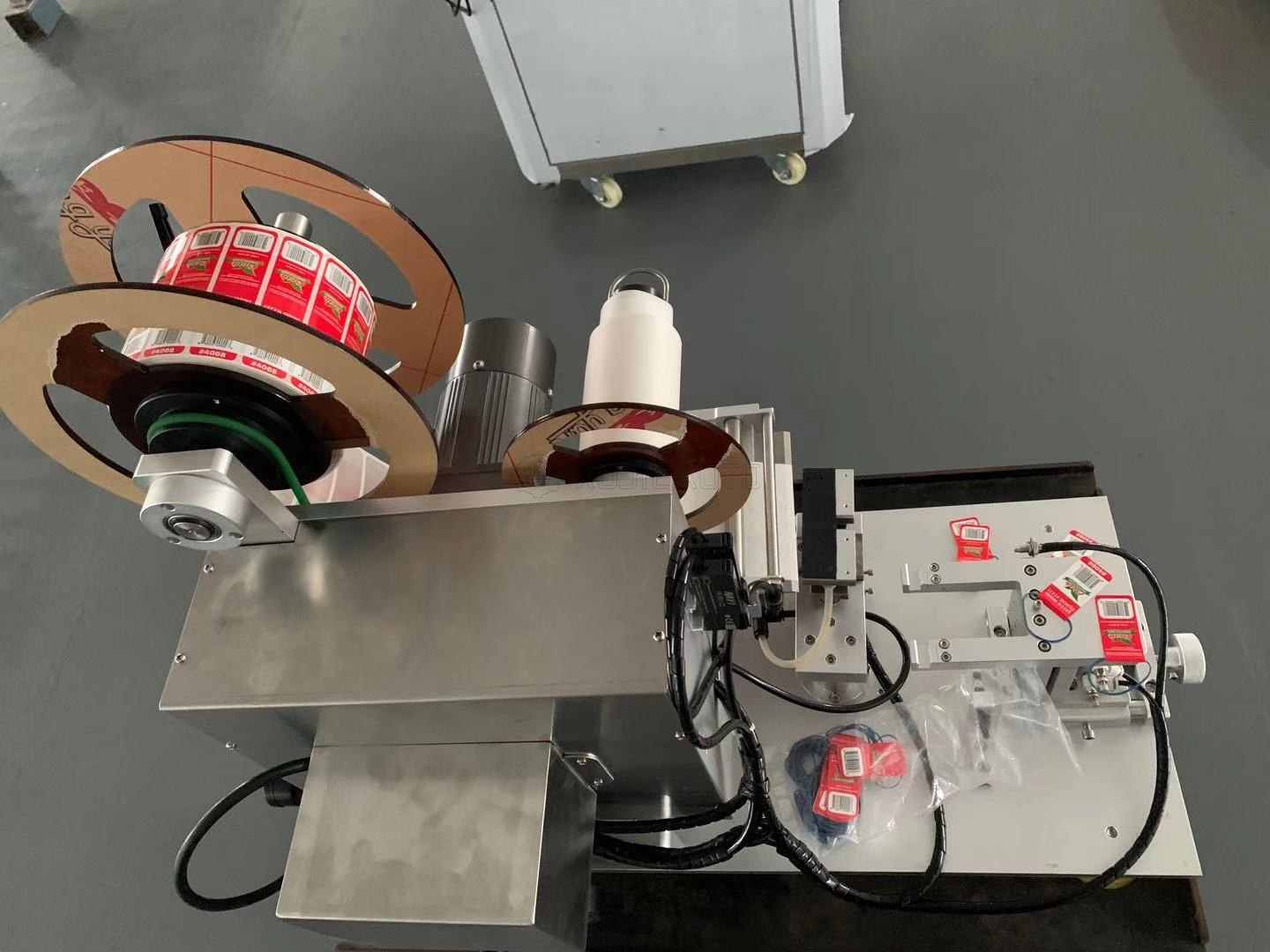

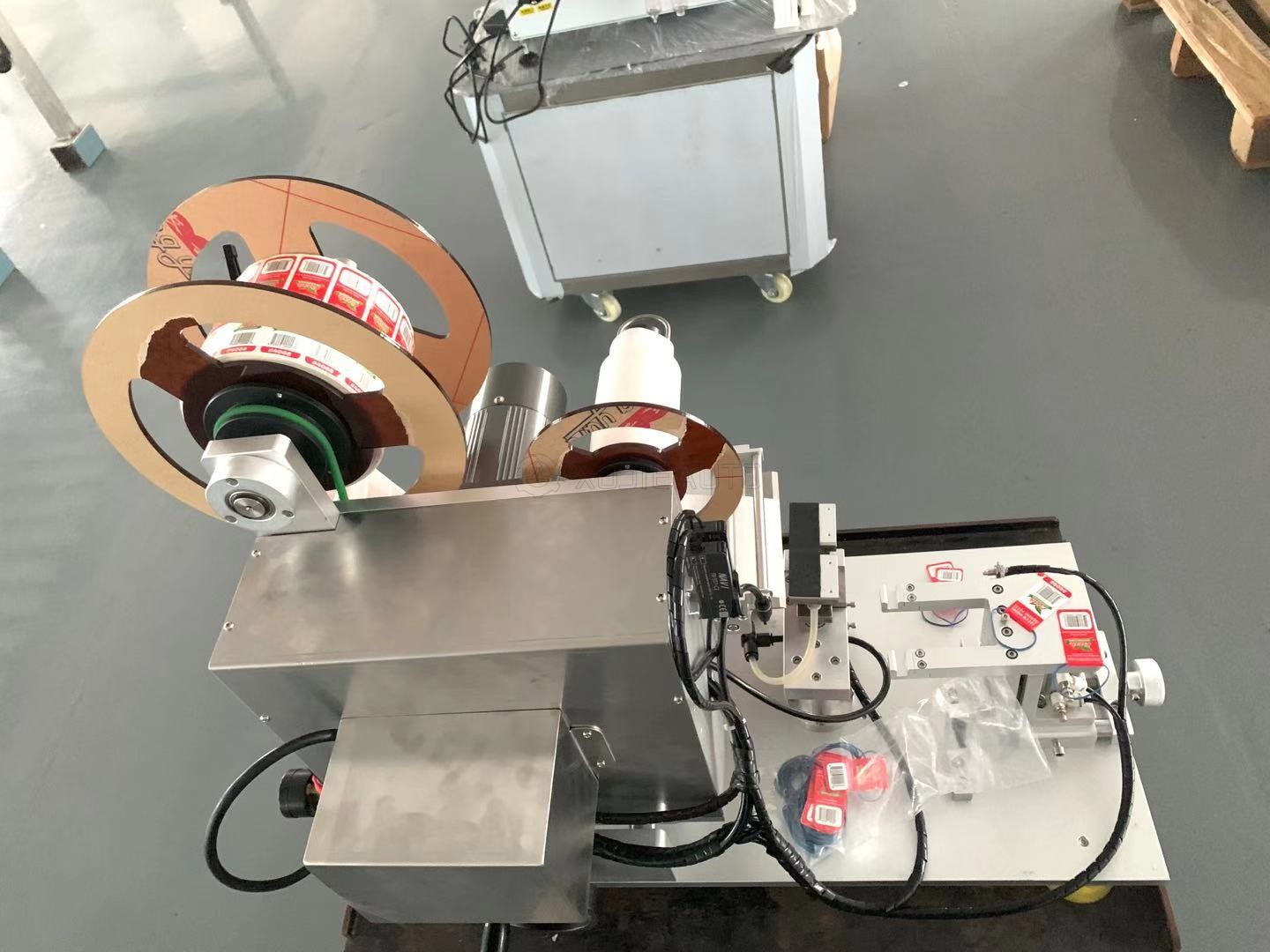

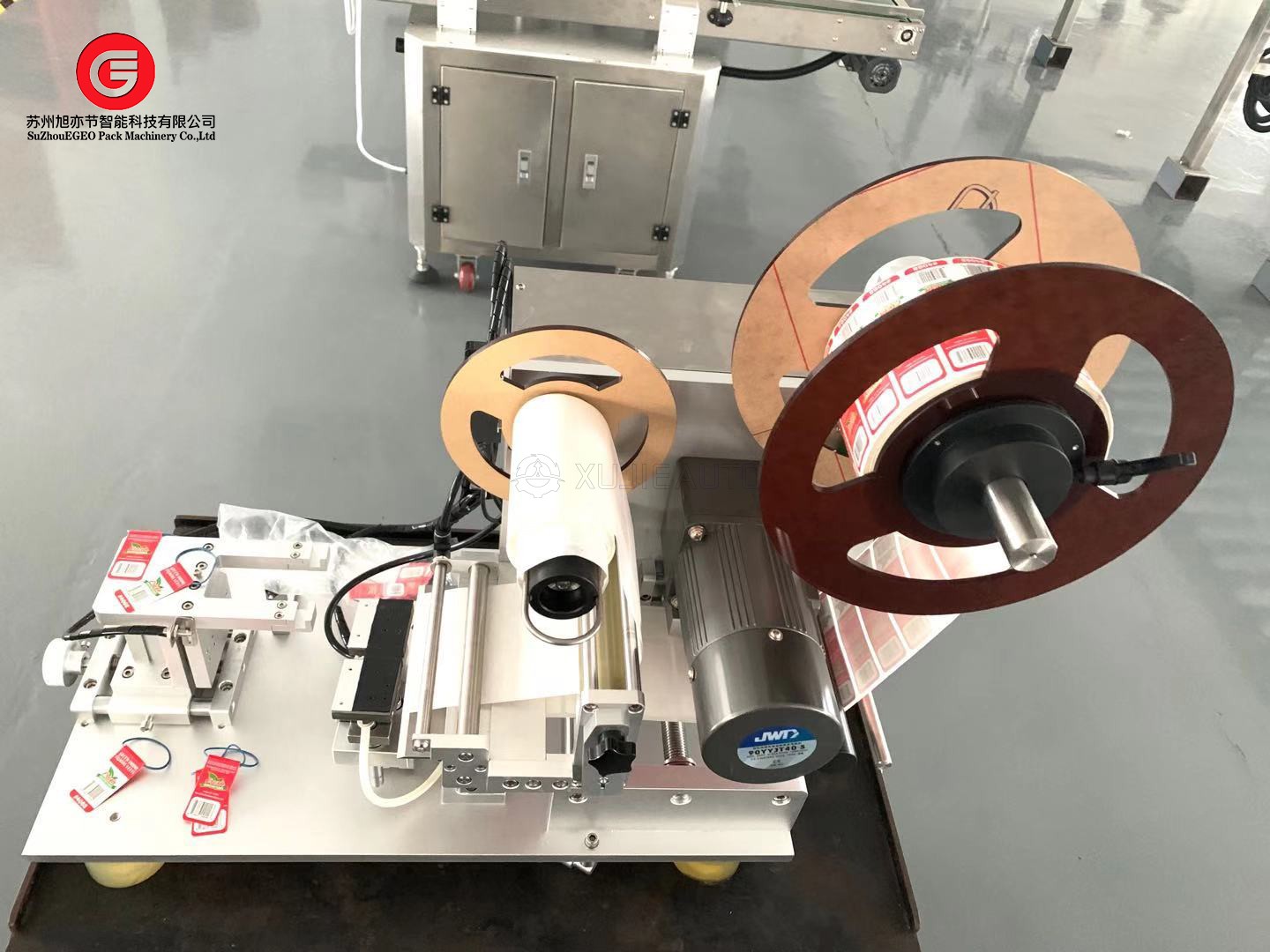

Semi-Automatic Flag Folding Labeling Machine for Elastic Ropes & Flexible Wires

This semi-automatic flag folding labeling machine is engineered for half-fold flag labeling on elastic ropes, elastic bands and flexible soft wires. It uses a pneumatic foot pedal control: operators simply place elastic cords or cables onto the adjustable jig and tap the foot switch to complete automatic folding and labeling in one cycle, cutting labor costs while maintaining consistent labeling quality for small and medium batch workshops.
Unlike inline fully automatic labelers, this desktop unit has a compact footprint for easy relocation and flexible batch production. Its exclusive flexible clamping and folding structure holds stretch elastic materials firmly without slipping, shifting or surface damage, and delivers wrinkle, bubble-free flag labels for data cables, charging wires and earphone cords. Labeling precision reaches ±0.3mm to eliminate misalignment and uneven folds.
Constructed with thick anodized aluminum frames and SUS304 stainless steel contact components, the machine is wear-resistant, rustproof and long-lasting. The labeling stroke, label reel holder and positioning jig are fully adjustable to fit elastic ropes and soft wires of varying diameters. A built-in tension buffer system stops label tearing during prolonged continuous operation.
It fits production lines for consumer electronics, garment trims, toy packaging and general hardware. Custom jigs are available for extra thick or thin elastic ropes and special wires. Every unit undergoes full factory testing before shipment, supplied with an English operation manual and a 1-year worldwide warranty.

1. Dual Compatibility for Elastic Ropes & Flexible Soft Wires

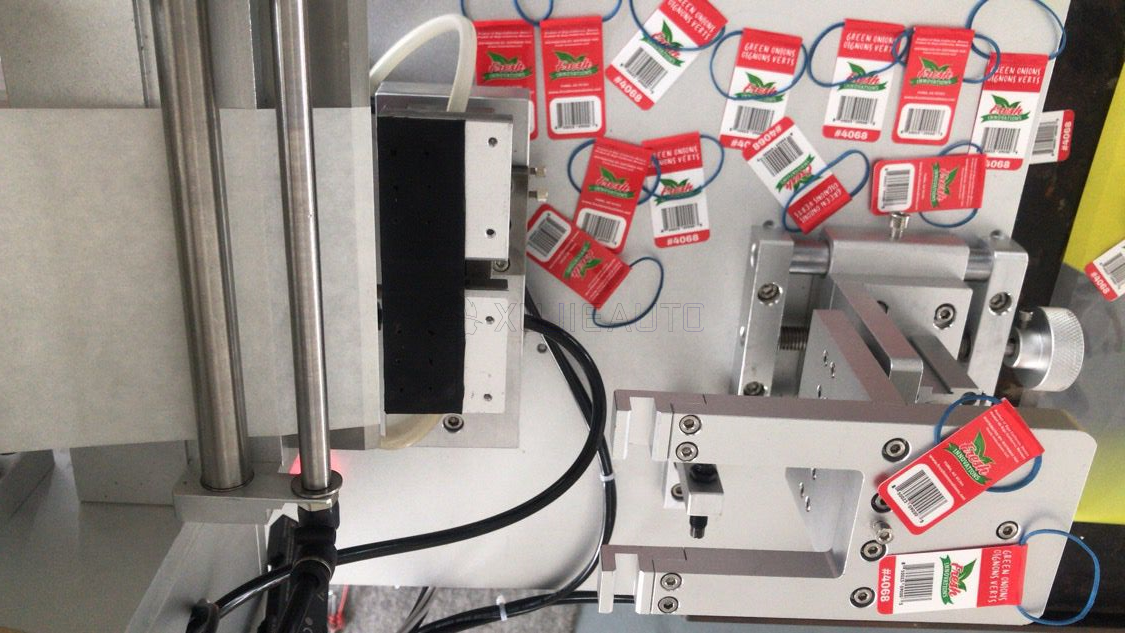

   Exclusive adjustable clamping jig fits stretch elastic bands, elastic cords, USB data soft wires, power charging cables and earphone audio wires in one machine, one device covers two production demands.
2. Foot Pedal Semi-Automatic Pneumatic Operation
   Manual feeding + foot pedal trigger, no matched conveyor required; single operator handles 900–1400 pieces per hour, simple operation with zero complicated training for new workers.
3. Anti-Slip Folding Structure for Stretch Elastic Materials
   Special elastic material positioning design, effectively prevent elastic rope stretching, slipping and shifting during labeling; flag labels attach flat without warping or tilting.

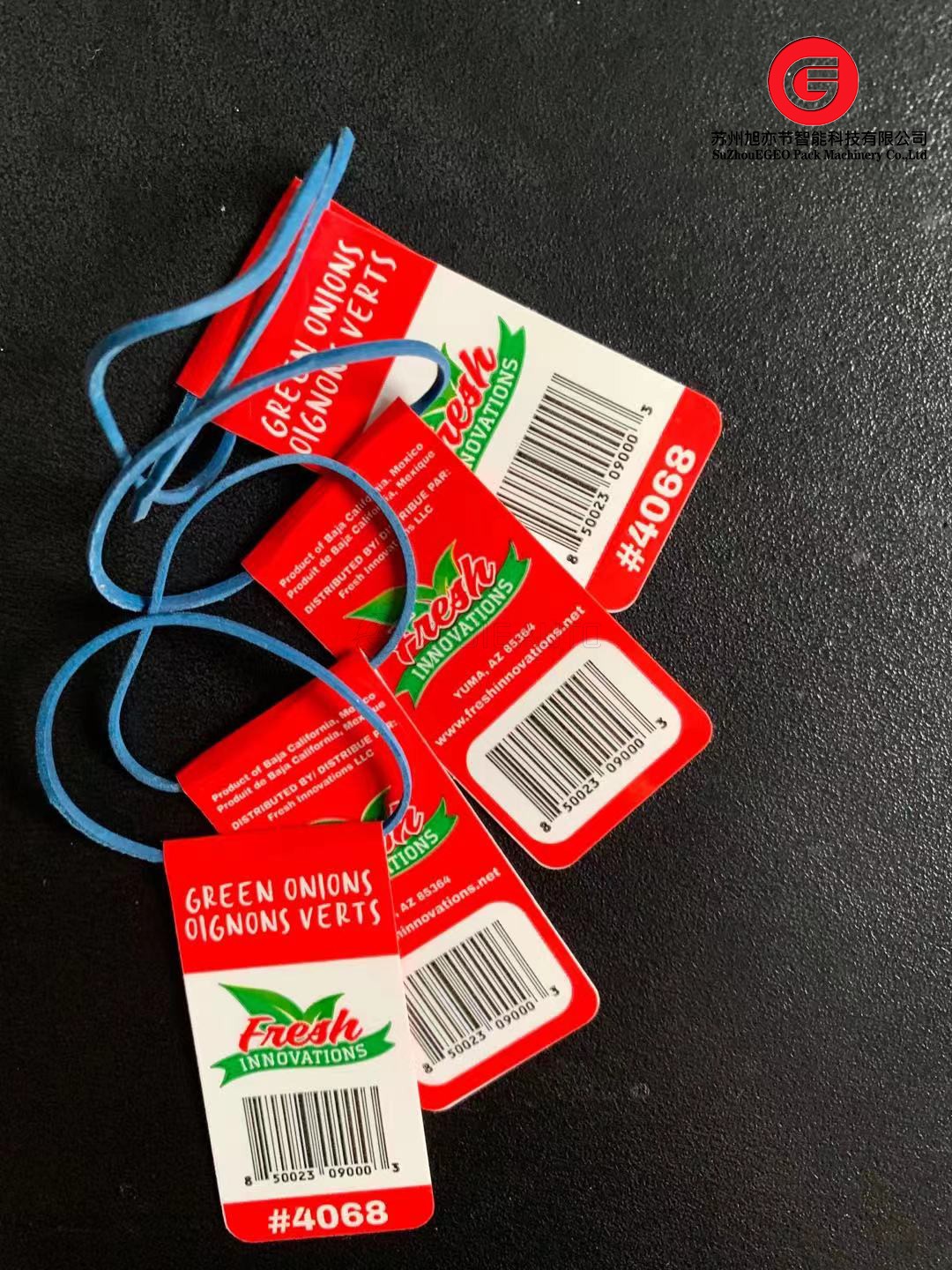

4. Ultra-Precision Flag Half-Fold Labeling
   Independent folding pressing module, labeling tolerance ±0.3mm; folded labels keep neat, uniform and beautiful for finished product display.
5. Full-Range Adjustable Parameter Settings
   Freely adjust labeling stroke, label width and jig position; standard applicable diameter φ1–12mm, customized φ0.5–15mm for extra thick/thin elastic ropes and soft wires.
6. Stable Anti-Break Label Tension Control
   Built-in tension buffer roller to avoid label paper cracking, compatible with coated paper, synthetic paper, PVC, PET self-adhesive flag labels.
7. Durable Industrial Compact Frame
   Thick aluminum alloy main frame + SUS304 stainless steel contact parts; imported pneumatic sensors and valves, low failure rate for daily long-time operation.
8. Customization & Complete Global After-Sales
   Custom fixtures for special elastic rope/wire sizes; CE certified, one-year machine warranty, 24h online remote video troubleshooting and full English operation guide.

Labeling Accuracy：                       ±0.3mm (excluding raw material error of rope/wire & label)
Production Capacity：                   900–1400 PCS/H (Depends on operator proficiency)
Applicable Elastic Rope / Soft Wire Diameter ：Standard φ1–12mm; customized φ0.5–15mm available
Applicable Flag Label Size：         Width 5–45mm, Length 20–130mm
Label Roll Spec:                               Inner core 76mm, Max outer diameter 240mm
Supported Label Materials:           Coated paper, synthetic paper, transparent PVC, PET adhesive flag stickers
Control Trigger Mode:                    Foot pedal pneumatic drive
Required Air Pressure:                   0.5–0.7 Mpa
Power Supply:                                  AC220V 50Hz, Total power 150W
Main Frame Material:                    Anodized Aluminum Alloy + SUS304 Stainless Steel
Overall Dimension:                         680 × 660 × 1020 mm
Machine Net Weight:                      86 KG
Working Environment:                  Temperature 5–40℃, Humidity 15–85% non-condensing

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
