Semi‑Automatic Folding Labeling Machine | Fold‑Over Label Applicator for Cables, Wires & Tubing

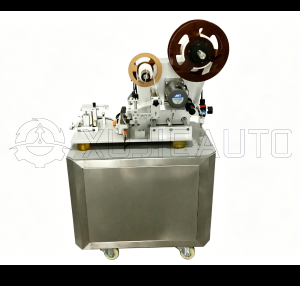

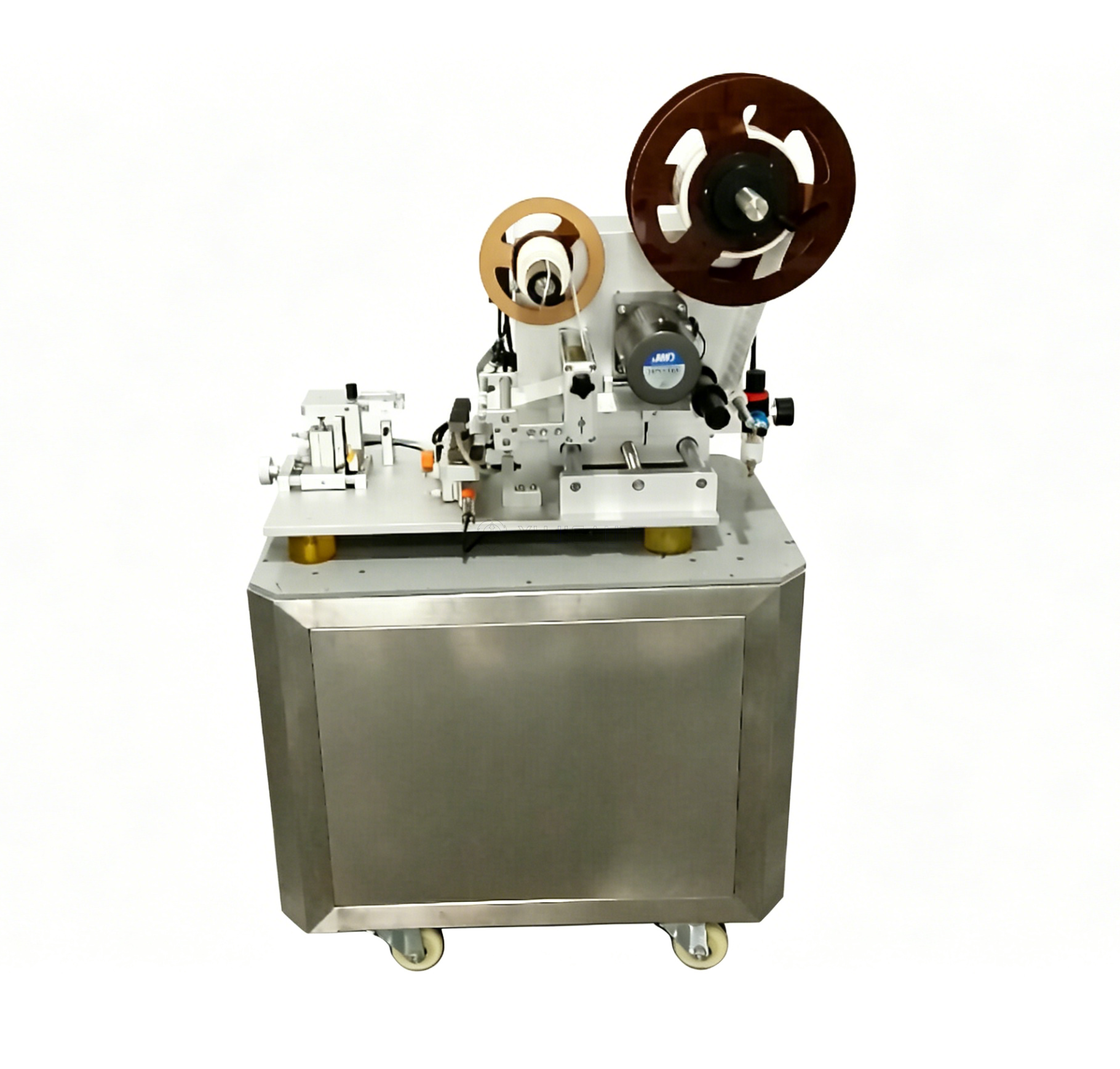

This bench‑top semi‑automatic folding labeling machine is specially developed for fold‑over labeling of cylindrical flexible products such as various cables, wire harnesses, data lines and hoses. Operators place products manually, the machine completes label feeding, positioning and automatic folding wrapping, replacing slow and inconsistent manual folding work.
Adopts photoelectric sensing to detect label position accurately. After positioning, the label is folded and wrapped on two sides of wire or tubing, neat and wrinkle‑free. Foot‑pedal trigger design frees hands for higher operation comfort. All main adjusting parts can be fine‑tuned to fit different wire diameters and label sizes. Compact desktop structure occupies little workshop space.
The machine is widely applied in wire harness factories, cable processing, electronics accessory manufacturing. It can handle self‑adhesive sticker labels for power cords, USB cables, signal wires and plastic tubes. We support adjustment according to your actual samples. Customers are welcome to send products for pre‑order sample testing.

✅ Desktop compact structure, easy to place on workbench
✅ Foot pedal control mode, simple operation, low learning cost
✅ Automatic label folding & wrapping for cables and harness
✅ Photo‑electric sensor ensures stable label positioning
✅ Neat fold‑over effect, less wrinkle & label offset
✅ Flexible fine‑tuning for different wire diameter & label dimension
✅ Fast change‑over between different product specifications
✅ Main frame adopts aluminum alloy, stable running
✅ Low failure rate, convenient daily maintenance
✅ Sample testing service & technical support offered

Model：                                            Semi‑Automatic Folding Labeling Machine
Labeling Speed：                            15‑35 pcs/min (depends on operator proficiency)
Labeling Accuracy：                       ±0.8 mm (exclude tolerance of wire & label)
Applicable Wire Diameter：         Φ2‑25 mm (custom‑tunable)
Applicable Label Width：              20‑120 mm
Applicable Label Length：             25‑200 mm
Inner Diameter of Label Roll：     76 mm
Max Outer Diameter of Label Roll： ≤260 mm
Control Mode：                                 Foot pedal switch
Power Supply：                                 AC 110V / 220V, 50‑60Hz
Rated Power：                                   100 W
Machine Dimension(L×W×H)：   620×420×480 mm
Net Weight：                                      38 Kg
Applicable Label:                               Self‑adhesive sticker label

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
