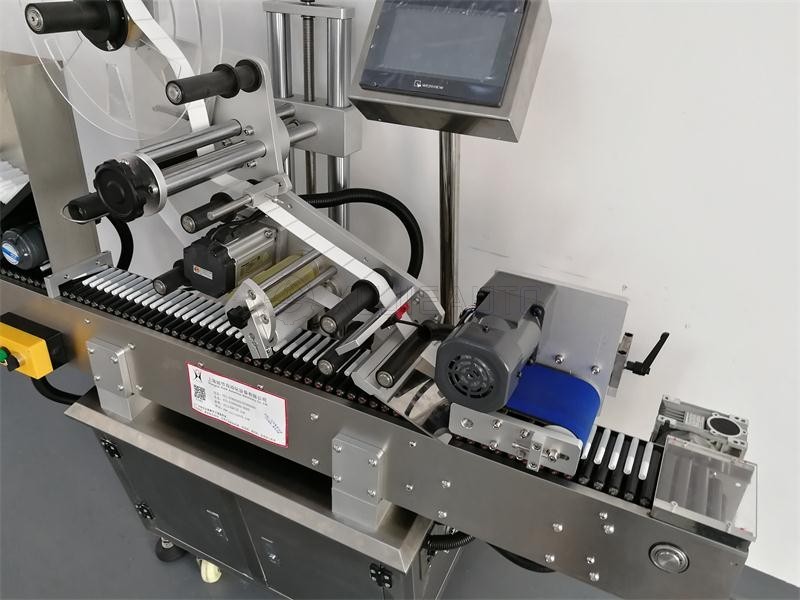

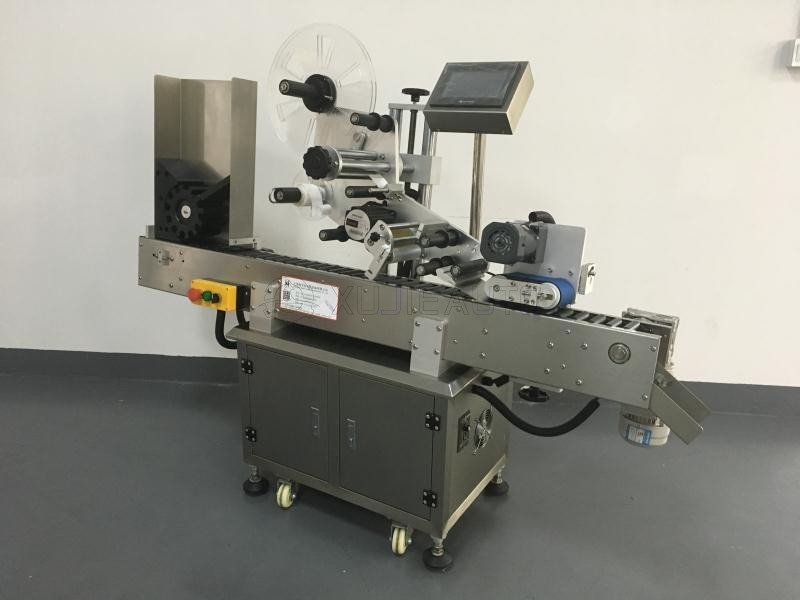

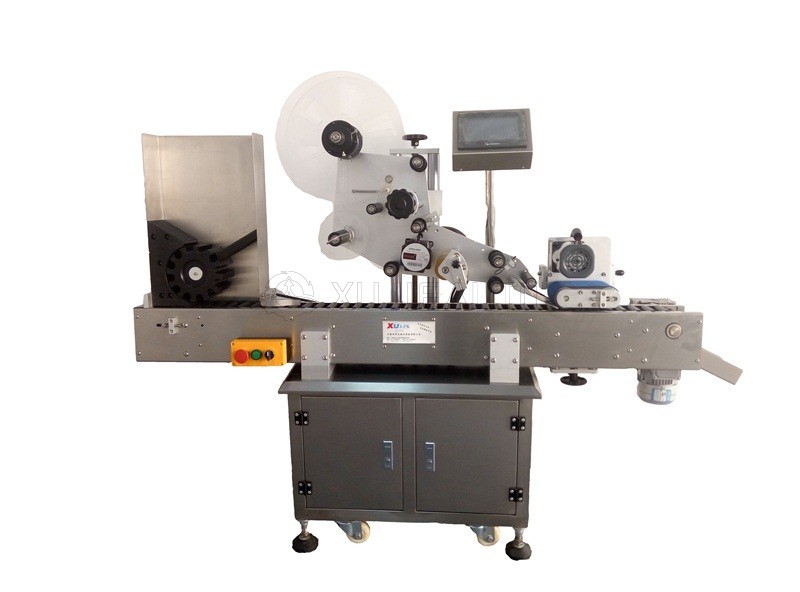

LB-400 Automatic horizontal labeling machine

Machine Description

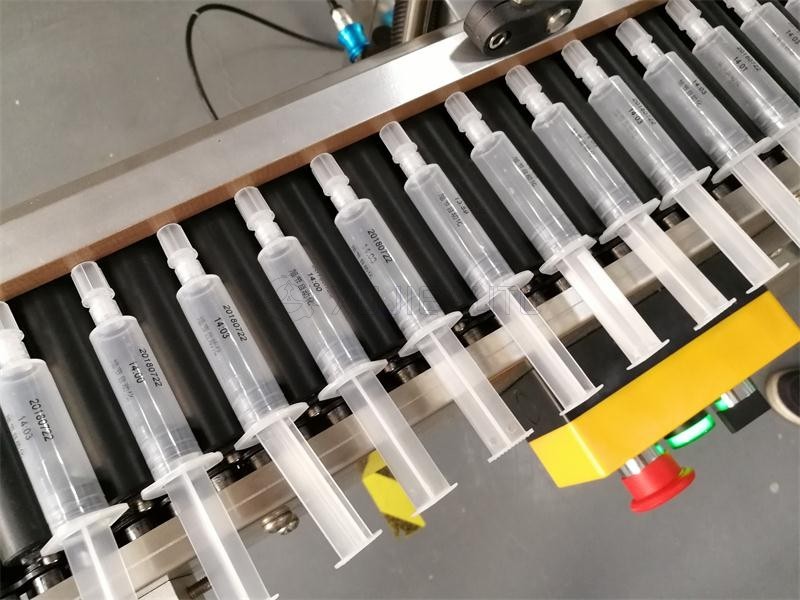

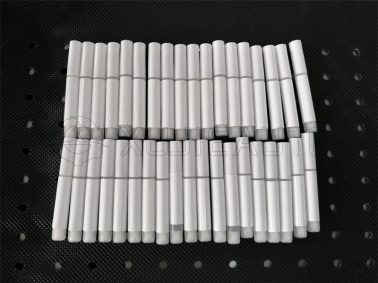

It is mainly used for cylindrical labeling of round bottles, tubes, water injections, pens, taper tubes, etc., which can not be erected in food, medical, cosmetics, electronics, plastics, toys, hardware, auto parts, stationery, etc. Self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc., the general range is relatively small, and the track size is not adjustable.

Improve product labeling, film attachment efficiency, accurate positioning, good quality, high stability; avoid manual labeling, low film efficiency, attached skew, blistering and wrinkling, irregular placement and other issues Effectively reduce product cost, improve product logo aesthetics, and enhance product competitiveness

Machine Feature

  1. The main material of the equipment is stainless steel and high-grade aluminum alloy. The overall structure is firm and beautiful. The whole system and operating system adopt imported control, the attachment position is accurate, and the degree of freedom of labeling position is finely adjusted (fixed after adjustment), which makes the conversion and label winding between different products simple and time-saving;
  2. The equipment has no object labeling, no standard automatic calibration and automatic detection function; production counting function, power saving function, production number setting prompt function, parameter setting protection function;

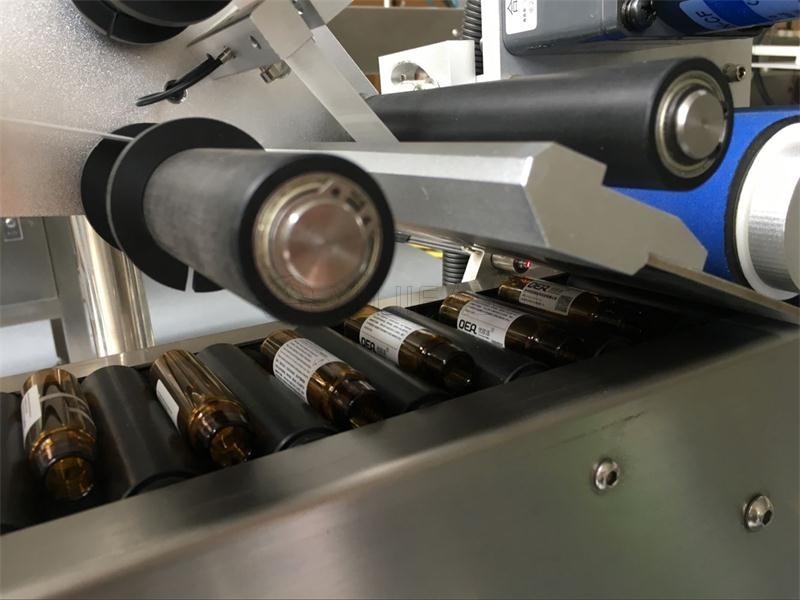

  3. Core working principle: The sensor detects the product passing, and returns the signal to the labeling control system. At the appropriate position, the control system controls the motor to send the label and attach it to the product to be labeled. The product flows through the labeling device, and the label is Rolling over, the attaching action of a label is completed;
  4. Complete equipment supporting materials (including equipment structure, principle, operation, maintenance, maintenance, upgrade, etc.) to provide sufficient protection for the normal operation of the equipment;

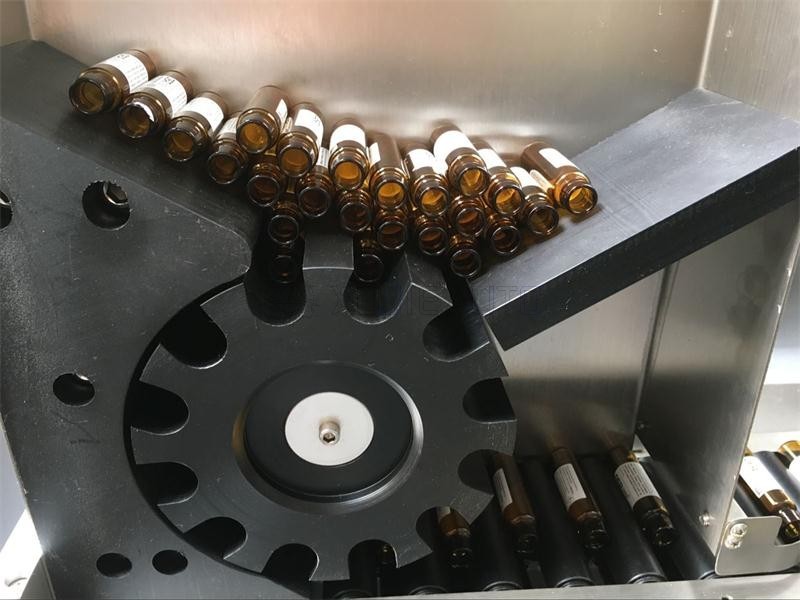

  5. Operation process: release product -> product delivery (automatic realization of equipment) -> labeling (automatic realization of equipment) -> collect the labeled products.

Technical Parameter

Machine Model:  LB-400

Product size:10≤D≤16mm,16≤D≤26mm,26≤D≤36mm H≤100mm

Label size: L≥10mm 10≤W≤100mm

Labeling precision:±1mm (exclude product&label error)

Labeling speed:100-200 B/M(related to product&label size)

Roller Size:diameter:76-280mm.distance between two labels:2-3mm

Power Supply:220V,50/60Hz, 1.2KW

Machine Size:2000*800*1400mm3

Machine Weight:260kg
