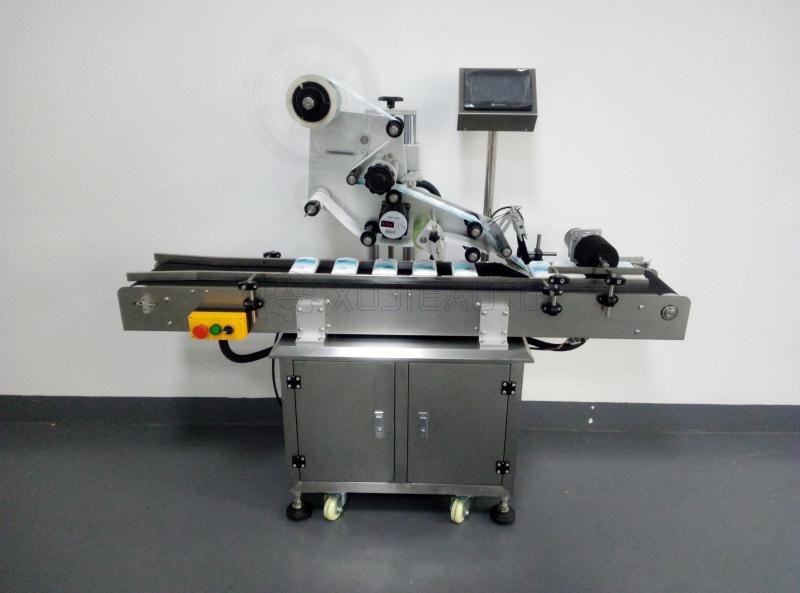

LB-300 Automatic Boxes Flat Labeling Machine

This machine apply to food, medical, cosmetics, electronics, plastics, toys, hardware, auto parts, stationery, etc., automatically attach stickers, self-adhesive film, electronic supervision code, barcode, etc., to achieve cup, bag, dish, tube, can, box, bottle, barrel, etc product plane, side , top surface, bottom surface, slope surface, concave surface, corner surface labeling.

Machine Description

This equipment can realize the flat, large arc surface and upper on the carton labeling, SD card labeling, electronic parts labeling, carton labeling, flat bottle labeling, ice cream box labeling, foundation box labeling, etc. Below, the concave and convex surface, automatic attachment of self-adhesive labels, self-adhesive films, bar code labels, word labels, anti-counterfeit labels and other food, toys, daily chemicals, electronics, medicine, hardware, plastics, stationery, printing and other industries;

Improve product labeling, film attachment efficiency, accurate positioning, good quality, high stability; avoid manual labeling, low film efficiency, attached skew, blistering and wrinkling, irregular placement and other issues ;


Machine Feature

  1. The main material of the equipment is stainless steel and high-grade aluminum alloy. The overall structure is firm, beautiful and elegant, easy to operate and maintain. The whole machine parts are imported electrical appliances with good stability, high precision and fast speed.
  2. The micro-design of mechanical structure takes up less space, is simple to adjust and saves time, and can be used by single machine or inline. The machine comes with a pulley for easy movement. The labeling stability is good, the labeling is flat, no wrinkles, no bubbles, and it can meet the requirements of most products on the plane and large arc surface;
  3. Man-machine interface operation control has fault handling prompt function, operation teaching function, production counting function, power saving function, production number setting prompt function, parameter setting protection function (parameter setting sub-right authority management);
  4. Perfect equipment matching Information (including equipment structure, principle, operation, maintenance, repair, upgrade, etc.) to provide adequate protection for the normal operation of the equipment;
  5. Can be customized according to customer requirements, can be installed with corner labeling machine, printing system, can be used with other packaging equipment.

Technical Parameter

Machine Model:LB-300

Product size:L≥10mm,10≤W≤250mm,1≤H≤110mm

label size:L≥10mm,10≤W≤135mm

Labeling precision:±1mm (exclude product&label error)

Labeling speed:50-120 B/M(related to product&label size)

Label Requirement:Roller Diameter:76mm-280mm ,Distance between two labels:2-3mm

Power Supply:220V,50/60Hz, 1.2KW

Machine Size:2000*1000*1400mm3

Machine Weight:280kgs
