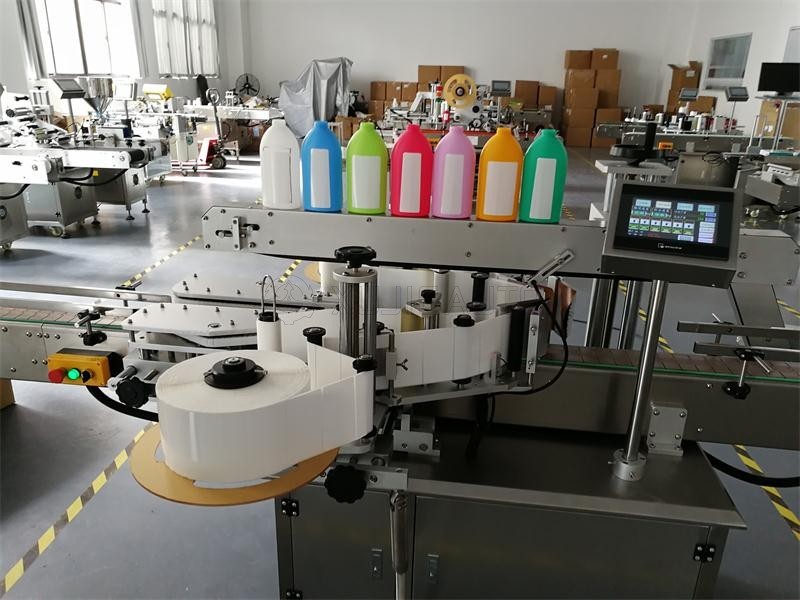

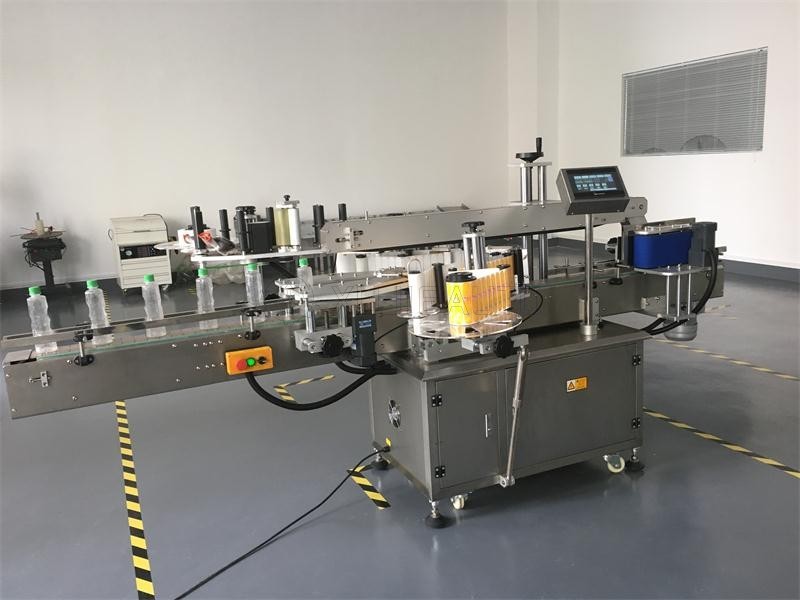

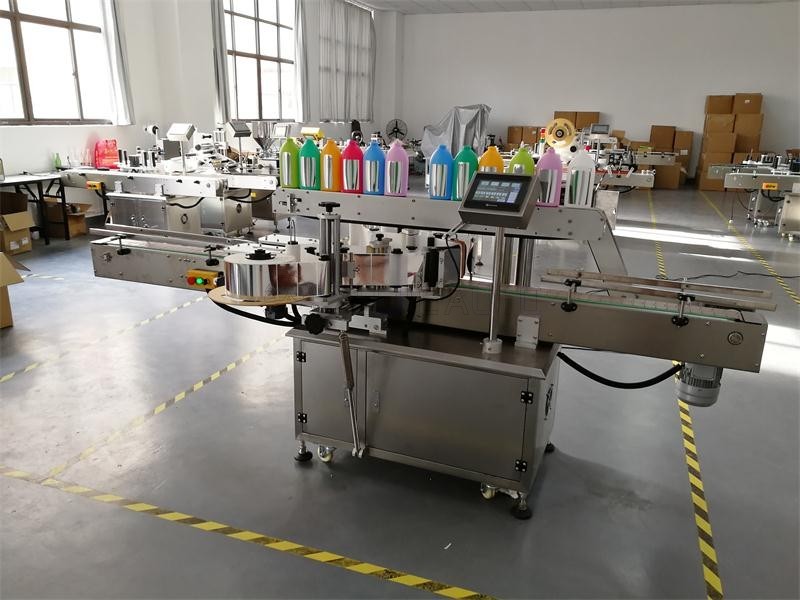

LB-220 Automatic double sides labeling machine

This machine is apply to industries such as food, medical, cosmetics, electronics, plastics, toys, hardware, auto parts, stationery, etc. in the round, flat, square, carton and other objects on both sides, single side, curved surface, concave and convex surface Automatically attach self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc.

Machine Description

1.Realize self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc. on double sides, single sides, curved surfaces and concave and convex surfaces of round bottles, flat bottles, square bottles, cartons in industries of food, medical, cosmetics, electronics, plastics, toys, hardware, auto parts, stationery.

2.The universal range is wide, the labeling can be adjusted within the specified range, and one machine can be used universally (round, flat and square).

3.Improve product labeling, film attachment efficiency, accurate positioning, good quality, high stability; avoid manual labeling, low film efficiency, attached skew, blistering and wrinkling, irregular placement and other issues Effectively reduce product cost, improve product logo aesthetics, and enhance product competitiveness.

Machine Feature

  1. The whole machine adopts the mature PLC control system to make the whole machine run stably and at high speed. The attachment position is accurate, the quality is good, the stability is high, the operation is convenient, and the adjustment part is convenient and simple;
  2. The operating system adopts touch screen control, which is easy to operate, practical, high in efficiency, powerful in function, flexible adjustment topping mechanism and guiding mechanism, mechanical adjustment part of structural combination and ingenious design of label winding, fine adjustment of labeling position freedom (Adjustable after adjustment), making conversion adjustment and label winding between different products simple and time-saving;
  3. The upgraded version of the three-dimensional angle adjustment of the standard station design, can be labeled on the cone bottle;
  4. Complete equipment supporting materials (including equipment structure, principle, operation, maintenance, maintenance, upgrade, etc.) to provide sufficient protection for the normal operation of the equipment;
  5. With fault alarm function, production counting function, power saving function, production number setting prompt function, parameter setting protection function;
  6. Operation process: release product -product delivery (automatic realization of equipment) -labeling (automatic realization of equipment) -collect the labeled products.

Technical Parameters

Machine Model:LB-220

Product Size:Square Flat Bottle:Width≥20mm,Length≥30mm,30≤Height≤350mm;
Round Conical Bottle:¢30≤Diameter≤¢150mm,10≤Height≤350mm

Label Size:15≤Width≤200mm,Length≥10mm;

Label Precision(mm):±1mm(related for product and labels)

Label Speed(pcs/min) :50~200pcs/min(related for product and labels)

Roller Size:  Diameter:76mm-280mm  Distance between two labels:2-3mm

Power Supply:220V,50/60Hz, 2.0KW

Machine Size:3000*1600*1400mm3

Machine Weight:  330kg
