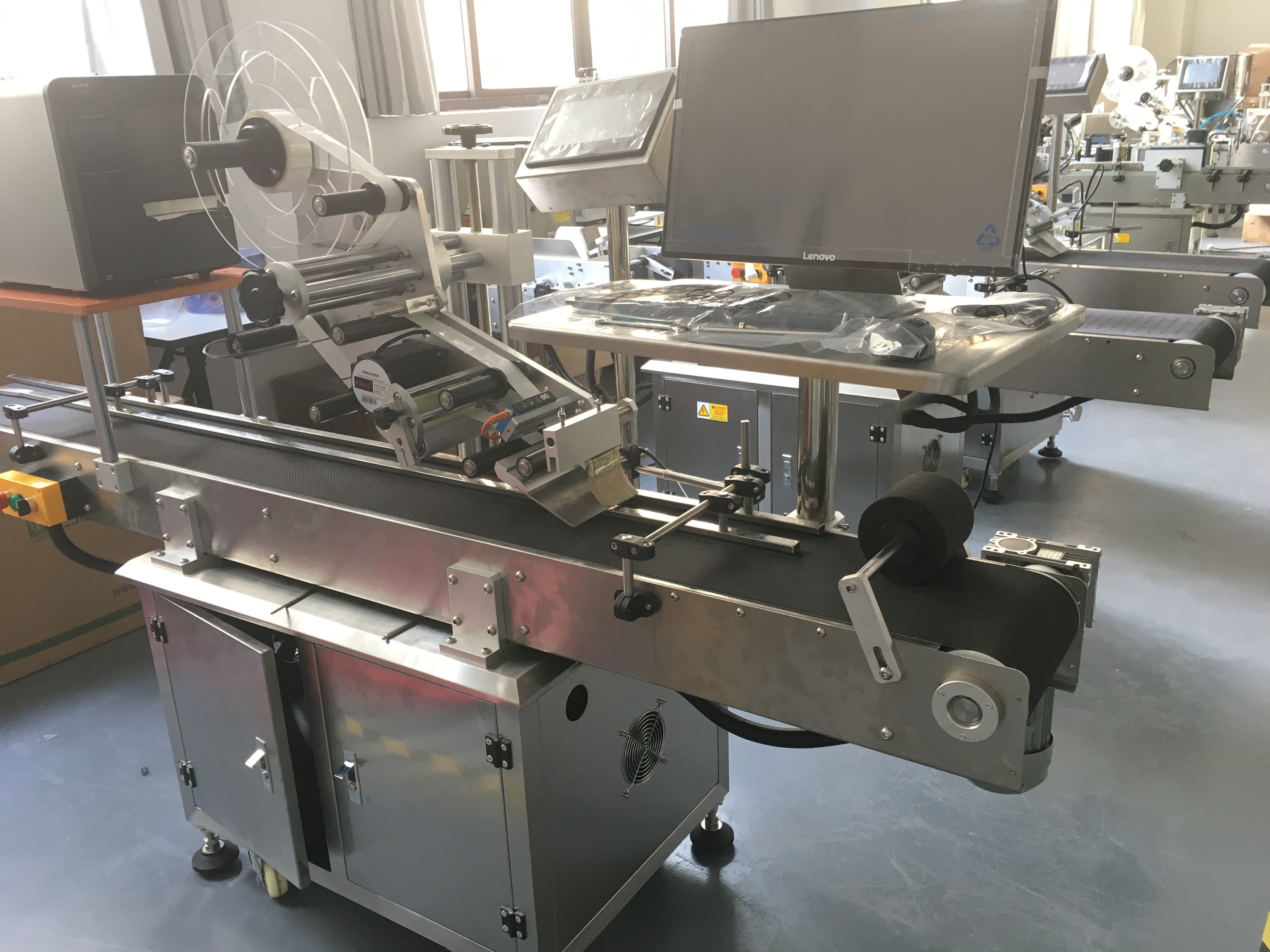

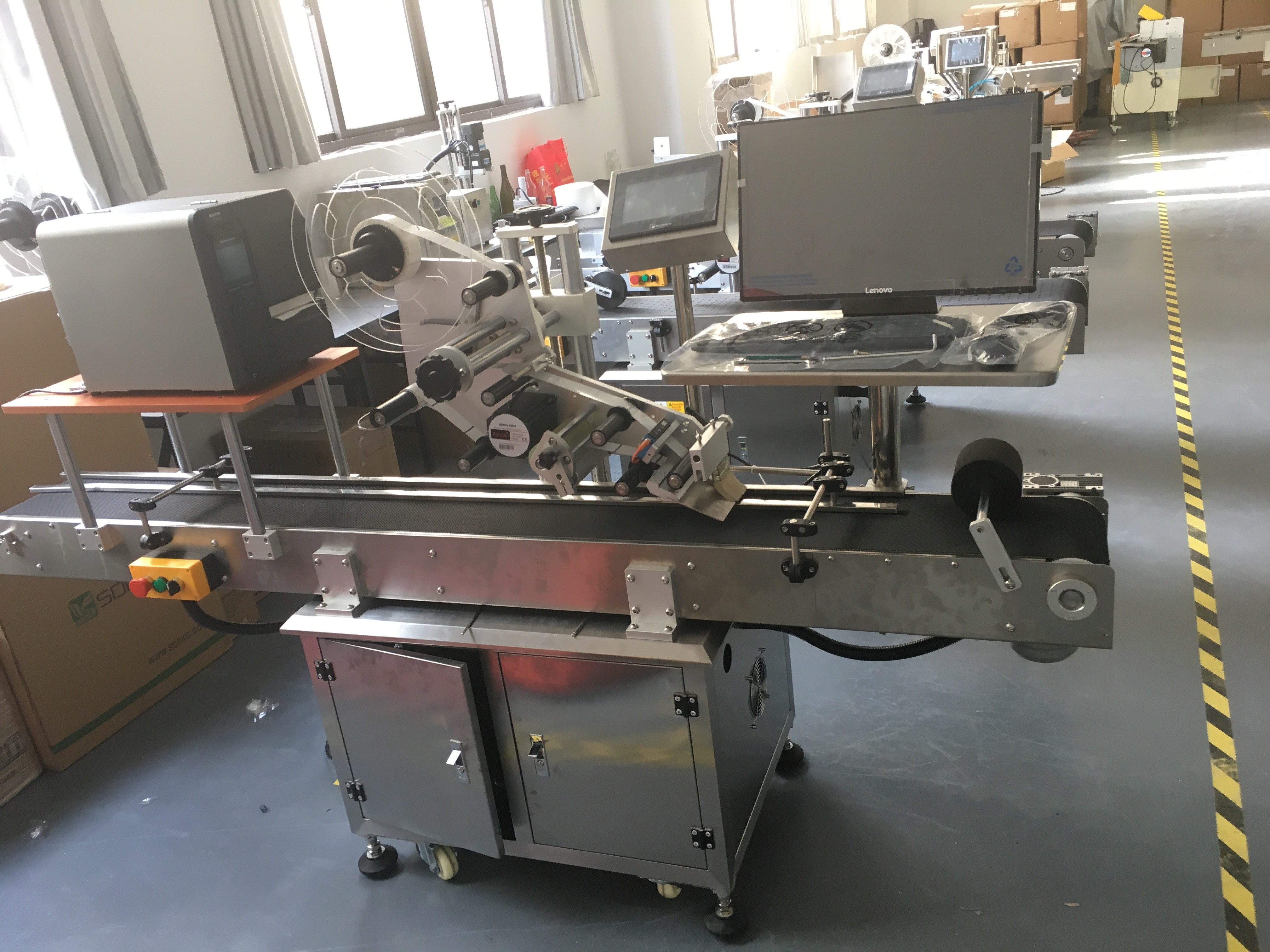

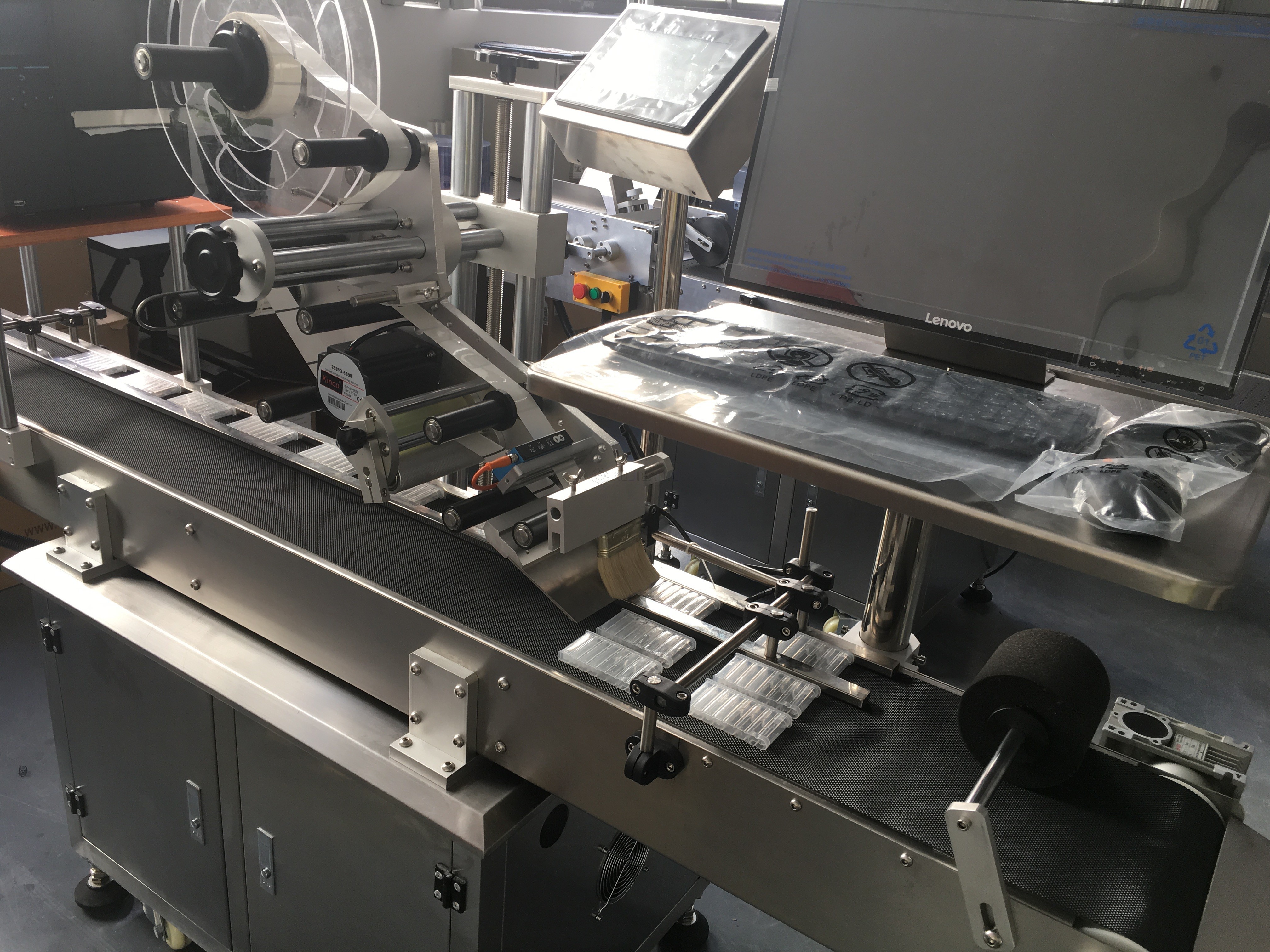

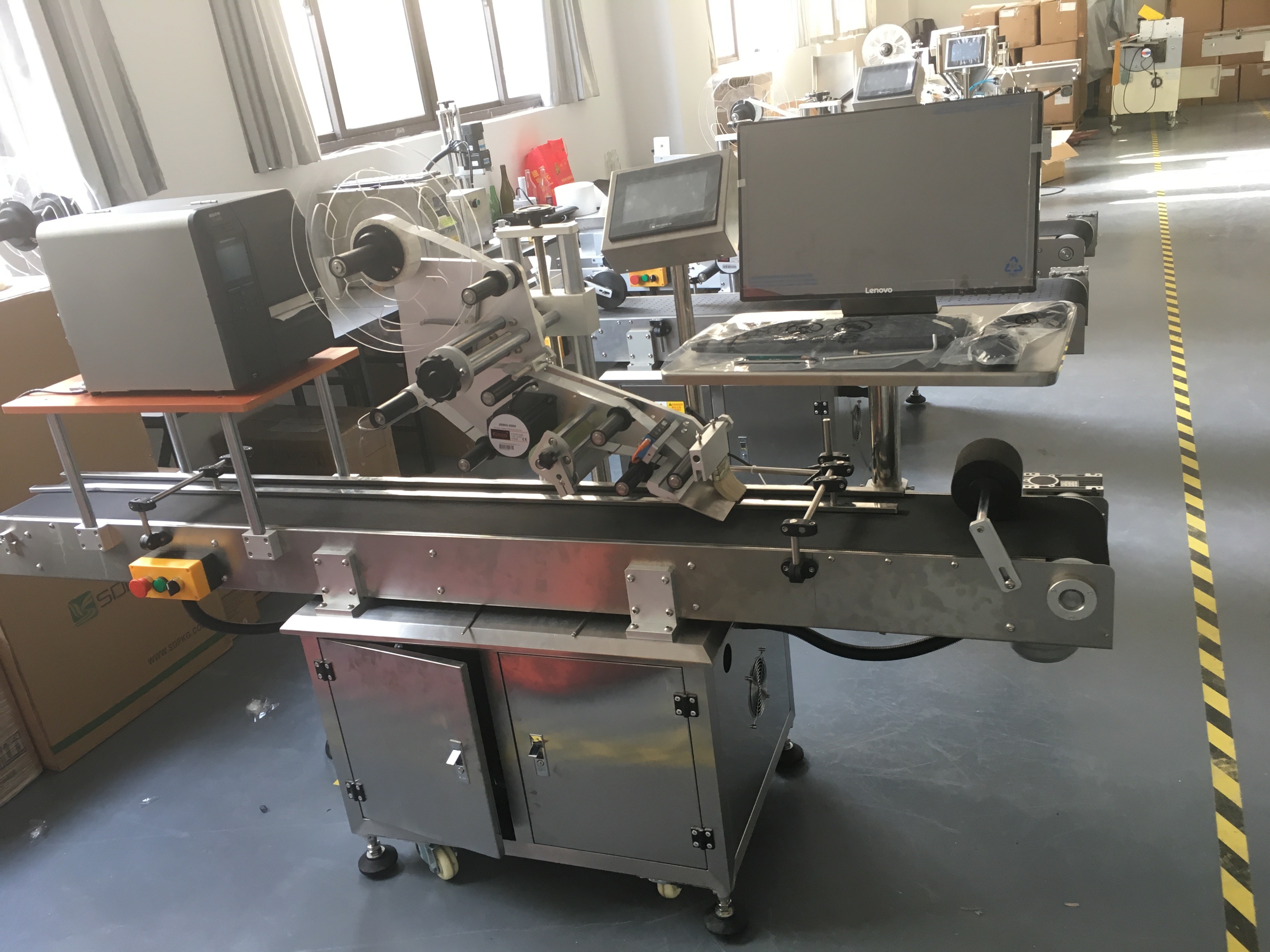

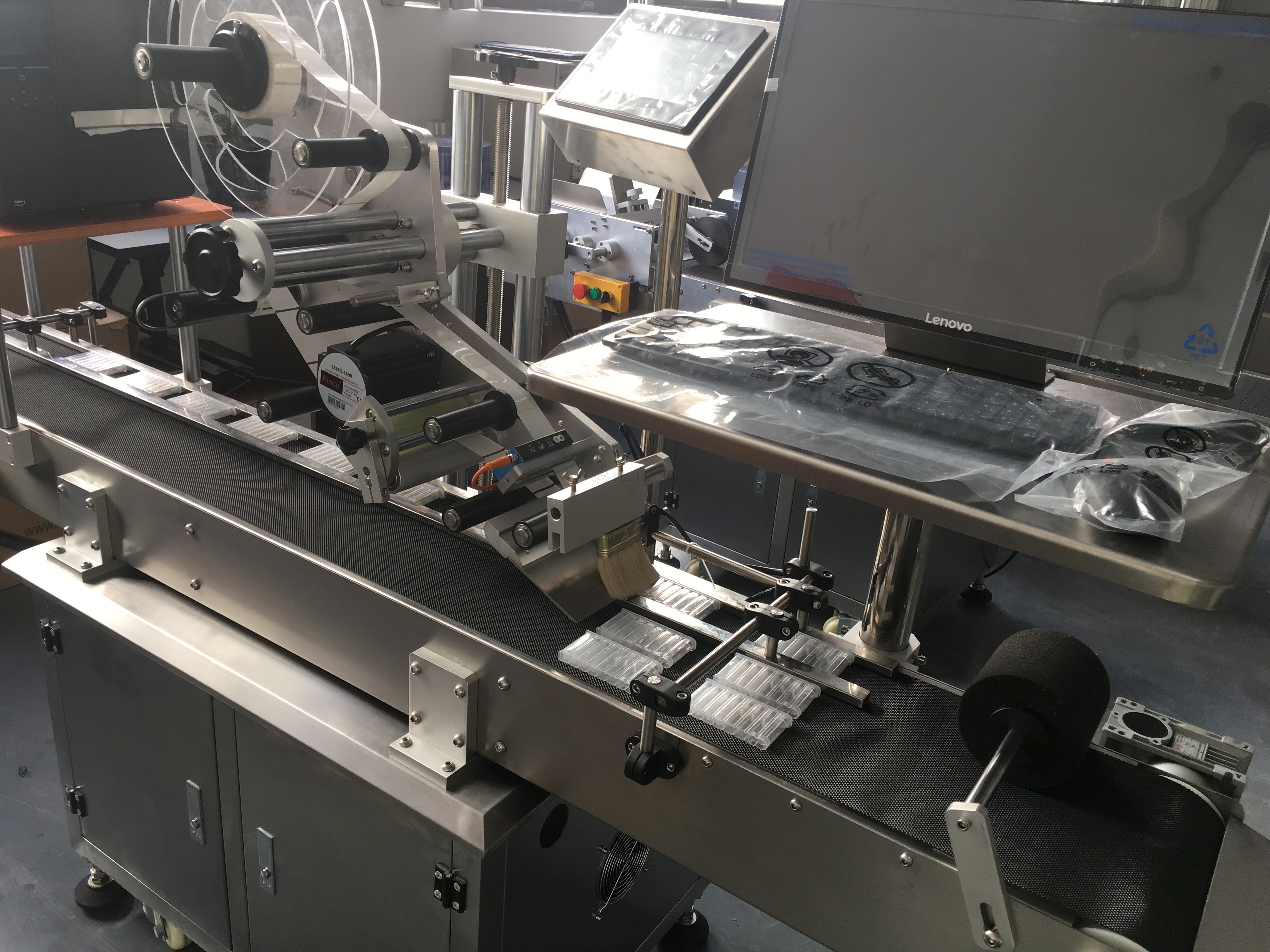

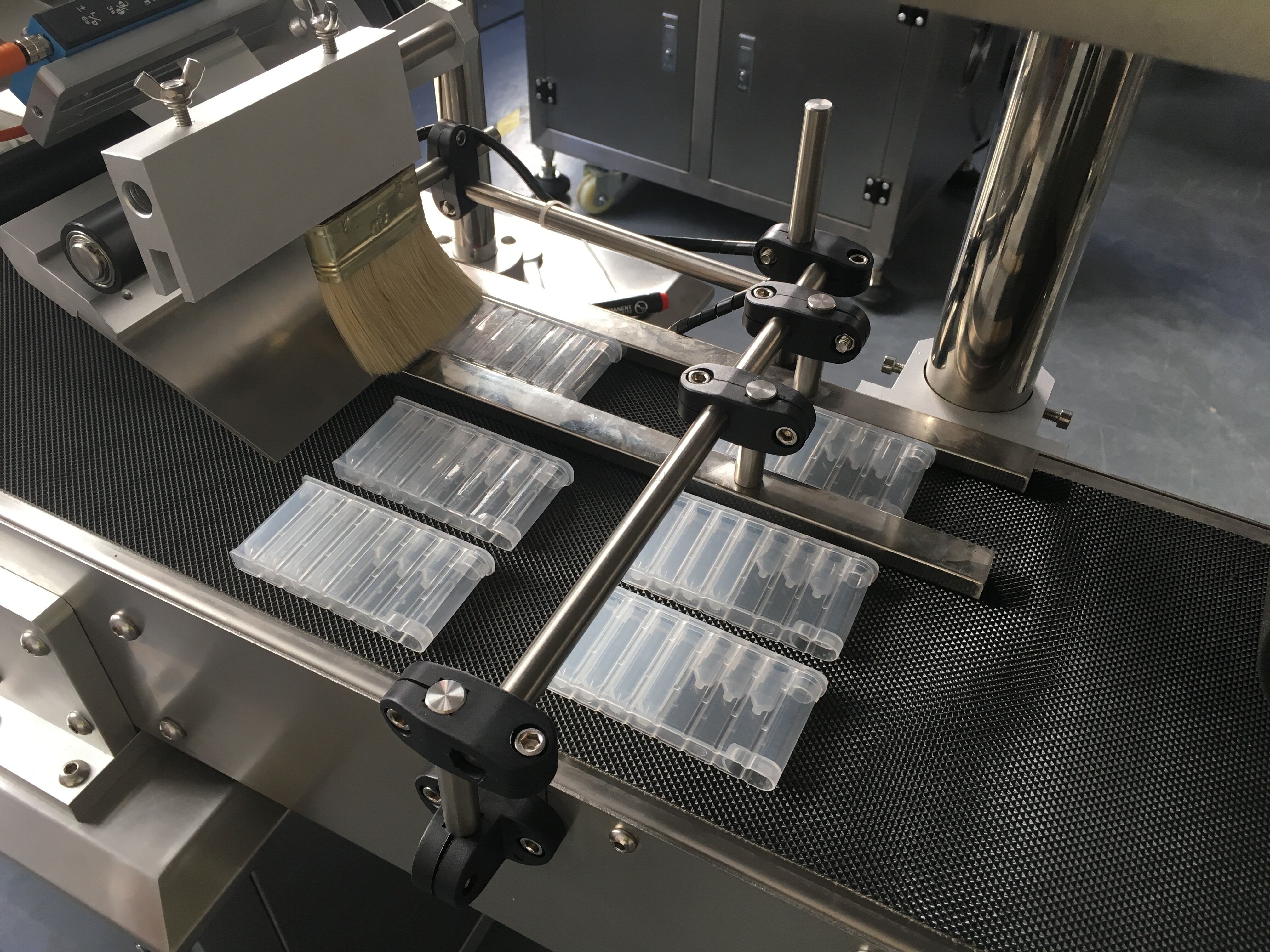

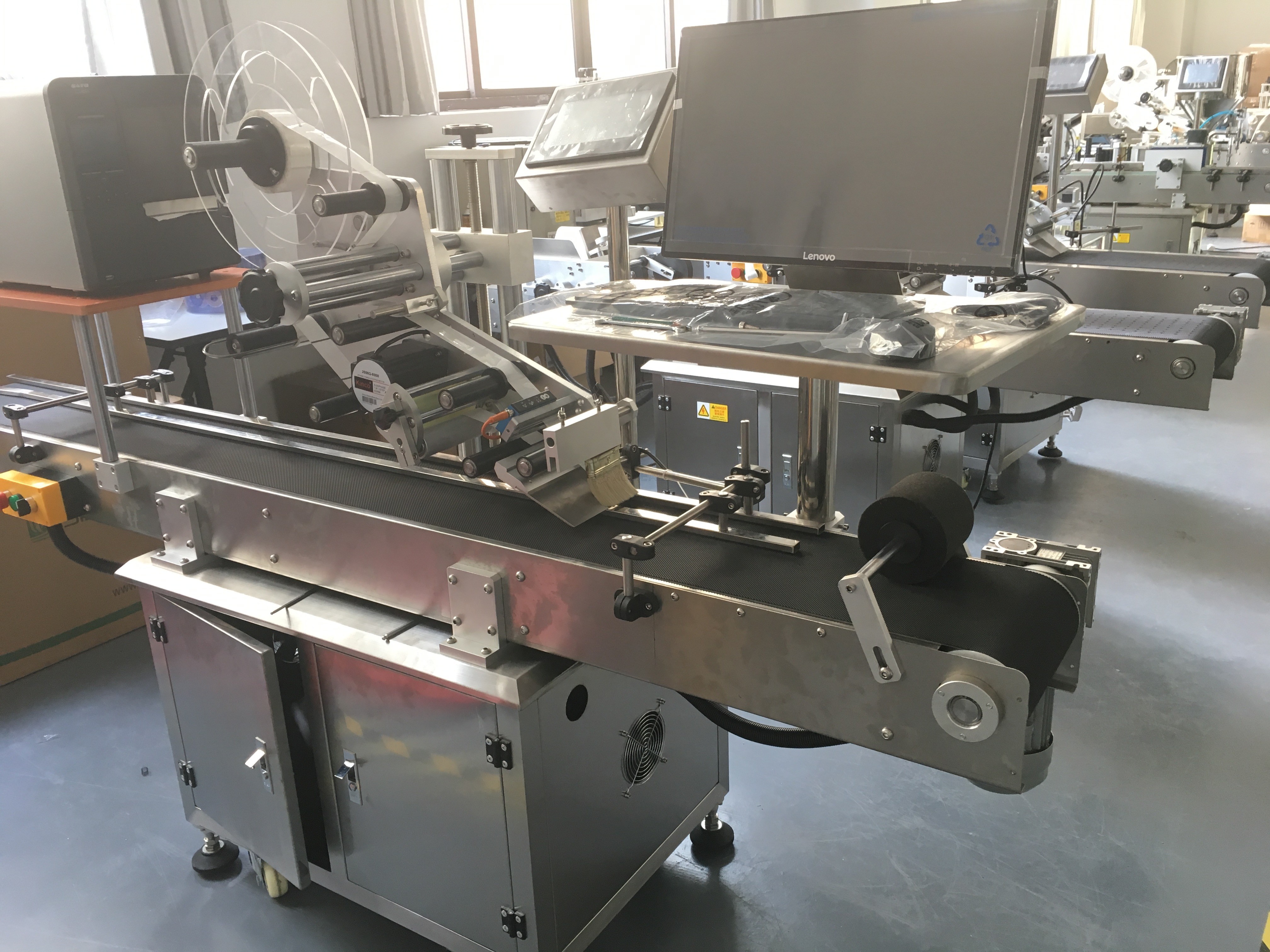

LB-300Z Automatic Flat Labeling Machine with Online Printing System

automatic labeling machine with online printing system is mainly composed of institutions such as labeling, printing, label adsorption, delivery, induction, and product tooling. This equipment is independently developed by the company, which can realize automatic label printing, automatic labeling and automatic verification of printed content. The process of manually labeling the original label is improved, the labeling effect is more accurate, the appearance is beautiful, and the error rate is lower.

Machine Description

◆ Applicable to the industry: electronic accessories, cable and wire, electrical accessories, mechanical and electrical equipment, auto parts, food and drug industries;
◆ Scope of application: carton, flat / flat body label, bar code, electronic supervision code, classification standard, etc.

◆Automatically print the label content (including barcode, text, picture, etc.) online, improve the labeling efficiency of the product labeling, accurate positioning, good quality and high stability; avoid the low efficiency of manual labeling, attach the skew, from Bubbles and wrinkles, irregular positioning and other issues; effectively reduce product costs, improve product logo aesthetics, and enhance product competitiveness;

Machine Feature

◆ The main material of the equipment is stainless steel and high-grade aluminum alloy. The overall structure is firm and beautiful, and the operation and maintenance are simple.
◆ The application range of LB-300Z type is relatively limited but the accuracy is relatively high +1mm. It is suitable for customers with high precision requirements and can be adjusted freely within the scope of technical regulations.
◆ Compact structure, less floor space, convenient equipment movement and placement; can be equipped with rejection device, fault alarm function, production counting function, etc. according to customer requirements;
◆ Each device is customized according to the customer’s sample and cannot be routineized.

Technical Parameter

Machine Model:LB-300Z

Product Size:L:40-400MM  W:40-200MM  H:1-100MM

Label Precision:±1mm (Related to product and label size)

Labeling Speed:20-40Pcs/M(Related to product and label size)

Label Size:  40≤L≤100mm,20≤W≤100mm

Machine Size:2200*650*1500mm(L×W×H)

Air Pressure:0.5Mpa-0.7Mpa

Machine Weight:250kgs
