Automatic paste bagging and sealing machine，Automatic quantitative bagging and sealing machine，Automatic 5ml honey bagging and sealing integrated machine

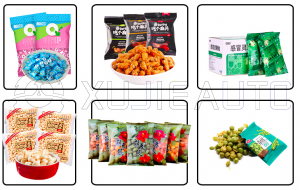

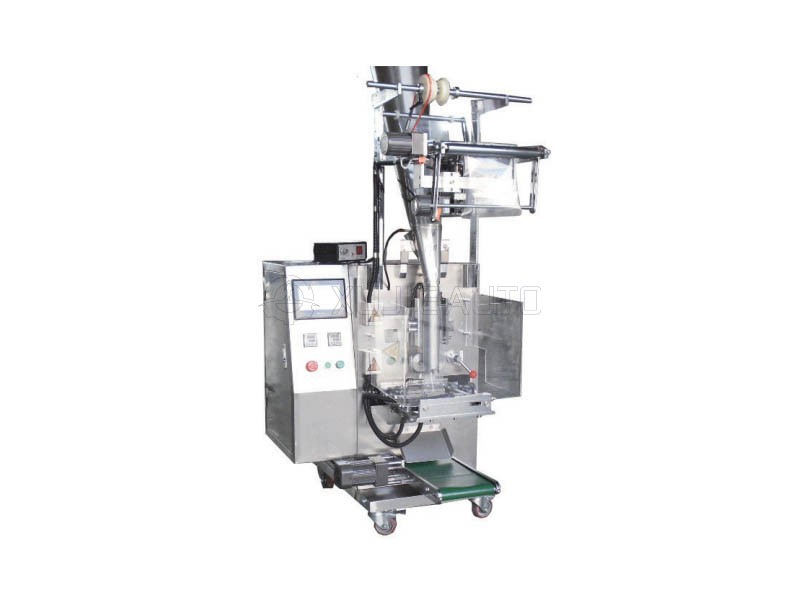

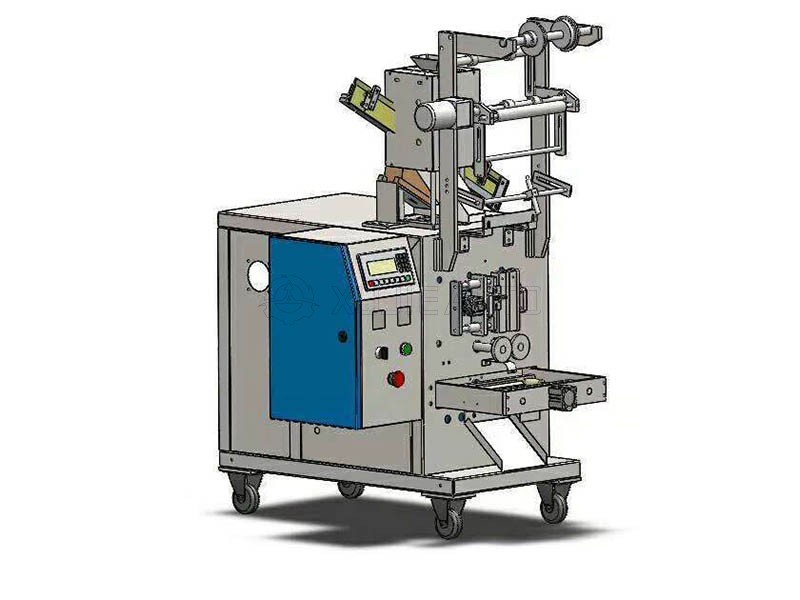

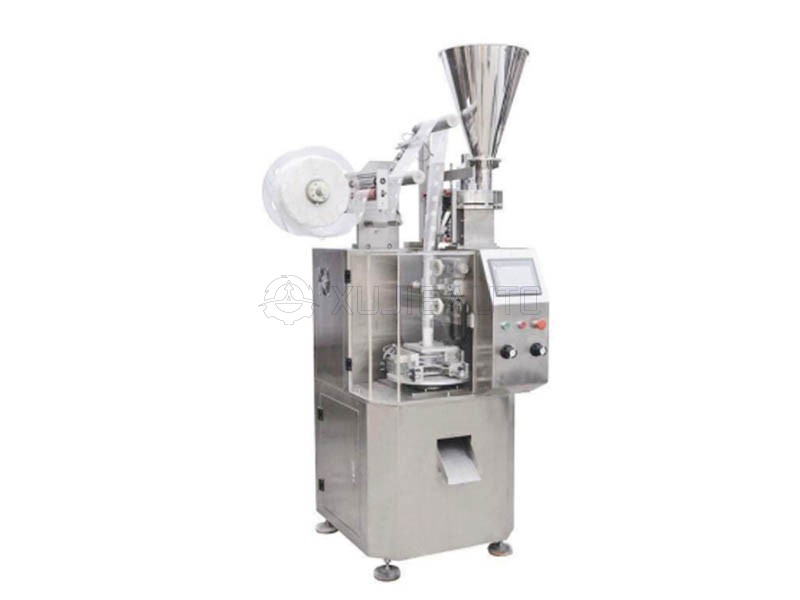

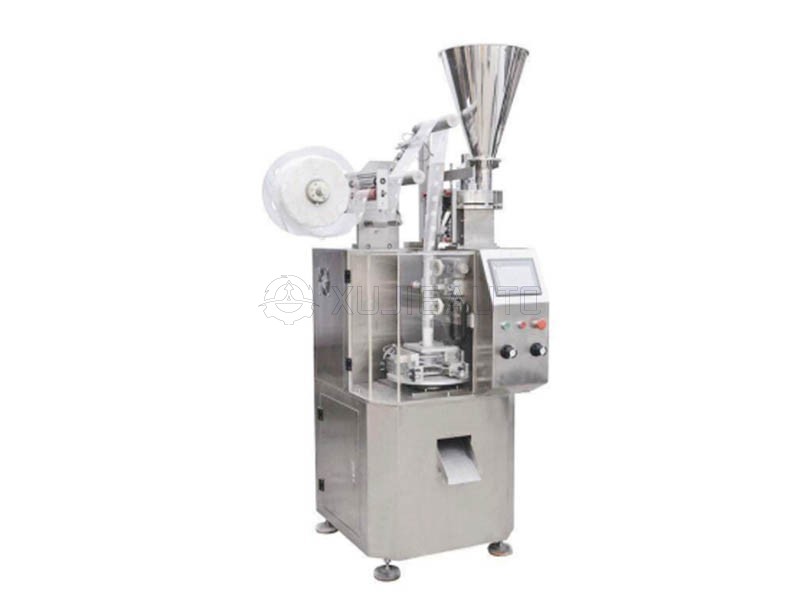

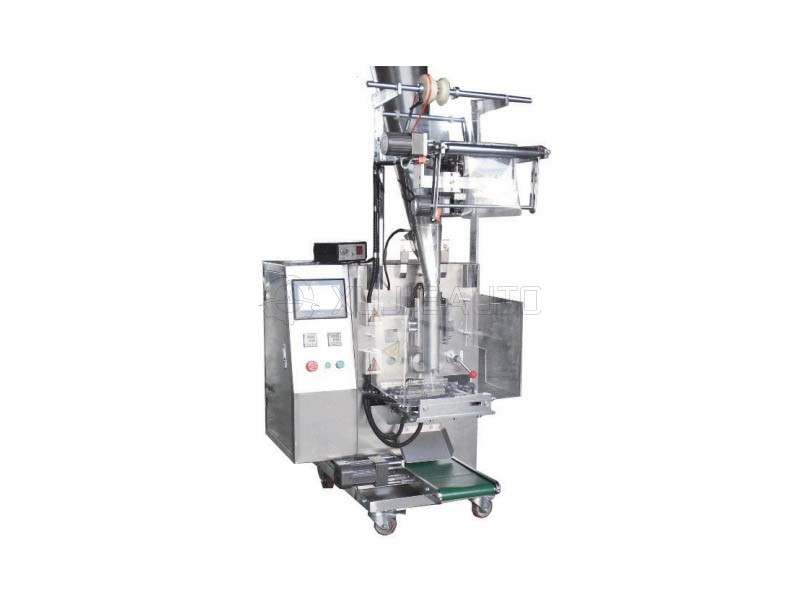

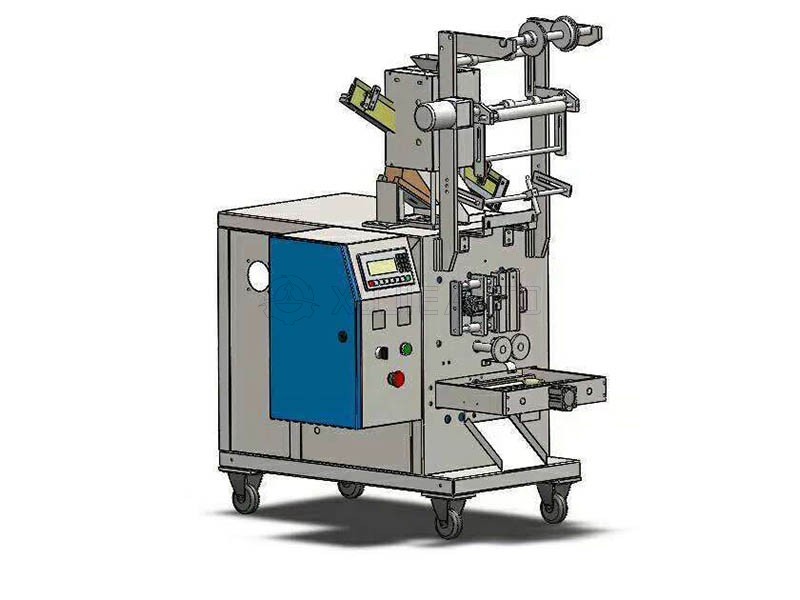

Bags packing machine Suitable for packing catsup, thick paste material in the medicine, food, daily chemical and other industry, automatic packing into sachets with measurement requirement. Such as Tomato paste, Peanut oil, salad oil, Cough syrup, Shampoo, cream oil and so on.
It is suitable for labeling the circumferential surface of round bottles. It can be used for single label and double label. The distance between the front and back double labels can be adjusted flexibly, such as labeling of gel water round bottles and food round cans. It is widely used in cosmetics, food. Disinfection water and other industries. The optional circumferential positioning detection device can realize labeling at the designated position on the circumferential surface.
Bag length: 50-300 mm(L) (adjustable for multi lane sachet packing machine)
Bag width: 35-105 mm(W)
Packing speed: 150-40pcs/min depend on pouch size and material
Measuring range: 1-50ml
Cutting fashion: Flat cutting, with tear notch
Sealing fashion: 4 side sealing
Applicable film: PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll: 900mm
Max film roll diameter: Φ300mm
Film roll core diameter: Φ75mm
Power voltage: 380V/ 3 phase 4 wires 50HZ (do as customer’s request)
Power: 12KW
Package size: (L)1600mm×(W)1450mm×(H)2000mm
Machine weight: 1000KG
Packaging:
By container or standard export packing per machine
Delivery time:
15-30 days after payment received
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
