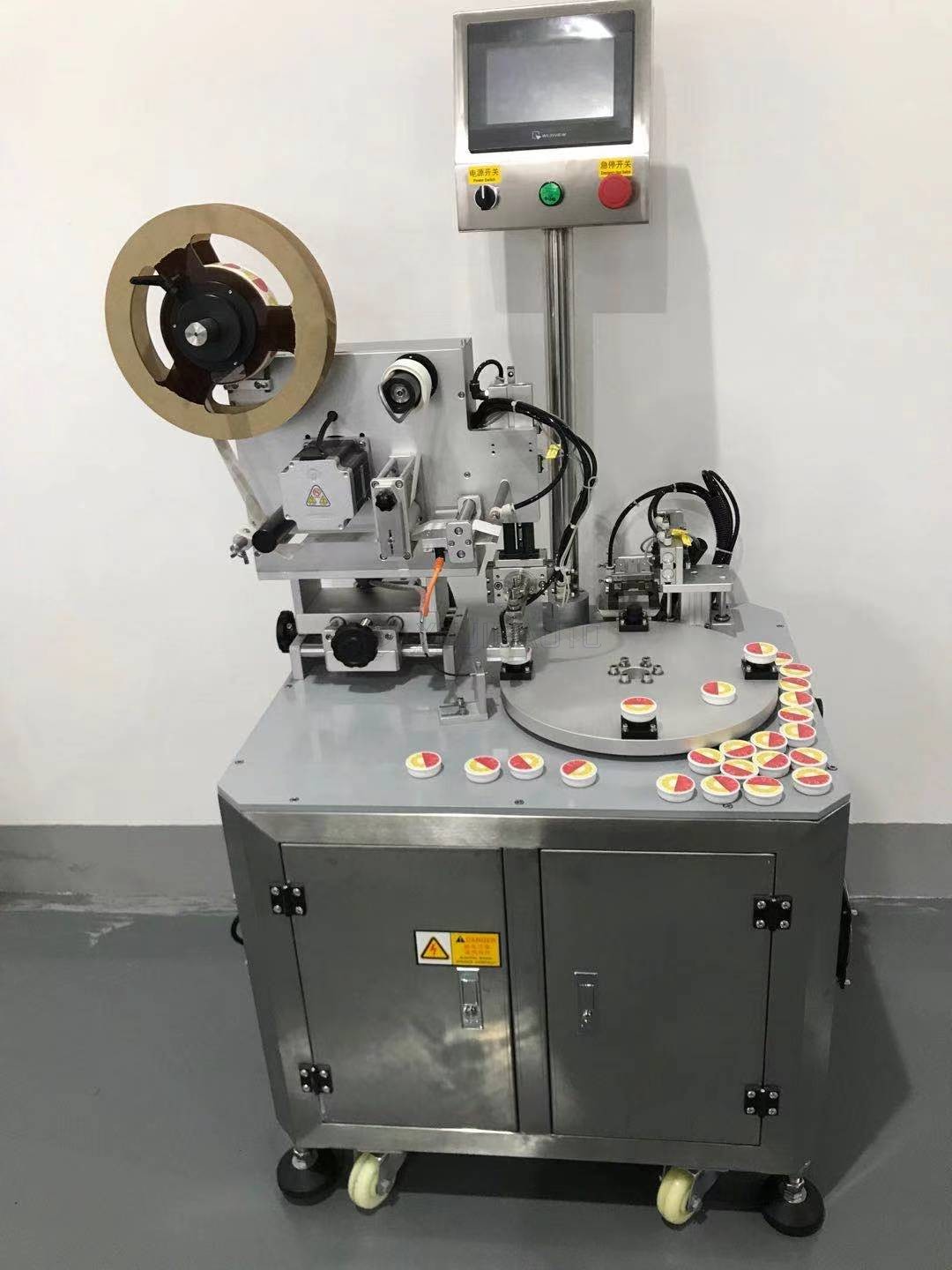

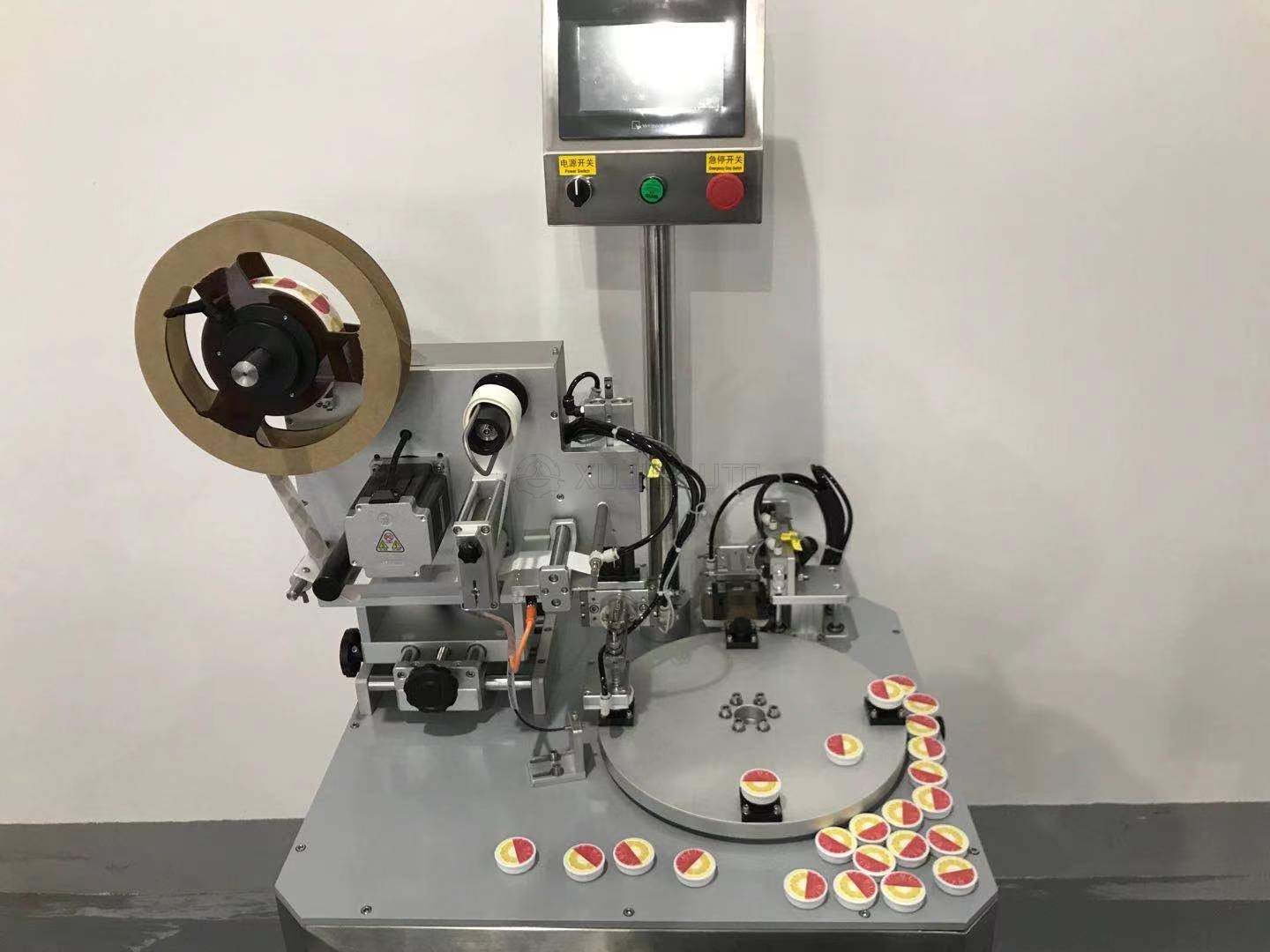

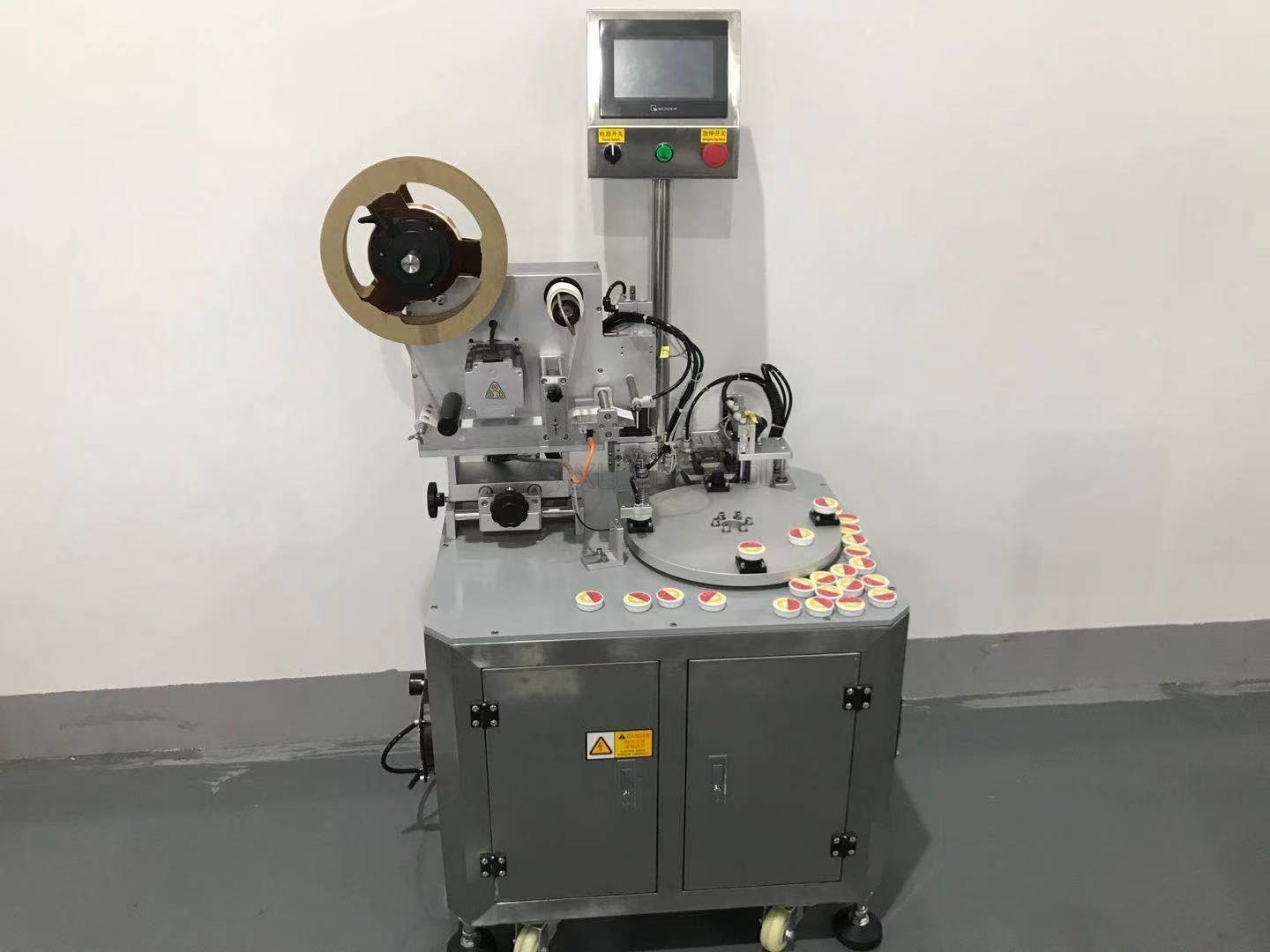

4-Station Rotary Vacuum Adsorption Labeling Machine | Round Cap Top Surface Label Applicator

This 4-station rotary vacuum adsorption labeling machine is specially developed for top-surface labeling of lightweight round caps and tiny cylindrical workpieces.

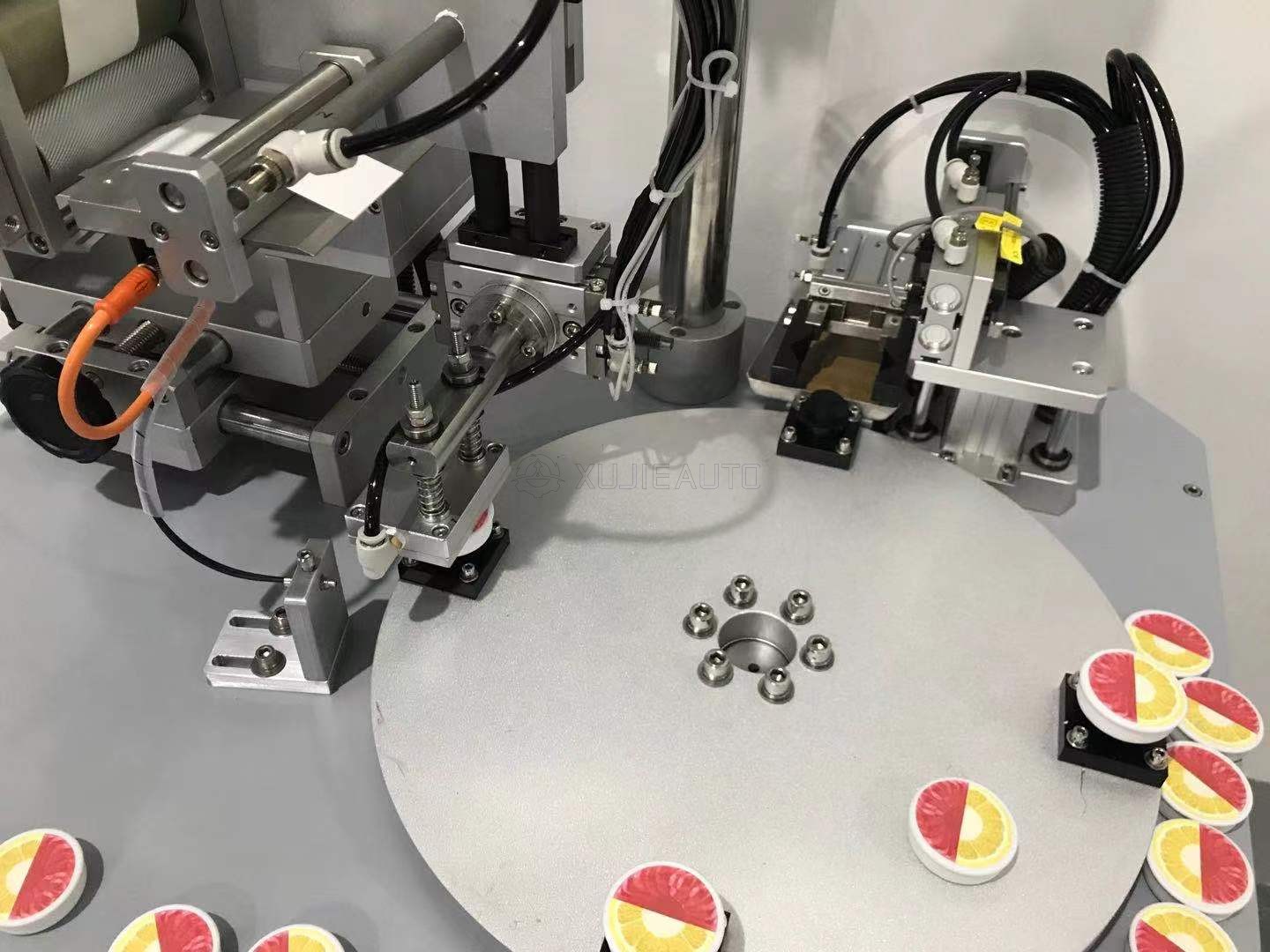

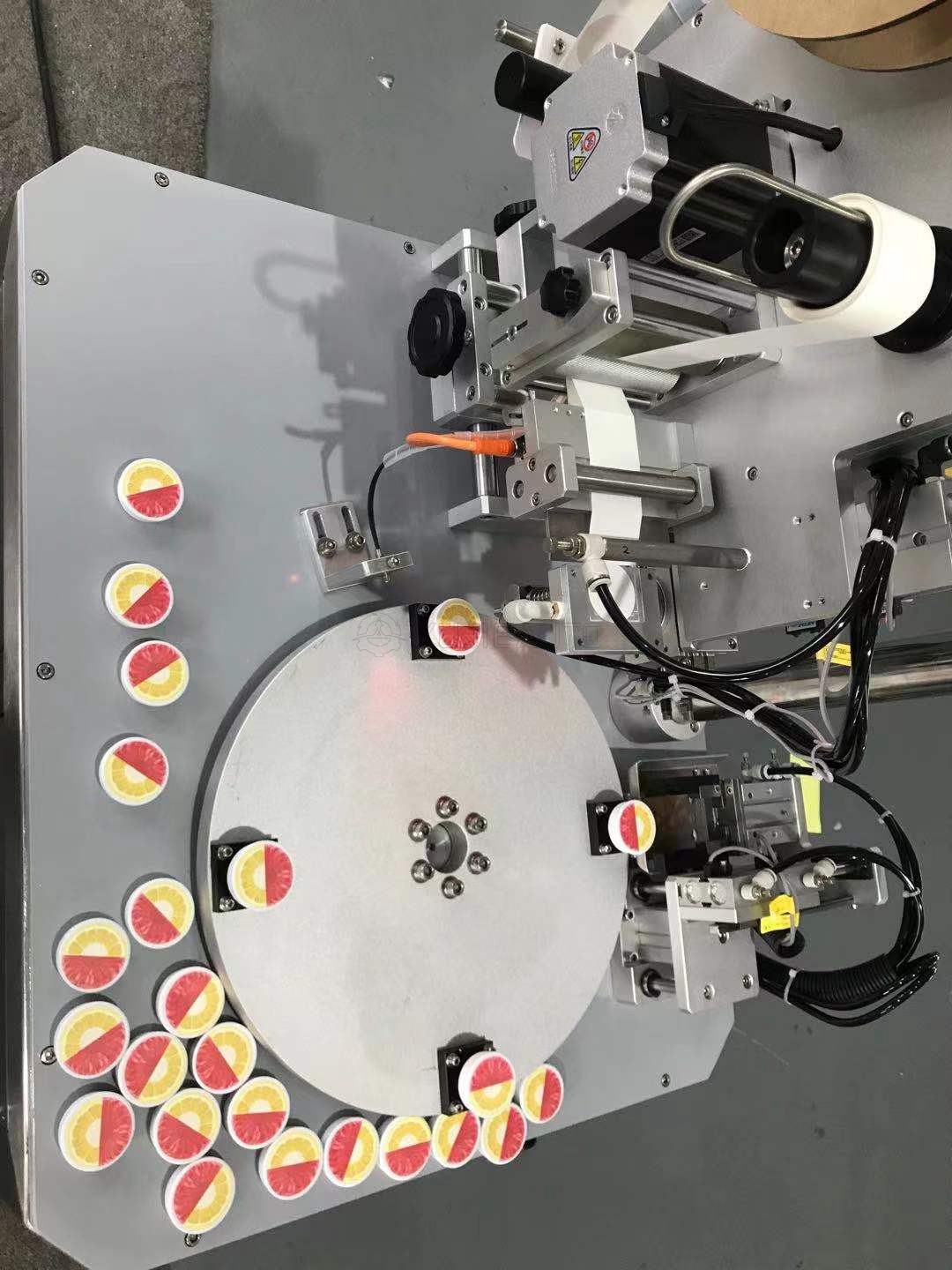

Different from mechanical clamping positioning, it adopts vacuum adsorption rotary disc design to fix products firmly without scratches or deformation on delicate lids. The machine realizes cyclic automatic feeding, positioning, labeling and discharging.

Equipped with servo label dispensing system and PLC touch screen control, it delivers stable high-precision labeling. It can work independently or connect with upstream and downstream equipment, widely used in cosmetic packaging, pharmaceutical packaging, food lids and electronic accessories industries.

1. Four-station rotary indexing cyclic structure, continuous operation to improve production efficiency
2. Vacuum adsorption positioning, avoid clamping marks on fragile and thin caps
3. Servo label feeding system, stable labeling and high repeat accuracy
4. PLC + vertical color touch screen, storage of multiple product parameter recipes, fast product changeover
5. Label missing detection & automatic alarm function to reduce material waste
6. SUS304 stainless steel body, corrosion-resistant, easy to clean, meet hygiene standards
7. Adjustable vacuum suction strength, compatible with various lightweight small products
8. Mobile casters plus leveling feet, convenient workshop layout adjustment
9. Optional thermal date coder for printing batch number, production date and expiry date

Machine Name:                 4 -Station Rotary Vacuum Adsorption Labeling Machine
Working Mode:                 Rotary Index Disc + Vacuum Adsorption Positioning

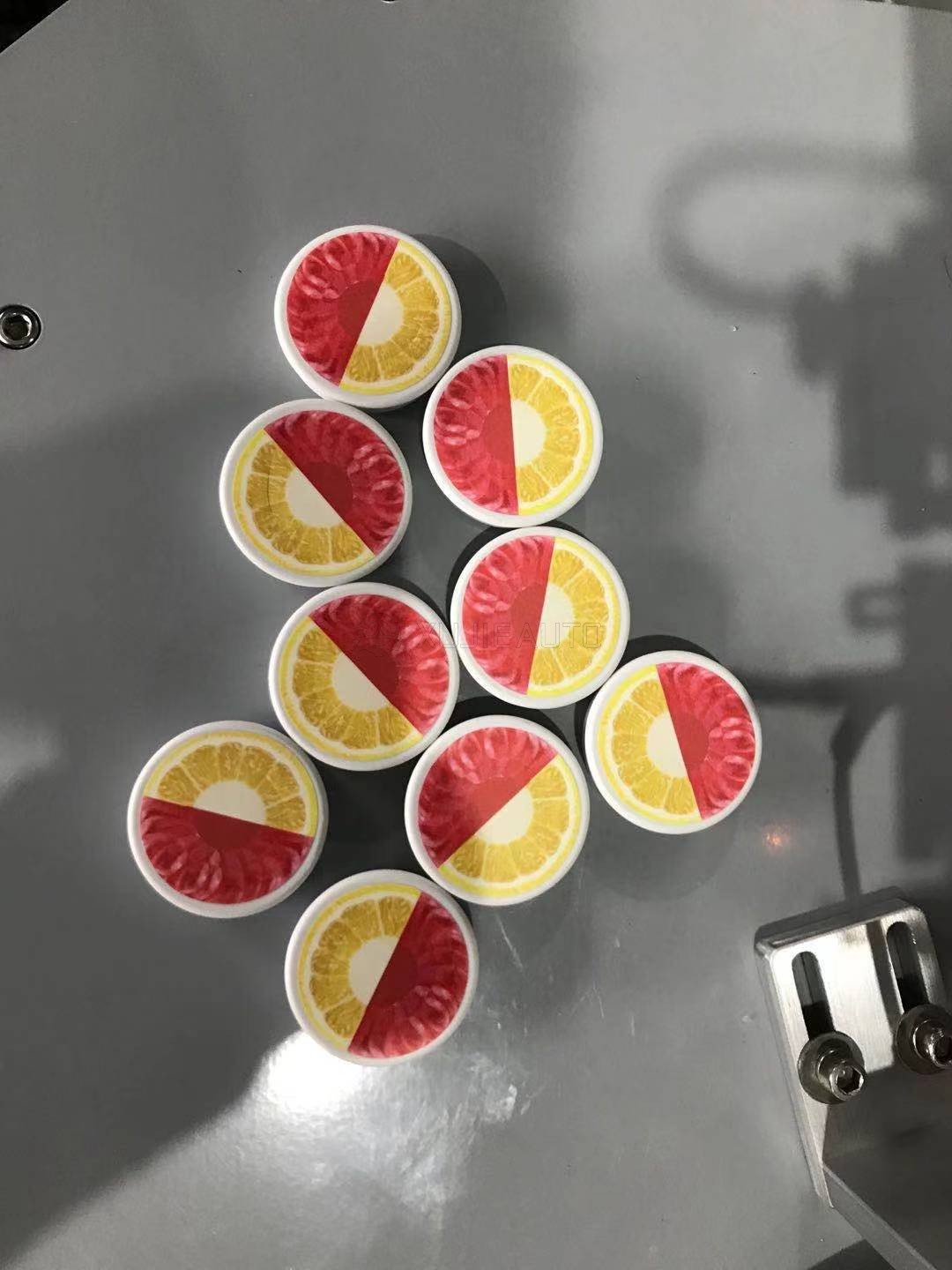

Applicable Products:        Cosmetic caps, medicine caps, food lids, small round components
Label Type:                         Self-adhesive sticker label
Label Width:                      15–120 mm
Workpiece Diameter:       10–80 mm
Labeling Precision:          ±0.5 mm
Labeling Speed:                 20–55 pcs/min (depends on workpiece size)
Power Supply:                    220V, 50/60Hz
Machine Material:            SUS304 Stainless Steel
Control System:                PLC + Color Touch Screen + Servo Motor
Optional Accessories:      Thermal date printer, inkjet coding machine

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
