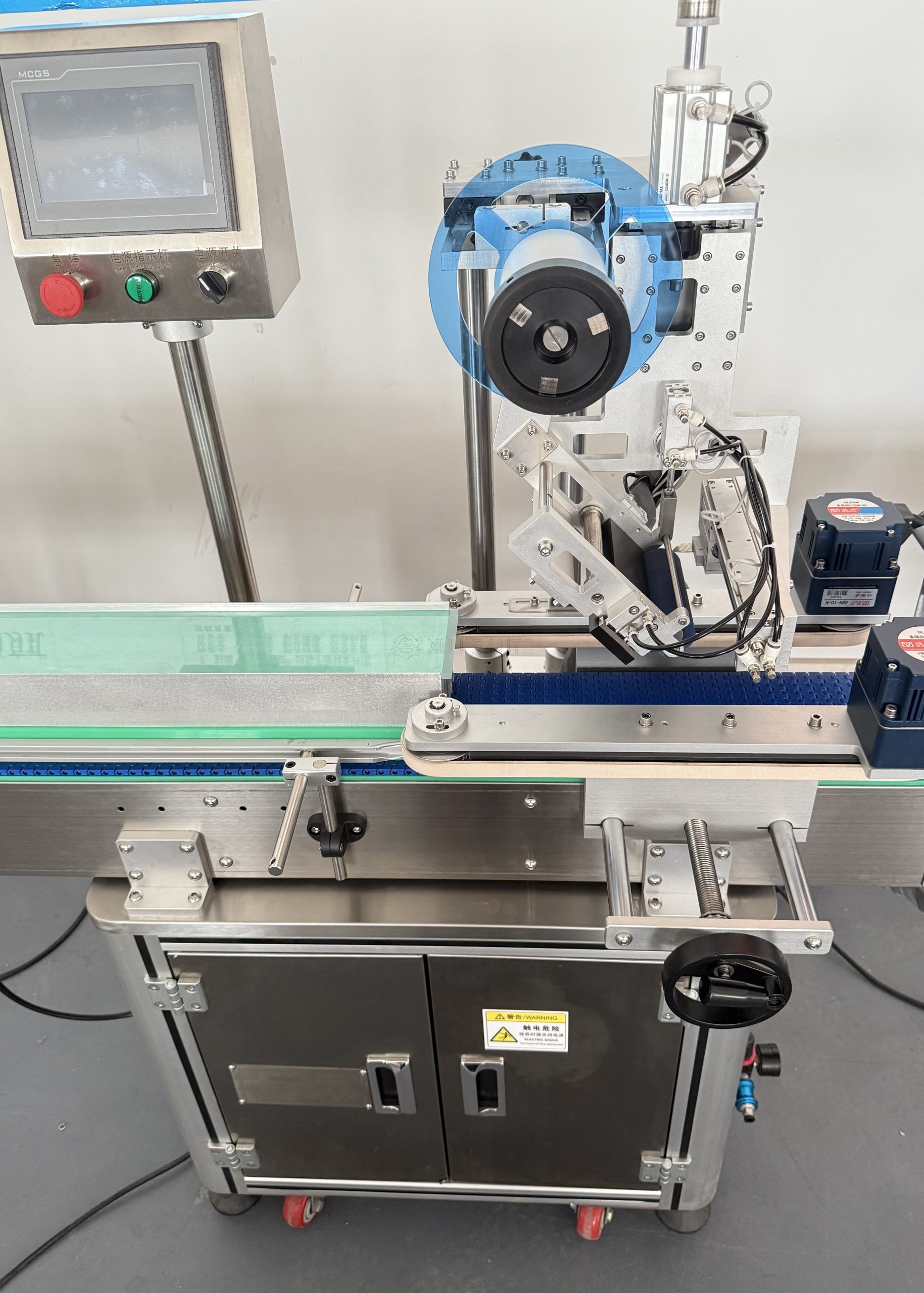

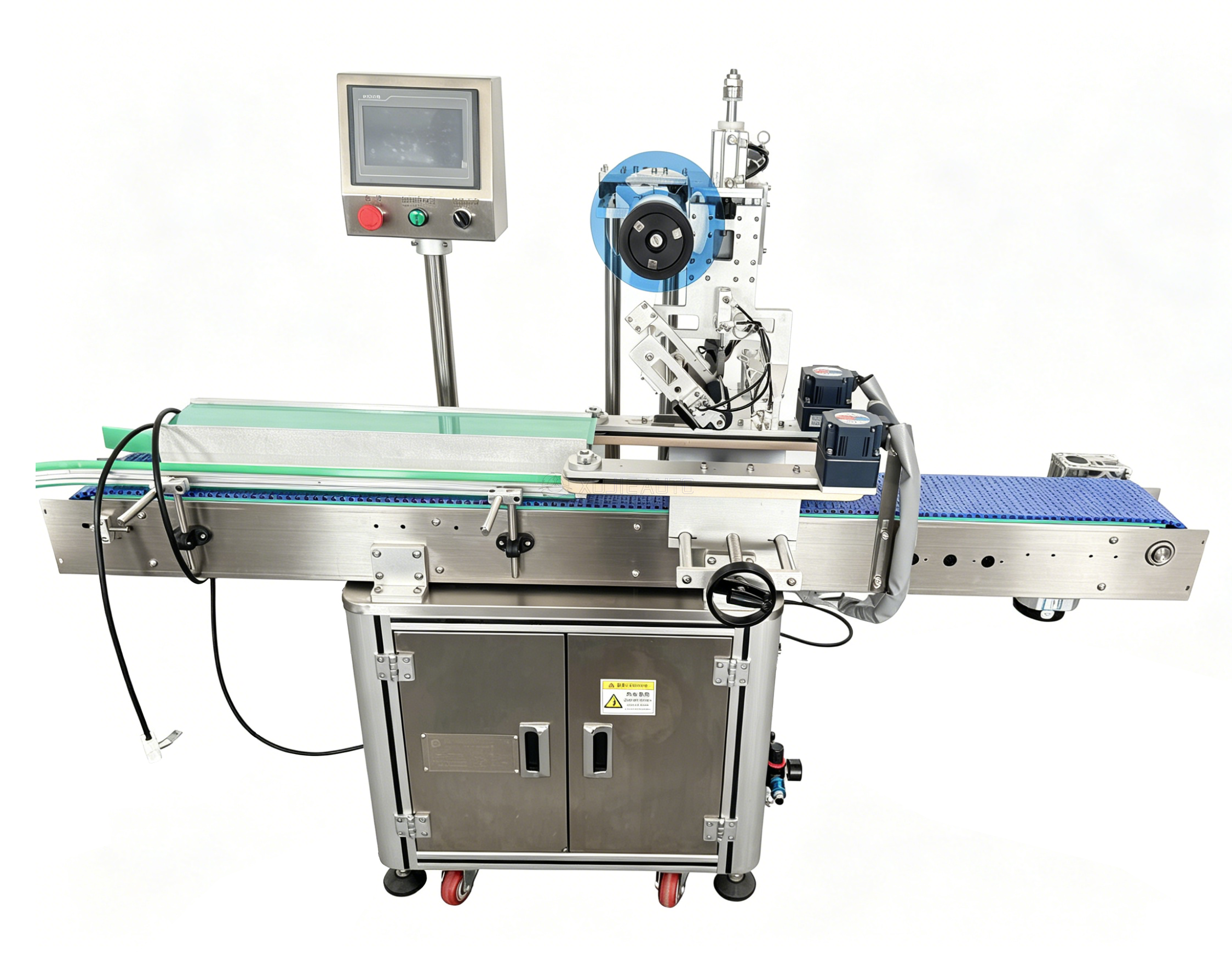

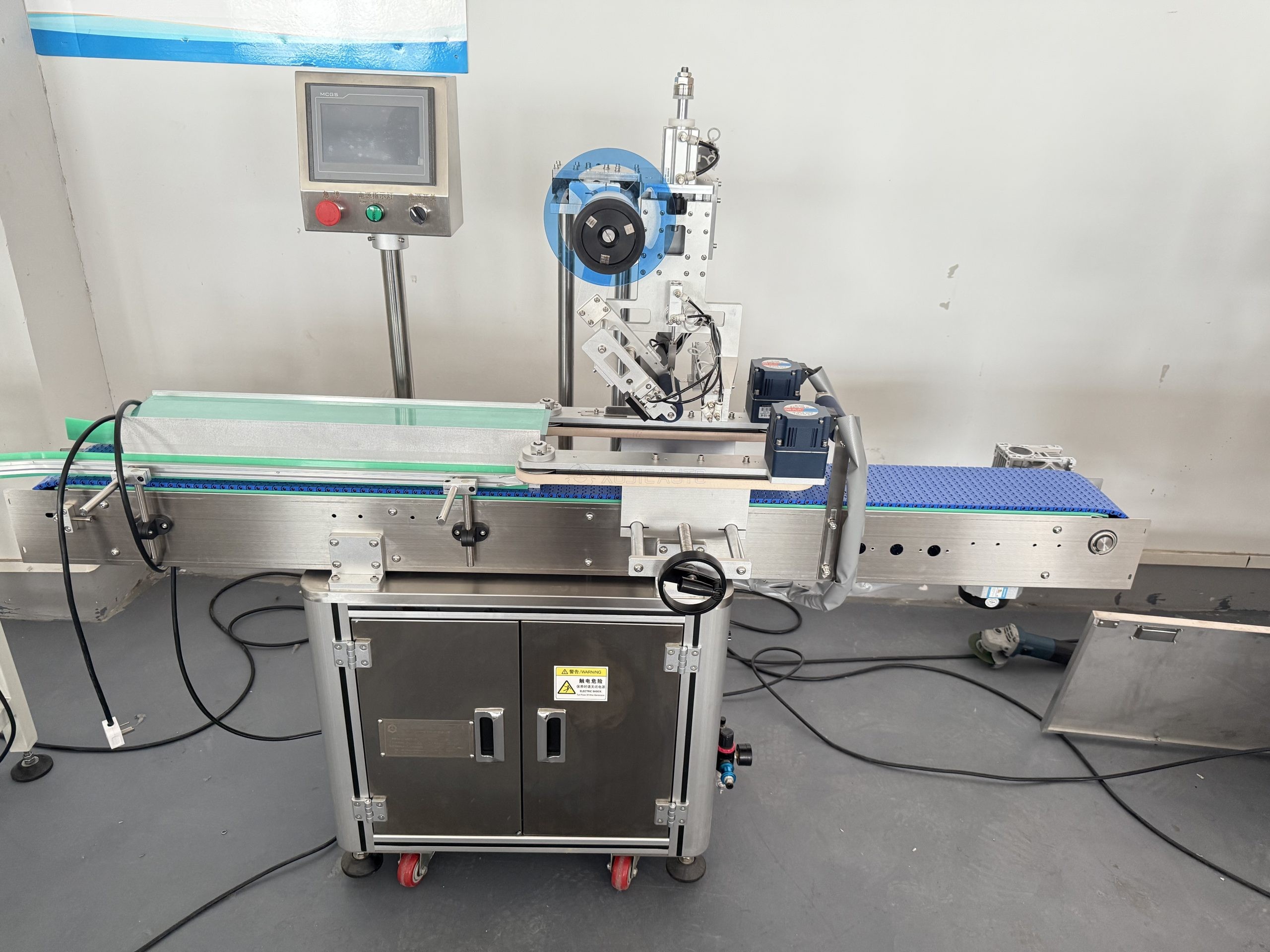

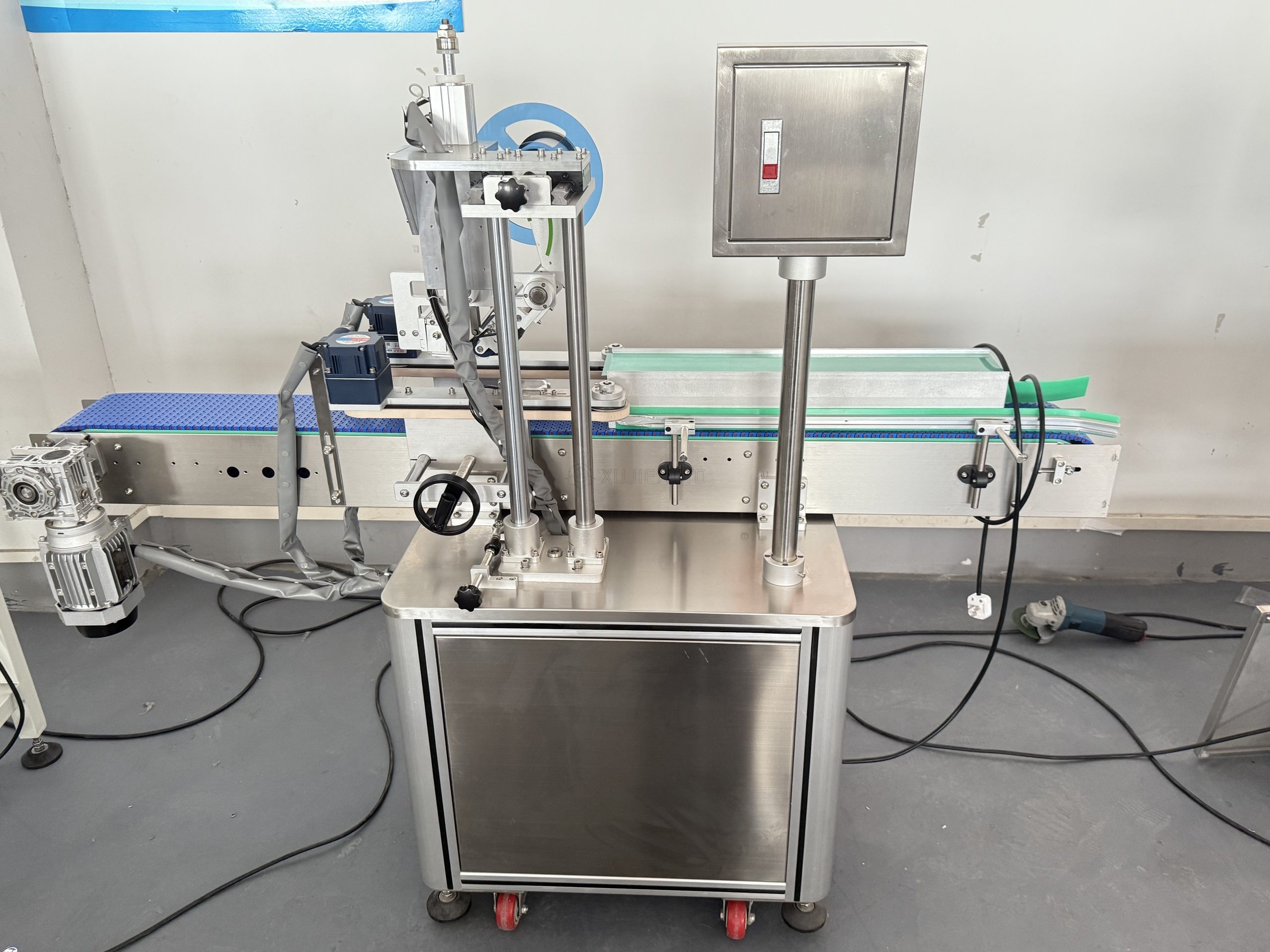

Fully Automatic Film Cutting & Flat Labeling Machine All-in-One Protective Film Laminator Cutter

This fully automatic film cutting & flat labeling all-in-one machine integrates conveying, film laminating, fixed-length cutting and surface labeling functions, solving inefficient manual film covering, uneven cutting length, inconsistent labeling and high labor cost in packaging, electronic hardware, plastic injection, daily chemical carton industries.
Equipped with industrial PLC touch control system, operators can set film covering length, cutting speed, film tension and labeling position on the screen directly; the system supports storing multiple groups of production parameters for quick switching of different workpieces. The whole machine adopts 304 stainless steel frame, anti-rust and easy to clean, suitable for food, electronics, hardware workshop dust-free production environment.

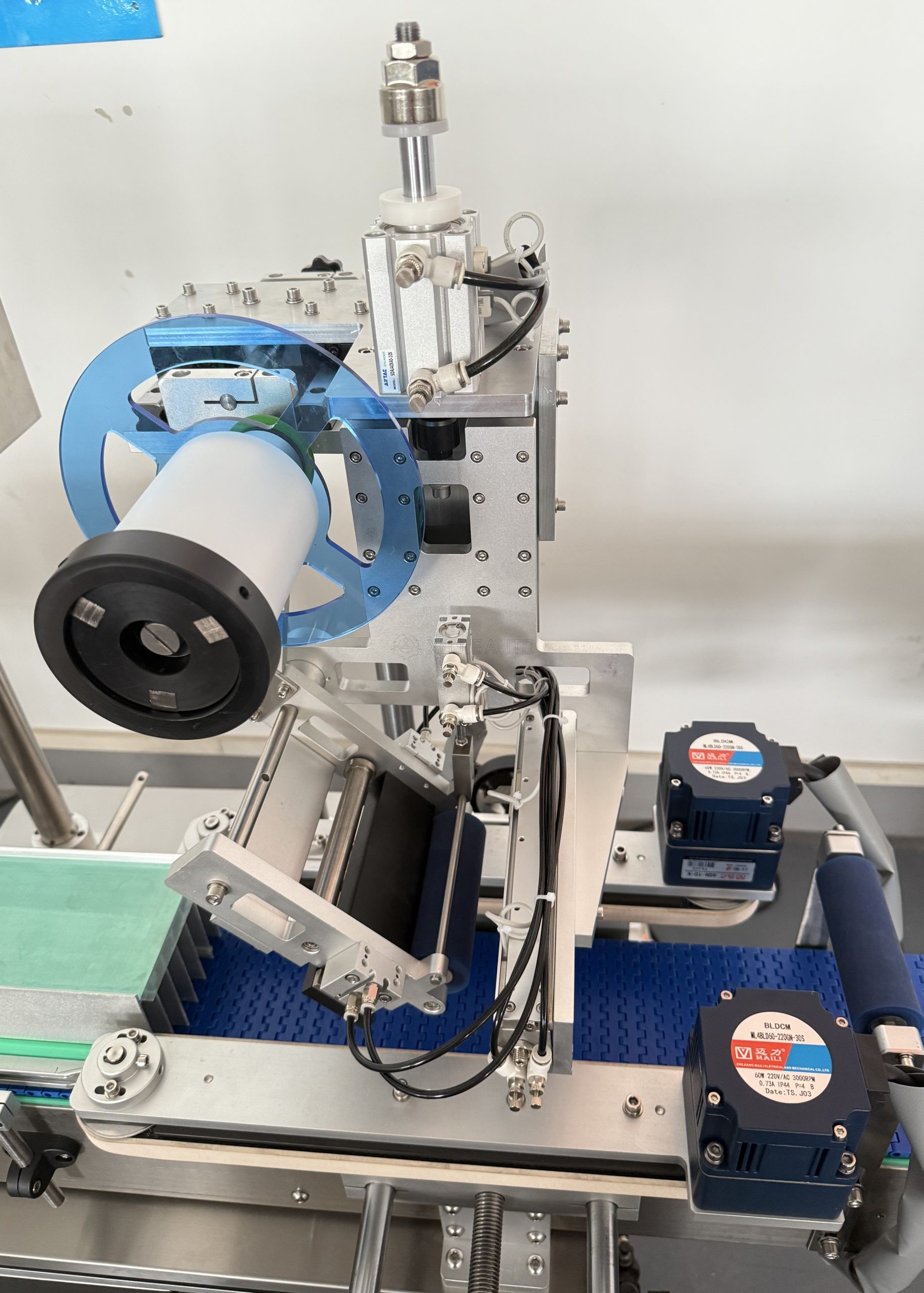

Modular conveyor design with dual-speed adjustable mesh belt, stable conveying without workpiece slipping. Built-in precise film cutting assembly, automatic fixed-length cutting without manual intervention; dual servo motors control film feeding and cutting to ensure cutting tolerance within ±0.5mm, no film stretching or burr. Pneumatic pressing auxiliary mechanism ensures tight film attachment without bubbles, effectively protecting product surface from scratch, dust and fingerprint during storage and transportation.
We support customized working width, conveyor length, voltage and special fixture for irregular products. All machines pass CE & RoHS certification, provide 110V/220V dual voltage option, 1-year full machine warranty and lifelong spare parts supply, suitable for small batch trial production and large automated assembly line matching.

1. All-in-One Integrated Function
   Combine automatic conveying, protective film laminating, fixed-length film cutting and flat surface labeling, one machine completes two processes, save workshop space and reduce labor by 2-4 workers.
2. PLC Touch Intelligent Control

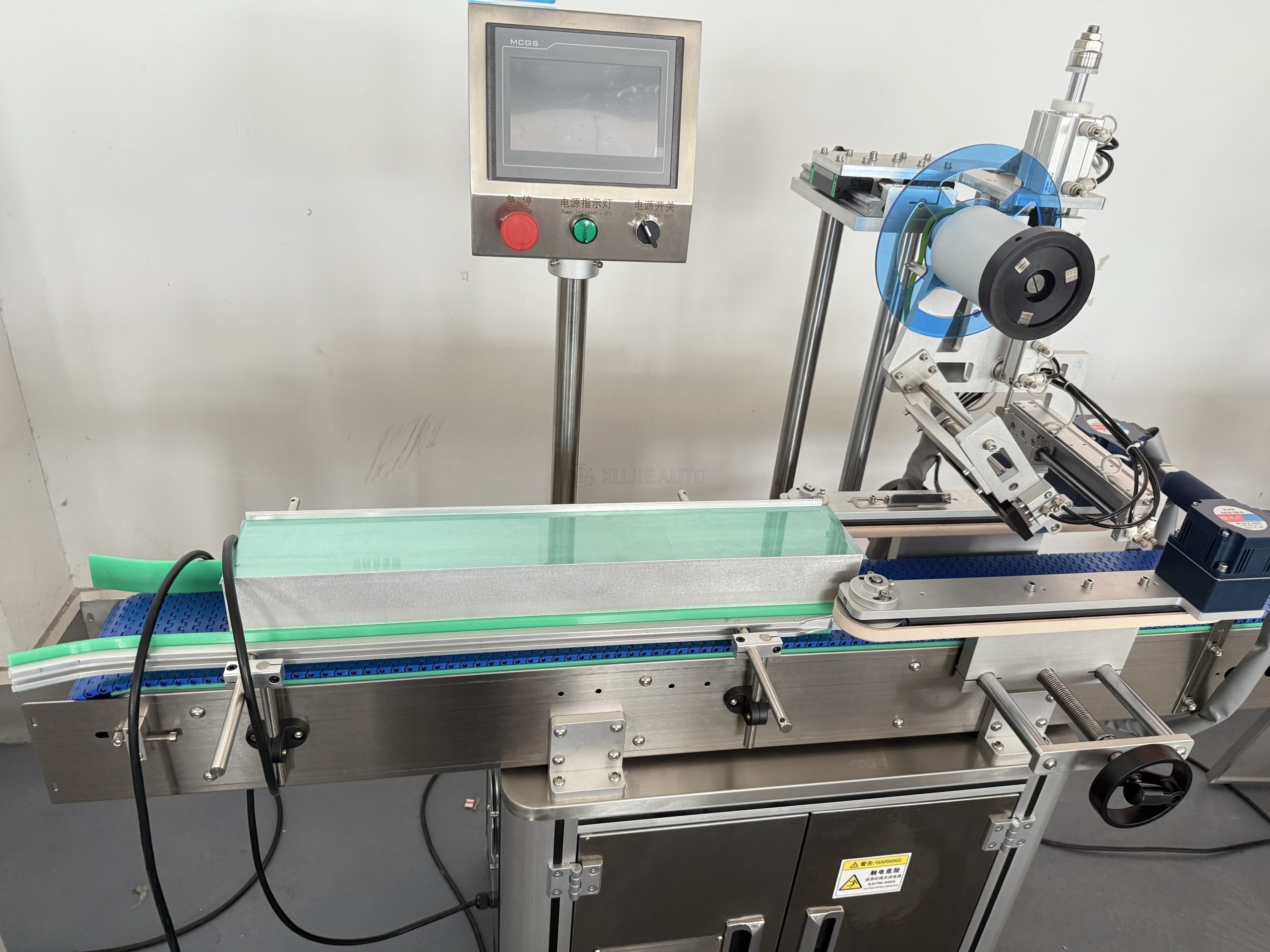

   7-inch color touch screen, visual parameter setting, storage of 99 groups of production formulas, one-click recall; fault self-diagnosis function with text alarm prompt, easy operation for new workers.
3. High Precision Servo Cutting System
   Dual servo drive film feeding & cutting unit, cutting accuracy ±0.5mm, stable film tension control, adapt thin PET, PE, PVC protective film without stretching or breakage.
4. Anti-Slip Dual Conveyor Structure
   Front green silicone anti-slip belt + rear blue plastic mesh conveyor, adjustable conveying speed 5-30m/min, clamping positioning block customizable for flat workpieces of different sizes.
5. 304 Stainless Steel Industrial Body
   Full stainless steel frame, waterproof, oil-proof, corrosion resistant, movable casters with brake, convenient to move and fix in production line.
6. Safe & Standard Export Configuration
   Pneumatic safety protection, emergency stop button, overload power-off protection; CE & RoHS certified, customizable 110V/220V 50/60Hz power supply, meet global market import standards.

Control System：                                    7-inch Touch Screen + PLC + Dual Servo Motor
Max Working Width：                           1200mm (Support Custom 400-1600mm)
Conveying Speed：                                 5 ~ 30 m/min Stepless Adjustable
Film Cutting Precision：                       ±0.5mm
Applicable Film Type：                         PE/PET/PVC Anti-scratch Protective Film, Release Film, Dust-proof Film
Applicable Workpiece：                        Flat carton, plastic shell, metal panel, acrylic board, cosmetic box, electronic accessories
Power Supply：                                       110V / 220V 50/60Hz Customizable
Total Power：                                          1.2 KW
Machine Material：                                304 Stainless Steel Frame + Aluminum Alloy Structural Parts
Operation Component：                       Emergency stop button, start/reset switch, pneumatic auxiliary pressing
Mobile Accessory：                                4 Universal Casters with Brake
Machine Dimension：                           L1800 × W650 × H1350 mm
Net Weight:                                              220 KG
Certification:                                            CE, RoHS

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
