Automatic Fixed Position Round Bottle Labeling Machine | Rotary Orientation Labeler

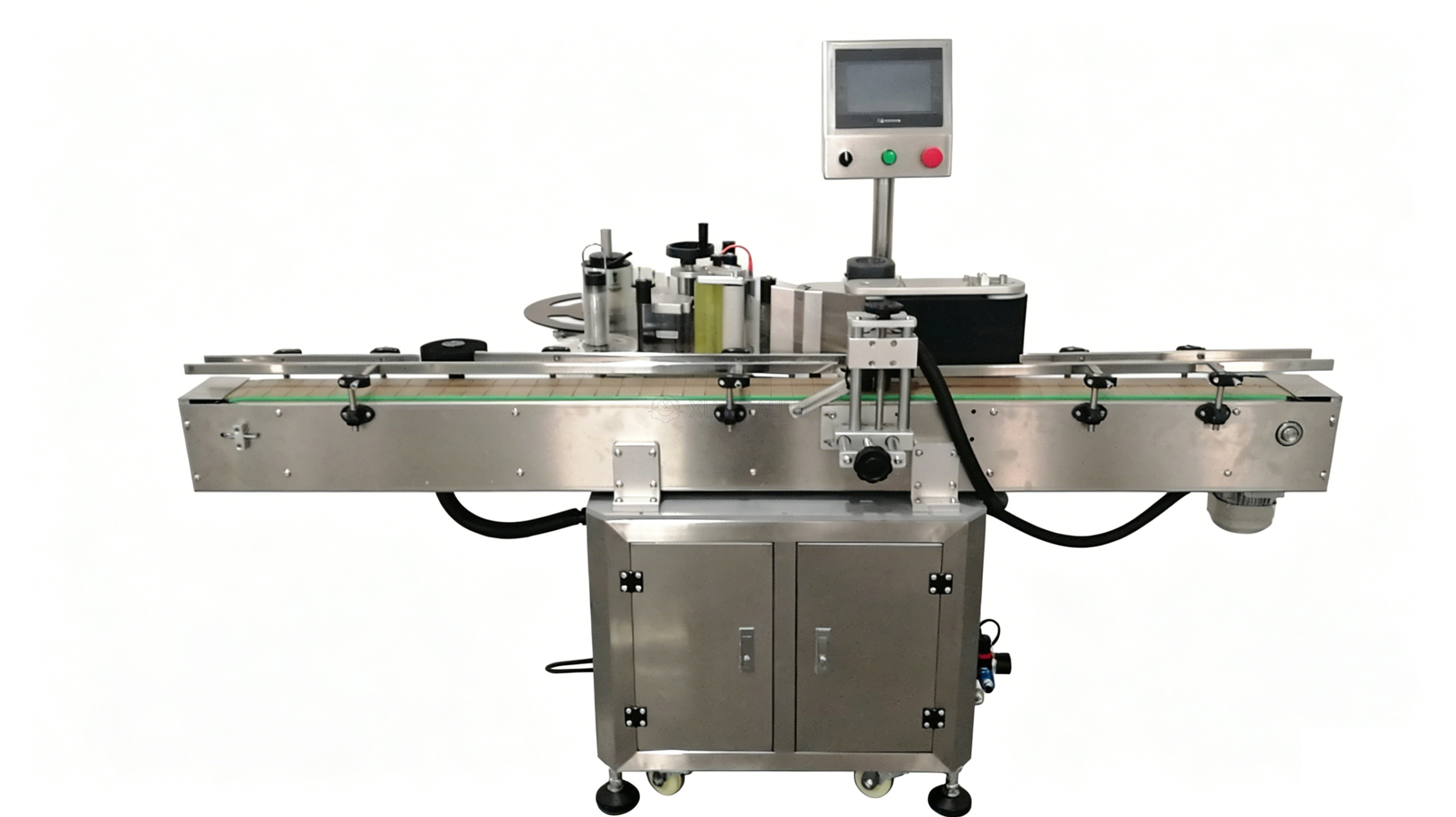

This automatic fixed position round bottle labeling machine is designed for cylindrical containers that require accurate label positioning.

It can precisely stick labels at a fixed angle on round bottles, widely used in food, beverage, cosmetics, pharmaceutical, daily chemical and pesticide industries.

Made of full 304 stainless steel, the machine adopts PLC + touch screen control system, easy to operate and parameter adjustment. It supports continuous automatic feeding, positioning, labeling and conveying. Equipped with electric eye sensor, it realizes “no bottle, no labeling” to avoid label waste.
Suitable for glass bottles, PET plastic bottles, metal cans, wine bottles, essential oil bottles, cosmetic jars and other round containers. The labeling speed and position can be freely adjusted to meet different production line requirements.
We support custom modification according to your bottle size, label specification and production capacity demand. All machines are tested strictly before delivery.

1. Fixed-point orientation labeling：Realize precise fixed-angle labeling on round bottles, avoid label offset.
2. 304 stainless steel structure：Corrosion-resistant, clean and hygienic, meet food & pharmaceutical standards.
3. Touch screen PLC control：Simple parameter setting, easy switch between different products.
4. Photoelectric sensor detection：Automatic identification, no bottle no labeling, save label cost.
5. Wide compatibility：Fit various round containers, plastic bottle, glass bottle, metal can.
6. Conveyor adjustable design：Conveyor width & labeling height adjustable for different bottle sizes.
7. Stable running & low failure rate：Suitable for continuous mass production line.
8. Support customization：Label width, conveyor length, special positioning mechanism available.

Machine Name：           Automatic Fixed Position Round Bottle Labeling Machine
Model Customizable： (Can mark your own model No.)
Material ：                      SUS304 Stainless Steel
Label Type：                  Self-adhesive sticker label
Bottle Diameter：         Φ20mm–Φ120mm (Customizable)
Label Width：                15mm–150mm
Label Length：              20mm–300mm
Labeling Speed：          20–80 bottles/min (Depends on bottle & label size)
Labeling Accuracy：     ±1mm (Fixed position mode)
Power Supply：             220V/50Hz, 110V Optional
Total Power：                 About 0.8 KW
Air Pressure：                0.4–0.6 MPa
Machine Dimension： L1600×W650×H1300mm
Net Weight：                  About 260 KG

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
