Product
Full‑automatic single‑side labeling machine for square buckets, flat bottles and rectangular containers. High‑speed inline side label applicator for food, chemical and daily‑chemical production lines.

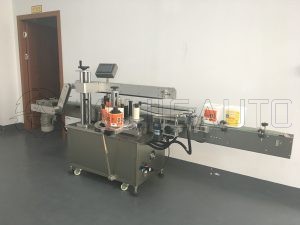

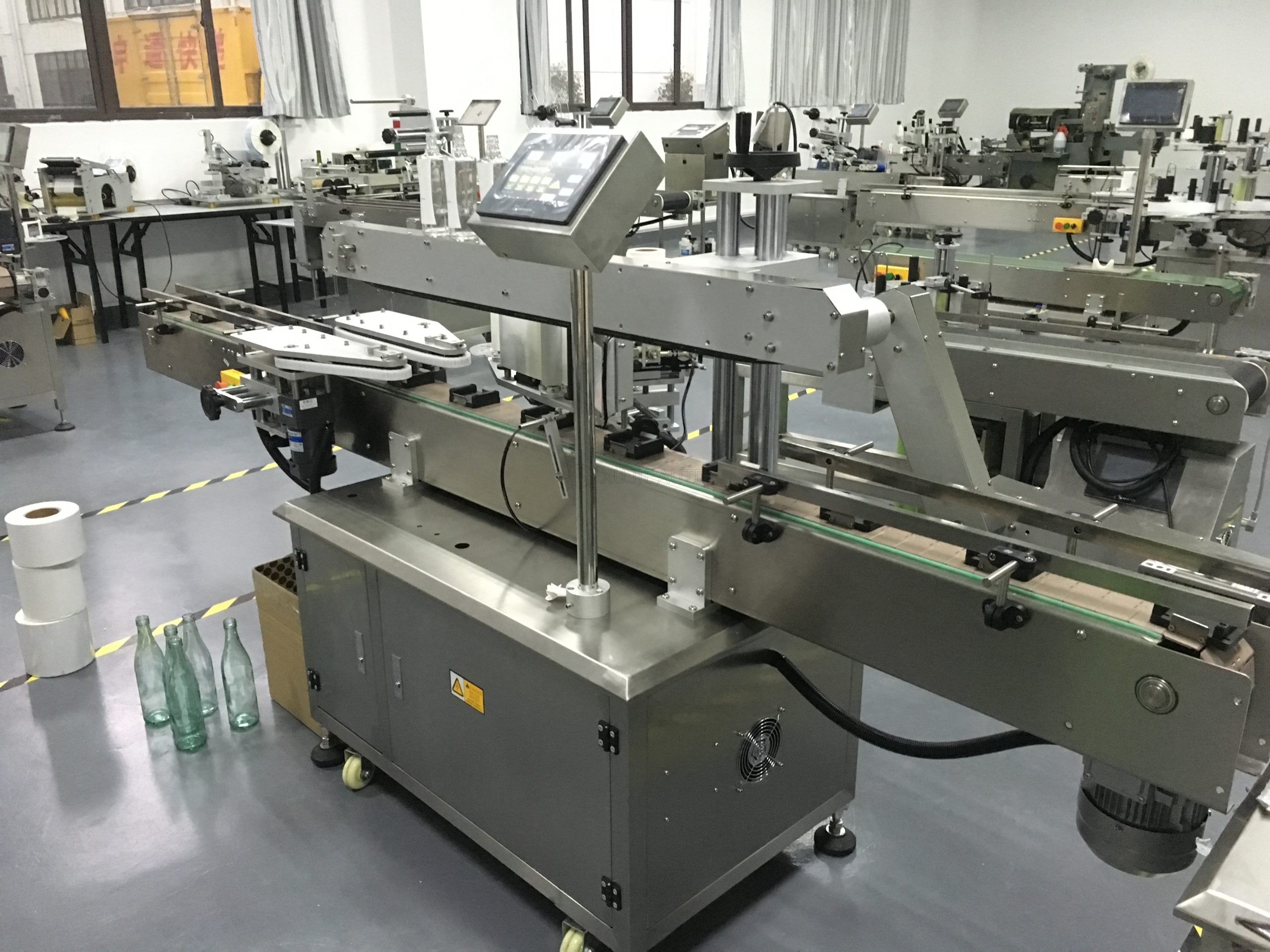

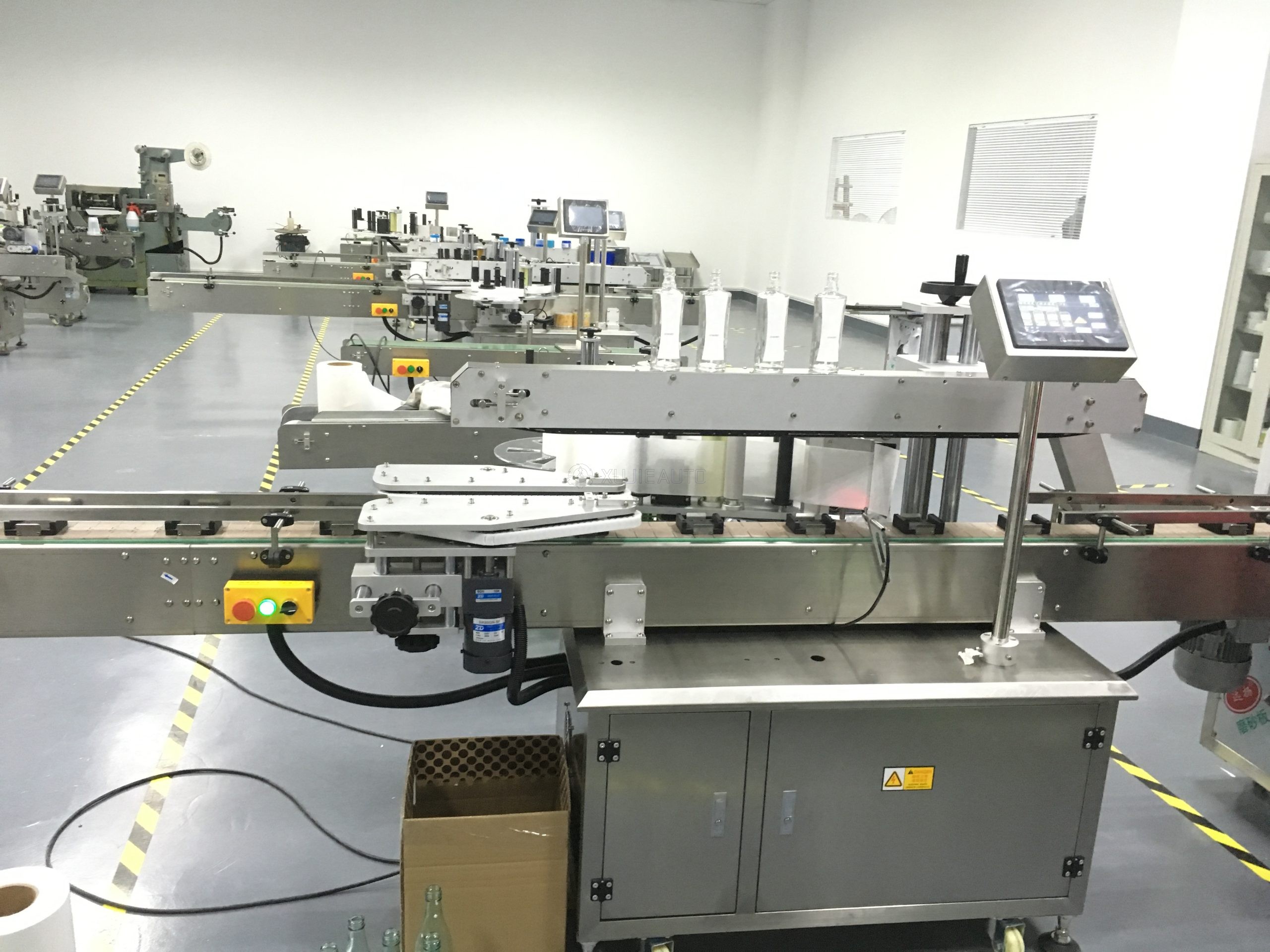

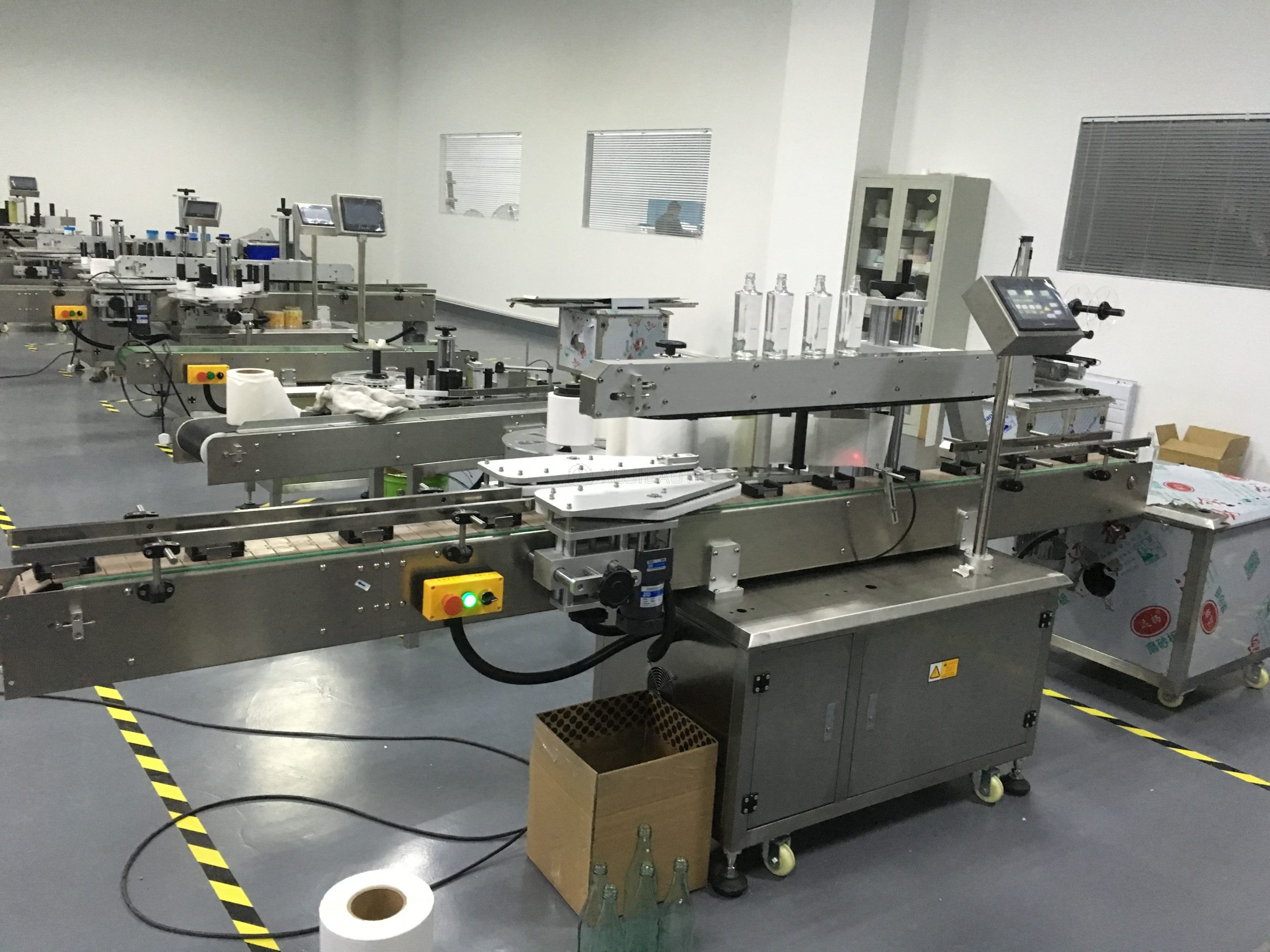

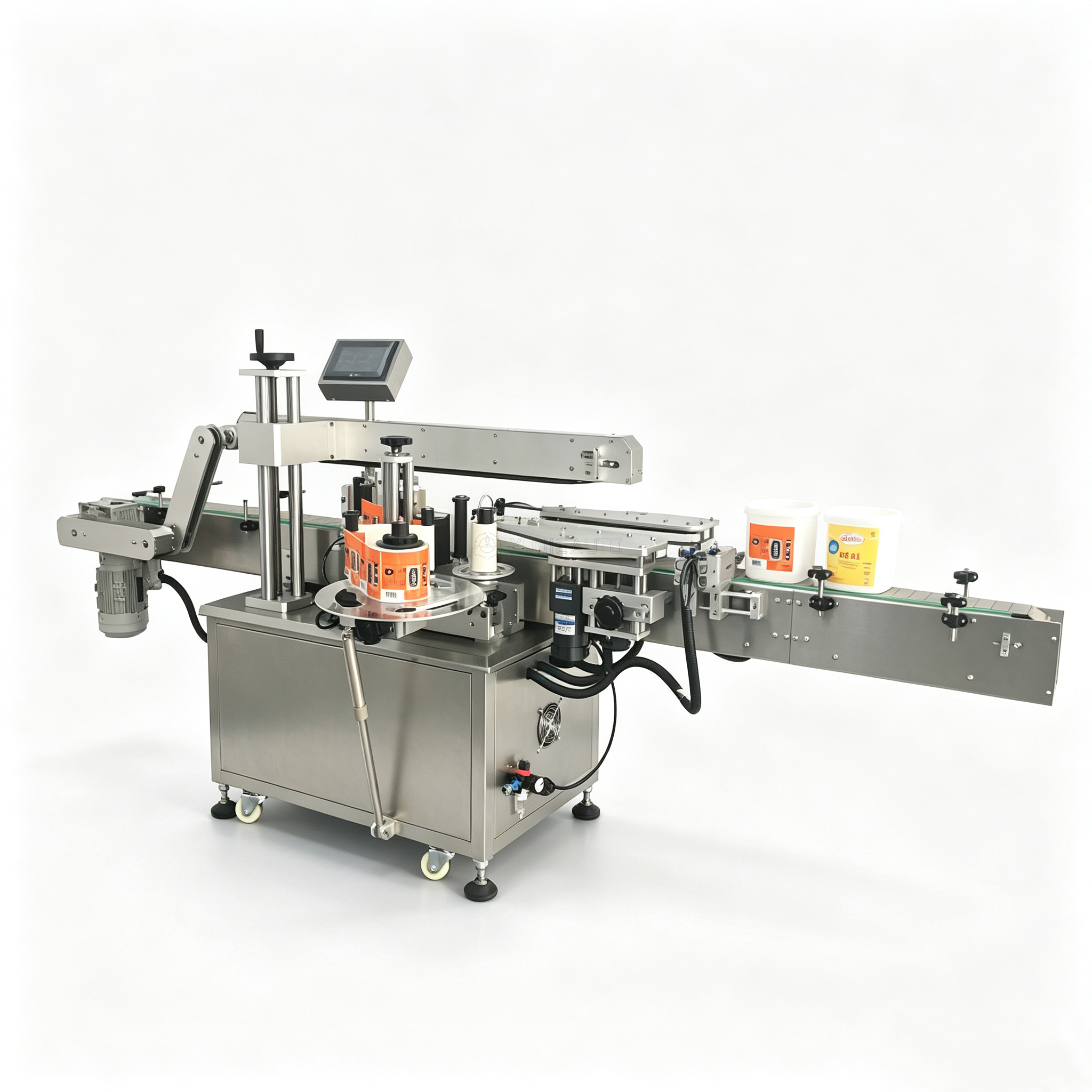

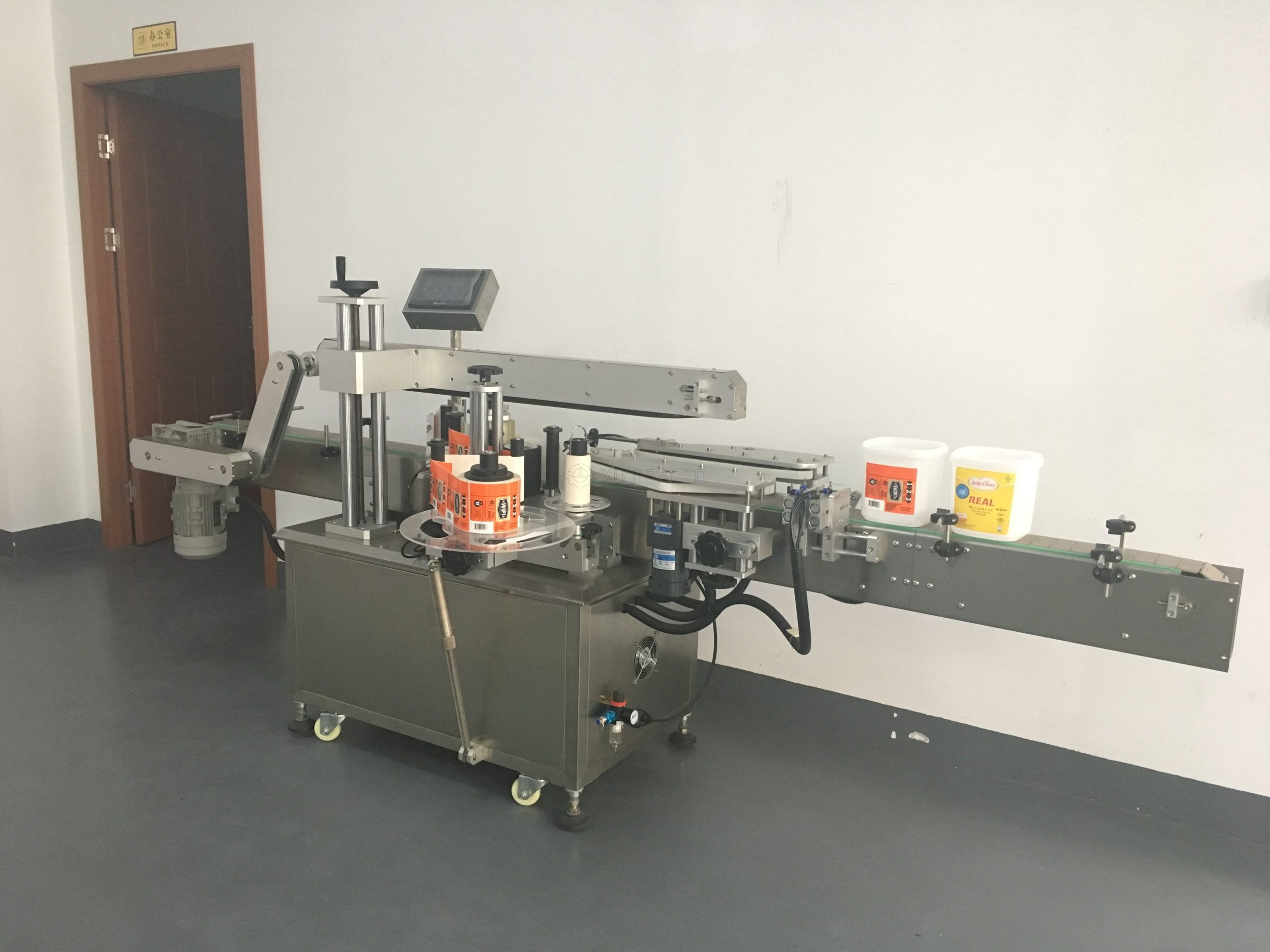

This full‑automatic single‑side labeling machine is inline production‑line equipment for square buckets, plastic jerry cans, flat bottles and rectangular containers. It completes stable single‑side adhesive labeling continuously.
Equipped with conveyor belt, touch‑screen control system and high‑precision labeling sensor. Easy parameter setup, fast format change‑over. Suitable for mass‑volume production in chemical, food, lubricant, daily‑chemical industries.
Our automatic single‑side labeling machine is continuous inline industrial labeling equipment, specially developed for square, flat and rectangular containers such as plastic buckets, jerry cans, square jars and flat bottles.
Products are transported by conveyor belt, the sensor detects workpiece and triggers automatic labeling. It realizes stable single‑side sticker labeling without manual intervention. Human‑machine touch screen operation makes parameter adjustment intuitive and convenient.
This side labeler can work standalone or connect with filling, capping and packaging production lines. Widely adopted for chemical buckets, food pails, lubricant cans, household‑care containers for large‑scale factory production.
Core Advantages
Continuous inline automatic single‑side labeling for square & flat containers
Touch‑screen HMI control, simple parameter configuration
High‑precision electric eye sensor, reliable label detection
Fast size change‑over for different bucket / bottle dimensions
Can run independently or integrate into full production line
Stainless steel machine frame, durable for factory workshop environment
Stable running, low failure rate, easy maintenance
✅ Full‑automatic inline single‑side labeling for square bucket, jerry can, flat bottle & rectangular jar
✅ Touch‑screen human‑machine interface for easy parameter setting
✅ High‑precision photoelectric sensor for stable label detection
✅ Fast adjustment for different container and label sizes
✅ Stainless steel main body, suitable for industrial workshop
✅ Support standalone operation or connecting to complete production line
✅ High continuous labeling speed for mass production
✅ Compatible with self‑adhesive sticker labels
✅ Low malfunction rate, convenient daily maintenance
✅ Widely used in chemical, food, lubricant, daily‑care industries
Machine Name： Automatic Single‑Side Labeling Machine
Applicable Products： Square bucket, jerry can, flat bottle, rectangular jar / container
Label Type： Self‑adhesive sticker label
Label Width： 30‑180 mm
Label Length： 40‑320 mm
Label Roll Inner Core： 76 mm (3 inch)
Max Outer Diameter of Label Roll： 350 mm
Labeling Speed： 20‑60 pcs/min (depends on container size)
Labeling Accuracy： ±1.5 mm
Power Supply： 220V / 110V, 50‑60Hz
Total Power： 650 W
Conveyor Height： 800‑900 mm (adjustable)
Machine Dimension： 2200 × 850 × 1450 mm
Net Weight： 210 KG
Optional Module ： Date coding printer, reject device
Packaging:
By container or standard export packing per machine
Delivery Time:
15-30 days after payment received
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
