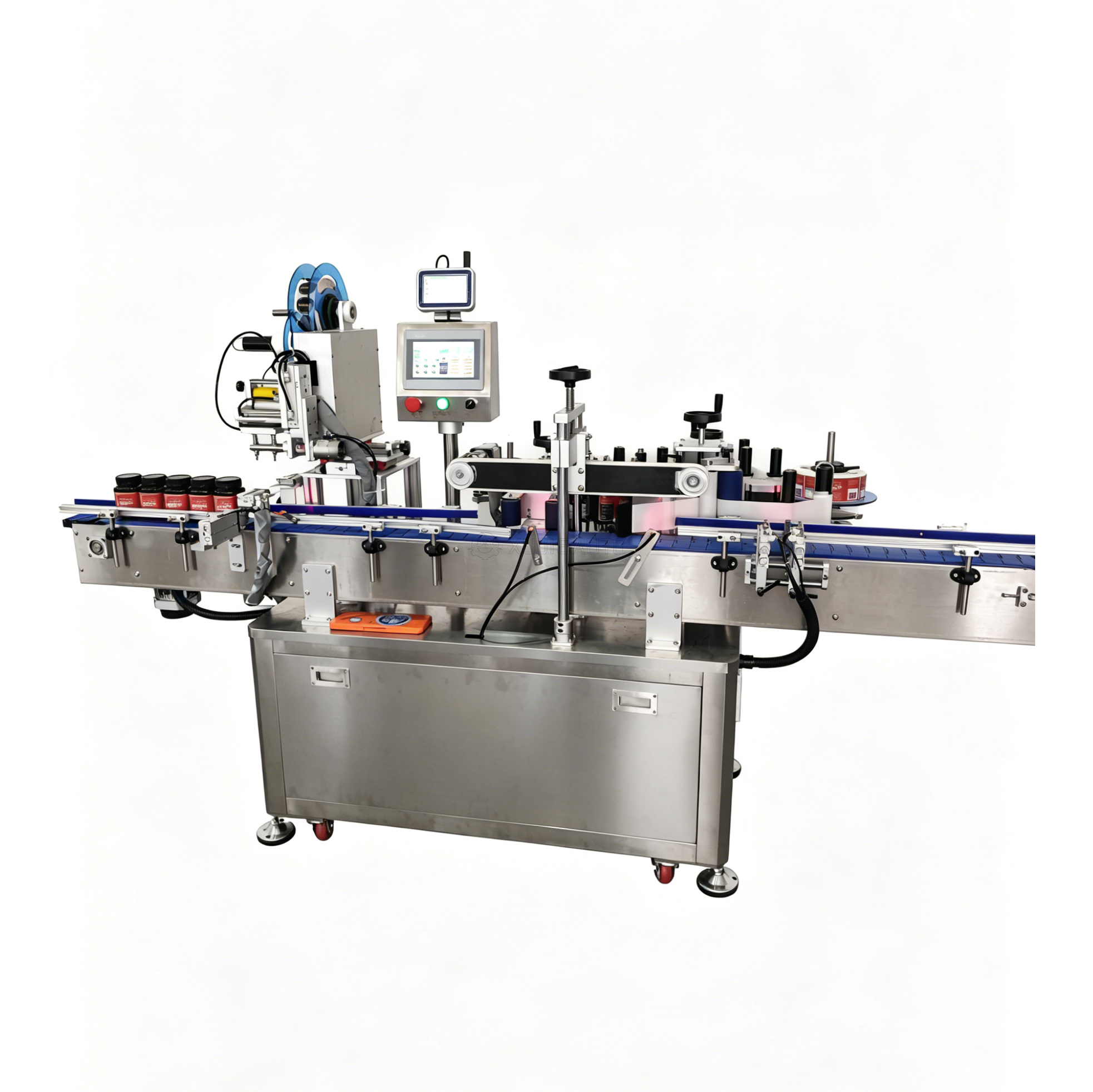

Automatic Multi-station Top and Side Labeling Machine with Online Real-time Printing for Round Glass Jars & Plastic Bottles

Fully automatic multi-station top and side integrated labeling machine, integrating sticker labeling and online variable data printing. It can complete top label and bottle side label sticking synchronously. Compatible with round bottles, jars and cans. SUS304 stainless steel frame, PLC touch screen control, high labeling precision. Suitable for food, cosmetics, daily chemical, pharmaceutical industries.

This automatic multi-station top & side labeling machine is an integrated labeling solution combining sticker labeling and online real-time printing function. The machine can finish top flat surface labeling and cylindrical side labeling synchronously in one production pass. It supports online printing of variable QR codes, barcodes, batch numbers, production dates and anti-counterfeit information directly on labels before application, saving extra independent coding equipment.
Made of SUS304 stainless steel, the machine adopts PLC and color touch screen control system. Parameters can be stored as product recipes for quick recall. Conveyor guiding mechanism ensures stable bottle conveying, suitable for round glass jars, plastic bottles, metal cans widely used in food, cosmetics, pharmacy and daily chemical industries.

1. Dual-station simultaneous labeling: top flat label + container side label finished in one pass
2. Built-in online printing system, support variable QR code, barcode, batch & date printing
3. SUS304 stainless steel frame, meet food & pharmaceutical hygiene standards
4. PLC + color touch screen control, multiple product recipe memory
   ±1mm high labeling precision (excluding product & label tolerance)
5. Handwheel quick size adjustment, fast model changeover without tools
   Stable conveyor with guiding mechanism to prevent bottle tilting and shifting
6. Independent sensor system to synchronize labeling and printing action
   Can connect filling and capping machine to form fully automatic packaging line
7. Customizable conveyor length, extra labeling stations and optional vision inspection & rejection

Machine Name：                   Automatic Multi-station Top & Side Labeling Machine with Online Printing
Applicable Products：          Round bottle, glass jar, plastic can, cylindrical container
Labeling Function：              Top flat surface labeling + cylinder side labeling
Label Type：                           Self-adhesive sticker label
Labeling Precision：             ±1 mm
Working Speed：                   20–60 bottles/min (depends on bottle & label dimension)
Power Supply ：                     220V 50/60Hz, customizable
Air Pressure：                         0.4–0.6 MPa
Machine Body Material：     SUS304 Stainless Steel
Control System：                    PLC + Touch Screen
Printing Function：                Online variable data printing (QR code, barcode, batch code, date)
Optional Accessories：          Date coder, vision inspection system, automatic rejection device

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
