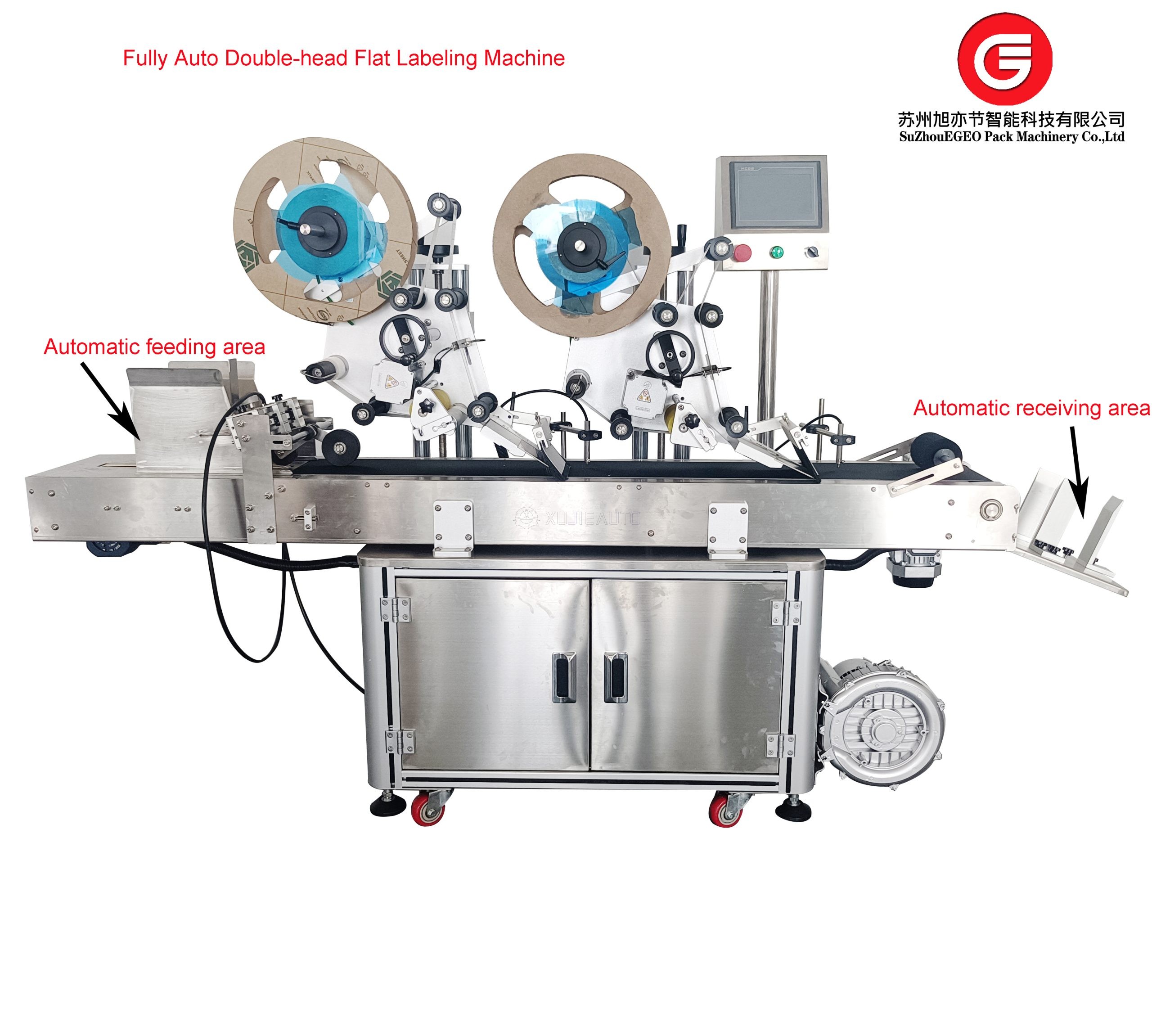

Fully Automatic Dual Head Paging Labeling Machine Double Sides Flat Bag Card Label Applicator

Our fully automatic dual head paging labeling machine is specially developed for all kinds of flat thin products, including plastic bags, self-sealing pouches, paper cards, color boxes, plastic film, packaging bags and tags.
Equipped with an integrated automatic sheet paging separator, the machine can automatically separate stacked flat materials one by one without manual feeding. Two labeling heads work simultaneously to finish front and back double-sided labeling in a single pass, greatly boosting production efficiency for packaging factories, cosmetic factories, food plants and electronics manufacturers.

1. Dual independent labeling heads, complete front & back double-sided labeling in one feeding cycle
2. Built-in high-stability friction paging separator, automatic separation of stacked bags/cards, no overlapping sheets
3. 304 stainless steel machine body, anti-rust, easy to wipe, meets food & cosmetic workshop hygiene standards
4. PLC + 7-inch color touch screen intelligent control, store up to 99 groups of product parameters for quick size switching
5. Imported fiber optic sensor & servo labeling system, labeling accuracy ±0.5mm, no bubbles, wrinkles or offset stickers
6. Stepless adjustable conveying & labeling speed, compatible with different production line output requirements
7. Universal adjustable structure, freely adapt to different thickness, width and length of flat bags, pouches and paper cards
8. Reserved installation port for inkjet printer, realize labeling + date coding synchronous processing
9. Mobile casters + fixed support feet, flexible movement and stable positioning on assembly line
10. Multiple safety protection: emergency stop buttons, overload alarm, anti-jam protection for long-hour non-stop operation

Applicable Products：                           Plastic bags, self-seal pouches, paper cards, tags, flat thin boxes, film sheets
Product Thickness Range：                 0.1mm – 5mm
Product Width：                                    50mm – 350mm (customizable wider size)
Product Length：                                   40mm – 400mm
Applicable Label Width：                    10mm – 140mm per labeling head
Label Roll Inner Core：                        Standard 76mm
Max Outer Diameter of Label Roll： 300mm
Labeling Precision：                             ±0.5mm
Working Speed：                                   20–100 pieces per minute (adjustable)
Control System：                                   PLC + 7-inch color touch screen
Machine Material：                               304 stainless steel
Power Supply：                                      110V/220V 50/60Hz
Total Power：                                         1.5 KW
Overall Dimension：                             L1800W720H1250mm
Net Weight：                                           260 KG
Optional Accessories：                         Inkjet coding machine, automatic receiving table, static removing device

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
