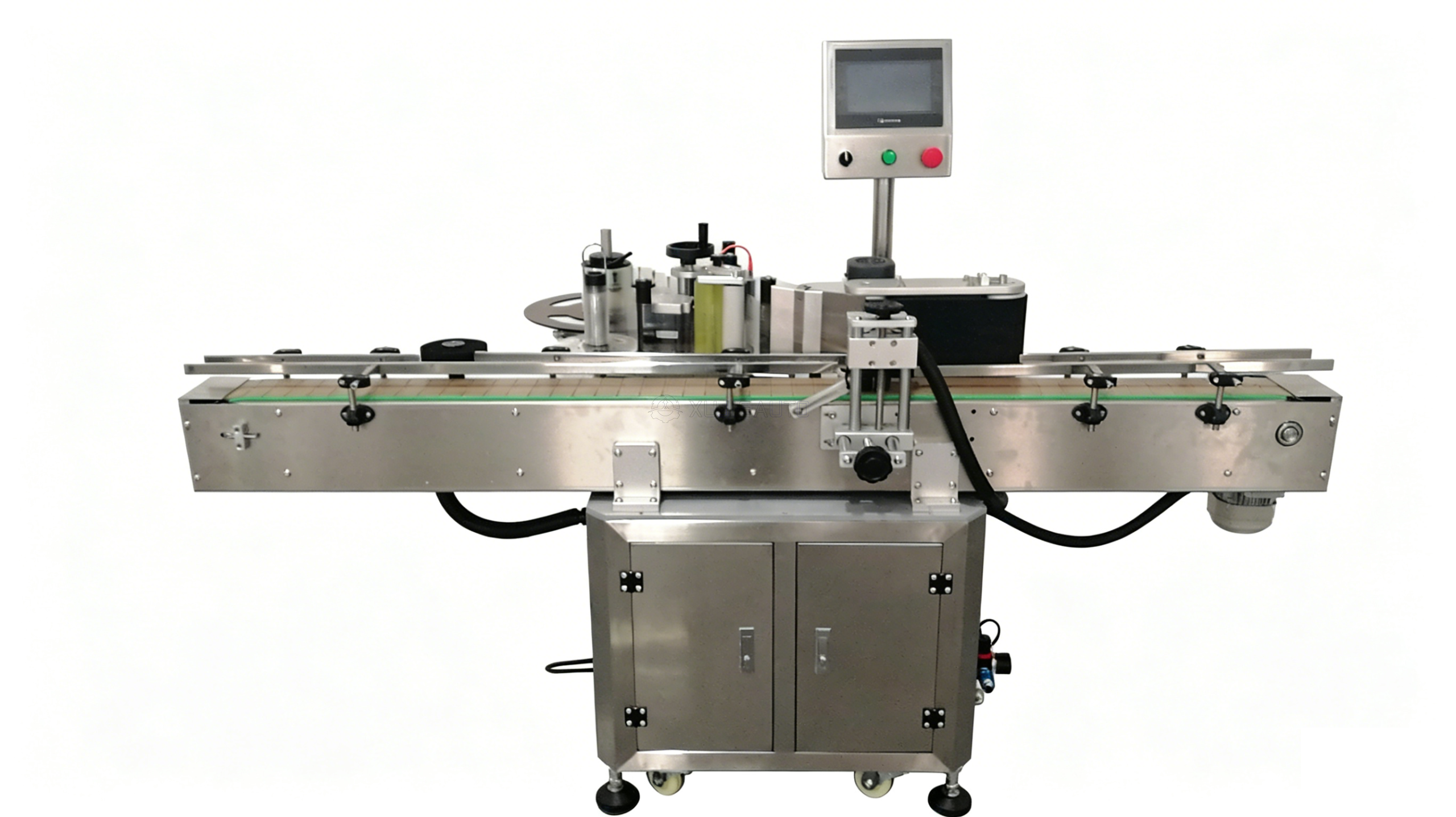

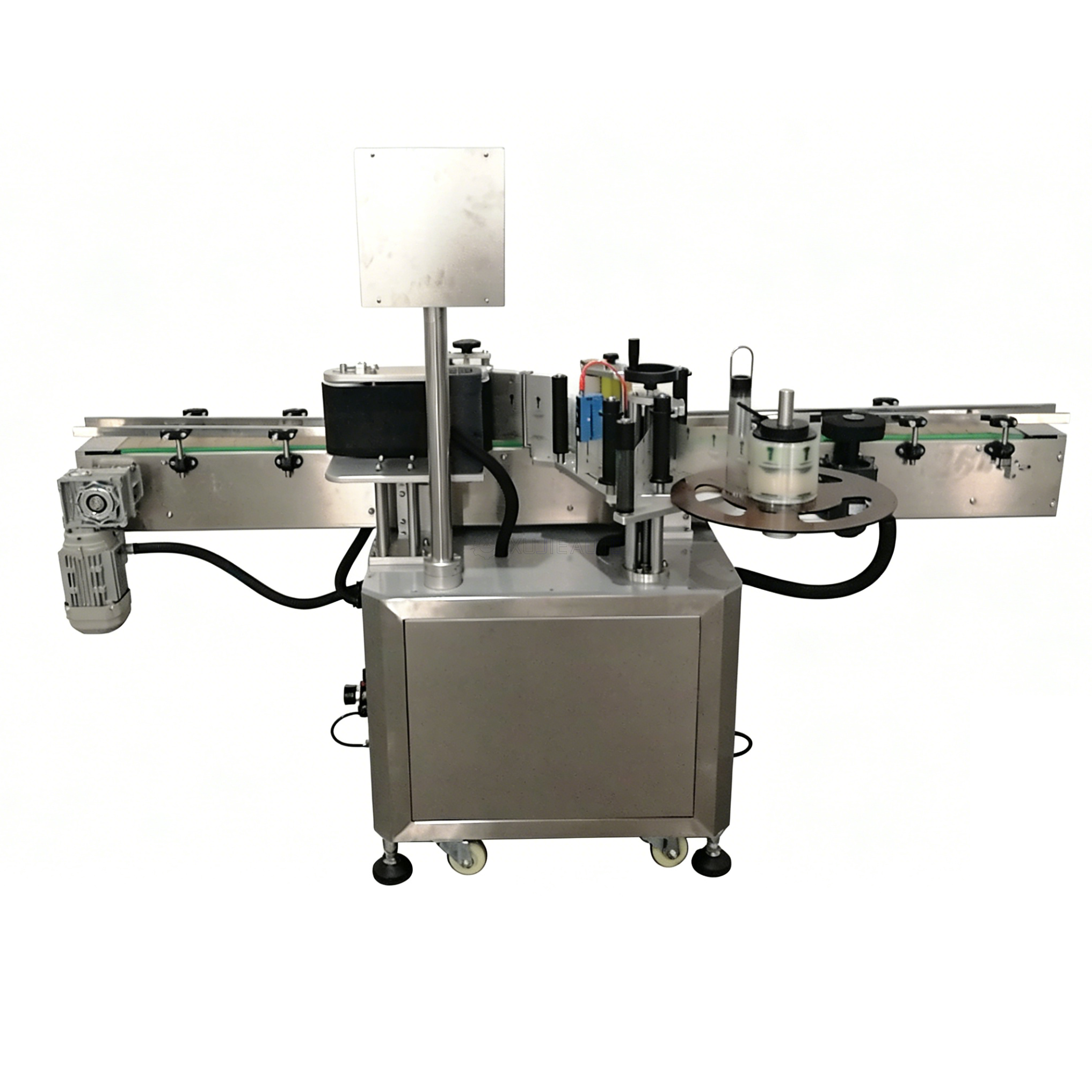

Automatic Fixed Point Positioning Round Bottle Labeling Machine for Glass Plastic Wine Cosmetic Jars

This automatic fixed point round bottle labeling machine is customized for cylindrical containers requiring fixed-angle label positioning. It adopts three-point bottle clamping + photoelectric orientation system, locking the bottle’s designated orientation to ensure labels stay at unified fixed position for every product.
Equipped with independent servo labeling motor and synchronous rotating mechanism, supports full wrap, half wrap, front & back double labeling in one pass. Whole frame SUS304 stainless steel, match PLC 7-inch touch control, store 50 groups parameter formulas, quick size switching without professional operation.
It can run standalone or connect filling, capping, coding production line, widely fit cosmetic, wine, beverage, medicine, edible oil round bottles and jars. Optional online printer, CCD label inspection, missing label alarm to meet high-standard packaging demands.

1. Precise Fixed Point Positioning System
   Three-point centering fixture + photoelectric sensor lock bottle angle, labeling error controlled ±0.5mm, consistent label position for batch production, upgrade brand packaging appearance.
2. Servo Synchronous Labeling & Rotation
   Separate servo drive for labeling head and bottle turntable, stable operation at high speed, no label skew, bubble, wrinkle, smooth lamination.
3. Intelligent PLC Touch Control
   Color touch screen with multi-language interface, save product formulas, one-key recall, auto no-bottle no-label function, label shortage alarm reduce sticker waste.
4. Food Grade Stainless Steel Construction
   304 stainless steel cabinet and conveying parts, anti-rust, corrosion resistant, conform GMP standard for food, pharmaceutical workshops.
5. Wide Compatibility & Quick Adjustment
   Fast handwheel adjustment without tools, adapt glass, plastic, metal round bottles of different diameter & height. Support self-adhesive barcode, brand, anti-counterfeit labels.
6. Rich Optional Custom Modules
   Thermal transfer date coder, CCD visual inspection, defective bottle rejection, finished product counting, safety light curtain protection.
7. Easy Line Integration
   Standard conveying interface, seamlessly dock filling, cap screwing, cartoning machine to realize full automatic packaging line.

Labeling Mode：                          Fixed point positioning, full wrap / half wrap / double sides labeling
Applicable Bottle Diameter：    φ20–120mm
Applicable Bottle Height：         30–300mm
Applicable Label Size：               Length 10–300mm, Width 10–220mm
Max Label Roll OD：                   φ300mm, inner core φ76mm
Labeling Precision：                   ±0.5mm
Production Speed：                      30–120 pcs/min
Control System：                          PLC + 7-inch color touch screen
Driving：                                         Servo motor for labeling & rotation
Machine Material：                      SUS304 stainless steel + aluminum alloy
Power Supply：                             220V 50/60Hz 1.2KW
Overall Dimension：                    L1600W720H1350mm
Net Weight：                                  320KG
Certification：                                CE, ISO9001

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
