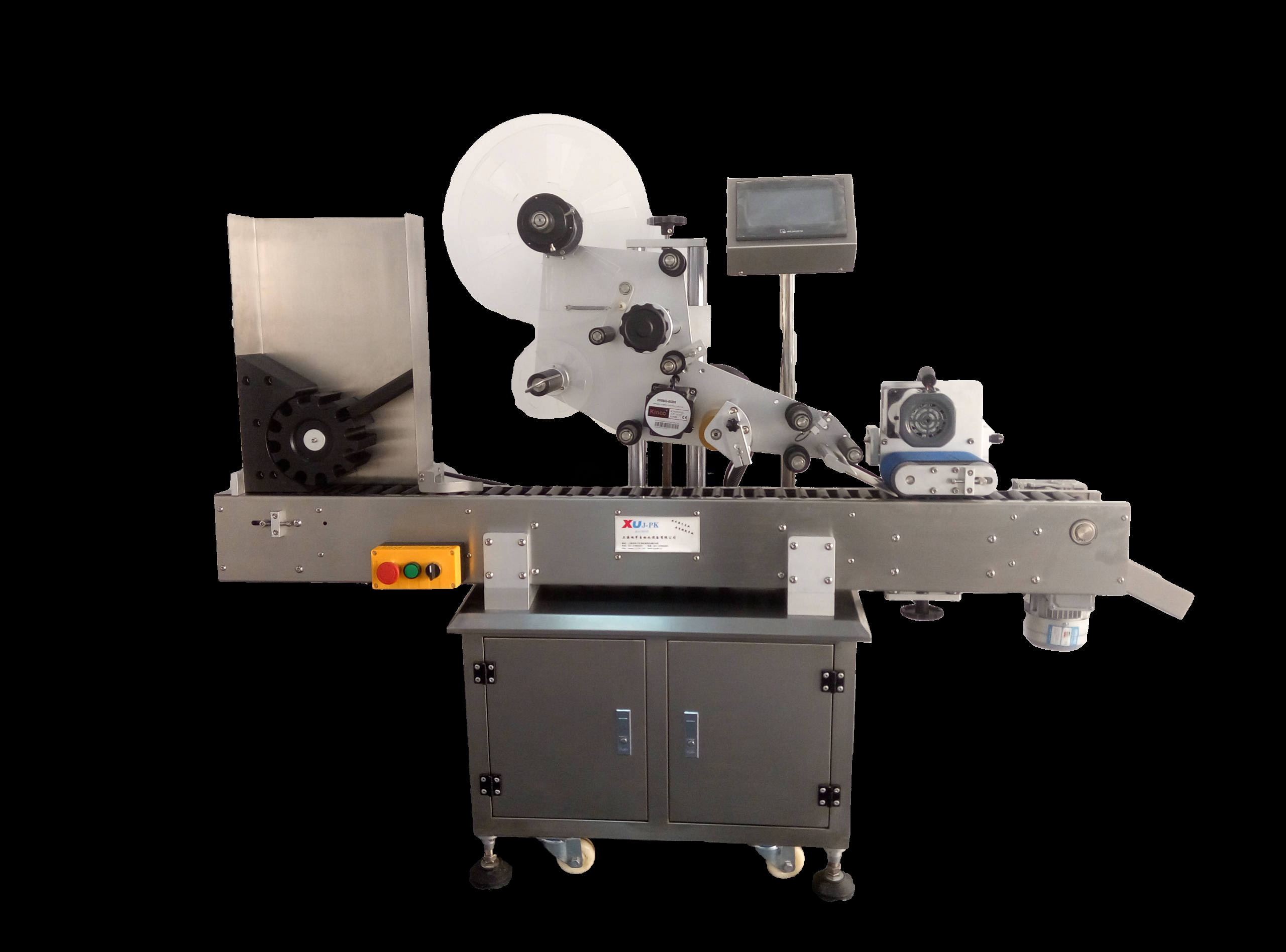

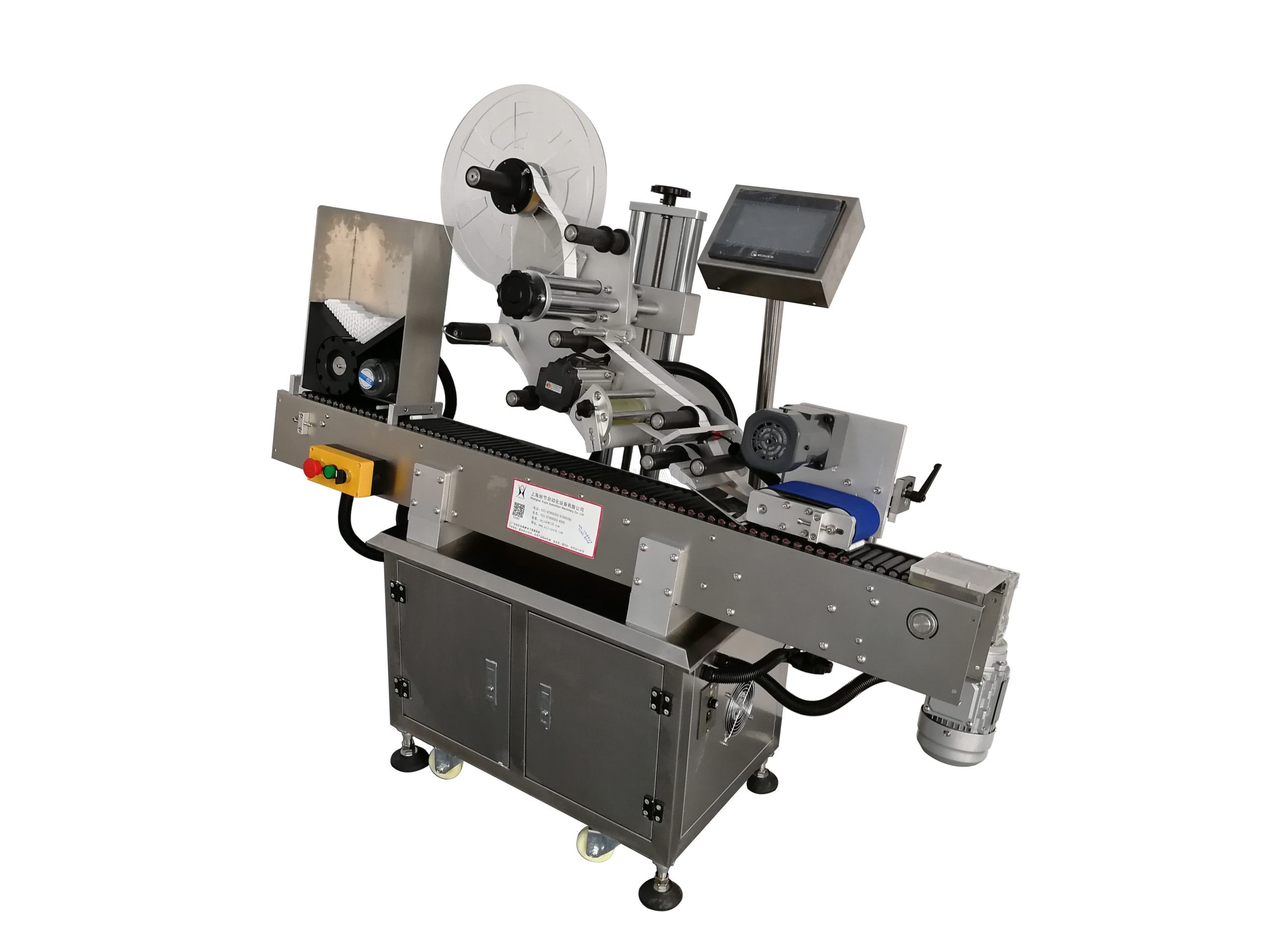

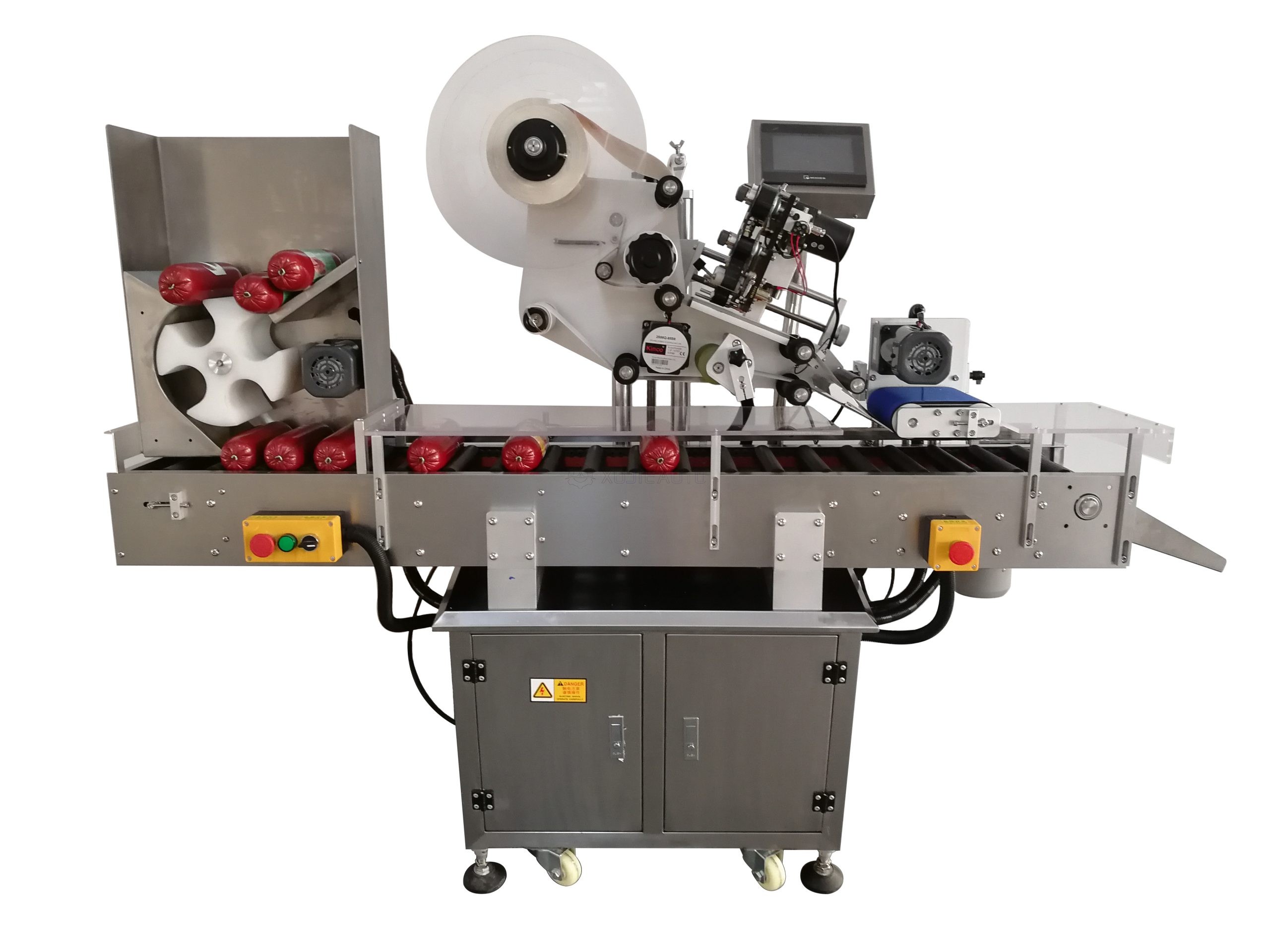

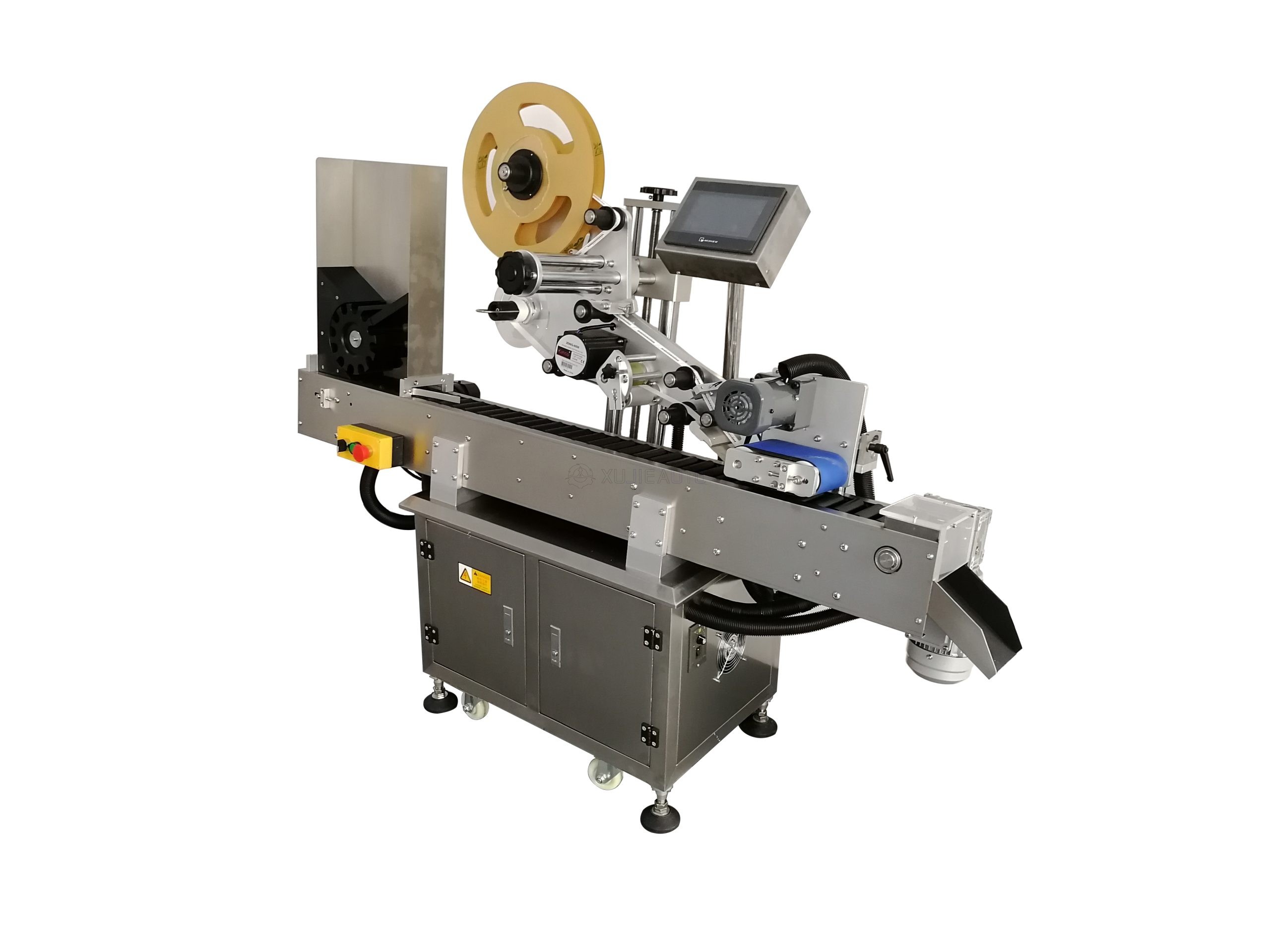

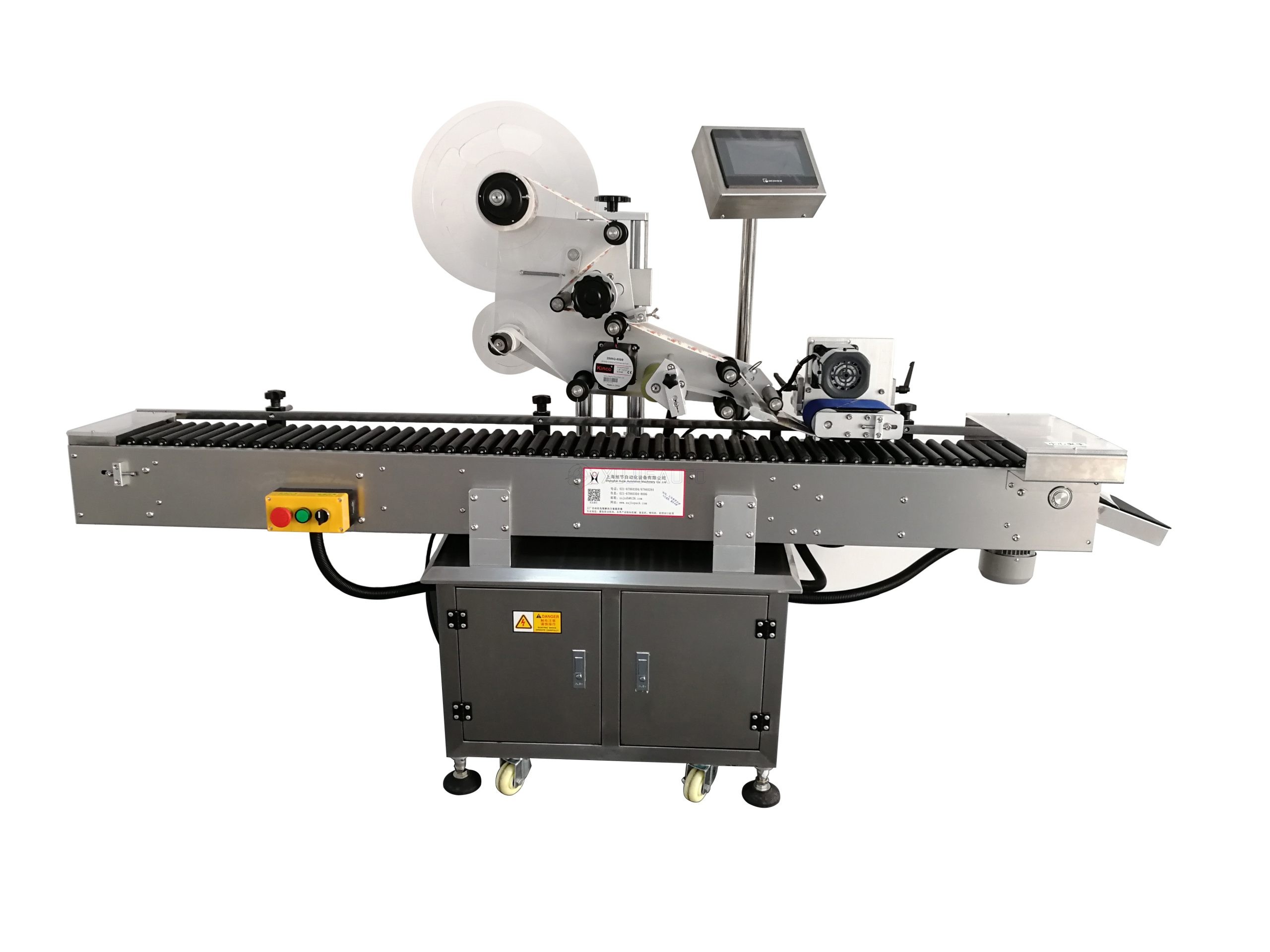

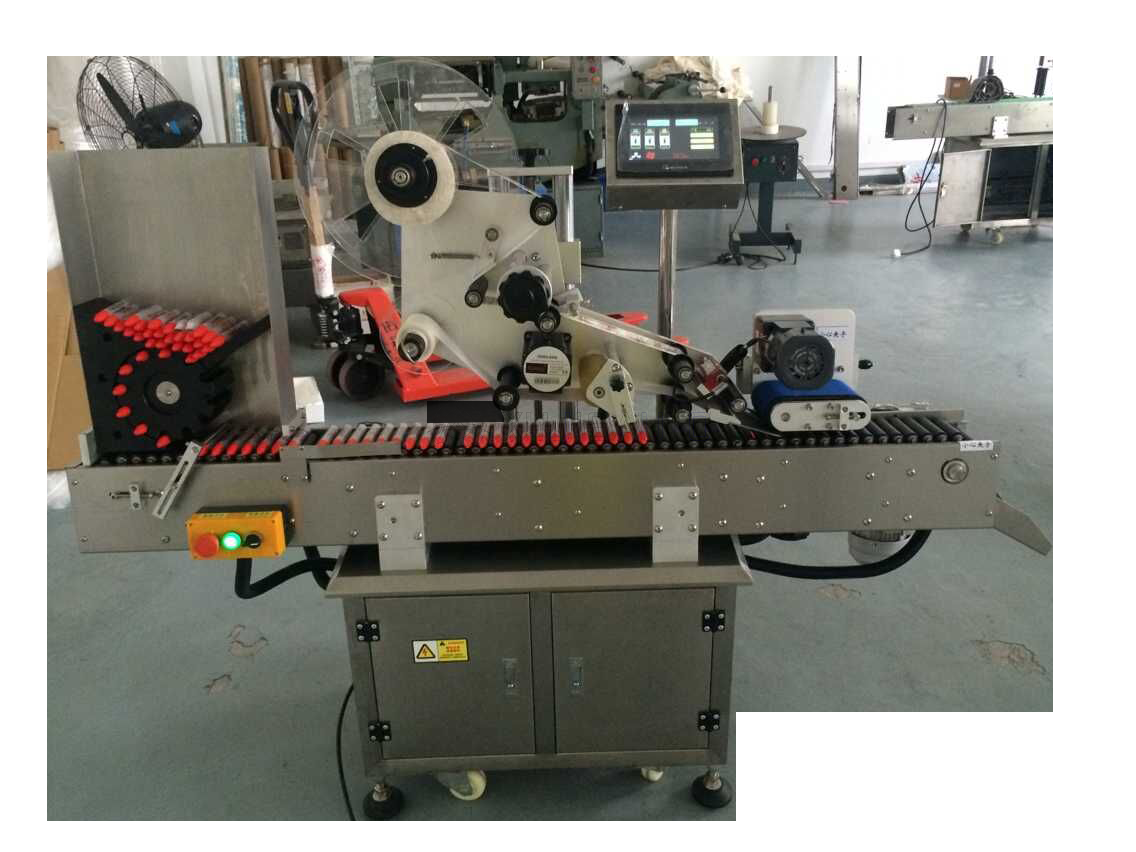

Fully Automatic Horizontal Labeling Machine For Sausage Cylindrical Tube Horizontal Sticker Label Applicator

Our fully automatic horizontal labeling machine is specially customized for slender cylindrical products such as ham sausages, plastic tubes, pen tubes, battery rods and small round sticks. Different from vertical labeling equipment, the horizontal conveying design solves the problem of unstable standing of slim round workpieces, realizing continuous high-speed automatic feeding, separation, labeling and discharging in one line.
This sausage horizontal label applicator adopts 304 stainless steel frame, fully compliant with food production hygiene standards, widely used in meat food, daily chemical, electronics, pharmaceutical and other industries. Whether you produce ham, red sausage, collagen casing sausage or cosmetic plastic tubes, this horizontal labeling equipment can complete full-circle/half-circle sticker labeling accurately.

1. Horizontal horizontal conveying structure, specially for slender cylindrical sausage, tube, rod products, no tipping during labeling
2. Automatic rotary feeding bin, automatic sorting messy sausages, realize fully unmanned continuous labeling
3. 304 stainless steel whole machine, food-grade anti-rust material, easy to clean and meet food workshop standards
4. PLC + color touch screen intelligent control, store 99 groups of product labeling parameters, quick switch specifications
5. Imported labeling head & fiber optic sensor, labeling accuracy ±0.5mm, no wrinkle, no bubble, no offset
6. Support matching inkjet coding machine, print production date/batch number synchronously while labeling
7. Adjustable labeling speed, adapt to different production line output requirements
8. Universal labeling range, freely adjust width and diameter for different sausages and round tubes
9. Mobile casters + fixed support feet, convenient to move and fix on production line
10. Emergency stop button, overload protection, safe and stable long-term continuous operation

Applicable Products：                Ham sausage, plastic tube, battery, pen, slender cylindrical workpiece
Applicable Product Diameter：8mm – 60mm (customizable larger range)
Applicable Product Length：   30mm – 300mm (customizable)
Label Width Range：                 10mm – 150mm
Label Roll Inner Core：             76mm standard
Label Roll Max Outer：             Diameter 300mm
Labeling Precision：                  ±0.5mm
Production Speed：                    30–120 pieces/min (adjustable)
Control System：                        PLC + 7-inch color touch screen
Machine Body Material：          304 stainless steel
Power Supply：                            220V/110V 50/60Hz
Total Power：                               1.2 KW
Overall Machine Size：              L1600W650H1300mm
Machine Net Weight：               220 KG
Optional Attachment：              Inkjet coding machine, date printer, automatic material receiving table

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
