Full auto 3-head hang tag paging labeling machine with PLC touch screen, triple independent labeling heads, speed 50–200 pcs/min, stable for clothing tags, paper cards & plastic bags. SUS304 stainless steel body, factory direct, custom conveyor available. Send inquiry for quotation!

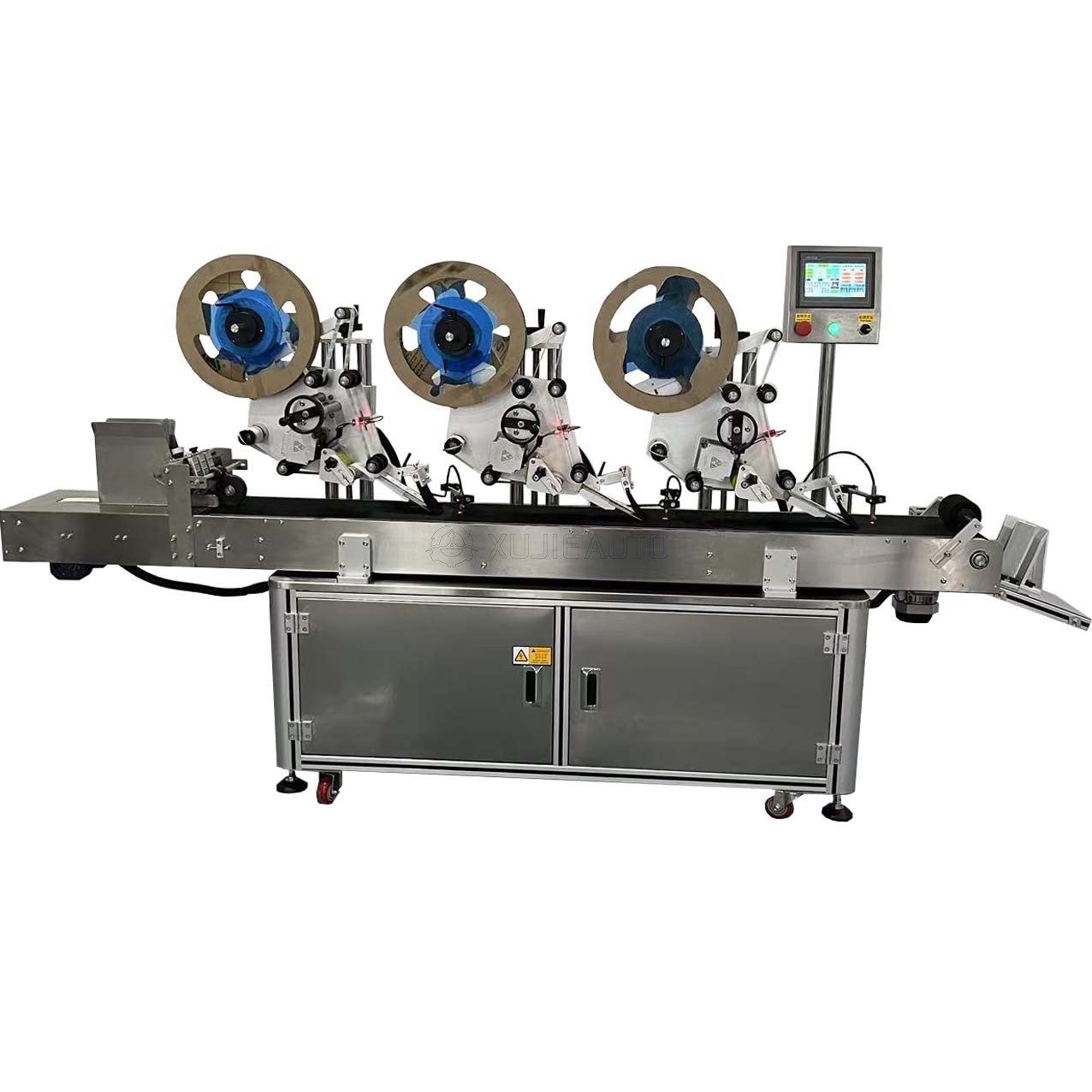

This 3-head automatic hang tag paging flat labeling machine integrates friction paging feeding, conveyor conveying and triple independent labeling stations as one complete unit. It solves the low-output bottleneck of single-head labeling machines for mass flat sheet production. Each labeling head supports independent X/Y axis fine adjustment, realizing synchronous multi-position labeling in one feeding pass, greatly cutting labor cost and improving production efficiency. It is specially customized for clothing hang tags, paper cards, envelopes, thin plastic bags, thin cartons and other flat thin workpieces.
The machine frame adopts industrial aluminum alloy, control cabinet uses SUS304 stainless steel, anti-rust and easy to wipe clean, fully meets sanitation standards of apparel, printing, food and cosmetic workshops. Equipped with high-precision photoelectric tracking sensor, it automatically detects missing materials to avoid empty labeling waste. The equipment can run standalone or connect with printing, folding, packaging production lines for full automatic inline operation. Conveyor width, labeling spacing and running speed all support personalized adjustment based on customer’s workpiece size requirements.
Labeling Heads: 3 independent adjustable labeling stations
Labeling Precision: ±1mm (excluding workpiece & label tolerance, conforms to GB/T 36519-2018)
Production Speed: 50–200 pieces per minute (varies by workpiece size)
Applicable Label Width: 10–200 mm
Applicable Workpiece Size (Hang Tag/Card): Width 30–300 mm, Length 30–400 mm
Control System: PLC + 7 inch color touch screen
Power Supply: AC110V/220V 50/60Hz
Rated Power: 1.0 KW
Machine Main Material: SUS304 stainless steel cabinet, industrial aluminum alloy frame
Max Single Head Label Roll Outer Diameter: 300 mm
Standard Conveyor Length: 1600 mm (customizable extended size)
Machine Overall Dimension (LWH): 18507201420 mm
Net Weight: 260 KG
Packaging:
By container or standard export packing per machine
Delivery Time:
15-30 days after payment received
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
