Full Automatic Horizontal Round Bottle Labeling Machine Small Vial Ampoule Sticker Label Applicator

This full automatic horizontal round bottle labeling machine is specially developed for small cylindrical round containers, widely used in pharmaceutical, cosmetic, stationery, daily chemical and food industries. It perfectly handles ampoules, injection vials, oral liquid bottles, test tubes, pens, lipstick tubes, small plastic & glass round bottles.

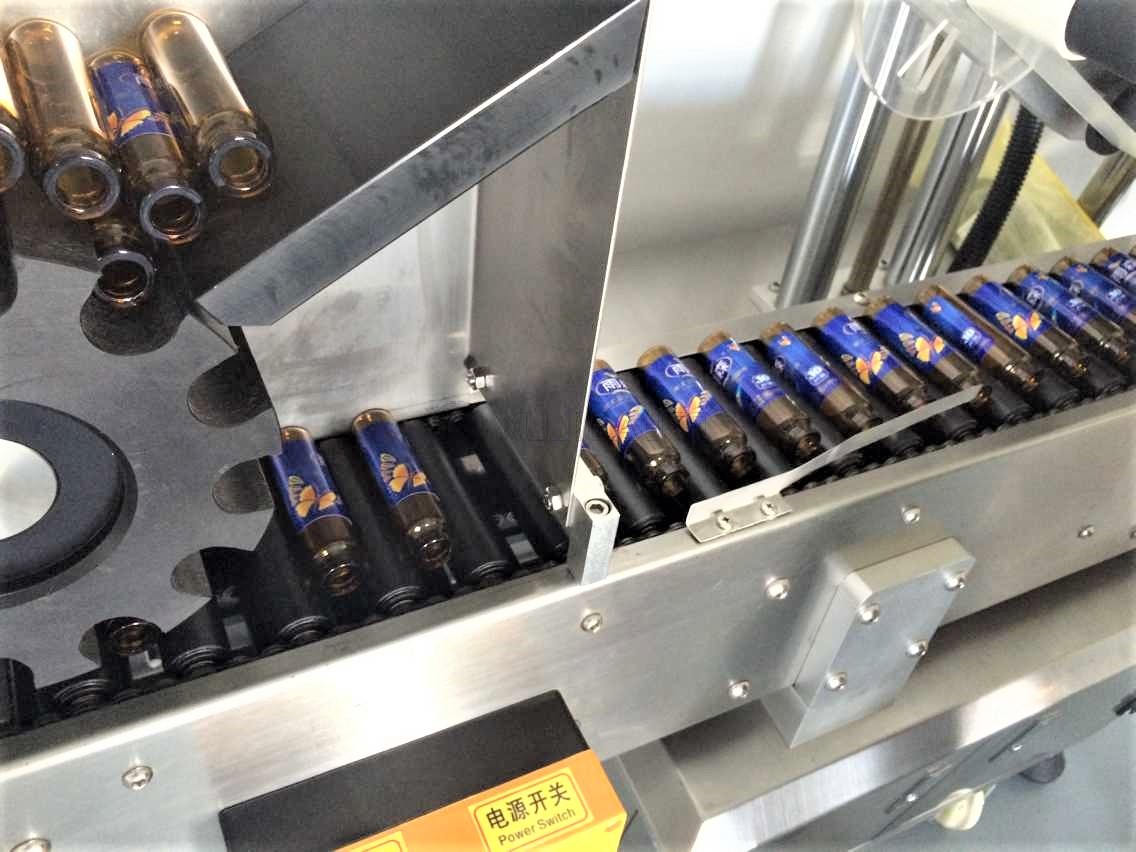

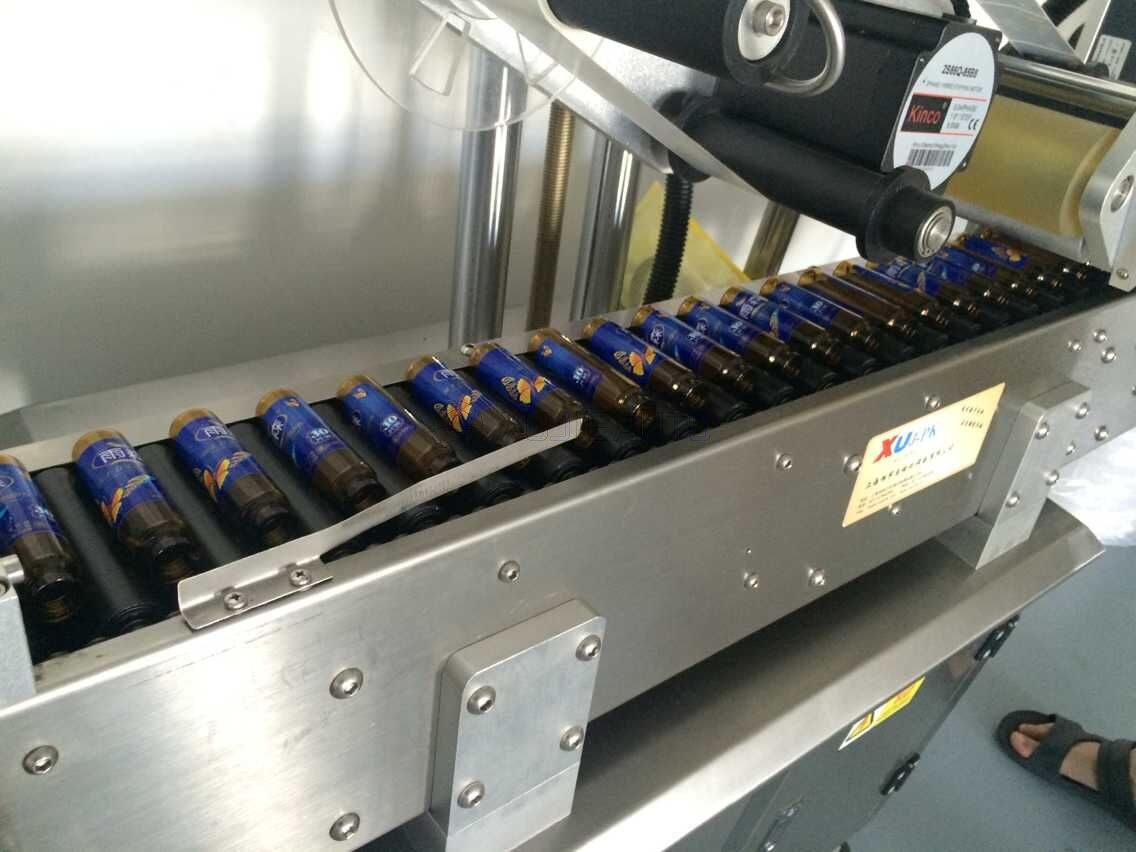

Adopting horizontal rolling conveying structure, the machine drives bottles to roll evenly while completing full circumferential or half-circumferential labeling in one continuous pass. Equipped with imported servo motor and high-precision photoelectric sensor, it realizes automatic bottle feeding, detection, labeling and discharging without manual operation. Label position, conveying speed and roll pressure can be adjusted freely via touch screen, effectively avoid label wrinkles, bubbles and offset.
Whole machine frame adopts food-grade 304 stainless steel, corrosion-resistant and easy to wipe clean, fully compliant with GMP clean workshop standards. The 7-inch color touch screen supports multi-language switching including English, Spanish, Arabic, easy for foreign operators to set parameters quickly. It can run independently or connect with filling, capping and coding machines to form complete automated packaging production line.
Compact movable design with universal casters and adjustable foot pads, convenient for workshop layout switching. Stable operation, low noise and low failure rate, this horizontal labeler has exported to Southeast Asia, Europe, Middle East and Latin America, gaining consistent praise from pharmaceutical and cosmetic factory buyers.

1. Horizontal rolling conveying design, stable rolling for small thin cylindrical bottles, no slipping during labeling
2. Full servo drive system, labeling precision up to ±0.3mm, neat full wrap/half wrap labeling without deviation
3. Specially customized for tiny round containers: ampoules, vials, test tubes, pens, lipstick tubes, oral liquid bottles
4. 304 stainless steel whole body, rust-proof, easy cleaning, meet pharmaceutical GMP production requirements
5. 7-inch color touch screen, multi-language optional, one-click parameter memory for fast product switching
6. Adjustable bottle feeding wheel and pressing roller, adapt multiple bottle diameters without tool disassembly
7. Max labeling speed up to 220 bottles per minute, high efficiency for mass production
8. Built-in emergency stop, overload protection and fault automatic alarm, safe industrial operation
9. Compatible with all self-adhesive labels: PET, PVC, coated paper, synthetic paper, transparent stickers
10. Mobile caster + leveling foot pad design, flexible to move and fix in different workshop production lines

Labeling precision:                               ±0.3mm
Max labeling speed:                              220 pcs/min
Applicable bottle shape:                       small cylindrical round bottles
Applicable bottle diameter:                10–80mm
Applicable bottle length/height:        20–180mm
Label width range:                                8–120mm
Label length range:                              10–300mm
Drive system:                                         Full servo motor control
Control panel:                                        7-inch color touch screen
Machine body material:                       304 stainless steel + aluminum alloy
Power supply:                                        220V 50/60Hz, 0.9KW
Machine dimension:                             L1600*W650*H1200mm
Machine weight:                                    320KG
Certification:                                          CE, ISO available
Optional accessories:                            Thermal date coding machine, automatic bottle unscrambler, output conveyor

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received
