Semi Automatic Round Bottle Labeling Machine | Desktop Cylindrical Jar Can Self-Adhesive Sticker Label Applicator

This tabletop semi automatic round bottle labeler integrates label unwinding, photoelectric detection, roller rotation and pressing labeling functions into one compact unit. Compared with fully automatic production line labelers, it features lower investment cost and more flexible switching between different bottle sizes, without complex conveyor matching.
The whole machine frame is made of thick anti-rust cold rolled steel, equipped with wear-resistant silicone driving rollers and adjustable positioning baffle. Users can quickly adjust bottle supporting width, labeling height and label tension by hand knobs without extra tools, switching between lotion bottles, honey jars, wine bottles and medicine vials within 3 minutes.
Imported photoelectric eye supports automatic label missing detection, the machine will pause when labels run out to avoid waste. Stepper motor drive ensures stable label output, suitable for paper labels, matte PET labels, transparent waterproof labels, brand logo and barcode self-adhesive stickers.

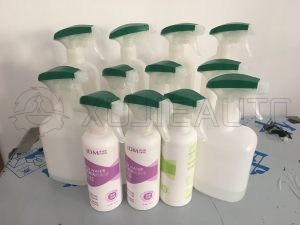

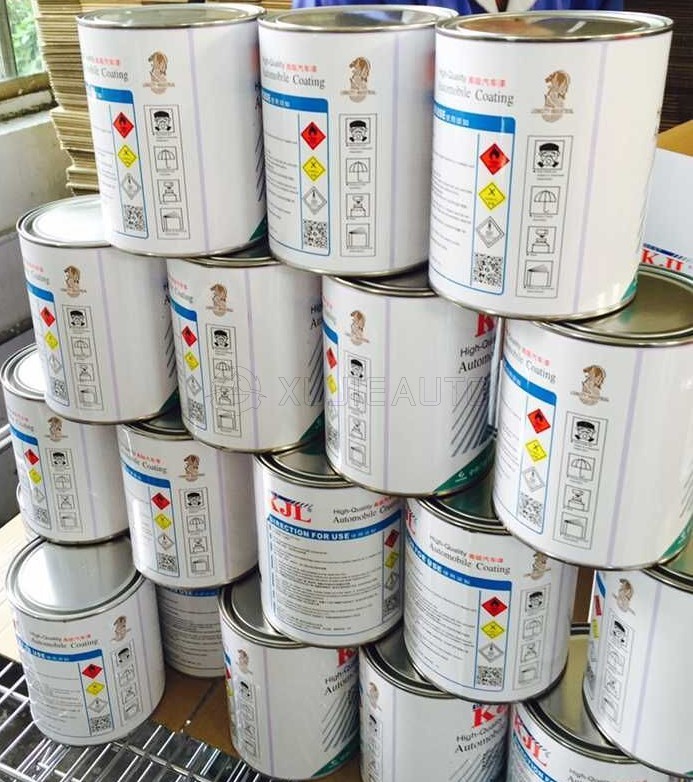

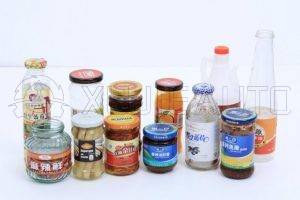

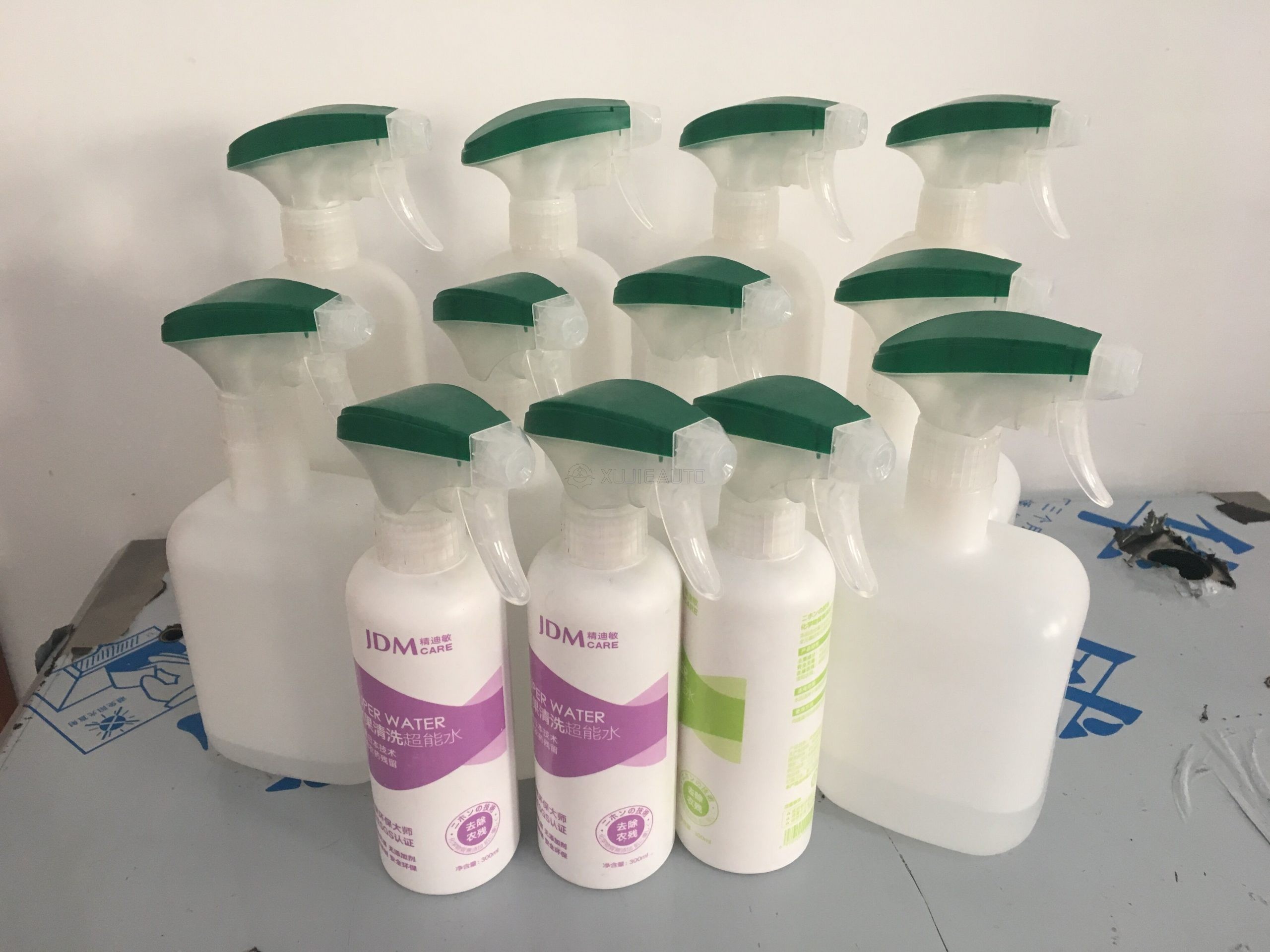

Widely applicable for cosmetic skincare bottles, liquor wine bottles, beverage cans, honey jam plastic jars, pharmaceutical reagent vials, daily chemical shampoo bottles and metal tin cans. It effectively solves the defects of manual labeling such as uneven position, bubbles and low efficiency, greatly improving packaging appearance and production efficiency.
We provide factory direct supply, customized mold for special diameter bottles, free operation video training, 12-month warranty for core motors and sensors, and overseas remote video after-sales support.

1. Wide Compatibility For All Round Containers
   Fit glass, plastic, metal cylindrical bottles, jars, cans and vials, diameter adjustable for 20–120mm round packaging.
2. High Labeling Precision ±0.5mm
   Stepper motor drive, smooth full/half wrap labeling, no offset, bubble-free and wrinkle-free sticking effect.
3. Compact Desktop Save Workshop Space
   Tabletop integrated structure, pure electric drive without air compressor, directly placed on packaging workbench.
4. Simple Manual Feeding Easy Operation
   Put bottle on positioning roller, machine auto rotates and labels, new workers master operation within 3 minutes.
5. Intelligent Photoelectric Protection System
   Auto stop when labels run out, avoid empty labeling and sticker waste, stable continuous 24-hour working.
6. Tool-Free Quick Size Adjustment
   All positioning knobs for bottle width, labeling height and label tension, fast switch different bottle specifications.
7. Stable & Durable Industrial Structure
   Thickened anti-rust steel frame, wear-resistant silicone rollers, low failure rate and long service life.
8. Cost-Effective Factory Direct Support
   Low entry cost for small manufacturers, 1-year warranty for core components, free operation guide & remote technical support.

Automation Grade：                        Semi-Automatic
Drive Mode：                                    Electric Stepper Motor (No Pneumatic Air Compressor)
Power Supply：                                 AC220V 50/60Hz (Custom 110V Available)
Rated Power：                                   120W
Labeling Precision：                        ±0.5mm (Exclude bottle & label tolerance)
Applicable Bottle Diameter：         20–120mm
Applicable Bottle Height：              30–250mm
Supported Label Size：                    Width 10–140mm, Length 20–600mm
Max Label Roll Outer Diameter：  300mm
Working Speed：                               30–60 pcs/min (Depends on operator feeding speed)
Label Coverage ：                               Full circle / Half circle labeling adjustable
Overall Machine Dimension：         L550 × W420 × H460mm
Net Weight：                                       14 KG
Packing Gross Weight：                    17 KG
Machine Frame Material：               Cold Rolled Anti-Rust Steel
Core Components：                            Photoelectric Sensor, Stepper Motor, Control Mainboard, Silicone Drive Roller
Warranty Period：                              1 Year for Core Parts
Optional Customization：                 Special bottle fixture, counting sensor, extended label reel holder

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
