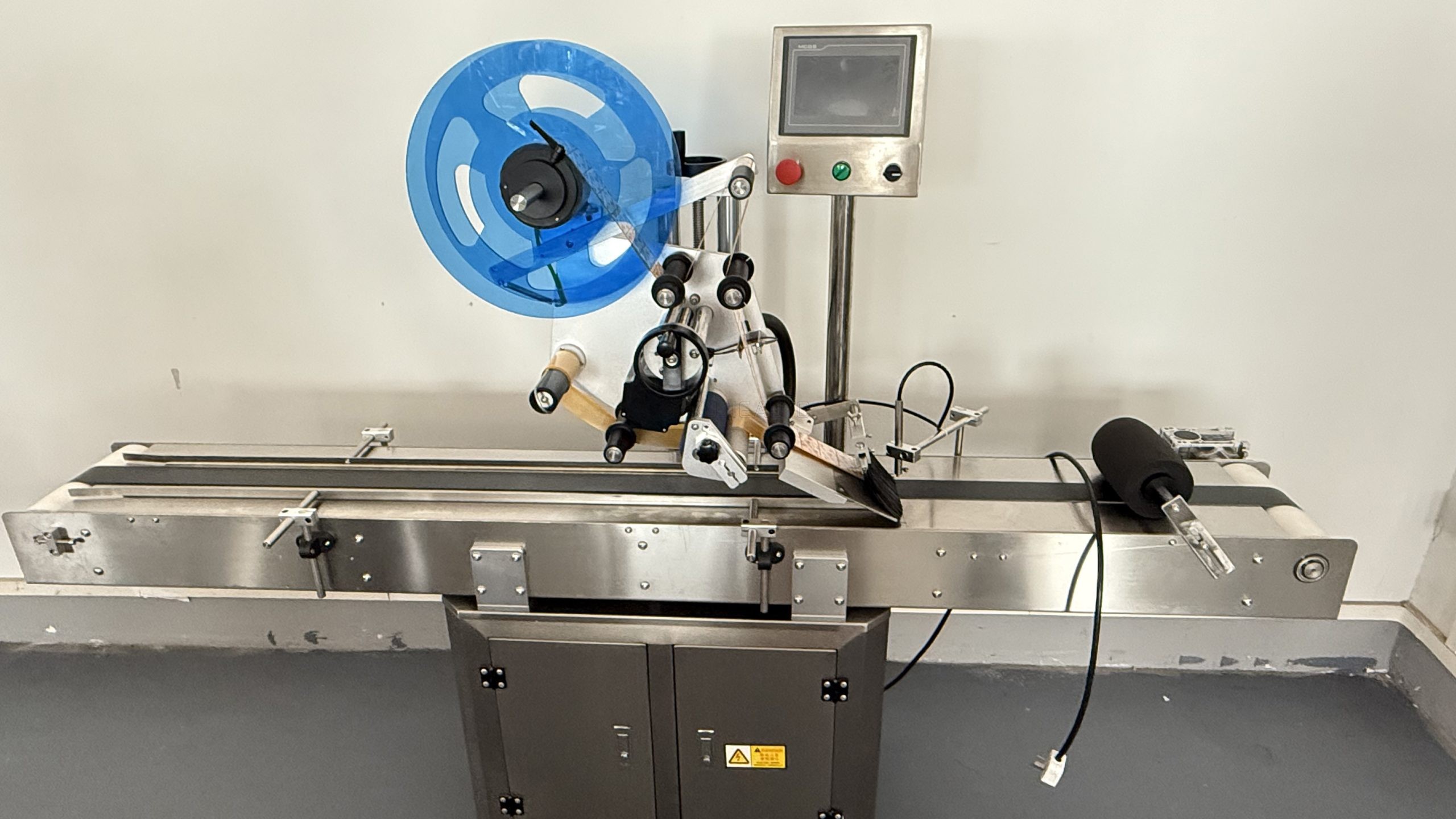

Fully Automatic Flat Surface Top Labeling Machine SUS304 Stainless Steel Touch Screen Label Applicator For Carton Box Plastic Bag Flat Pouch Lid Cosmetic Packaging Line

Product Overview
This full-automatic flat top labeling machine adopts all SUS304 stainless steel conveyor and labeling mechanism, specially designed for flat workpieces including cartons, plastic pouches, paper cards, cosmetic lids, plastic boxes and flat bags.
Equipped with PLC + 7-inch multi-language touch screen control system, one-key parameter setting, fault self-diagnosis and data memory function. Servo labeling head delivers stable, bubble-free flat labeling with high precision. Adjustable conveyor width and positioning baffle support different flat product sizes.
The whole machine complies with food, cosmetic and medical hygiene standards, can directly connect filling, capping, inkjet coding and heat shrink packaging lines to realize unmanned continuous production. Emergency stop button and circuit overload protection meet CE industrial safety standards. Brake casters and height-adjustable foot pads facilitate flexible workshop layout adjustment.
Applicable Products & Industries
Applicable workpieces: color cartons, plastic flat pouches, paper cards, cosmetic box lids, plastic storage boxes, mask bags, gift boxes, flat plastic covers.
Applicable industries: food packaging, daily cosmetic factory, medical supplies processing, electronic packaging, stationery manufacturing, logistics e-commerce packaging.

1. Full SUS304 stainless steel body, anti-corrosion, easy to clean, meets food & cosmetic hygiene requirements
2. Servo motor driven labeling head, labeling precision up to ±0.8mm, smooth labeling without bubbles or wrinkles
3. 7-inch multi-language touch screen operation, parameter storage and automatic fault alarm prompt
4. Adjustable conveyor width & positioning baffle, compatible flat products length 60–400mm, width 40–320mm
5. Large-capacity label reel holder, max label roll outer diameter Φ320mm, built-in tension anti-offset structure
6. Stable horizontal conveyor with anti-slip belt, consistent product conveying to avoid labeling deviation
7. Mobile PU brake casters + height adjustable foot pads, convenient for machine moving and fixing
8. Independent emergency stop button & overload power-off protection, CE safety certified
9. Modular split structure, easy disassembly for daily cleaning and maintenance
10. Matches inkjet printer, shrink tunnel and automatic feeding machine to form complete packaging production line

Control System:                                               PLC + 7-inch Multi-language Touch Screen
Driving Mode:                                                  Servo Motor Drive + Conveyor Transmission
Main Machine Material:                                SUS304 Stainless Steel
Applicable Flat Product Size:                        Length 60–400mm; Width 40–320mm; Height 0.2–80mm (customizable)
Supported Label Type:                                   Self-adhesive sticker (PVC, PET, coated paper, transparent label)
Label Width Range:                                        10mm ~ 140mm
Max Label Roll Outer Diameter:                  Φ320mm
Standard Label Core Inner Diameter:        Φ76mm (3 inch)
Labeling Precision:                                         ±0.8mm (excluding workpiece tolerance)
Working Speed:                                                50 ~ 130 pcs/min (depends on product size)
Air Source Requirement:                               0.4–0.6 Mpa Compressed Air
Power Supply:                                                  110V / 220V 50/60Hz Single Phase
Rated Power:                                                    0.6 KW
Moving Structure:                                           PU Brake Casters + Adjustable Foot Pads
Overall Dimension:                                         L1280 × W600 × H1350 mm
Net Weight:                                                       66 KG

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
