Automatic dual‑head paging labeling machine with vacuum paging feeder. Apply two labels on one product at one pass. For pouches, cards, cartons. ±1mm accuracy, PLC touch control, sample test available.

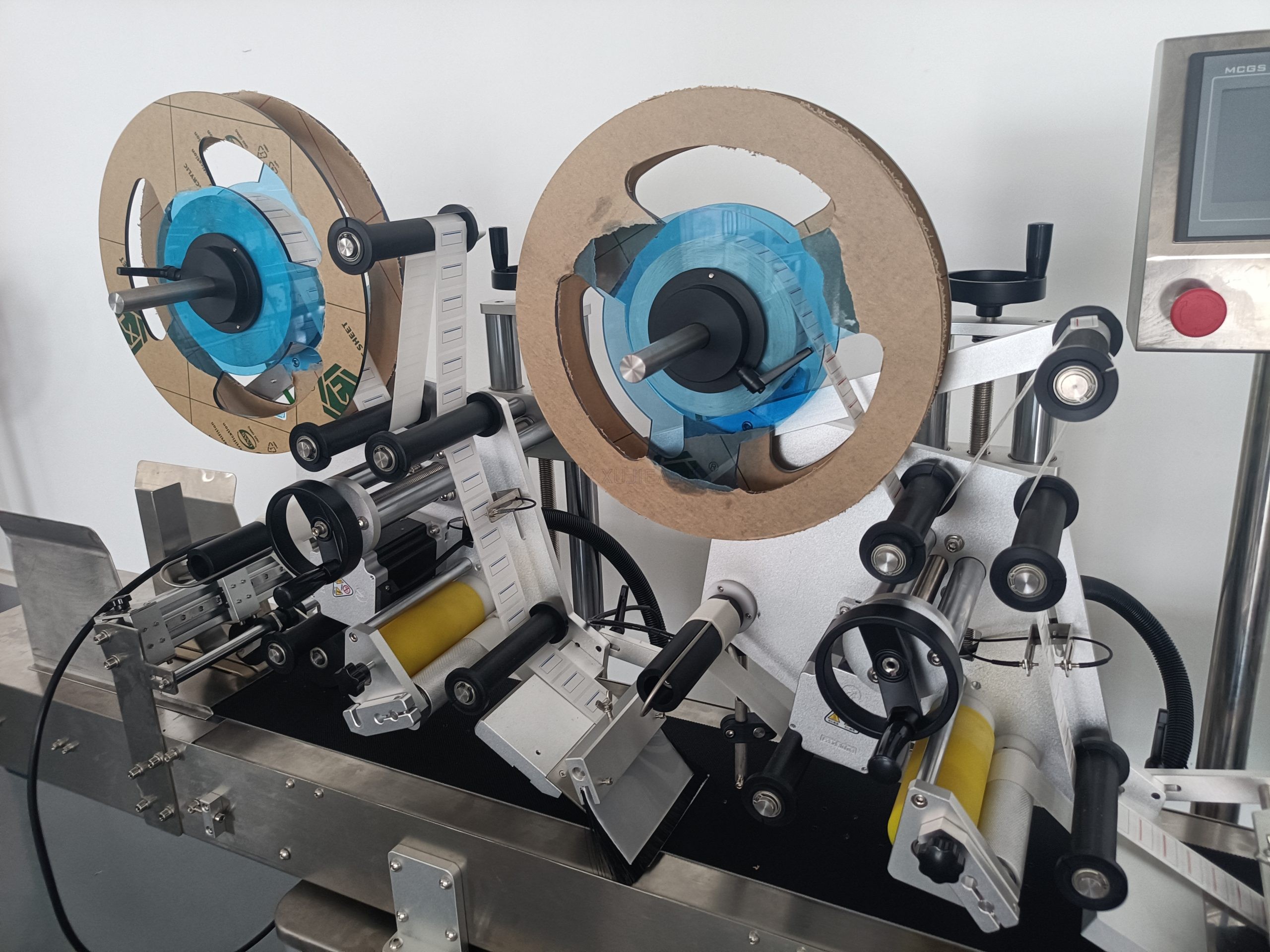

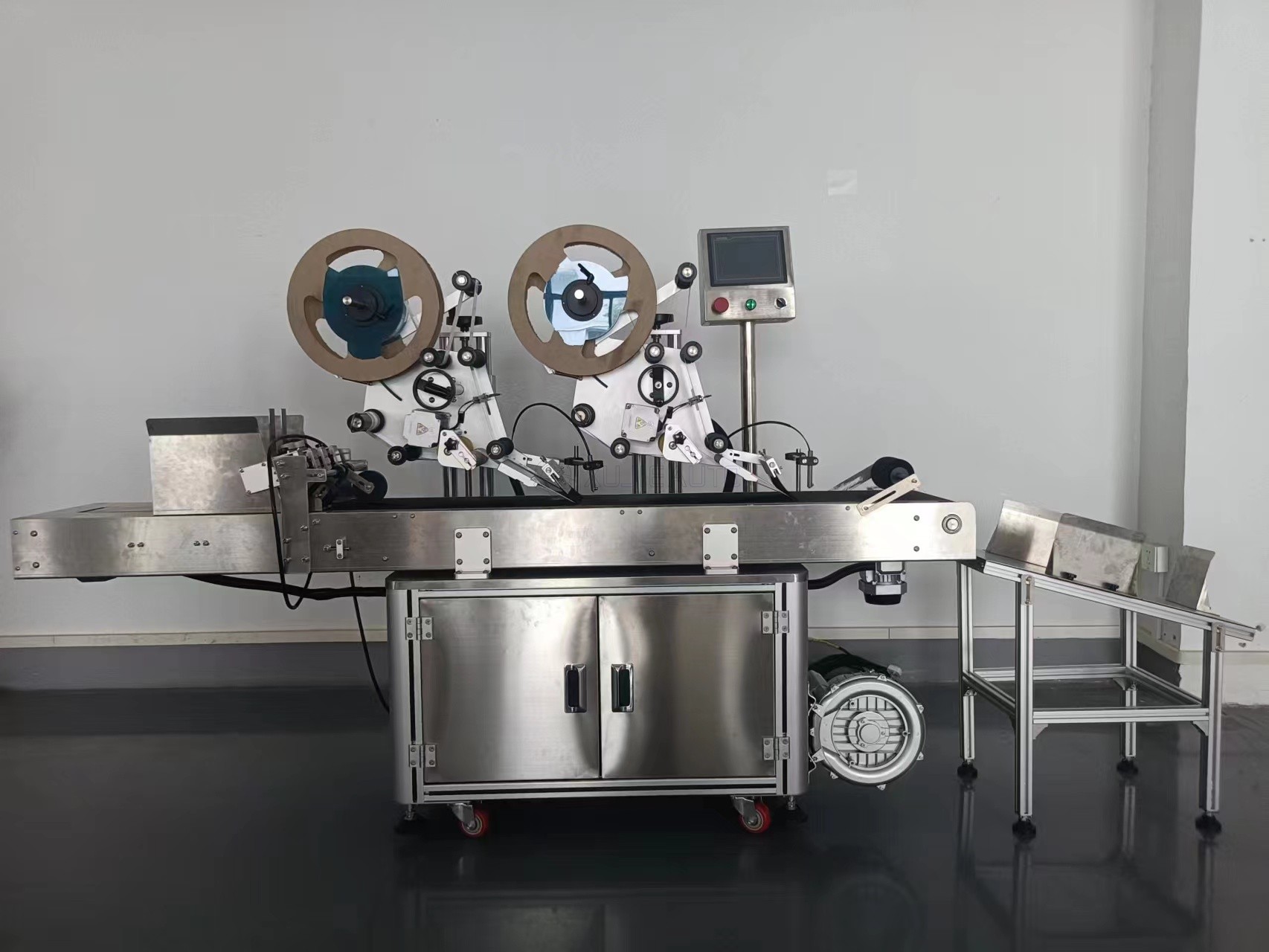

This automatic dual‑head paging labeling machine integrates vacuum suction paging feeder together with two independent labeling heads. It completes paging separation and double‑label application in one single pass for flat items, greatly boosting production throughput compared with single‑head paging labelers.
Equipped with high‑precision photoelectric sensors and PLC touch‑screen control system, the machine separates stacked pouches, paper cards, hang tags and carton sheets stably, avoiding double‑feeding or missing‑feed issues. Two label heads work independently, capable of applying two different stickers onto one side of product simultaneously. Running parameters can be saved as formula for fast product change‑over.
Constructed with SUS304 stainless steel and aluminum alloy frame, this labeling unit can run standalone or connect to existing packaging production lines. It fits food bags, cosmetic sachets, gift cards, instruction sheets, logistics cartons and more industries. Custom adjustment is supported according to your product & label samples, welcome to send samples for pre‑order testing service.
✅ Dual independent labeling heads, apply two different labels in one pass
✅ Vacuum suction paging feeder, stable separation for bags, cards, cartons
✅ PLC + touch‑screen control, parameter storage for quick product switch
✅ High labeling accuracy: ±1 mm (exclude tolerance of product & label)
✅ Photo‑electric detection, alarm for missing label & double‑feeding
✅ SUS304 stainless‑steel frame, anti‑rust, easy to clean & maintain
✅ Support stand‑alone operation or inline connection with production line
✅ Adjustable conveyor & labeling position, fit various flat‑shaped goods
✅ Optional date coder / ink‑jet printer for batch & expiry date printing
✅ Sample testing & after‑sales technical support available
Model： Dual‑Head Paging Labeling Machine
Labeling Speed： 40‑120 pcs/min (depends on product & label size)
Labeling Accuracy： ±1 mm (exclude product & label tolerance)
Applicable Product Size： Width 40‑220 mm; Length 60‑400 mm
Applicable Label Width： 15‑150 mm
Applicable Label Length： 20‑300 mm
Inner Diameter of Label Roll： 76 mm
Max Outer Diameter of Label Roll： ≤300 mm
Feeding Mode： Vacuum suction paging feeding
Control System： PLC + Touch Screen
Power Supply： AC110V / 220V, 50‑60Hz
Rated Power： 1500 W
Machine Dimension(L×W×H)： 2100×850×1450 mm
Net Weight： 320 Kg
Applicable Label： Self‑adhesive sticker label
Optional Device： Date coder, inkjet printer
Packaging:
By container or standard export packing per machine
Delivery Time:
15-30 days after payment received
Q: Are you manufacturer or trading Company?
A: We are manufacturer at Shanghai,China
Q: The machine is automatic or semi-auto?
A: We produce automatic machine & semi-auto machines
Q: Which kinds of machine suit for our products?
A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.
Q: The machine can connect with the product line or not?
A: Machines connect with production line or operation alone all ok as you need .
Q: Whats our payment terms?
A: 50%advance by TT , 50% balance by TT before shipment after customer check well.
Q: How to ensure quality?
A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.
Q: How long is our warranty?
A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.
Q: How to ensure our after-service?
A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
