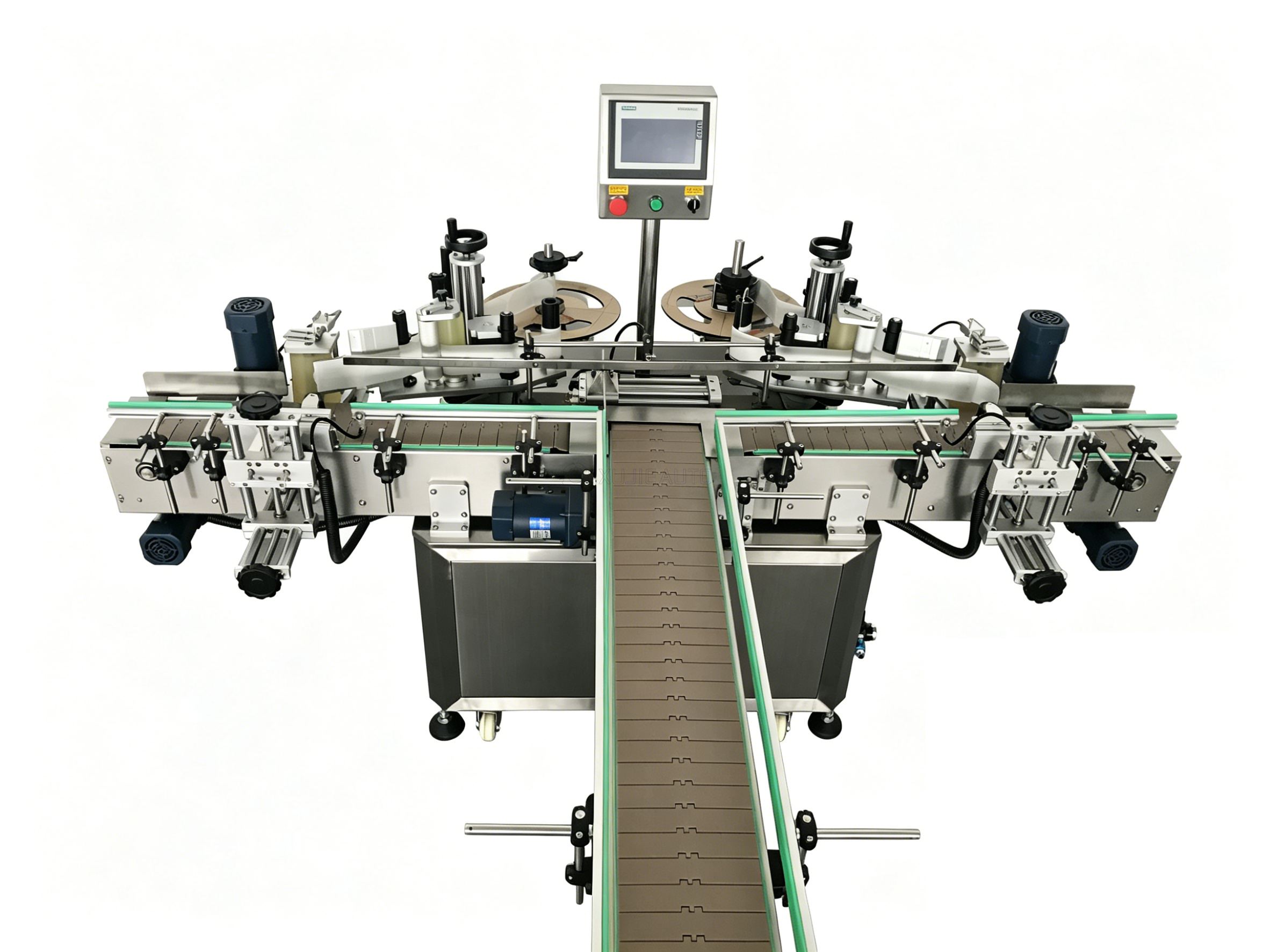

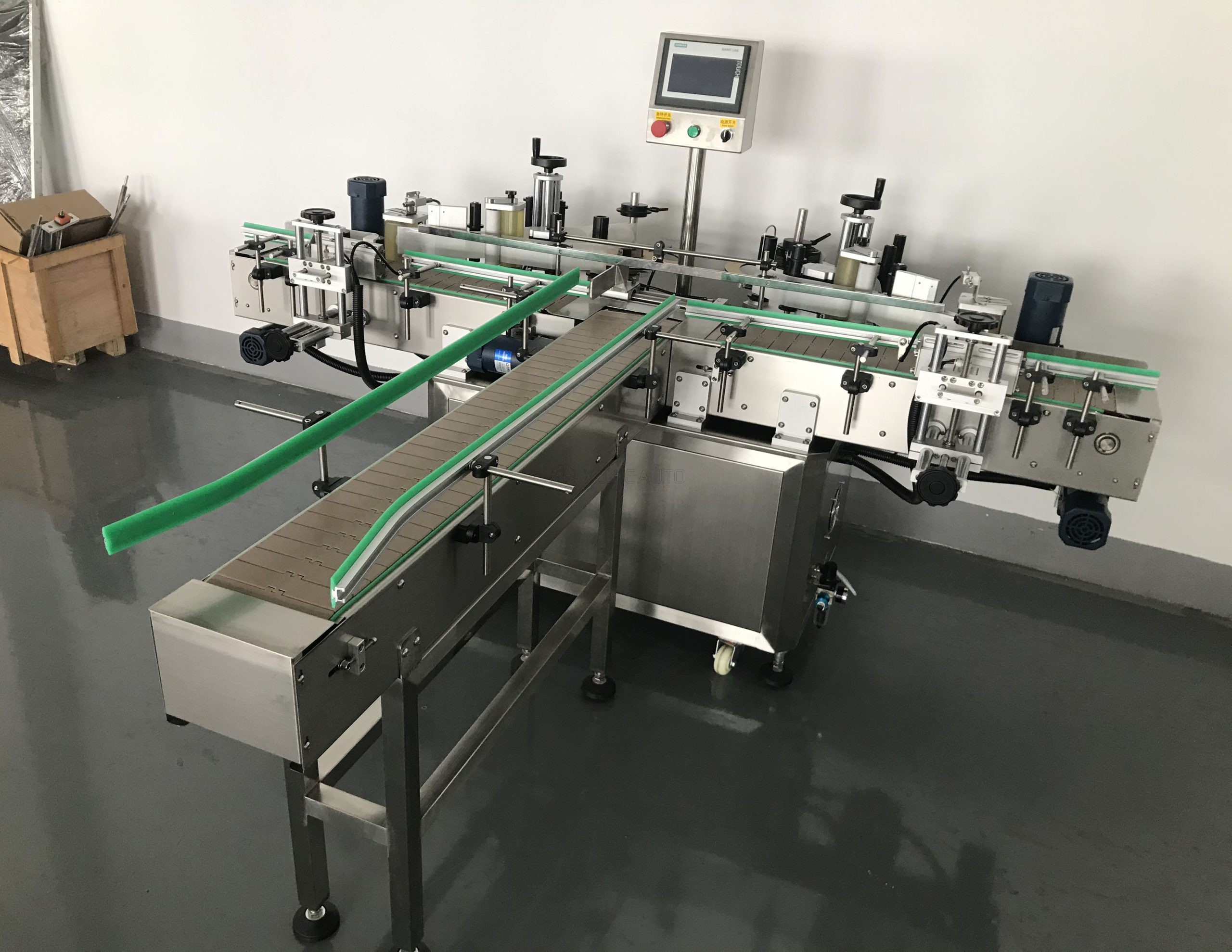

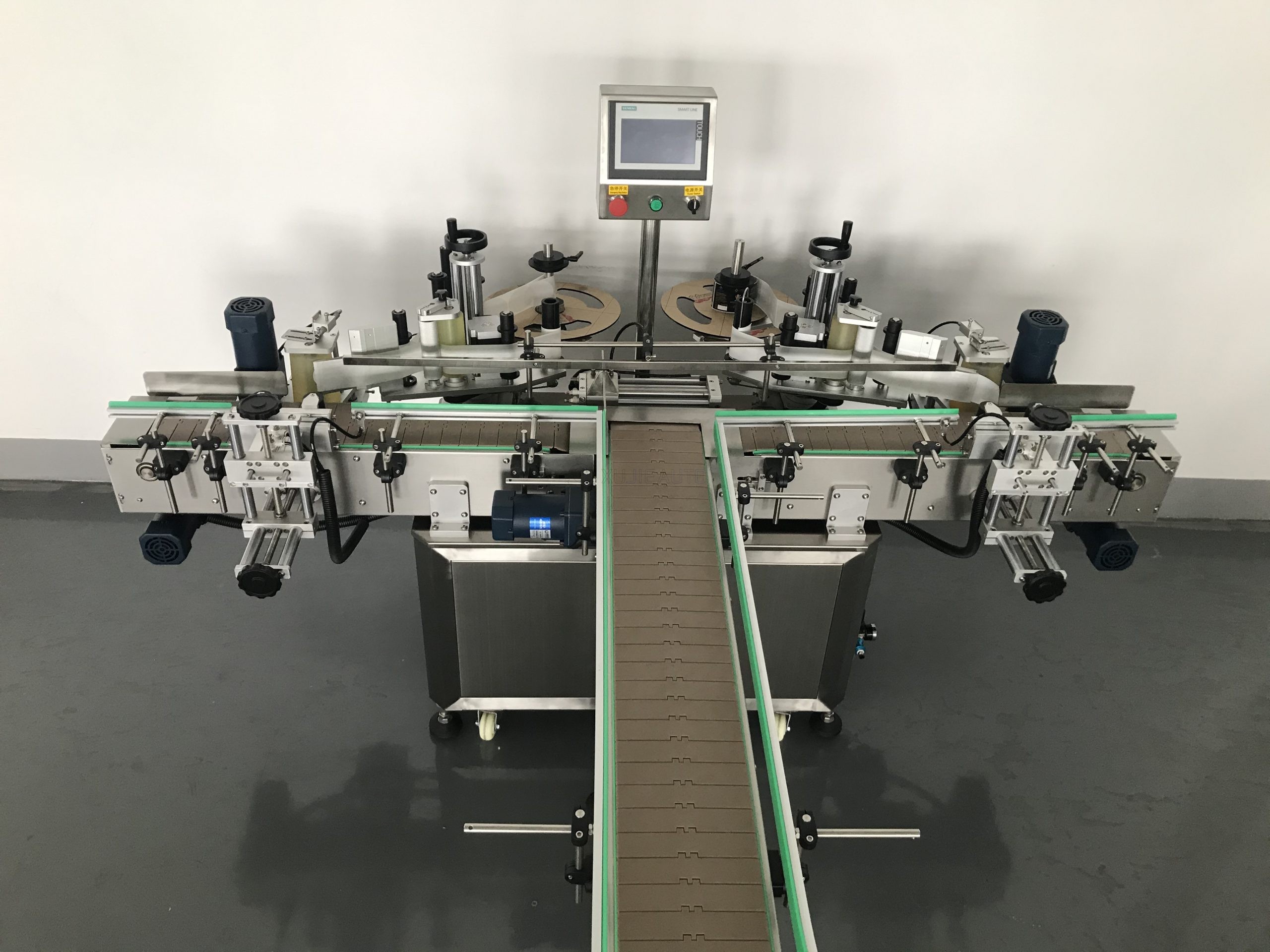

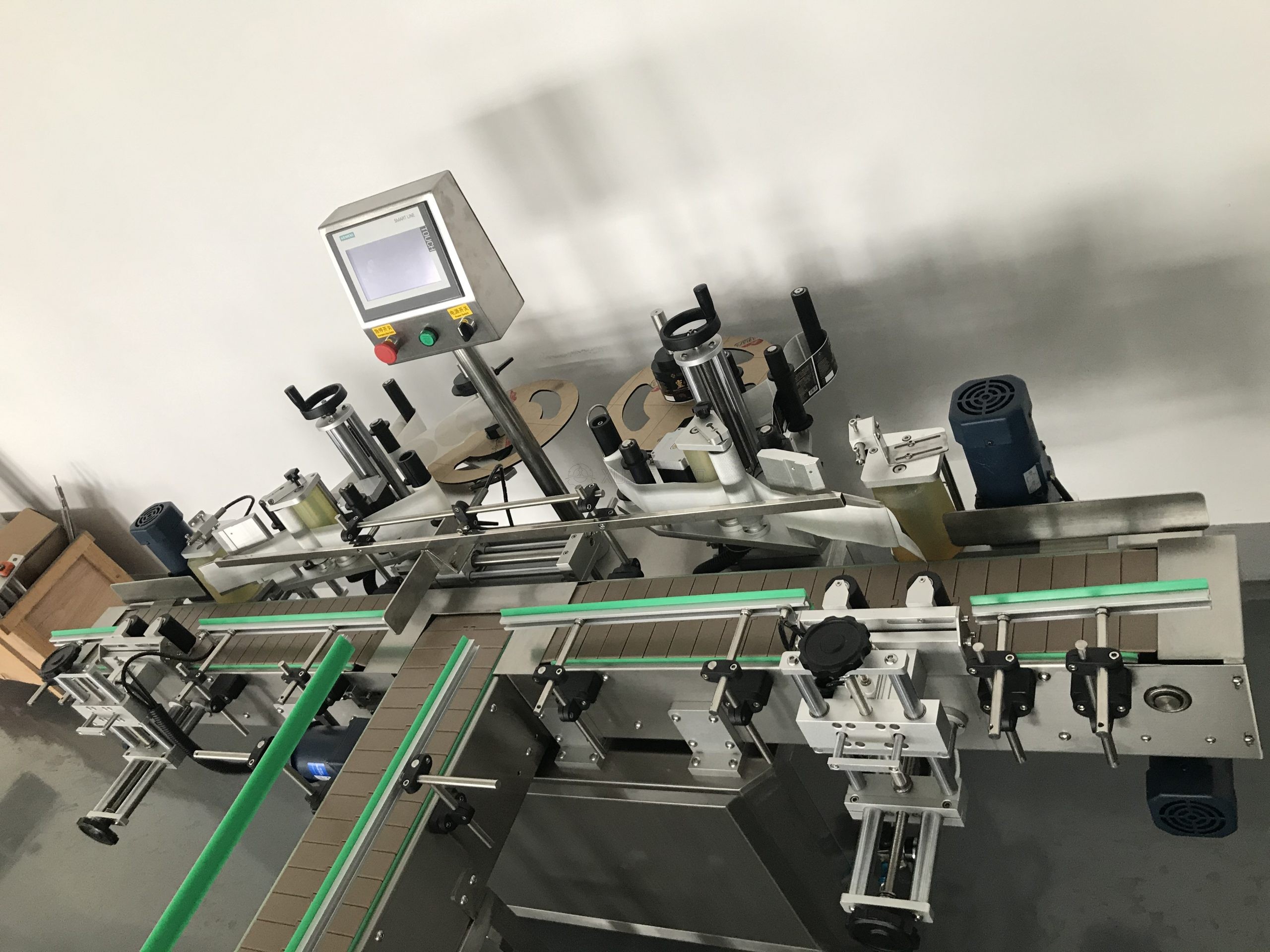

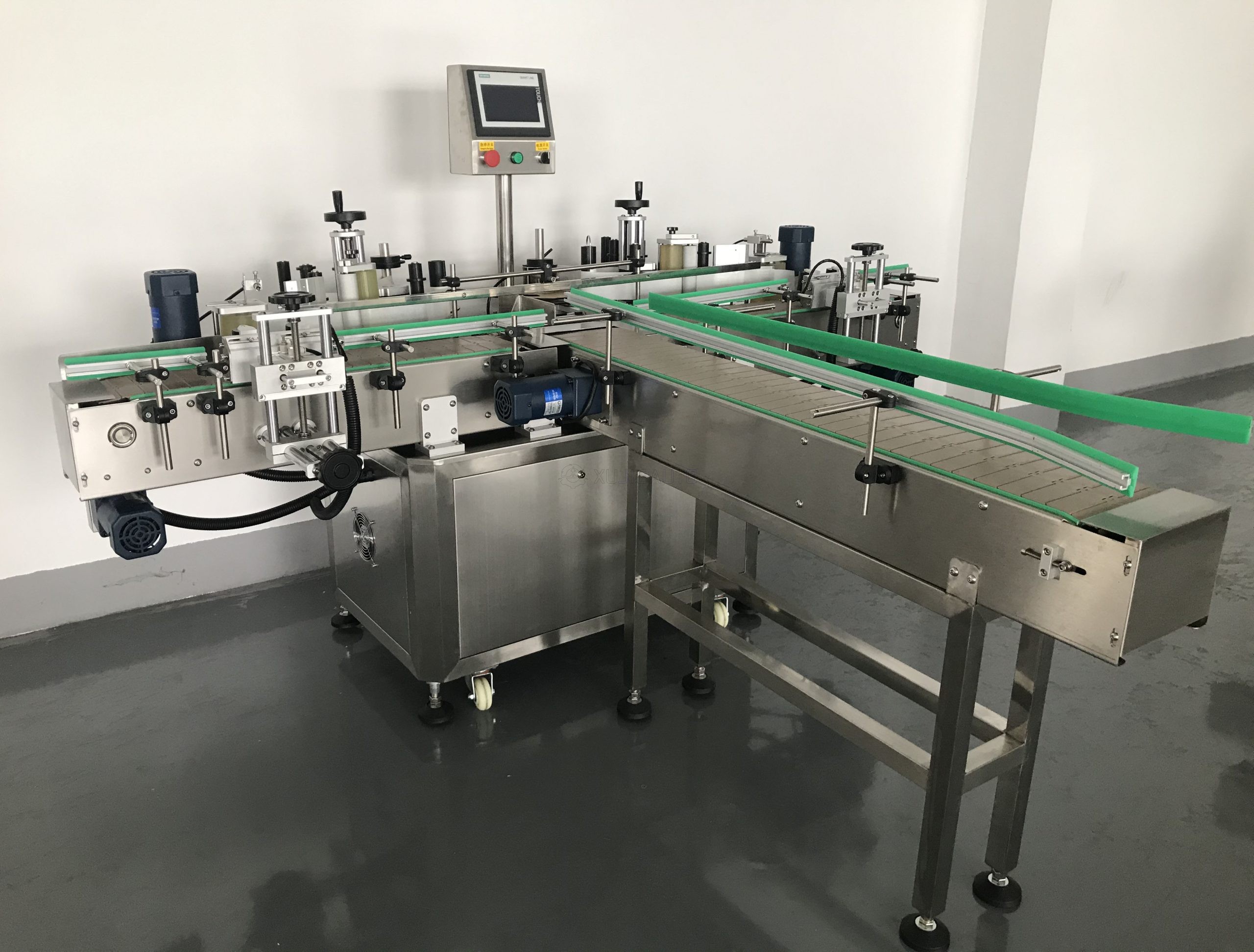

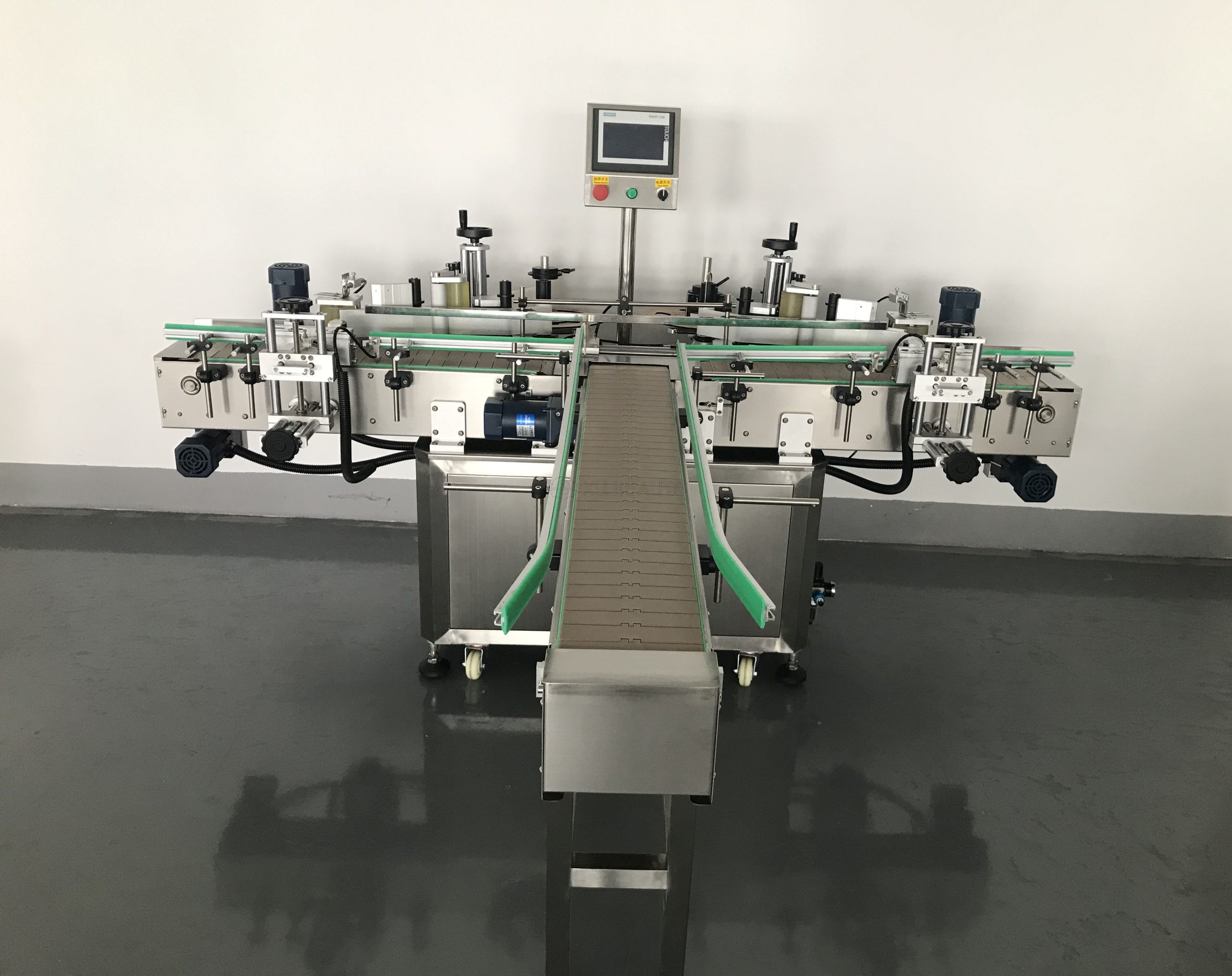

Dual‑station Automatic Round Bottle Labeling Machine Double‑Head Cylindrical Container Label Applicator

This dual‑station round bottle labeling machine is equipped with two independent labeling stations, designed for high‑efficiency labeling of cylindrical containers. It can realize front‑back double‑sided labeling or full wrap‑around labeling on one unit, avoiding purchasing two separate labeling devices and saving workshop space and investment cost.
It is compatible with glass bottles, plastic bottles, metal cans and other round containers. Widely deployed in beverage, cosmetics, pharmaceutical, daily‑chemical and food processing workshops. Adopted PLC and photoelectric sensing system, the machine automatically detects bottle arrival and triggers labeling action, lowering missing‑label and mis‑label risk during continuous high‑speed operation.
Each labeling head supports independent parameter adjustment. Multiple sets of product recipes can be saved on touch‑screen panel for fast product change‑over. Constructed with SUS304 stainless steel and high‑strength aluminum alloy, it meets industrial hygiene requirements. The machine can run standalone or seamlessly connect with filling, capping and coding equipment to build full‑auto packaging production lines. Custom brackets and positioning assemblies are available for special bottle specifications.

1. Dual independent labeling stations, support front‑back double‑sided labeling and full wrap‑around labeling
2. PLC + photoelectric sensor control, automatic bottle detection, reduce mis‑labeling and missing‑label faults
3. Two labeling heads can be adjusted separately, flexible for different label sizes and label spacing requirements
4. Touch‑screen HMI, store multiple product parameter presets, quick switch among various bottle types
5. 304 stainless‑steel frame, corrosion‑resistant, suitable for long‑time non‑stop industrial production
6. Work standalone or integrate with filling/capping/coding machines for complete automated line
7. Stable servo‑driven output, smooth label attaching without bubbles or wrinkles
8. Optional peripheral parts: date coder, bottle positioning fixture, conveyor extension for customized demands

Machine Name：                       Dual‑station Automatic Round Bottle Labeling Machine
Labeling Precision：                 ±1 mm (exclude bottle & label tolerance)
Working Speed：                       30‑100 pcs/min (subject to bottle and label dimension)
Applicable Bottle Diameter：  25‑120 mm
Applicable Bottle Height：       50‑320 mm
Applicable Label Width：         15‑160 mm
Applicable Label Length：        20‑285 mm
Power Supply：                           AC220V 50‑60Hz
Material：                                     SUS304 Stainless Steel + Aluminum Alloy
Working Mode：                         Front‑back double‑sided / full wrap‑around labeling
Machine Weight：                       260 KG

Packaging:

By container or standard export packing per machine

Delivery Time:

15-30 days after payment received

Q: Are you manufacturer or trading Company?

A: We are manufacturer at Shanghai,China

Q: The machine is automatic or semi-auto?

A: We produce automatic machine & semi-auto machines

Q: Which kinds of machine suit for our products?

A: Pls supply your products all information ( product pictures and sizes, caper,label on it is rather helpful), then we will recommend the suitable machine for ref again.

Q: The machine can connect with the product line or not?

A: Machines connect with production line or operation alone all ok as you need .

Q: Whats our payment terms?

A: 50%advance by TT , 50% balance by TT before shipment after customer check well.

Q: How to ensure quality?

A: We will be responsible for any error, trouble and damage which cause of machine’s design, craftwork, manufacturing, installation, commissioning within warranty period.

Q: How long is our warranty?

A: Normally Other company provide one year maintenance,after warranty period, we still supply lifelong technical support and after-service. We will provide spare part which lost or damage because of us and in-time service.

Q: How to ensure our after-service?

A: If any request for after-service, customer can call our sales or send email , we will online at 24h at working days,we will ensure you prompt and serious reply at the first time.
